Product Description

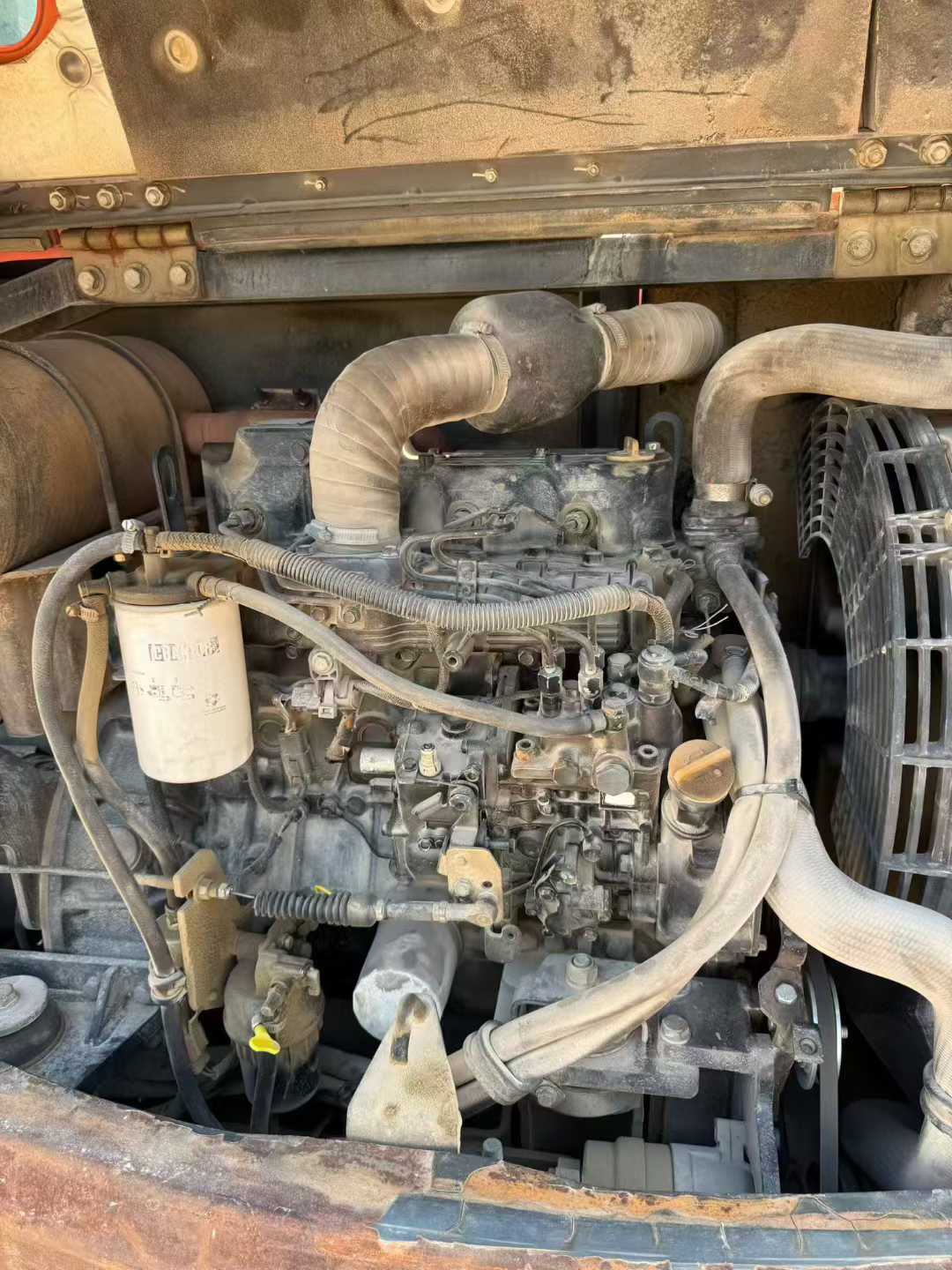

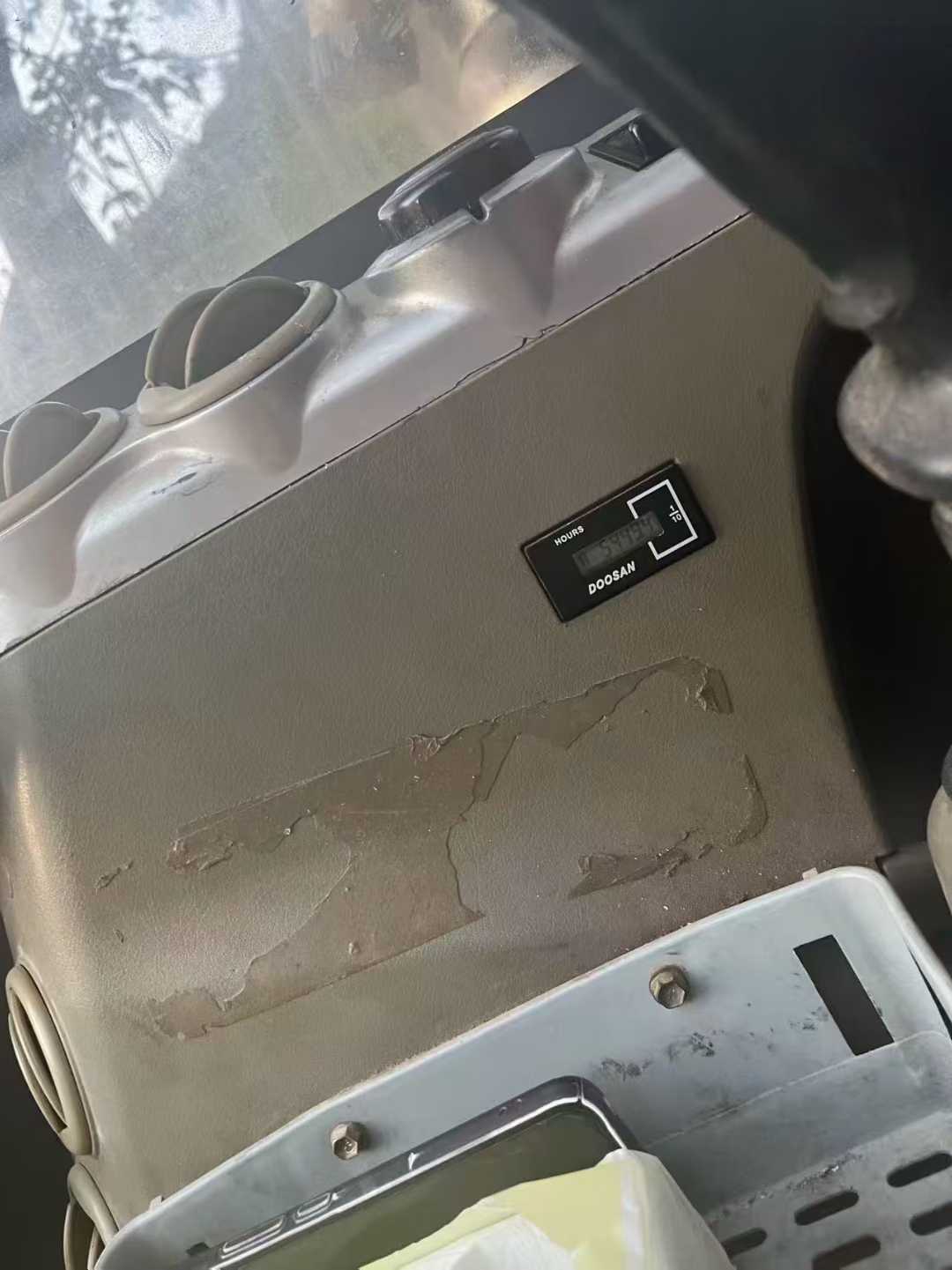

Detailed Description of Doosan 55-9Cva Second-hand Excavator This second-hand Doosan 55-9Cva excavator purchased in 2020 has a cumulative working time of only 1,800 hours so far. The overall condition of the vehicle is excellent, with proper maintenance and almost no signs of wear and tear. As a small excavator with a high reputation in the market, it not only has outstanding performance, but also features excellent operational flexibility and high working efficiency. In terms of the power system, this aircraft is equipped with a high-performance Yanmar 4TNV98 engine, with a rated power of 43.5kW at 2200rpm. It is powerful, stable and reliable. It can maintain efficient operation even under harsh working conditions, ensuring that the construction progress is not affected. Meanwhile, the low-noise design makes the operating environment more comfortable and quiet, meeting modern environmental protection requirements. The hydraulic system is a major highlight of this excavator. It adopts an advanced negative flow control system, which can achieve precise and rapid response, improving operation efficiency while effectively reducing fuel consumption. Whether it's complex tasks such as digging, loading or crushing, they can all be handled
| Specifications | Value |
|---|---|
| No. | 972400 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Bucket capacity (m³) | 0.18-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2 / 2100 |
| Cylinder diameter × stroke (mm) | 94 *110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 40.2 |
| Rod digging force (kN) | 24.5 |
| Travel speed (km/h) | 4.3/2.4 |
| Maximum flow of main pump (l/min) | 2*57.8 |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 85 X 55 X 600 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 X 55 X 883 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 X 60 X 719 |
| Fuel Tank (L) | 115 |
| Hydraulic Tank (L) | 62 |
| Total transport length (mm) | 5850 |
| Total transport height (mm) | 1930 |
| Counterweight ground clearance (mm) | 685 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 380 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6135 |
| Maximum digging depth (mm) | 3800 |
| Maximum excavation height (mm) | 5795 |
| Maximum unloading height (mm) | 4110 |
| Maximum vertical digging depth (mm) | 3125 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3800 |
