| Specifications | Value |
|---|---|
| No. | 966331 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
Description

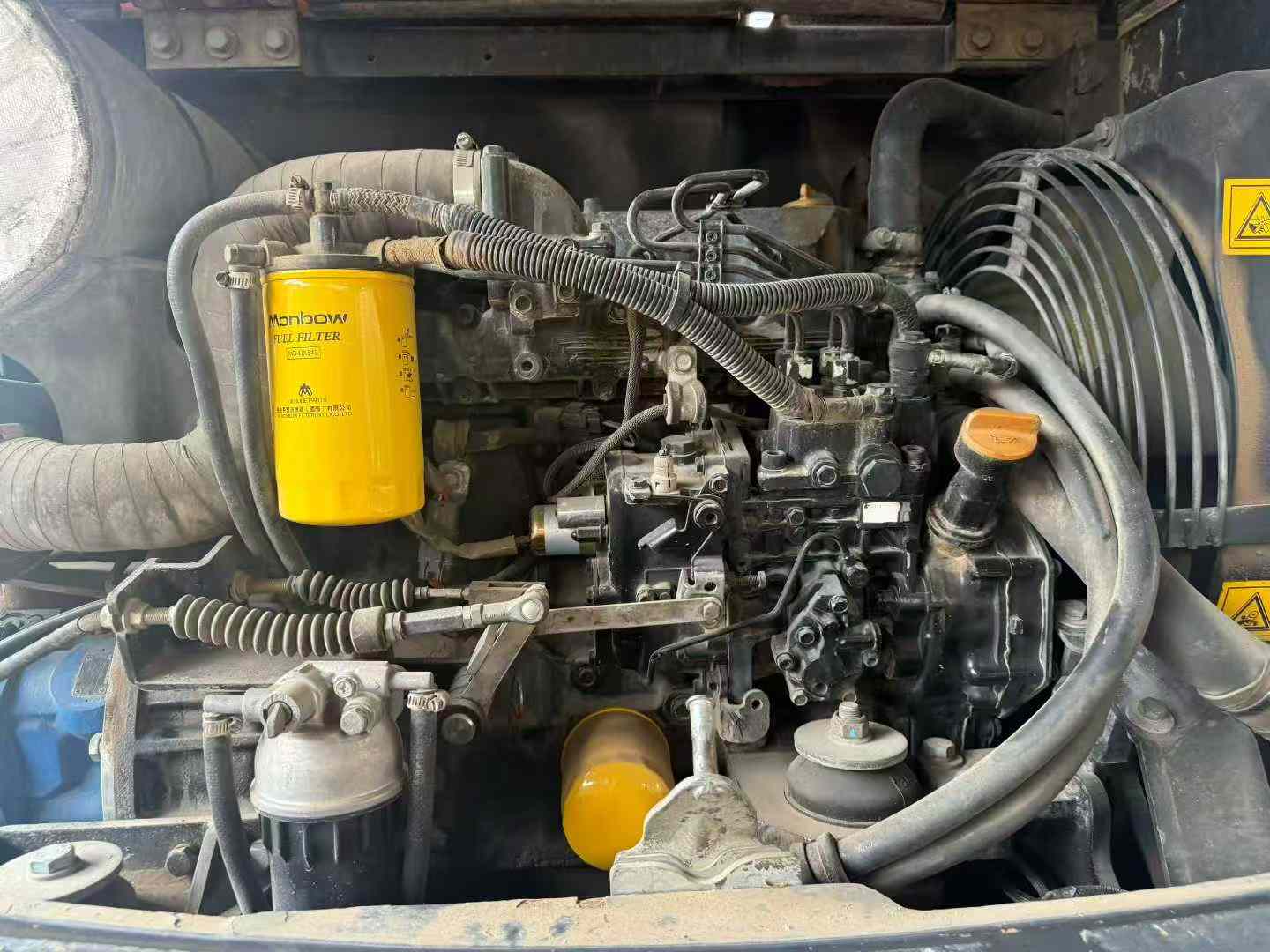

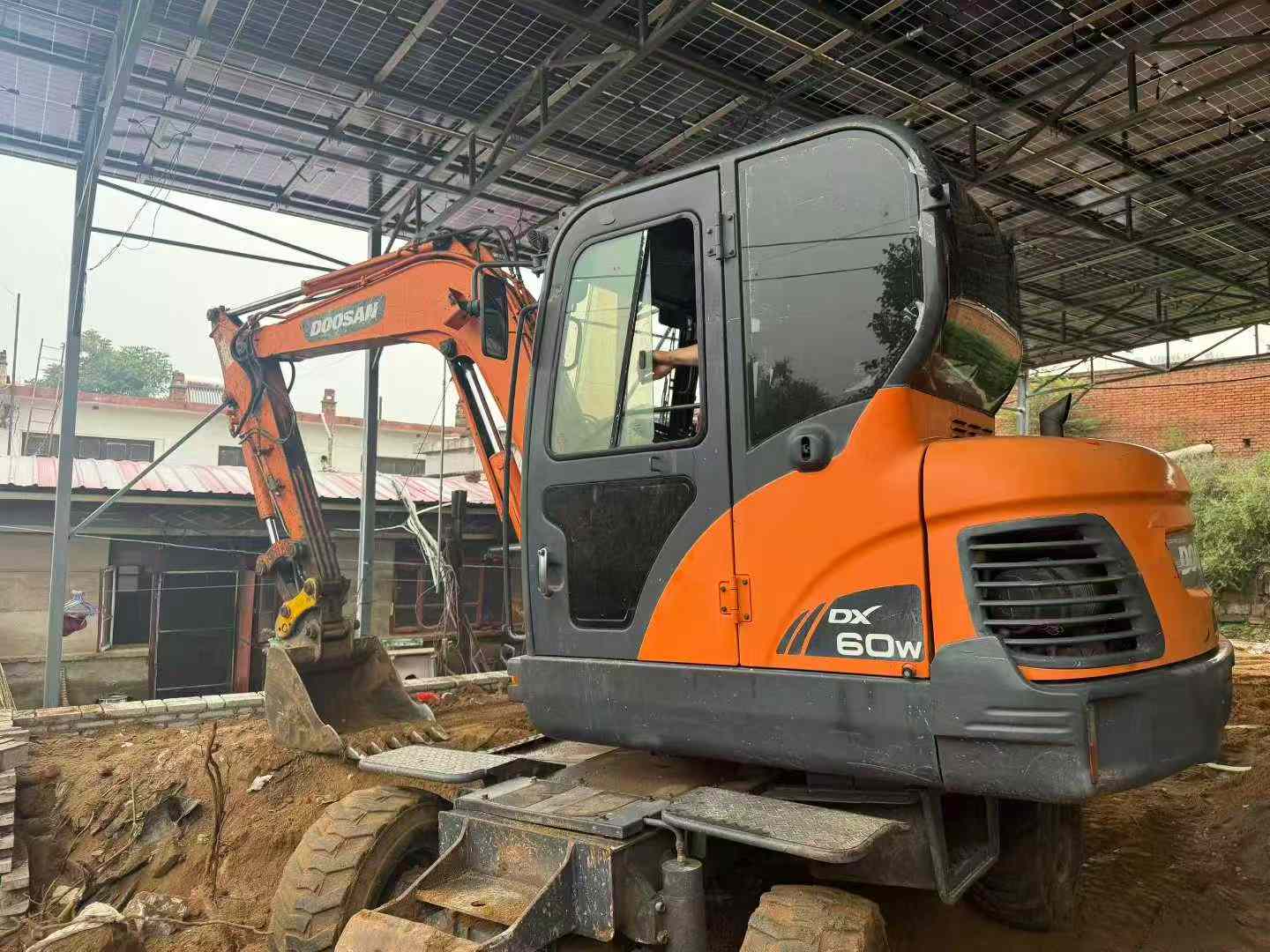

【 Premium Recommendation 】 Doosan 60 Wheel Excavator of 2014, this is a second-hand construction machinery that has received high praise in the market. Since its manufacture, this device has accumulated a working time of only 3,500 hours, which is far lower than the average usage time of similar devices. This means that it still has a long service life waiting for you to explore. This Doosan 60-wheel excavator is equipped with an efficient and reliable diesel engine as the core of its power system, which not only provides strong power output but also ensures stable operation under various complex working conditions. Meanwhile, thanks to advanced fuel injection technology and the optimized combustion chamber design, the overall fuel consumption of the machine is lower, making it more energy-efficient and environmentally friendly. After meticulous maintenance and upkeep by a professional team, the engine is currently in good condition with no abnormal noises or oil leakage. In terms of the hydraulic system, this excavator is equipped with high-performance variable piston pumps and proportional control valve groups, which can achieve precise and rapid operation responses. It can handle operations such as excavation, loading, and crushin
