| Specifications | Value |
|---|---|
| No. | 967501 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
Description

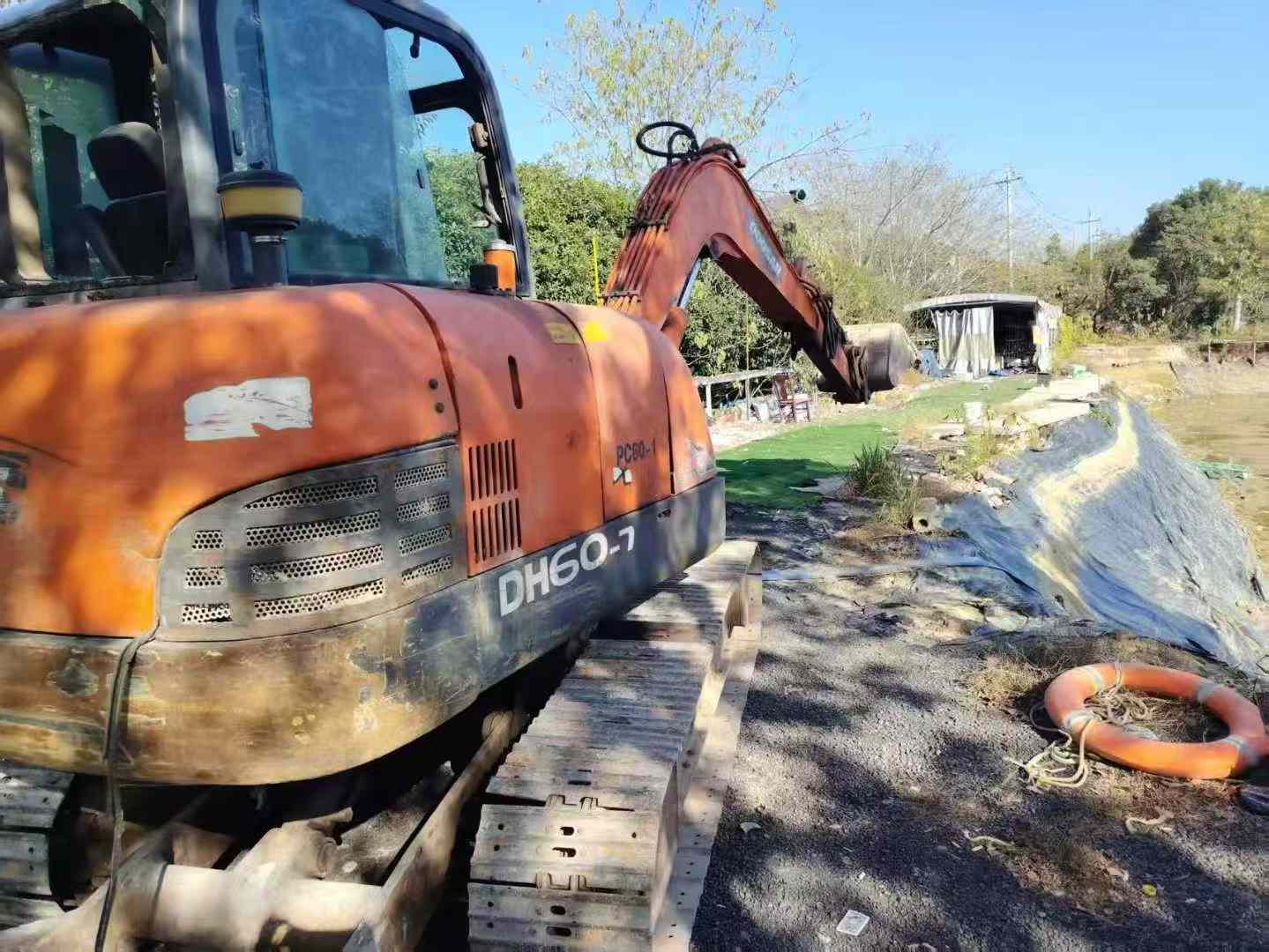

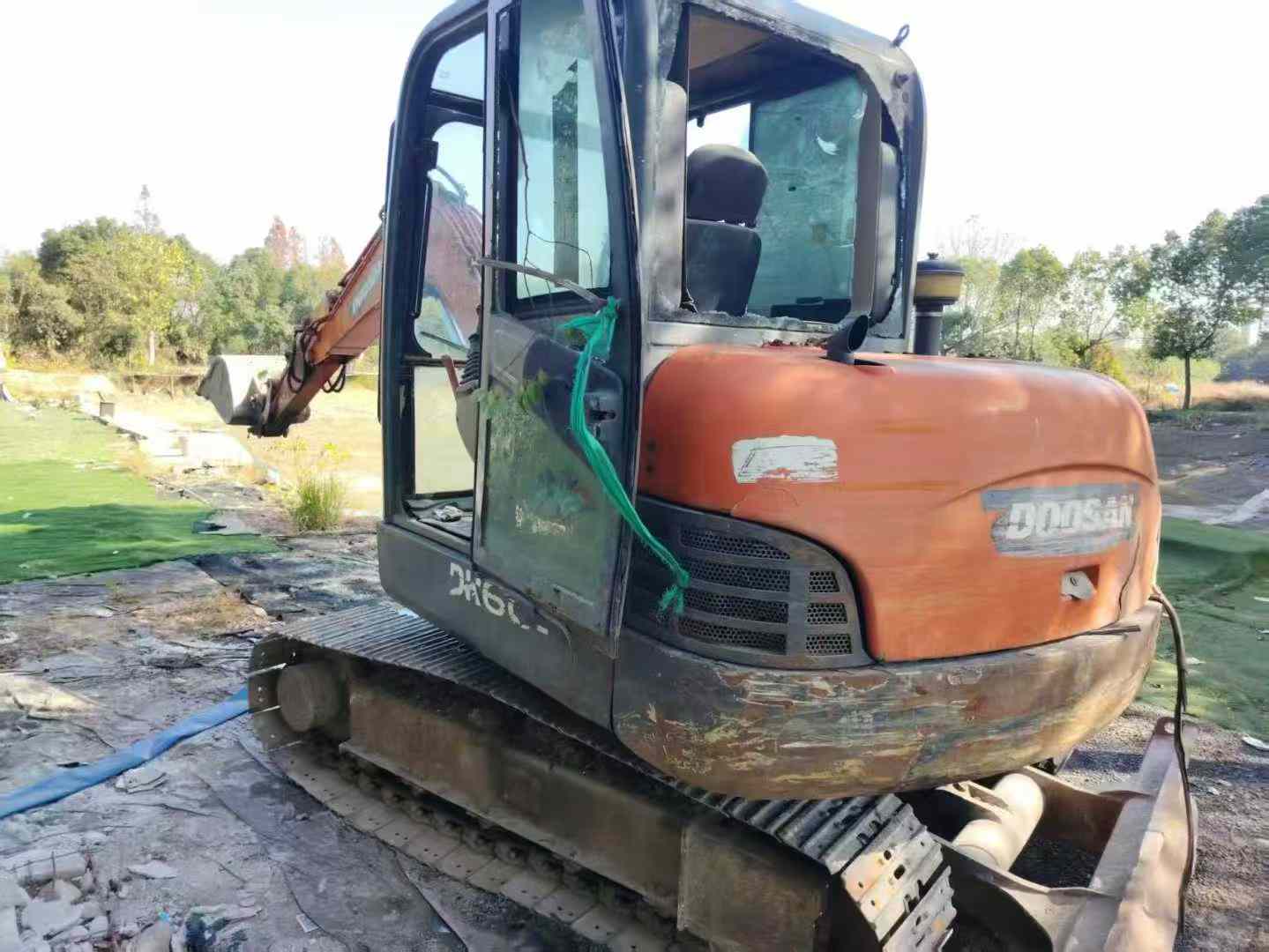

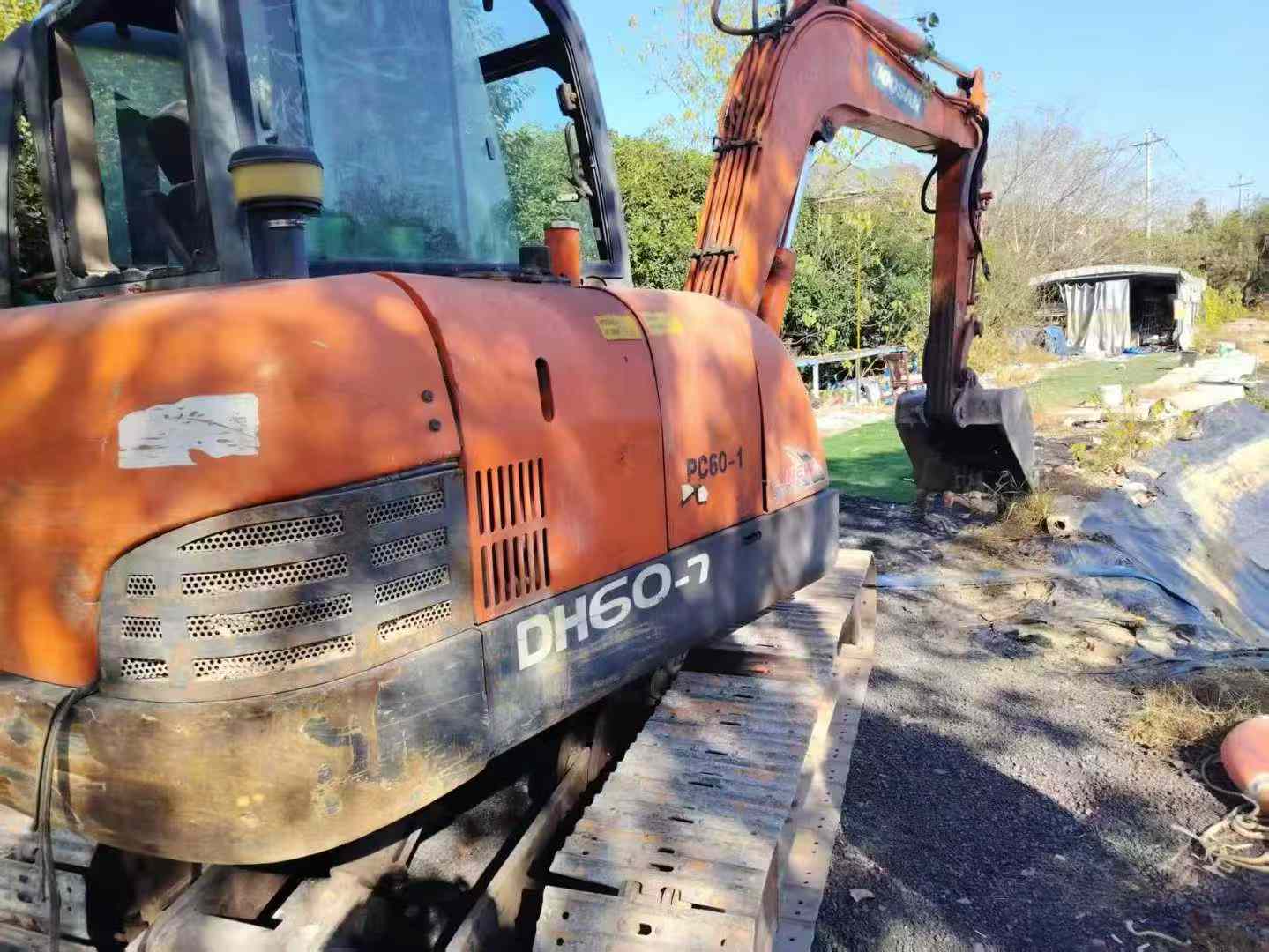

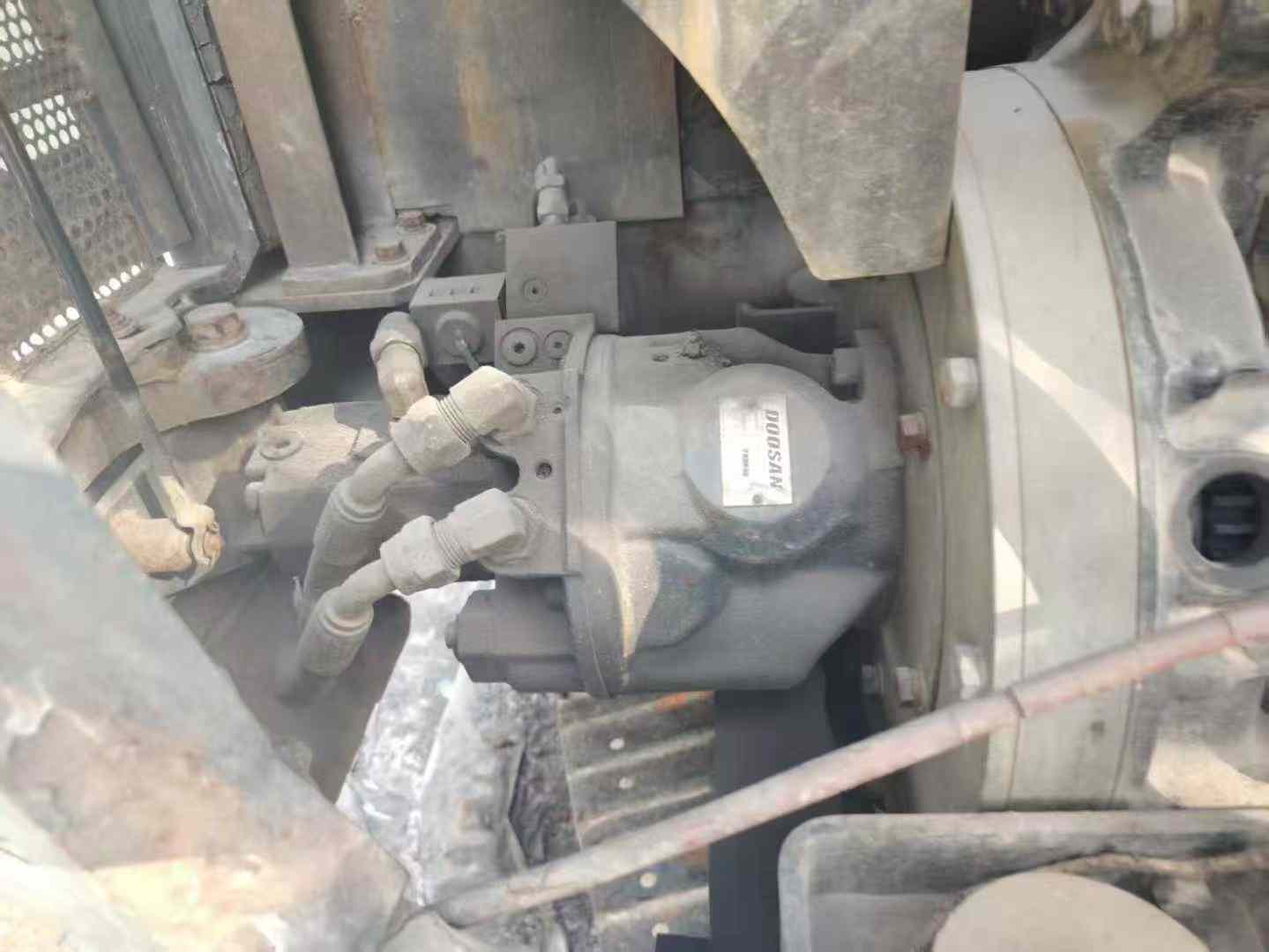

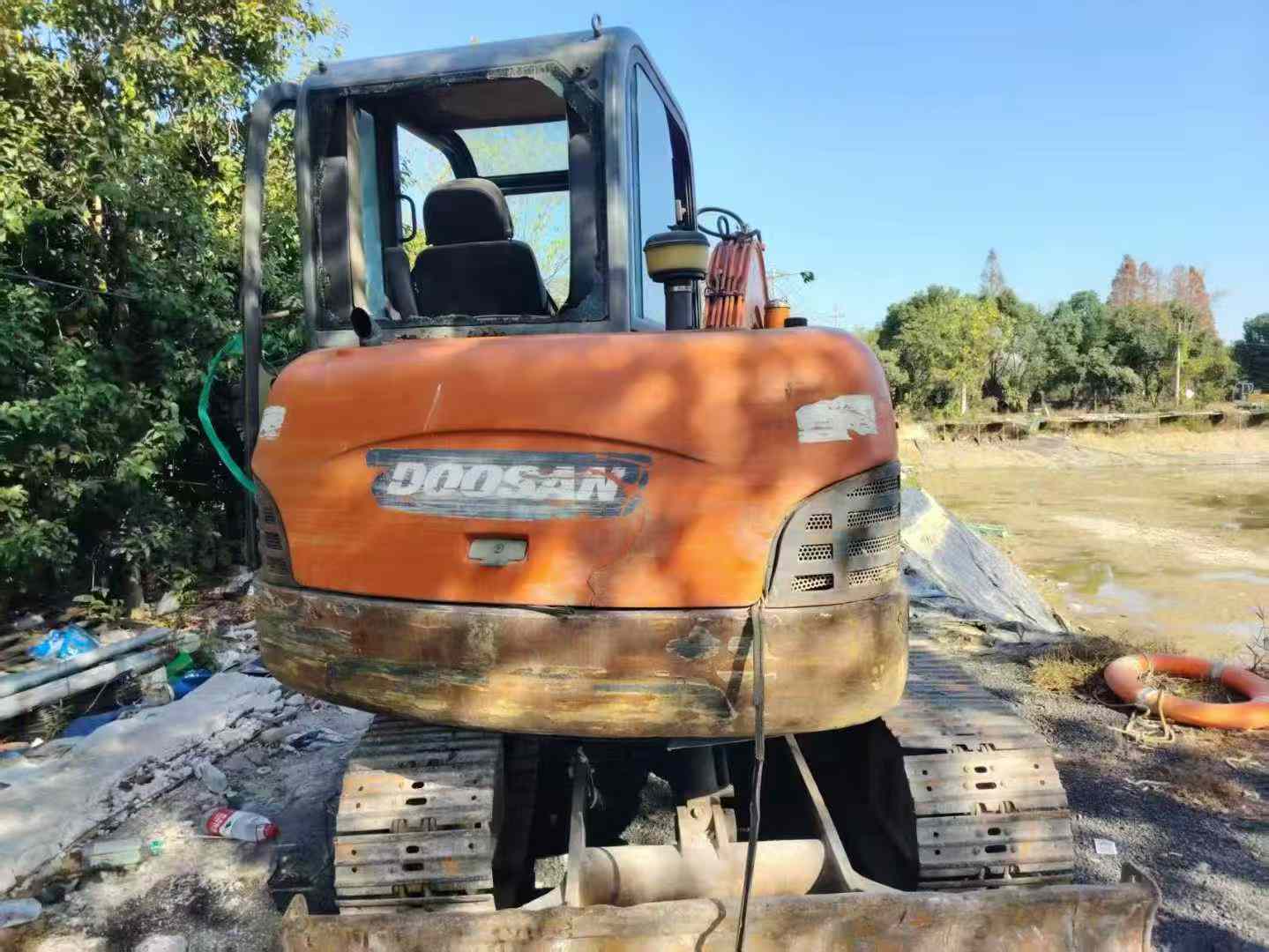

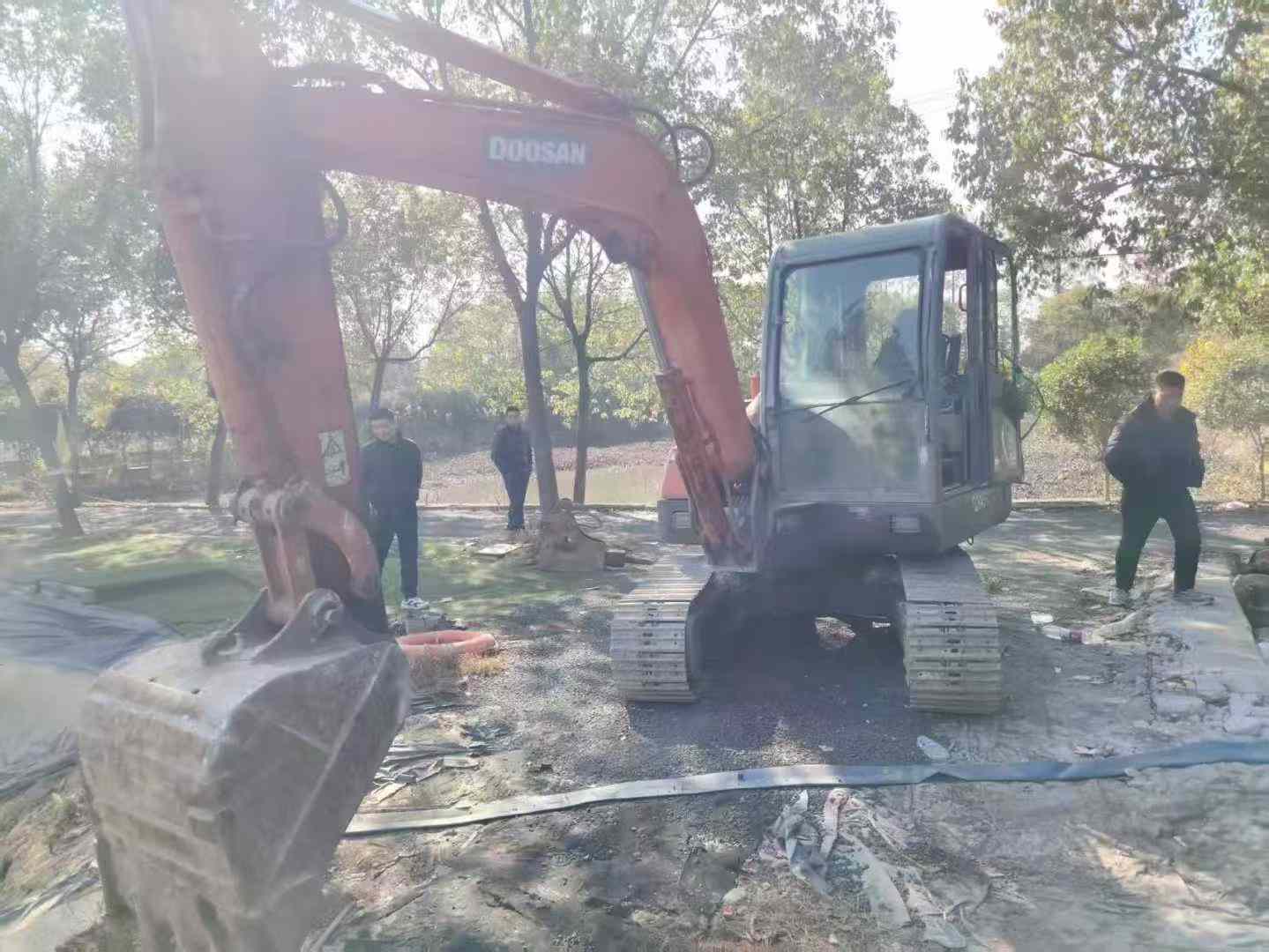

【 Doosan 60-7 Second-hand Excavator This second-hand Doosan 60-7 excavator offers you an outstanding cost-performance ratio at a price of just over 20,000. Since its first use, it has been running stably for about 3,000 hours and still maintains a good working condition. This model is equipped with the well-tested Yanmar 4TNV98-Z engine, which is powerful and has high fuel economy. It can maintain efficient operation even under harsh working conditions. Its unique EPOS (Electronic Power Optimization System) can automatically adjust the matching relationship between the engine speed and the hydraulic pump flow according to the operation requirements, thereby achieving the best performance output while reducing fuel consumption. In addition, this excavator is equipped with an advanced hydraulic control system to ensure smooth and precise operation. Both the main pump and the control valve are high-quality imported components, which not only respond quickly but also have strong durability, effectively reducing maintenance costs. The spacious and comfortable cab design fully takes into account the comfort of the driver during long working hours, and is equipped with humanized facilities such as air conditioners and radios, making every c
