Product Description

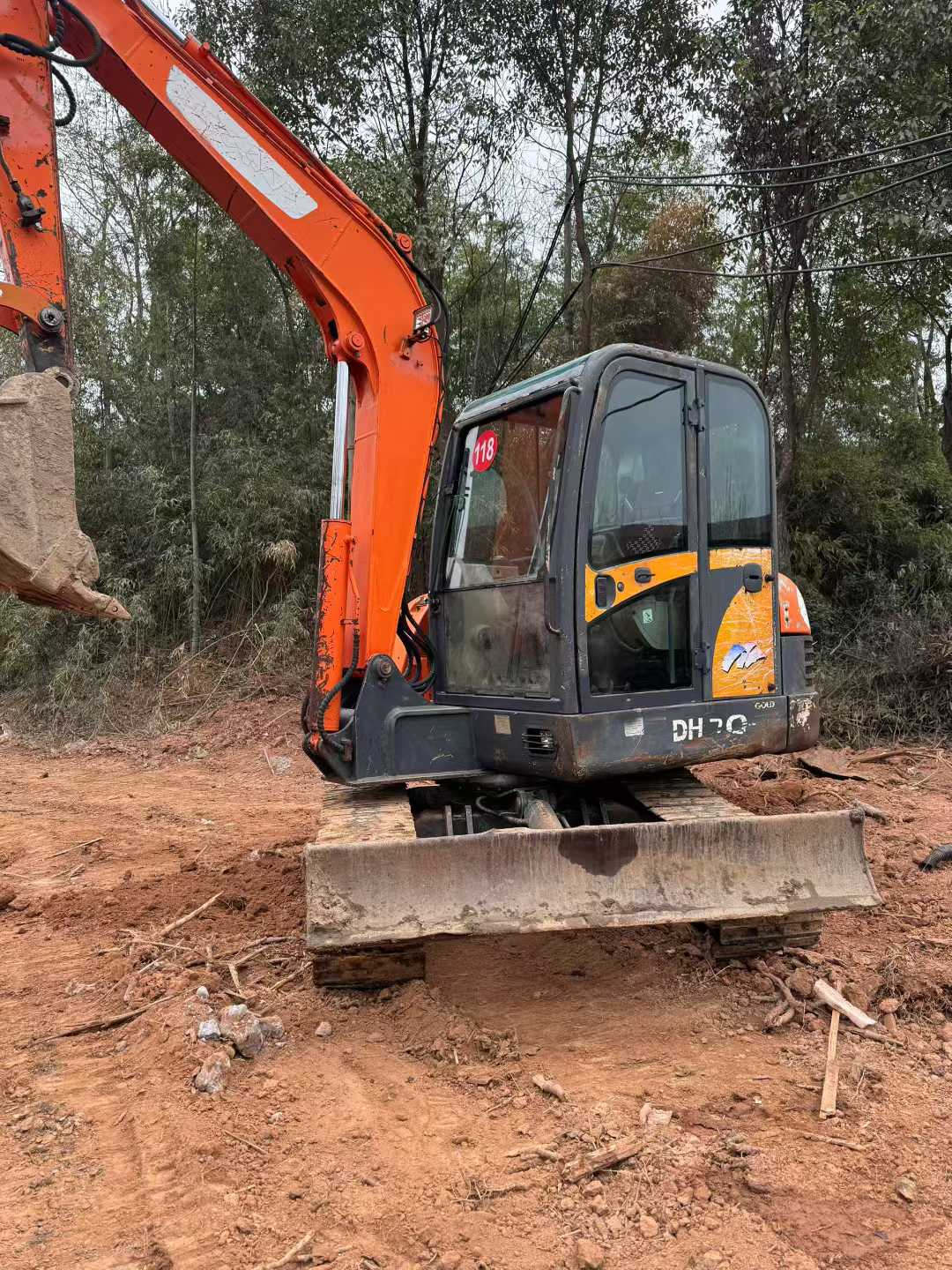

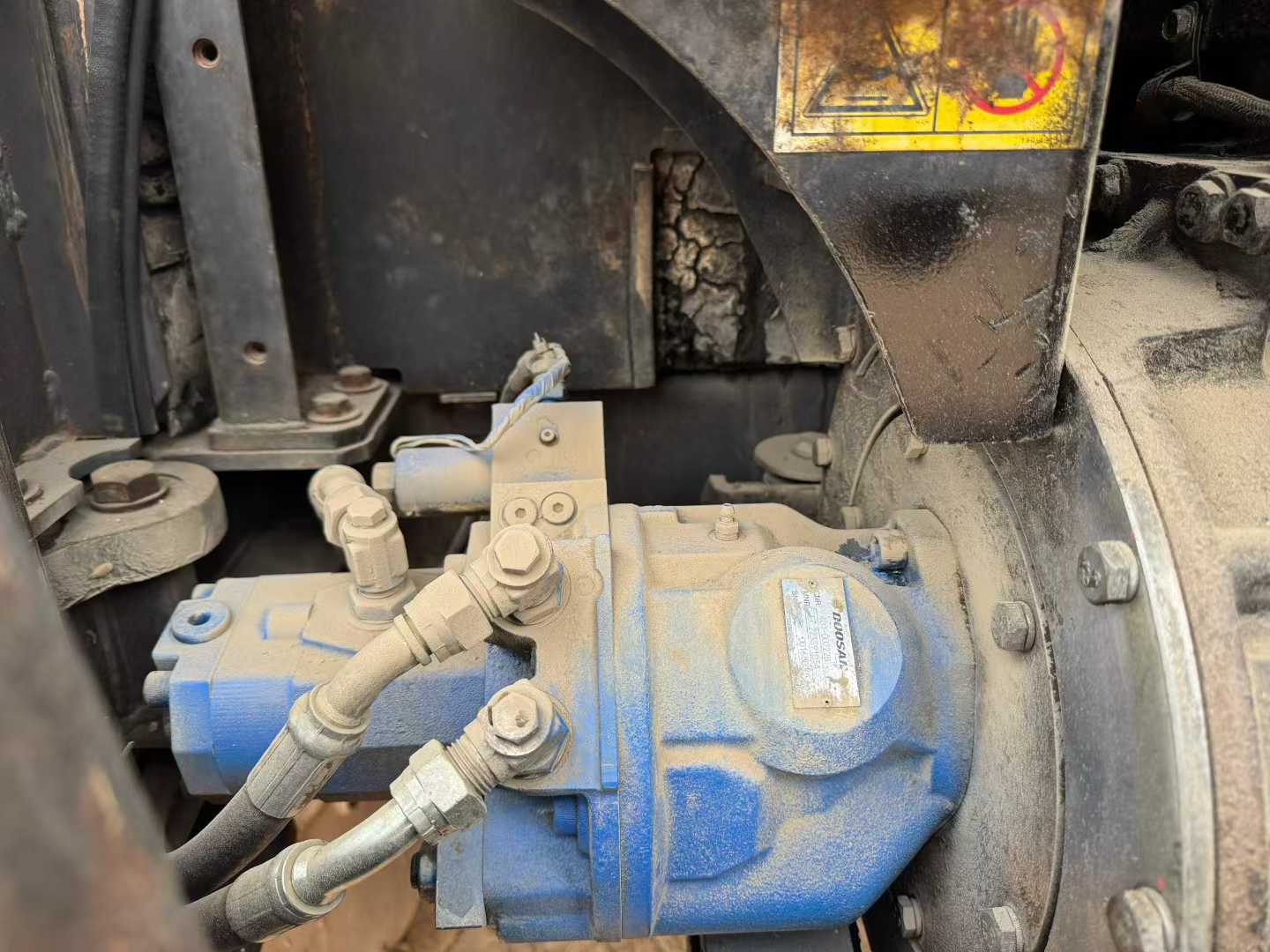

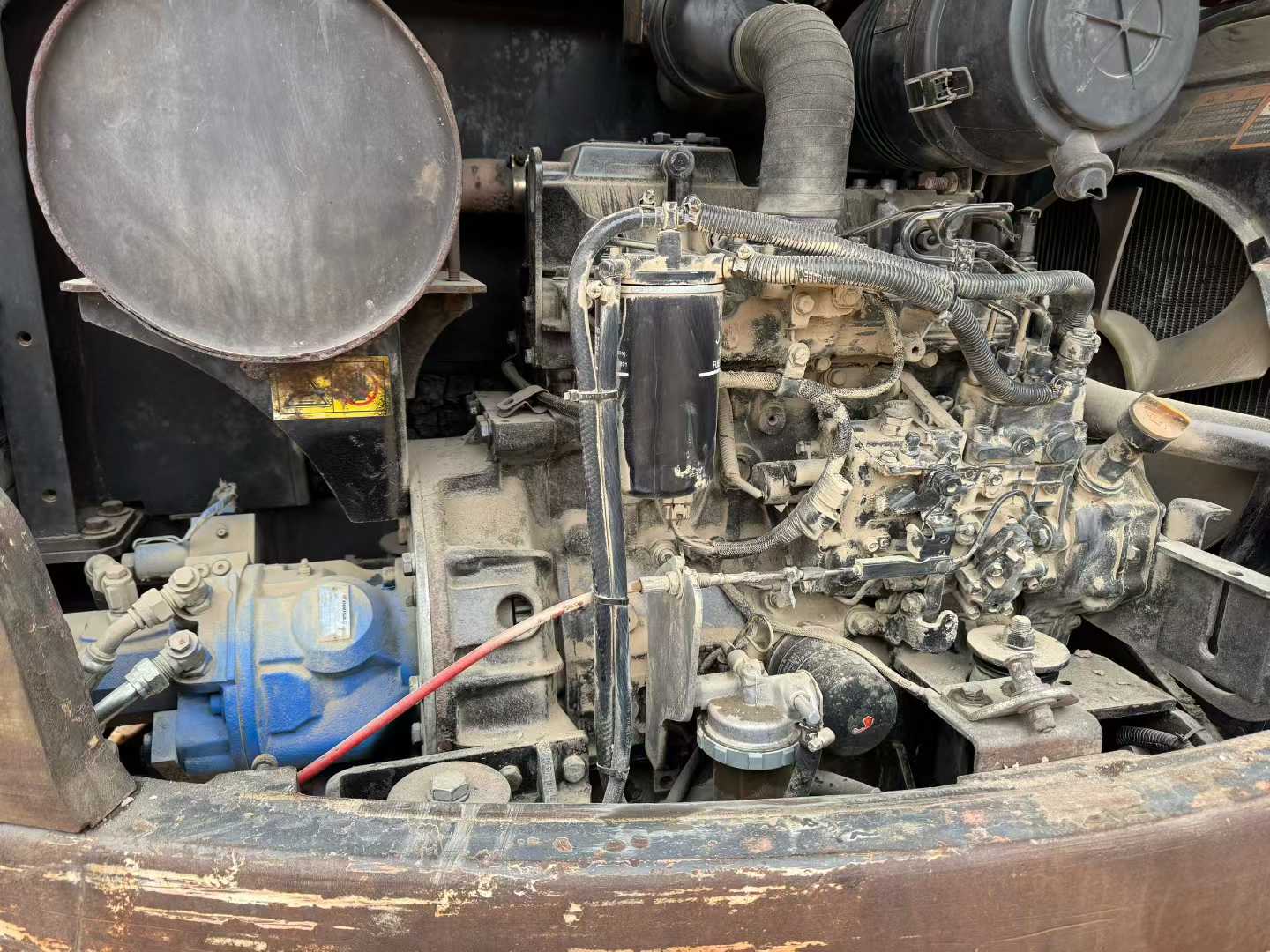

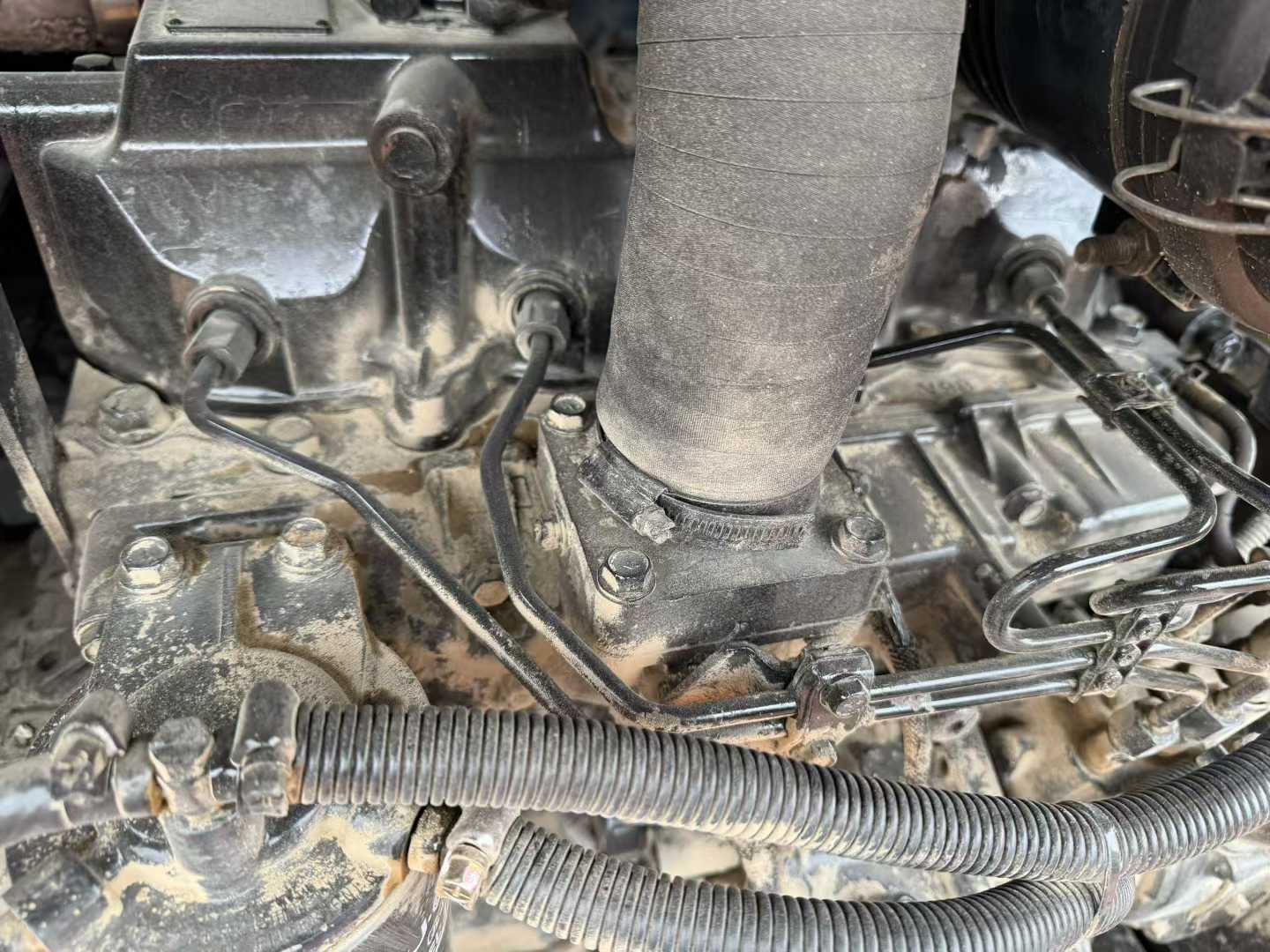

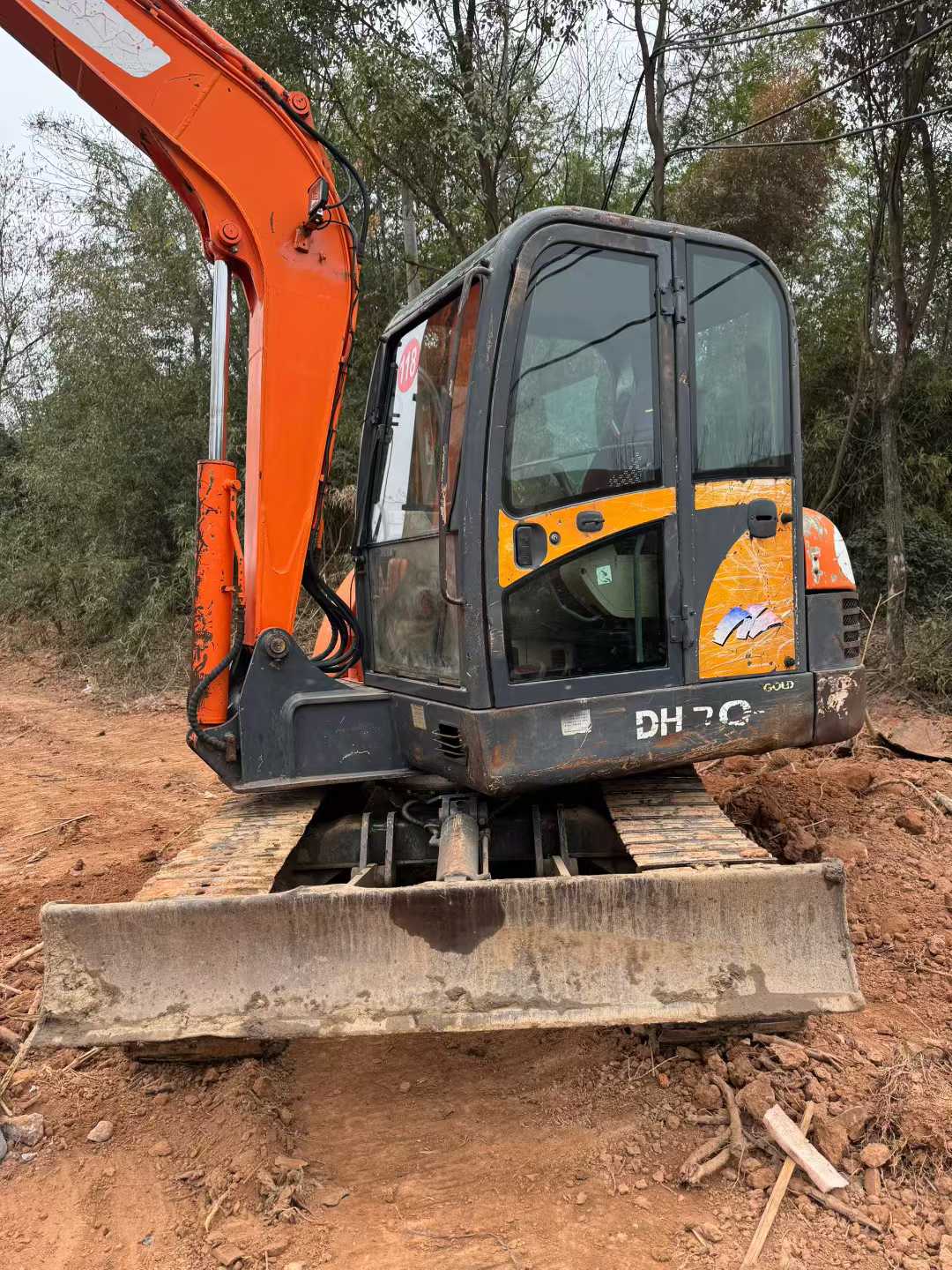

【 Premium Doosan 60 Excavator This Doosan 60 excavator is a high-quality second-hand construction machinery rarely seen in the market. Since leaving the factory, it has only been in operation for 2,500 hours. With proper maintenance, it has stable performance and is almost in brand new condition. It is equipped with a powerful power system, featuring an original imported Cummins engine with strong horsepower and smooth operation, capable of easily meeting the operational demands under various complex working conditions. Whether it is excavation, crushing or loading, it can demonstrate outstanding working efficiency. In terms of the hydraulic system, this equipment adopts advanced load-sensitive hydraulic technology, ensuring the flexibility and accuracy of operation. In actual use, it has a fast response speed and smooth operation, which greatly improves the construction efficiency. More importantly, after professional testing, there is no leakage at all in the three core components of this machine (engine, hydraulic pump, and main valve), ensuring the reliability and safety of long-term use. In terms of appearance, the entire machine retains the original factory paint finish, with bright and fresh colors. It is not only elegant and
| Specifications | Value |
|---|---|
| No. | 972282 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
