Product Description

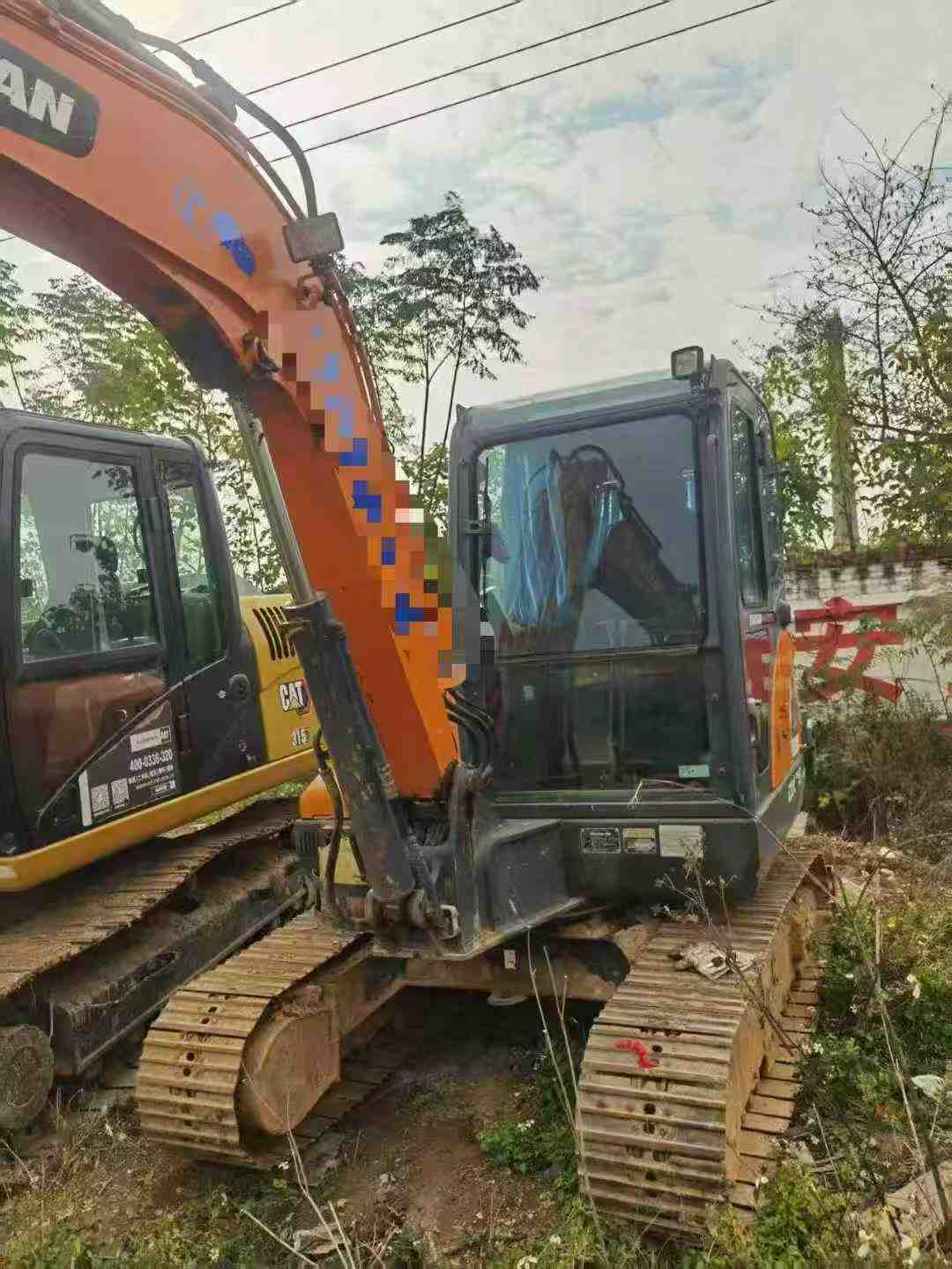

Engineered with precision hydraulics delivering 21.6 MPa working pressure, this 2020 Doosan DX60 compact excavator demonstrates superior performance in demanding applications. The robust Yanmar 4TNV94L engine generates 39.7 kW at 2200 RPM, providing reliable power for continuous operation while maintaining fuel efficiency through its 115-liter tank capacity.
Built on Doosan's proven 6-ton platform, this machine combines a 5,700 kg working weight with exceptional digging capabilities:
- Maximum digging depth: 3,805 mm with 44 kN bucket force
- Operating radius extends to 6,150 mm for versatile reach
- Dual main pump system: 60.5 L/min × 2 + 36 L/min auxiliary flow
- Compact transport dimensions: 5,850 × 2,000 × 2,575 mm
Located in Guangxi, this joint-venture manufactured unit represents Doosan's commitment to engineering excellence. With 78% climbing ability and 9.5 RPM rotation speed, it delivers the precision control and durability required for professional excavation work across varied terrain conditions.
| Specifications | Value |
|---|---|
| No. | 981146 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

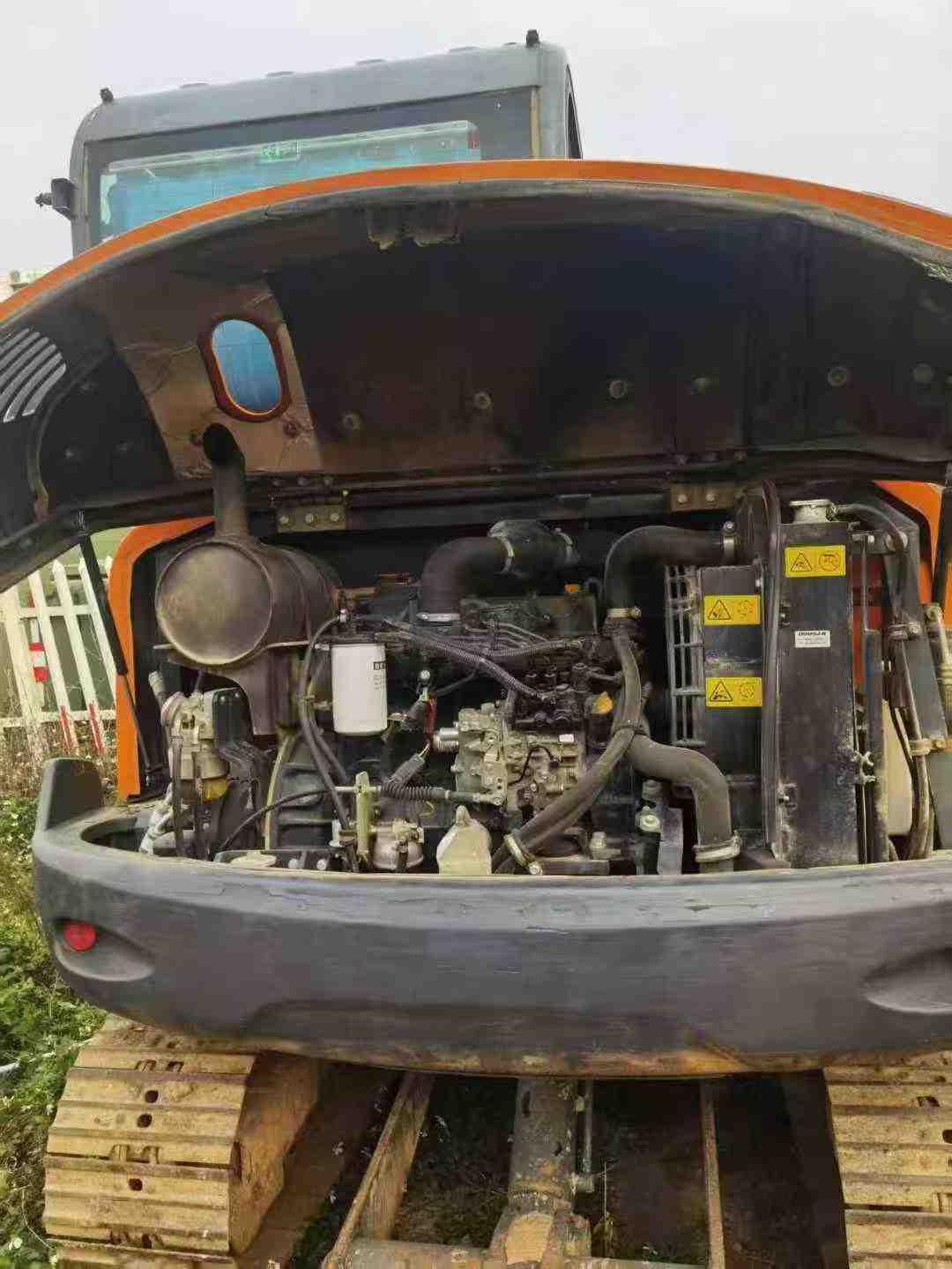

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
