| Specifications | Value |
|---|---|
| No. | 963126 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
Description

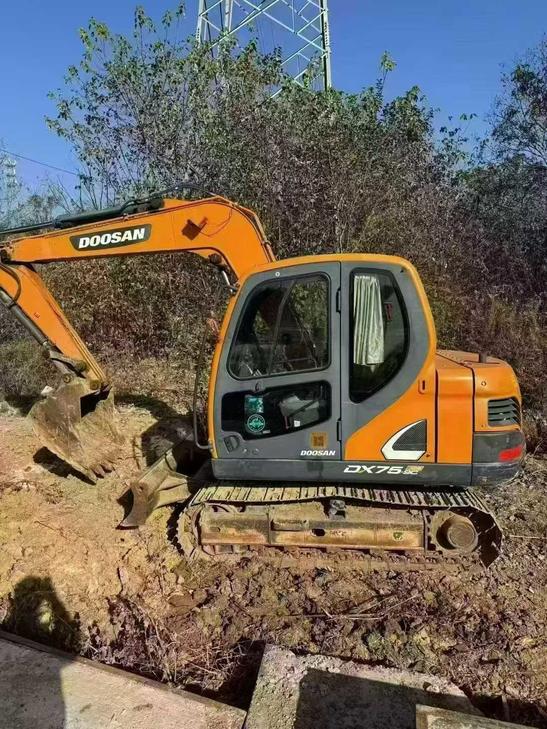

【 Premium Recommendation 】 Doosan 75-9c ACE excavator from the end of 2020, full original paint, complete procedures, top-notch condition, and all performance is exempt from inspection. You can own it for just a few tens of thousands! This Doosan 75-9c ACE excavator is a model from the end of 2020. It has only been working for about 1,200 hours so far and is in excellent condition. This model is renowned in the industry for its outstanding durability and reliability, making it an ideal choice for medium-sized engineering projects. The entire machine is made of high-quality imported materials from the original factory, ensuring the stable performance of the vehicle under various harsh working conditions. In terms of power, this machine is equipped with a high-performance Doosan engine, which offers strong power output and a smooth operation experience. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this engine also pays special attention to fuel economy design, effectively reducing operating costs. In terms of the hydraulic system, Doosan 75-9c ACE is equipped with an advanced load-sensing hydraulic control system, which can automatically adjust the oil pressure flow according to
