Product Description

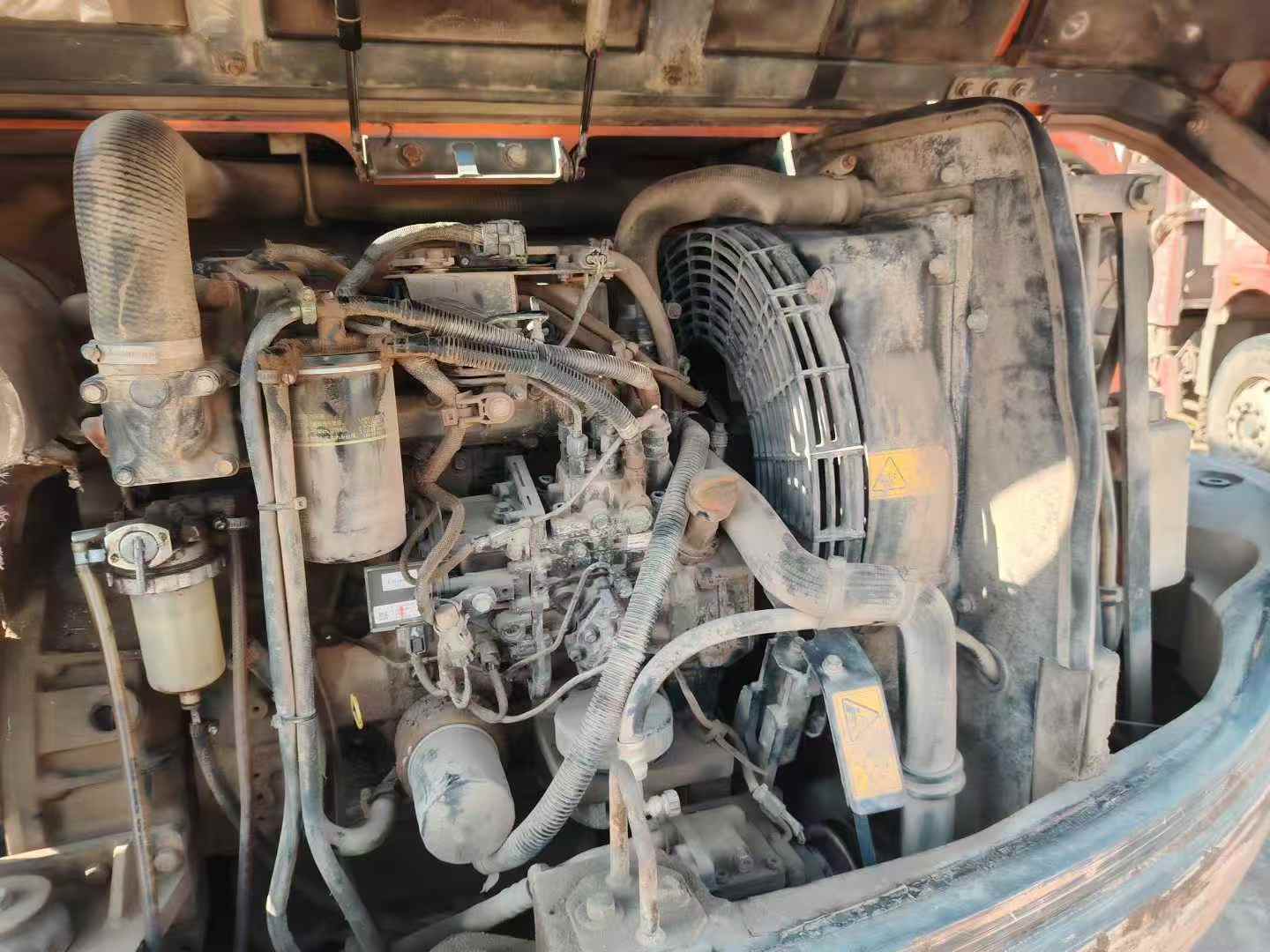

This Doosan 75 excavator from the end of 2016 is highly favored in the market for its outstanding performance and reliability. The estimated usage hours are approximately 3,000 to 4,000 hours, which indicates that it is still in good working condition and suitable for various construction requirements. This device is equipped with a high-performance Doosan engine, model DB58TIS, with a power output of up to 40.5 kilowatts /54 horsepower, ensuring strong power output and smooth operation performance. In terms of the hydraulic system, Doosan 75 is equipped with an efficient combination of a hydraulic pump and a hydraulic motor, which can provide a stable and responsive operating experience. Its hydraulic pump is exquisitely designed to ensure efficient conversion during long-term operation, while the hydraulic motor supports precise control, making actions such as excavation and loading more smooth and effortless. In addition, this machine also adopts advanced load sensing technology, which can automatically adjust the oil flow according to the actual working load, thereby achieving the purpose of energy conservation and consumption reduction. The main advantages of Doosan 75 excavators lie in their excellent durability and easy-to-mai
| Specifications | Value |
|---|---|
| No. | 979373 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
