| Specifications | Value |
|---|---|
| No. | 962594 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

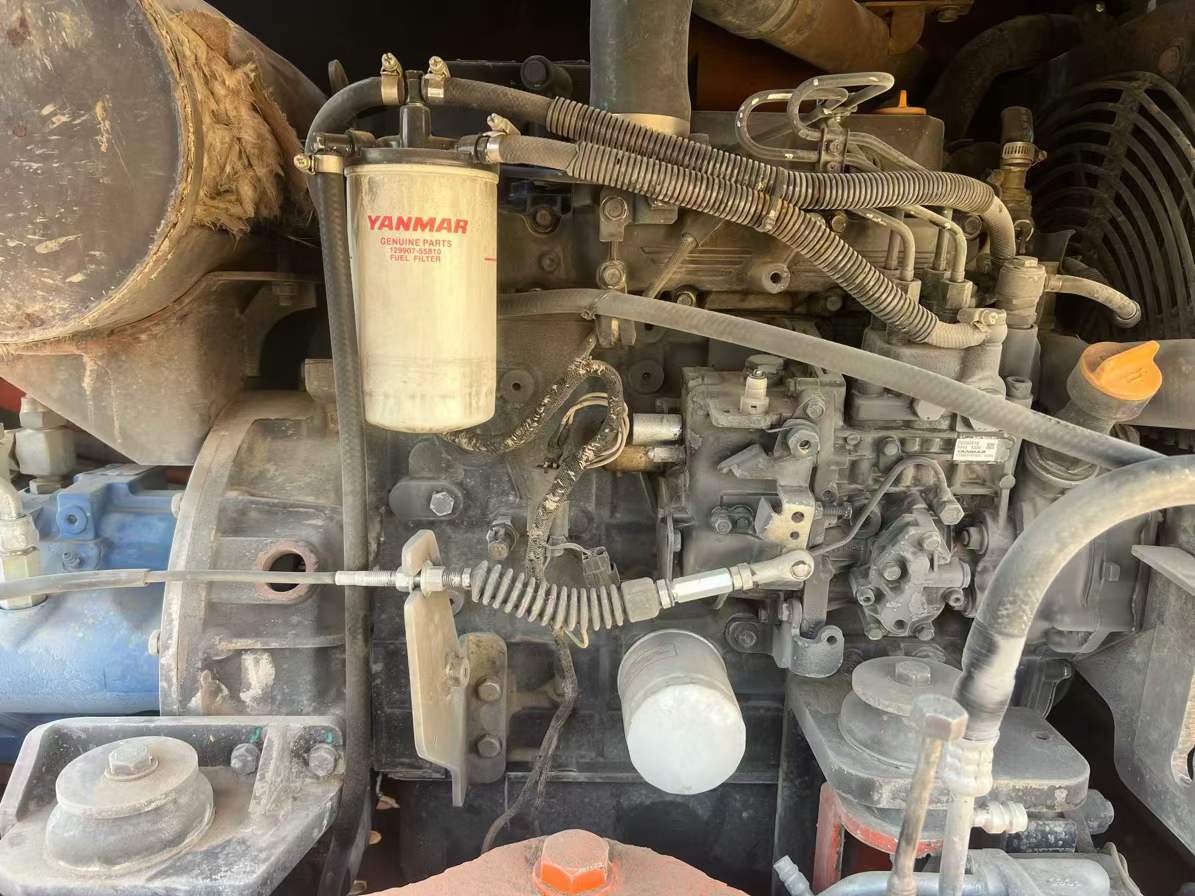

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |

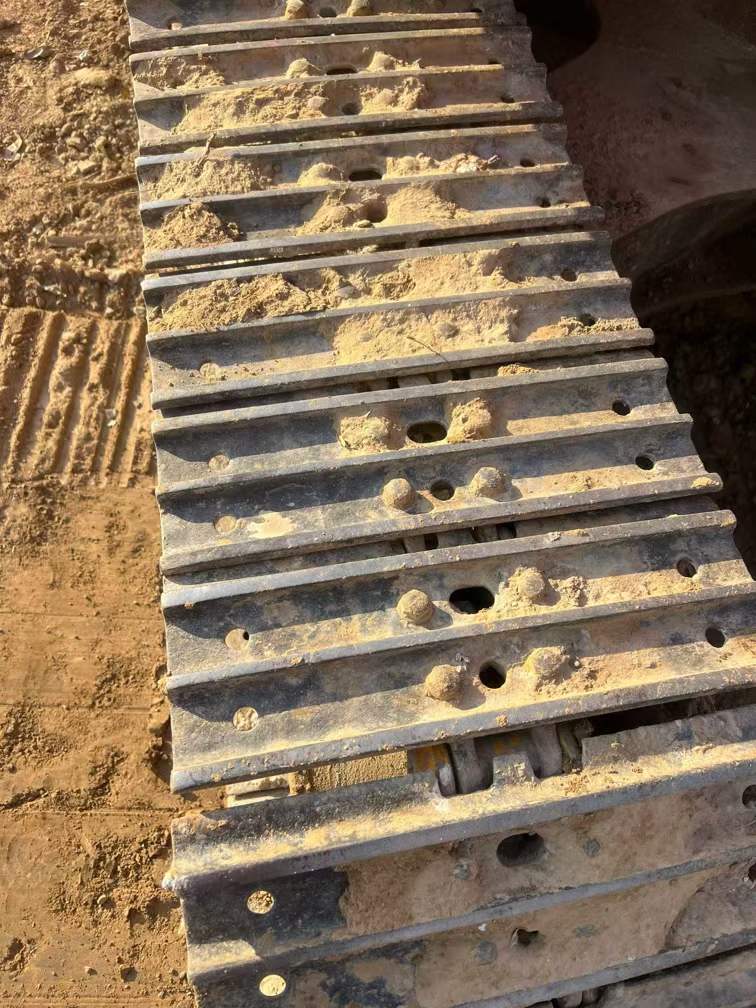

| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

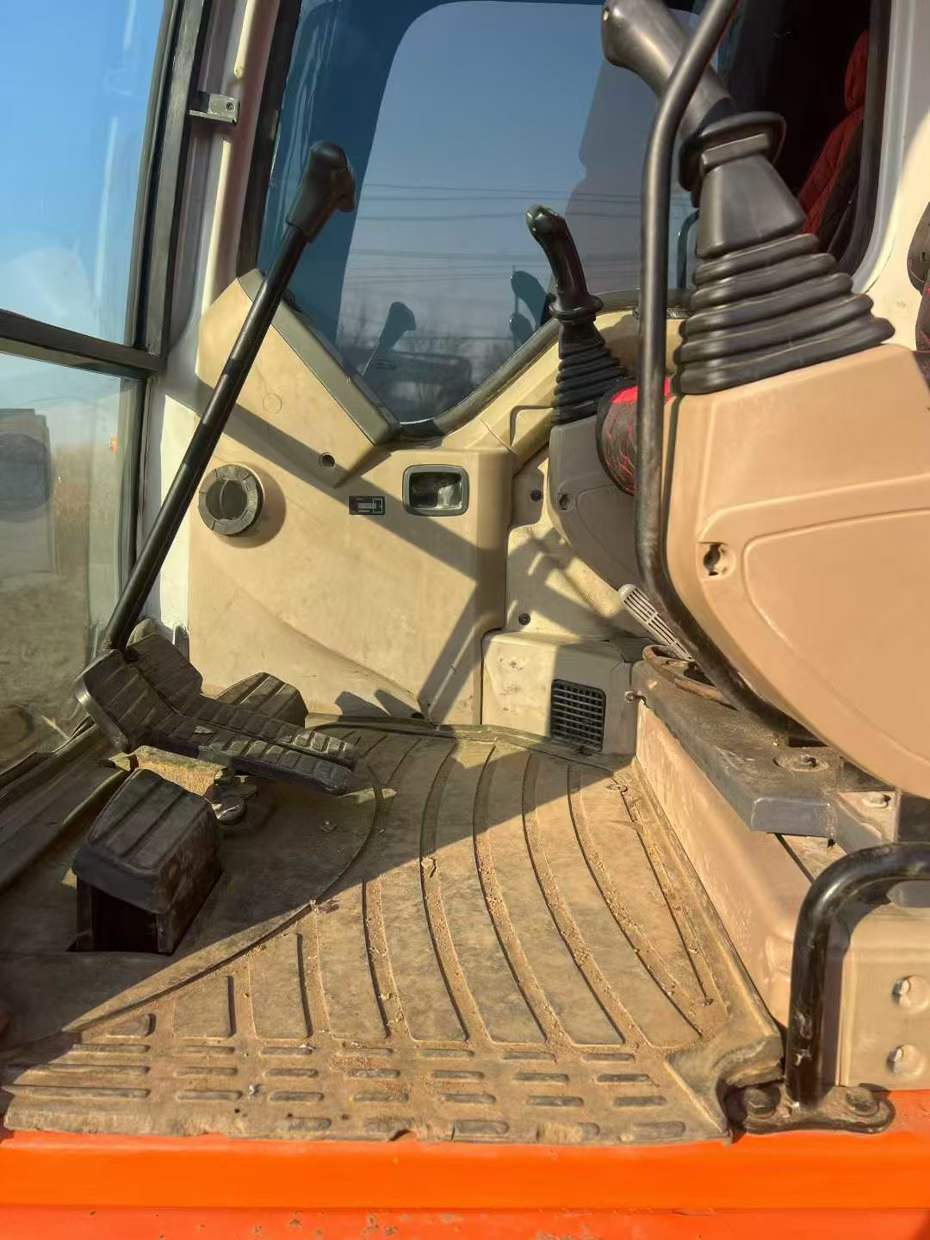

【 Premium Recommendation 】 Doosan 80 Equipped Wooden Excavator, top-notch condition, not to be missed! This Doosan 80 excavator is a rare and high-quality second-hand device in the market, especially suitable for rural individual users in need. The total working time of this machine is only 2,500 hours. It is a very young machine with almost no wear and tear, and its performance is extremely excellent. In terms of the power system, it is equipped with a high-quality engine from the original factory, which operates stably and is highly energy-efficient. It starts quickly and can maintain strong power output even under harsh working conditions. The hydraulic system has undergone professional maintenance and upkeep, ensuring smoothness and accuracy during the operation process. Whether it is excavation, loading or other complex operations, it can handle them with ease. In addition, the appearance of this machine is neat and undamaged, the interior of the cab is as clean as new, and all function keys are in good condition and usable. More importantly, its large components do not leak oil, indicating excellent sealing performance. There is no need to worry about oil leakage during future use. Such a Doosan 80 excavator in an overall nearl
