| Specifications | Value |
|---|---|
| No. | 965937 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

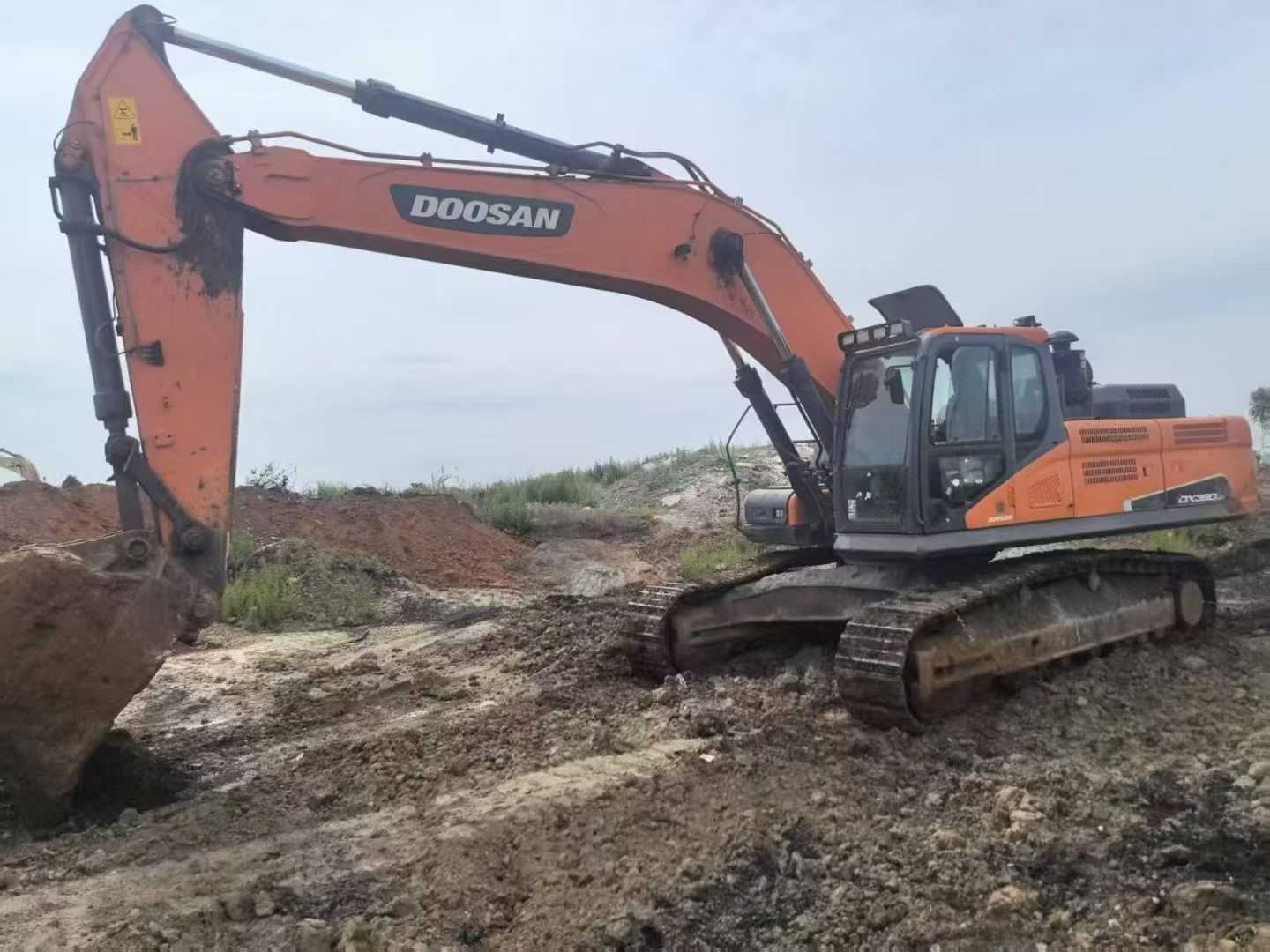

【 Premium Recommendation 】 A second-hand Doosan 380-9C excavator from the end of 2020, with outstanding quality and stable performance, is your ideal choice for engineering operations. Since its purchase, this excavator has accumulated a working time of only 2,500 hours, being in the best usage condition with almost no wear and tear, a long service life and an extremely high cost performance. In terms of the power system, this machine is equipped with an original imported high-performance engine, which features strong power output and smooth operation performance. It can maintain efficient operation even in harsh working environments. It has good fuel economy and can effectively reduce your operating costs. In addition, this engine also features outstanding environmental protection performance and complies with the latest emission standards. The hydraulic system is a major highlight of this Doosan 380-9C. It adopts advanced hydraulic control technology to ensure accuracy and sensitivity during operation. Whether it is digging, loading or other complex tasks, they can all be handled with ease, greatly enhancing work efficiency. Meanwhile, its unique design makes daily maintenance more convenient and faster. It is worth mentioning tha
