| Specifications | Value |
|---|---|
| No. | 966032 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

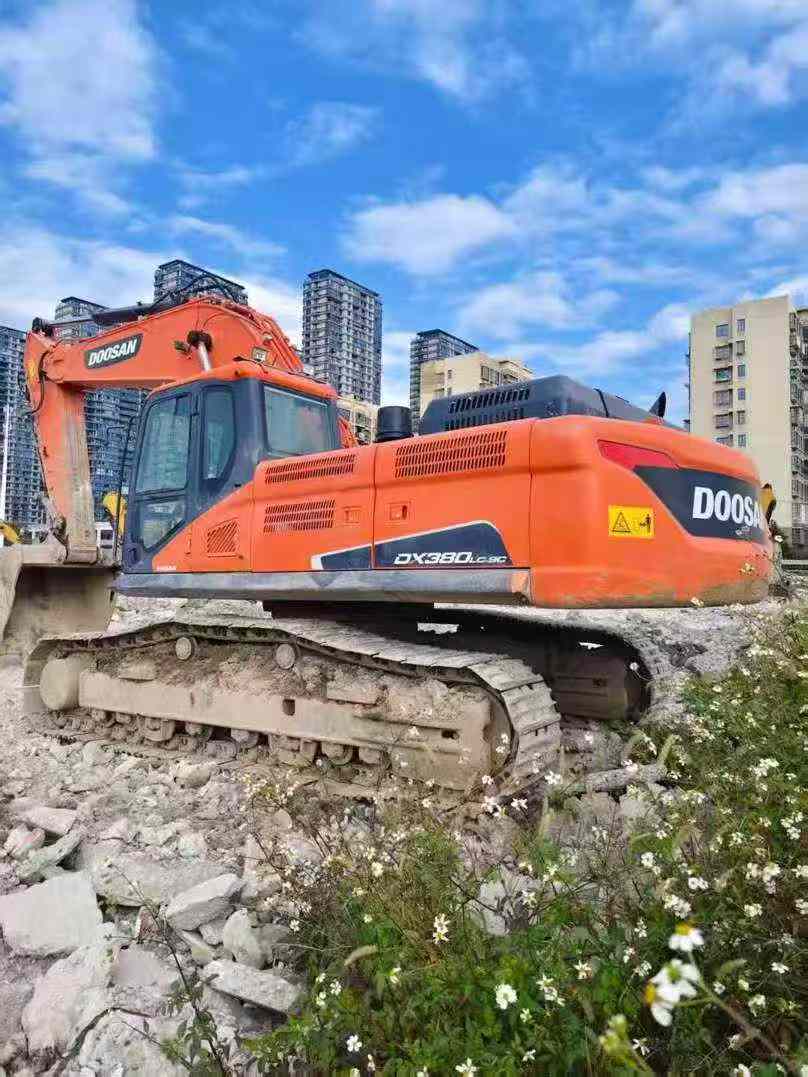

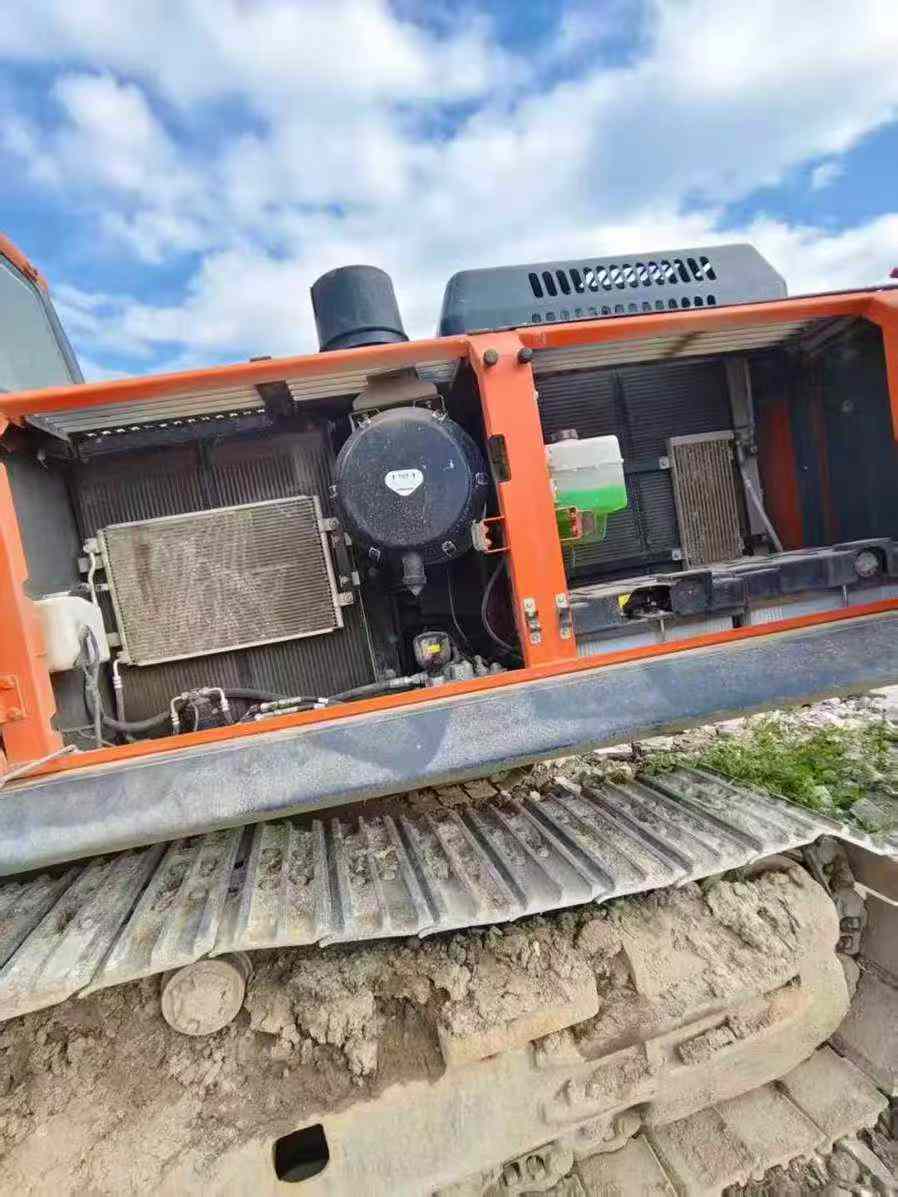

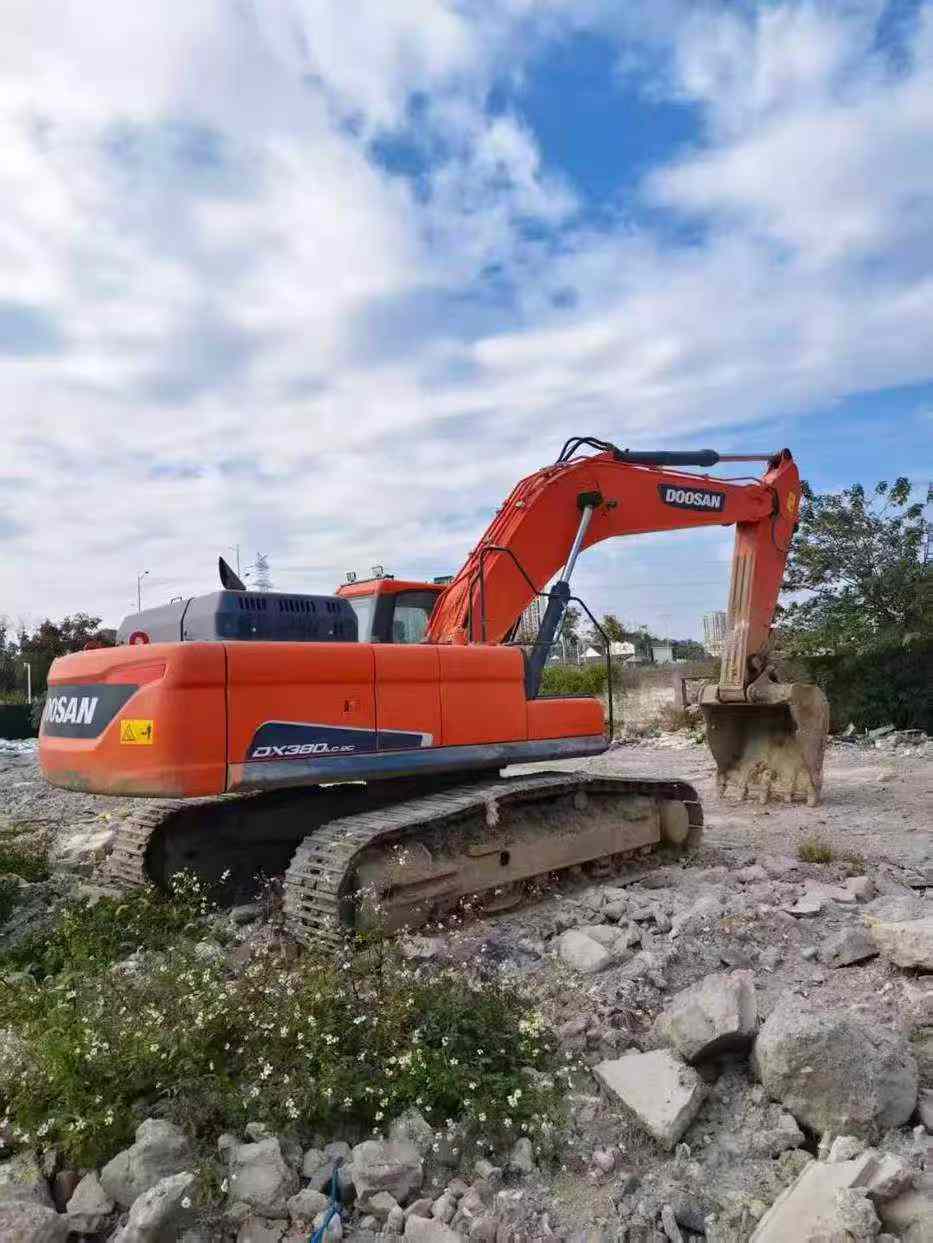

【 Premium Recommendation 】 The Doosan DX380LC-9C excavator purchased in 2021 is in perfect condition and has only been in operation for 2,500 hours. It is highly suitable for those who pursue high quality and high cost performance. This excavator not only maintains an excellent appearance but also has its internal structure professionally tested to ensure there are no hidden dangers, allowing you to purchase with confidence and use with ease. In terms of the power system, it is equipped with the high-performance Scania DC13 086A EGR engine, with a rated power of 270kW (approximately 362 horsepower). While ensuring strong power output, it also has excellent fuel economy, effectively reducing operating costs. In addition, this engine adopts advanced EGR technology, which can meet strict emission standards, is environmentally friendly and green, and conforms to the future development trend. The hydraulic system has always been Doosan's strength. It adopts a closed center load sensitive system, which responds quickly and operates smoothly. Whether it is excavation or loading operations, it can handle them with ease. Meanwhile, it is equipped with intelligent control technology, which can automatically adjust the pump flow rate according
