| Specifications | Value |
|---|---|
| No. | 966699 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

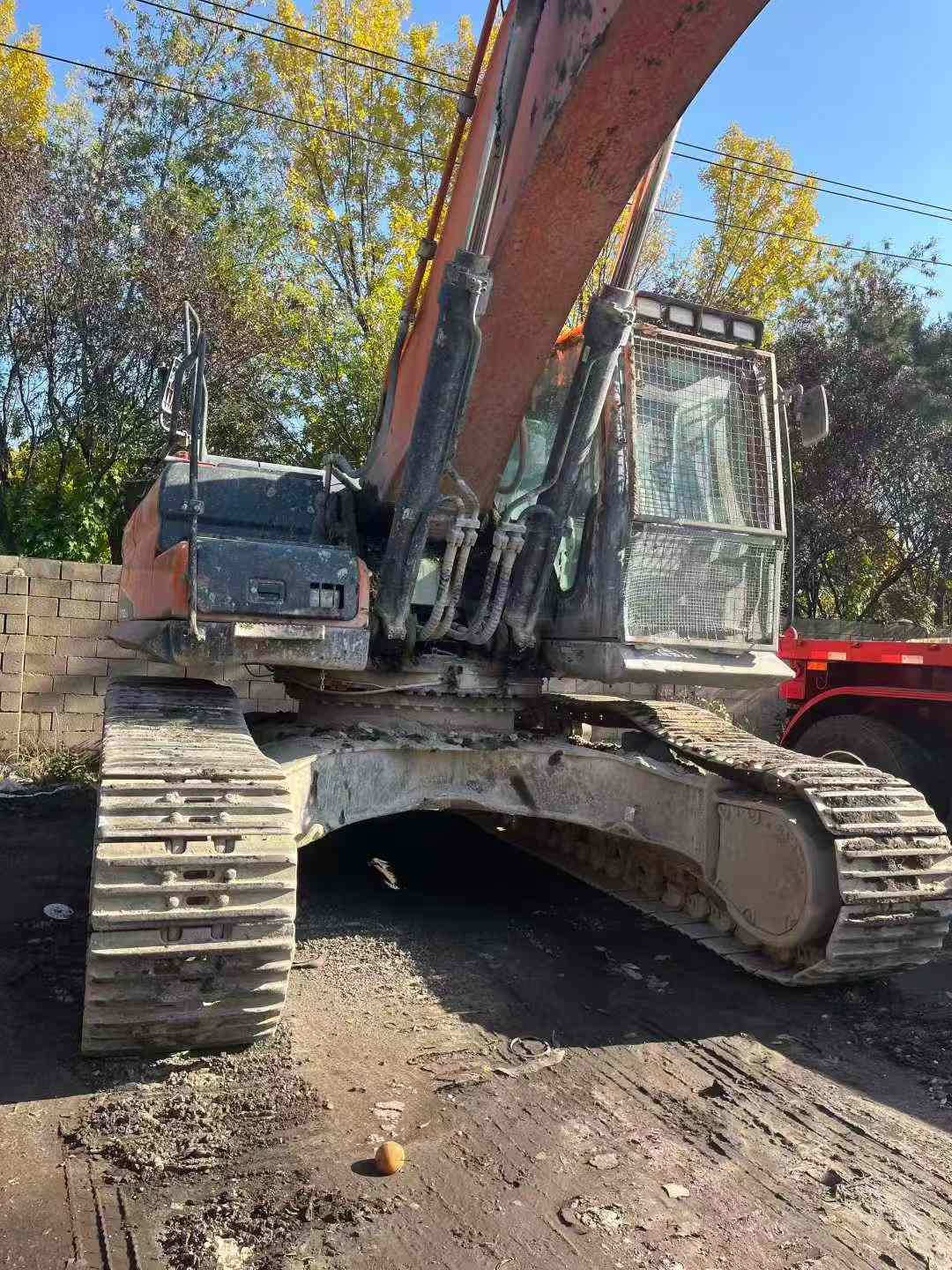

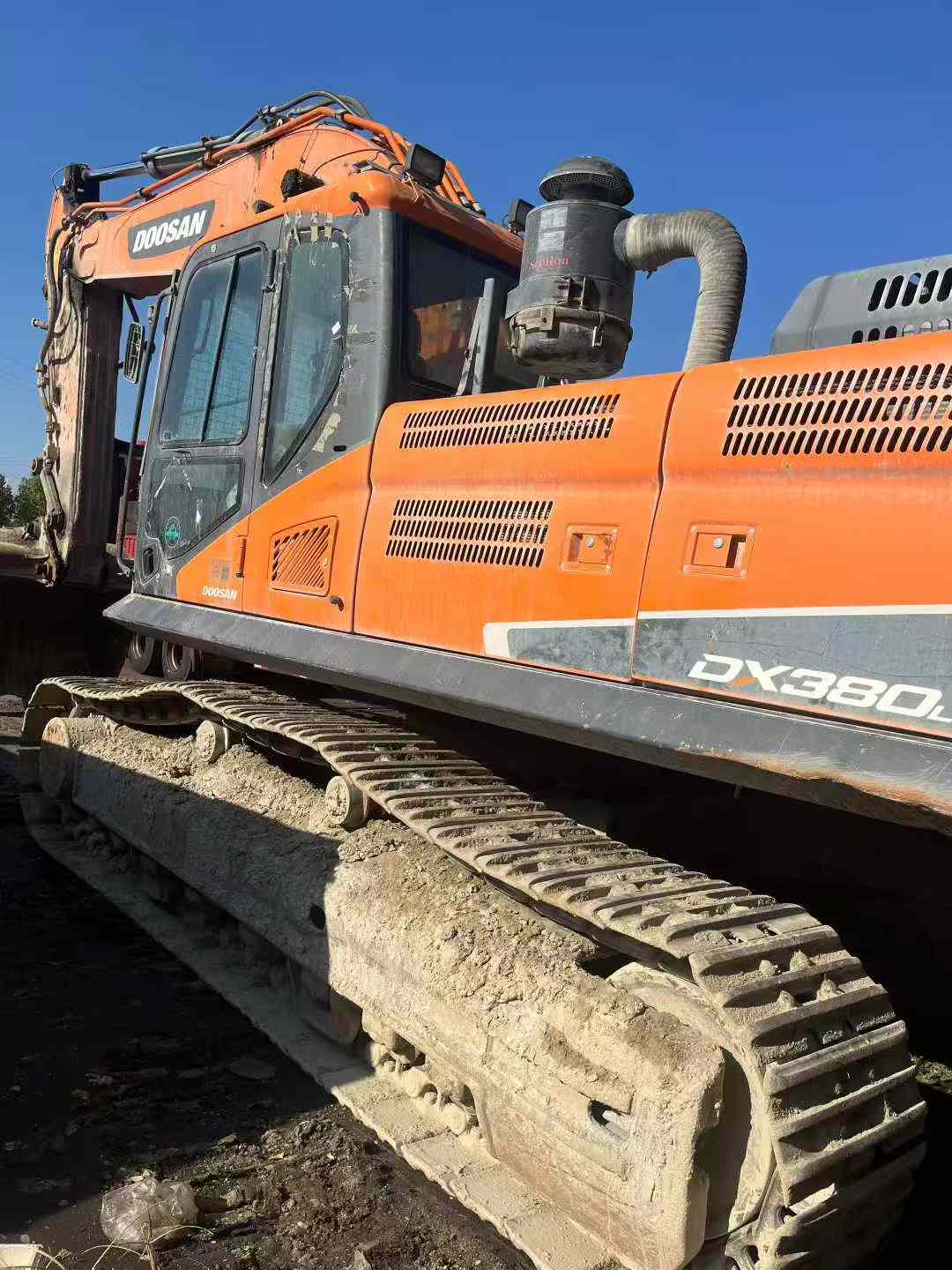

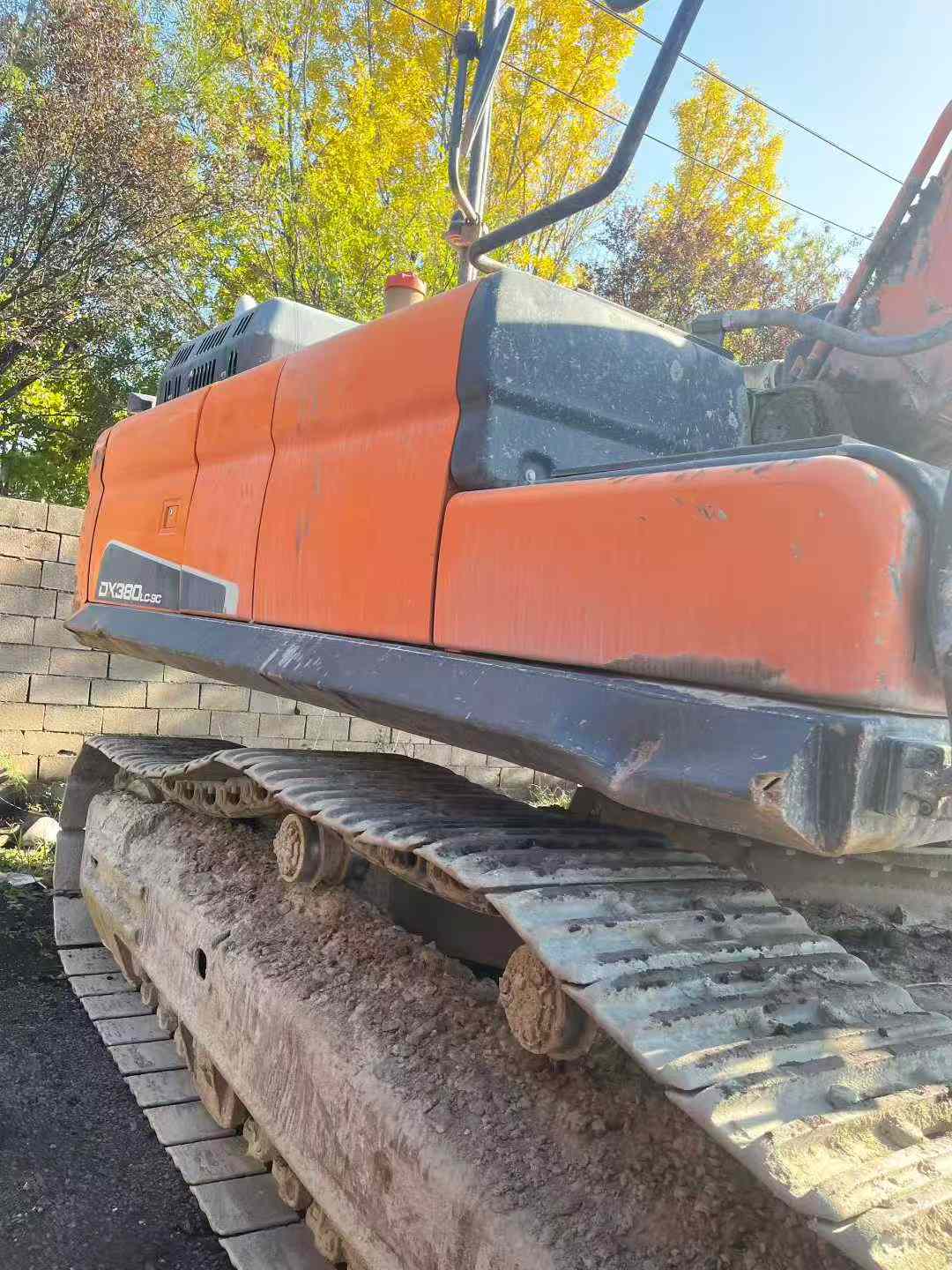

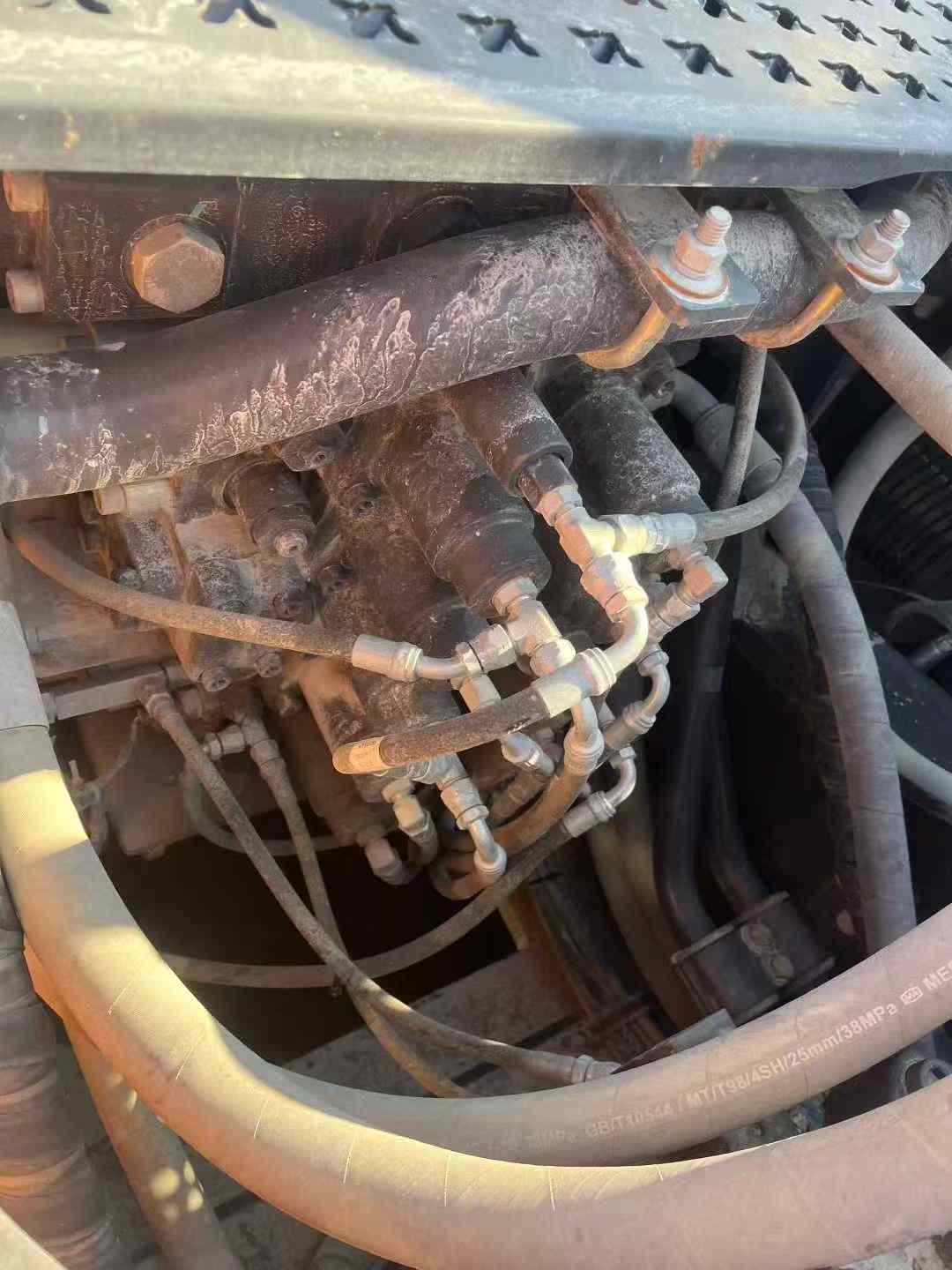

【 Premium Recommendation 】 The Doosan DX380LC-9C excavator purchased in 2021 has an actual working time of only over 5,000 hours. It is in excellent condition and offers an extremely high cost performance. This excavator is equipped with a high-performance Scania DC13 electronically controlled direct injection turbocharged diesel engine, with a maximum power output of 270kW at 1800rpm. It is powerful and has good fuel economy, maintaining stable output even under heavy-load operations. In terms of the hydraulic system, Doosan DX380LC-9C is equipped with an advanced CLSS (Closed Center Load Sensing System), which can automatically adjust the pump flow according to the actual load. This not only improves work efficiency but also significantly reduces energy consumption. In addition, this model also features a spacious and comfortable cab, equipped with air conditioners, radios and other facilities, providing operators with a good working environment. The robust and durable chassis design and reinforced structural components ensure the reliability and durability of the equipment under harsh working conditions. In conclusion, this second-hand Doosan 380 excavator, with its outstanding performance, reliable quality assurance and relatively
