| Specifications | Value |
|---|---|
| No. | 966894 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

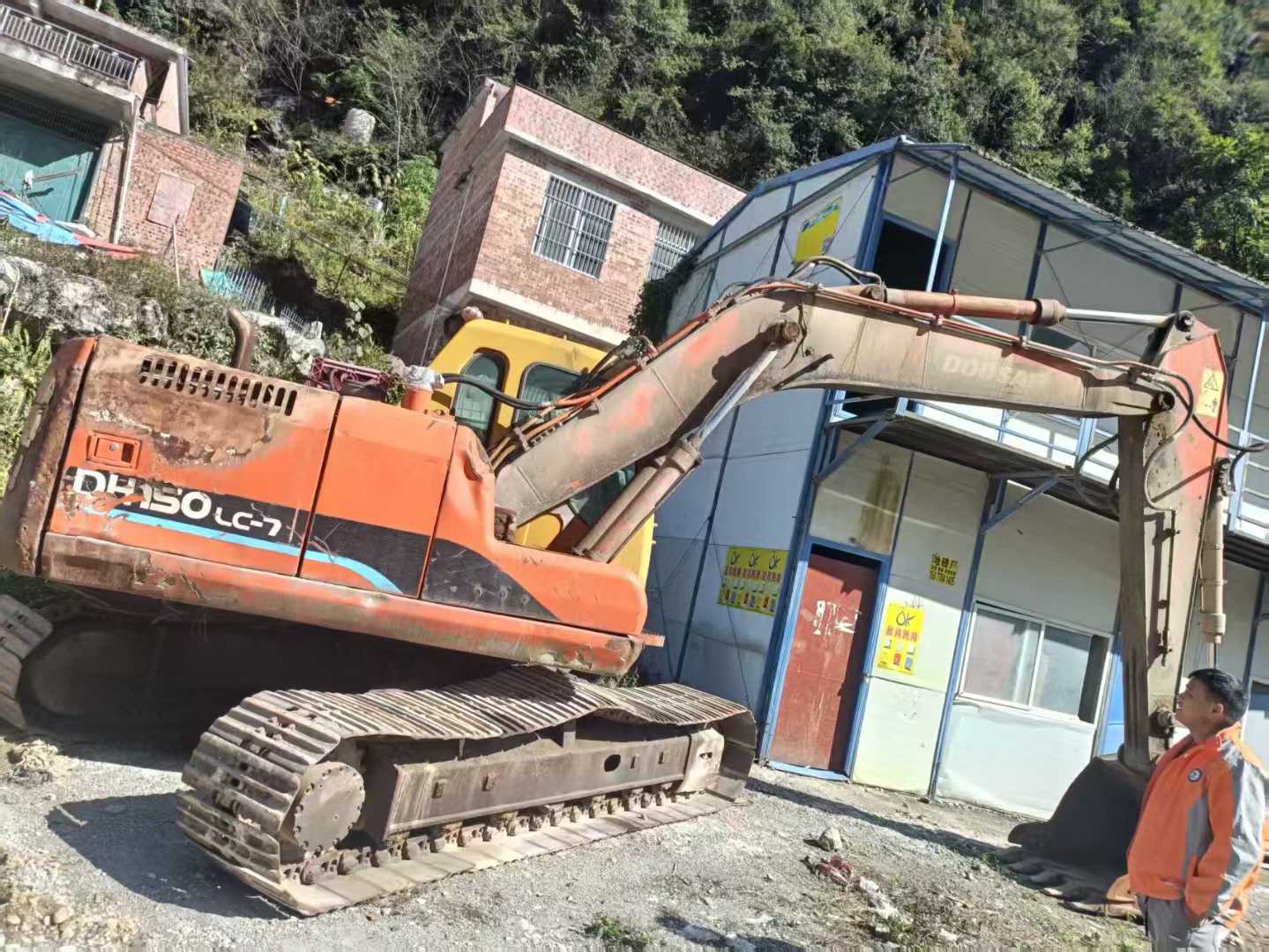

【 Doosan 150 Second-hand Excavator, a great Value Choice 】 This second-hand Doosan 150 excavator has been put on the market at a super value price of 39,800 yuan, offering an extremely high cost performance. It not only has outstanding performance, but also enjoys an extremely high retention rate in the second-hand market. The cumulative working time of this equipment is 4,500 hours, which is in the golden stage of the mechanical life cycle. It not only ensures the maturity of the equipment but also avoids the hidden dangers caused by excessive wear. In terms of power, the Doosan 150 is equipped with an efficient and reliable diesel engine. Even in the face of complex and changeable construction environments, it can provide strong and stable power output, ensuring the best balance between operation efficiency and fuel economy. Its advanced electronic control system can intelligently adjust the engine speed, achieve better fuel consumption performance, and at the same time reduce emission pollution, meeting modern environmental protection requirements. The hydraulic system is one of the key indicators for evaluating the performance of an excavator. This Doosan 150 adopts a high-performance main pump and control valve group, combined
