| Specifications | Value |
|---|---|
| No. | 970229 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

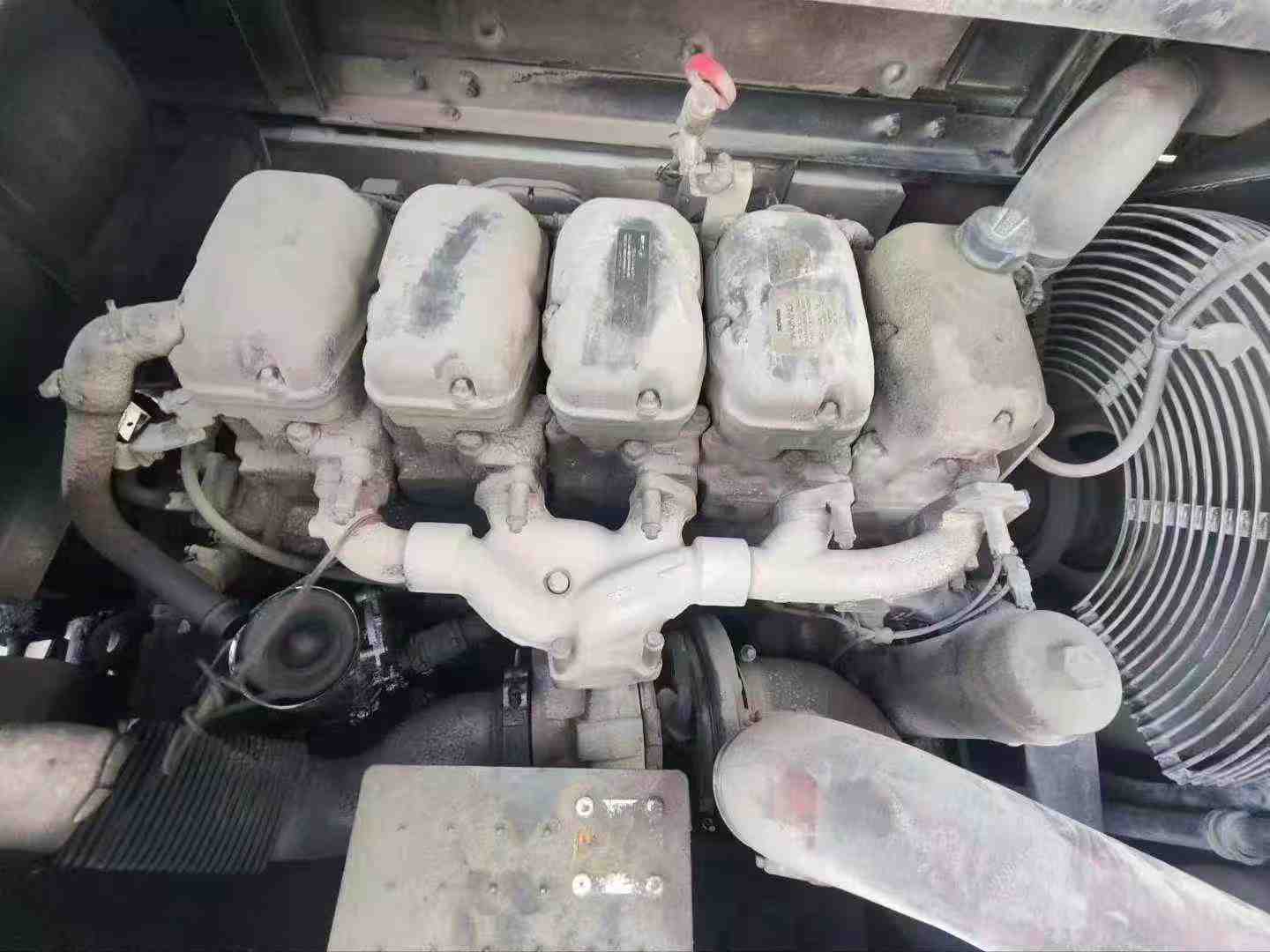

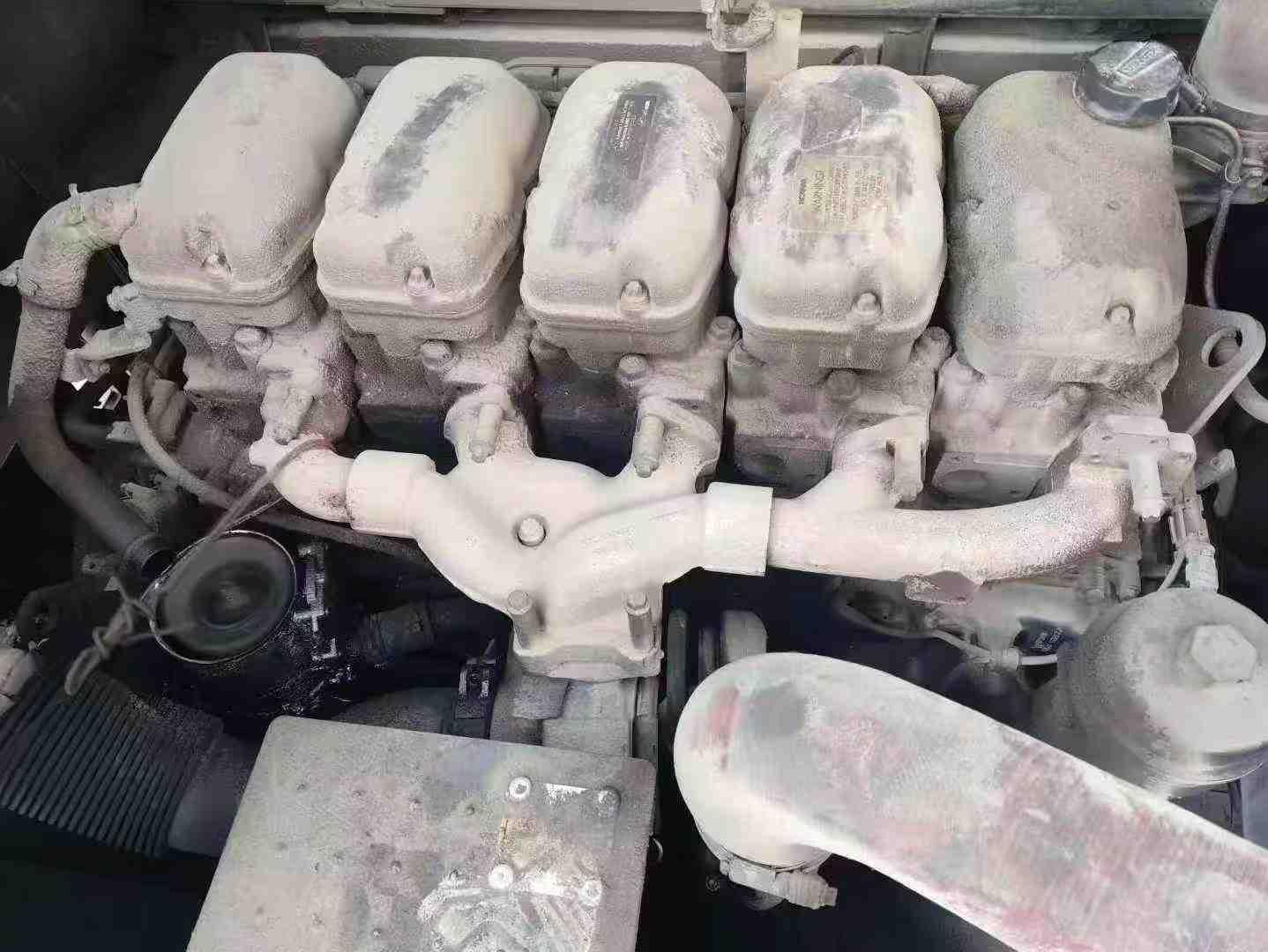

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |

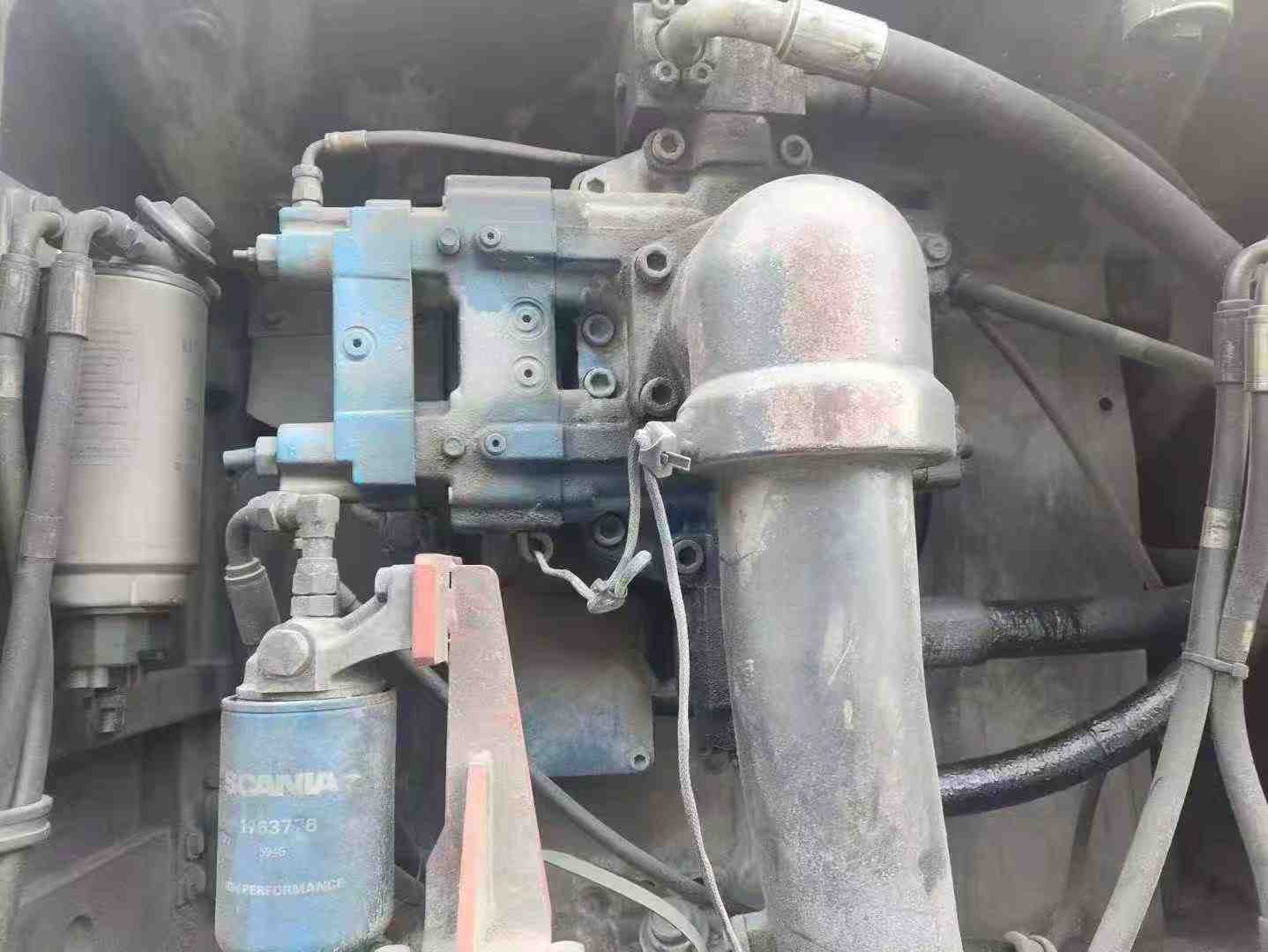

| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |

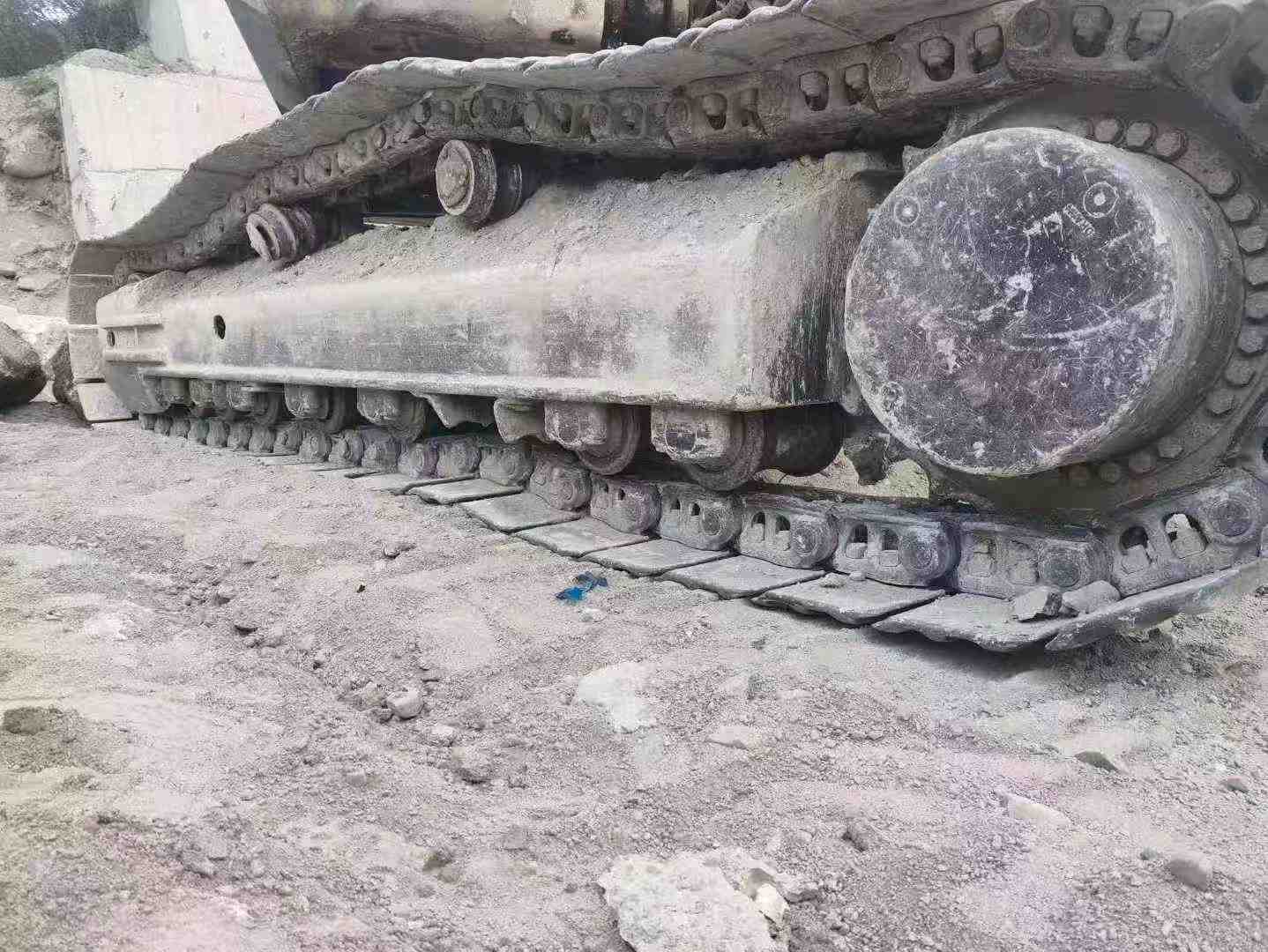

| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
Description

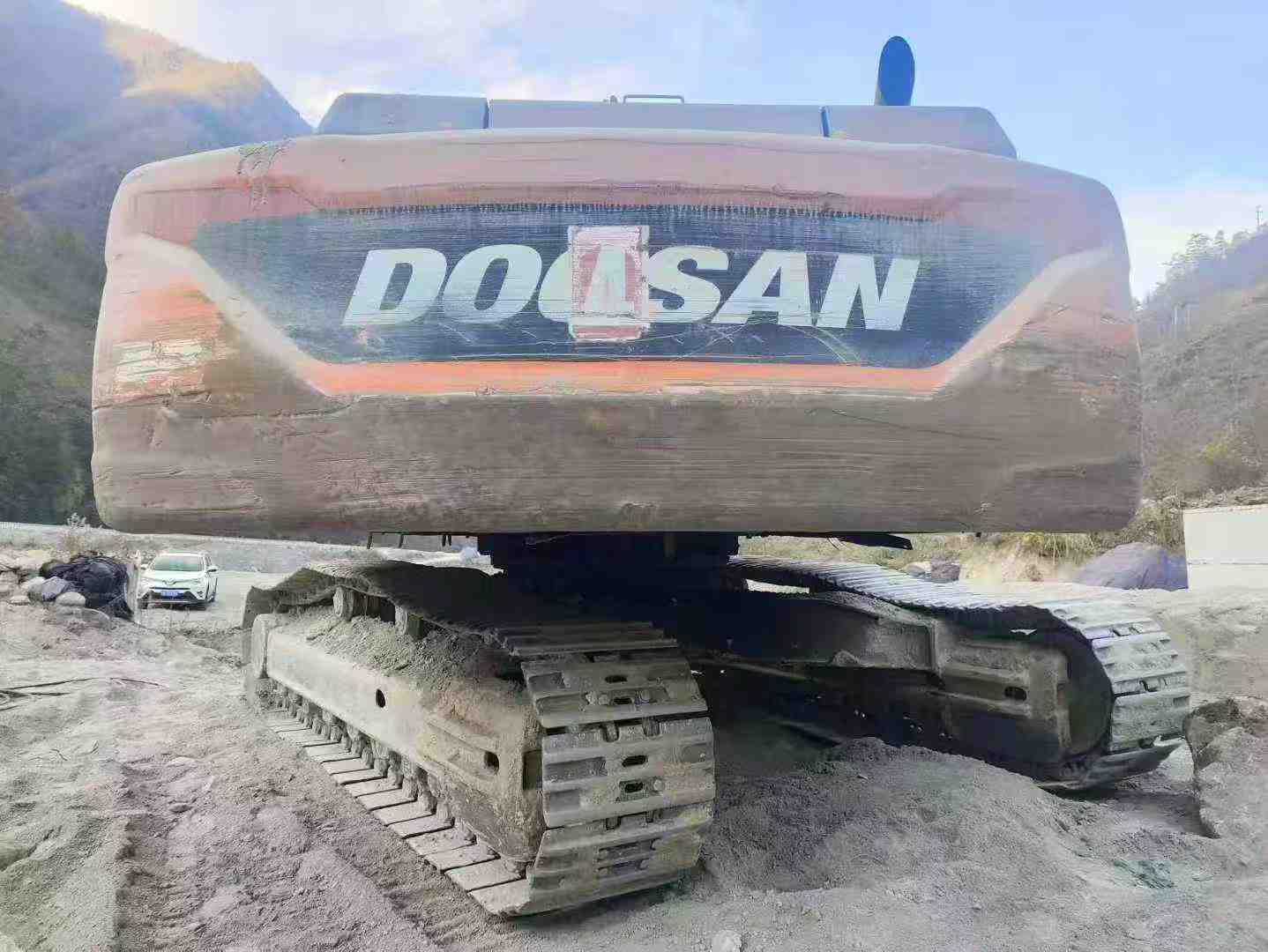

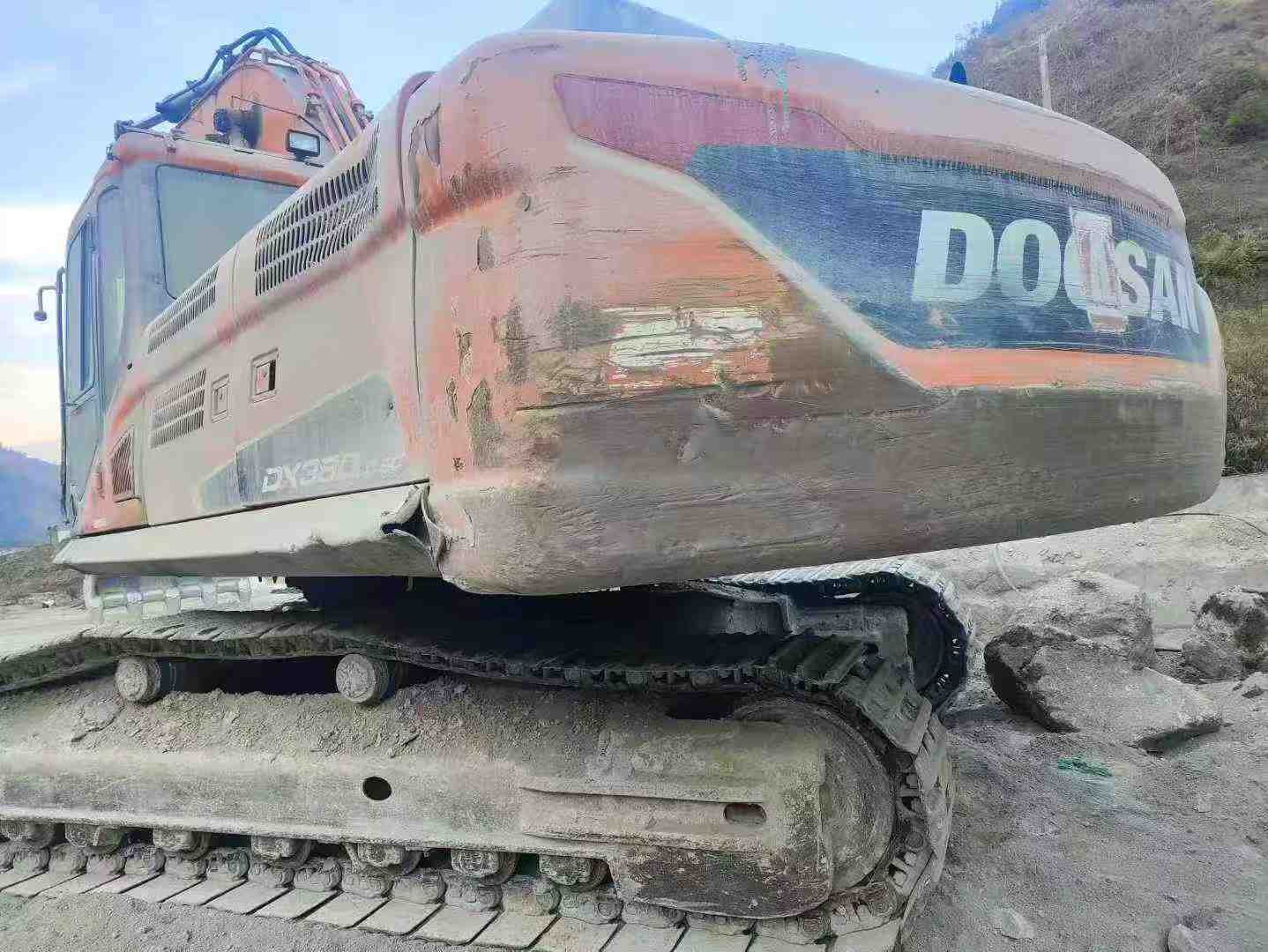

This Doosan 380 excavator from 2019 is currently priced at over 240,000 yuan, offering an extremely high cost performance. It has a working time of approximately 2,500 hours, which means it is in the golden period of mechanical use. It has passed the running-in period and is far from reaching the end of its service life. It is a capable assistant in your construction projects. In terms of the power system, this device is equipped with a high-performance Doosan engine, which is renowned for its low fuel consumption and high efficiency, providing strong and stable power output under various working conditions. More importantly, its maintenance cost is relatively low, which can effectively reduce your operating expenses. The hydraulic system adopts advanced load sensing technology, ensuring smoother and more fluid movements during operation, and also significantly improving work efficiency. Whether it is excavation or loading operations, it can handle them with ease and perform outstandingly. In addition, this machine is also equipped with a comfortable cab environment and a user-friendly control interface, which greatly enhances the driver's working experience. In conclusion, this is a second-hand excavator that combines high performa
