Product Description
Detailed Introduction of Doosan 80 Second-hand Excavator This second-hand Doosan 80 excavator is a highly favored medium-sized excavator in the market, featuring outstanding performance and durability. Since its commissioning, the cumulative working time has been 3,500 hours, which is far lower than the average service life of machines of the same level, ensuring the good mechanical condition of the equipment and a relatively long remaining service life. In terms of power, this excavator is equipped with an efficient Doosan original imported engine, which features strong power output and smooth operation characteristics. Its maximum power can reach 40 kilowatts, and it can maintain stable working efficiency even under heavy-load operation conditions. In addition, the advanced fuel management system has significantly reduced fuel consumption and greatly saved operating costs. The hydraulic system adopts the latest generation of load sensing technology, ensuring precise control and smooth transition during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease, demonstrating extremely high flexibility and reliability. Meanwhile, the optimized cooling system effectively prevents overheating an
| Specifications | Value |
|---|---|
| No. | 970955 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

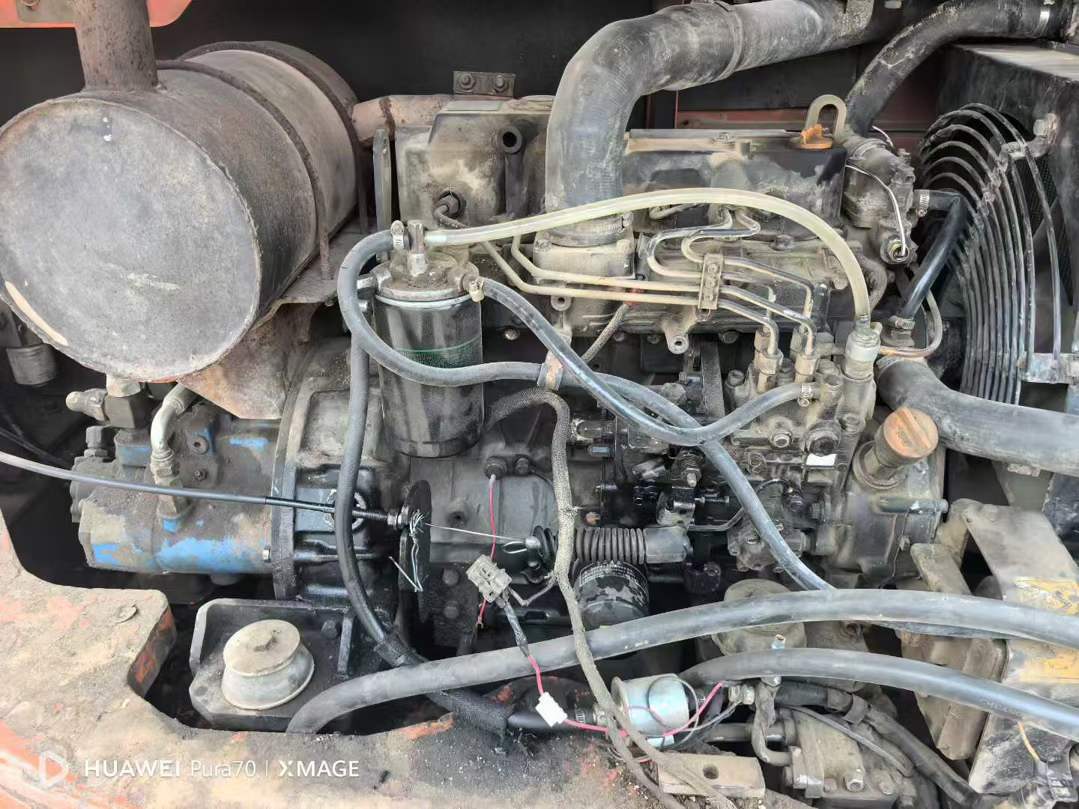

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
