Product Description

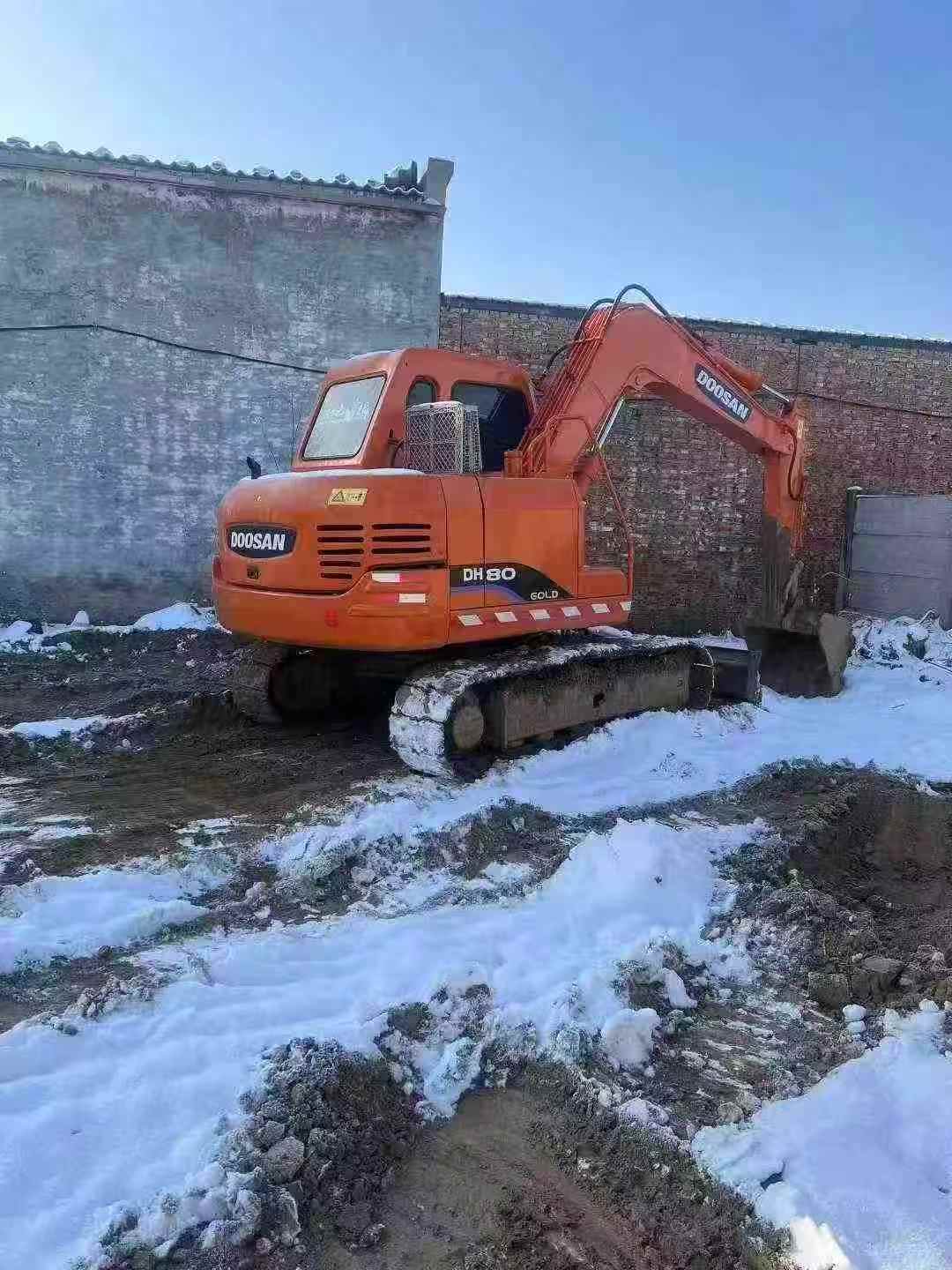

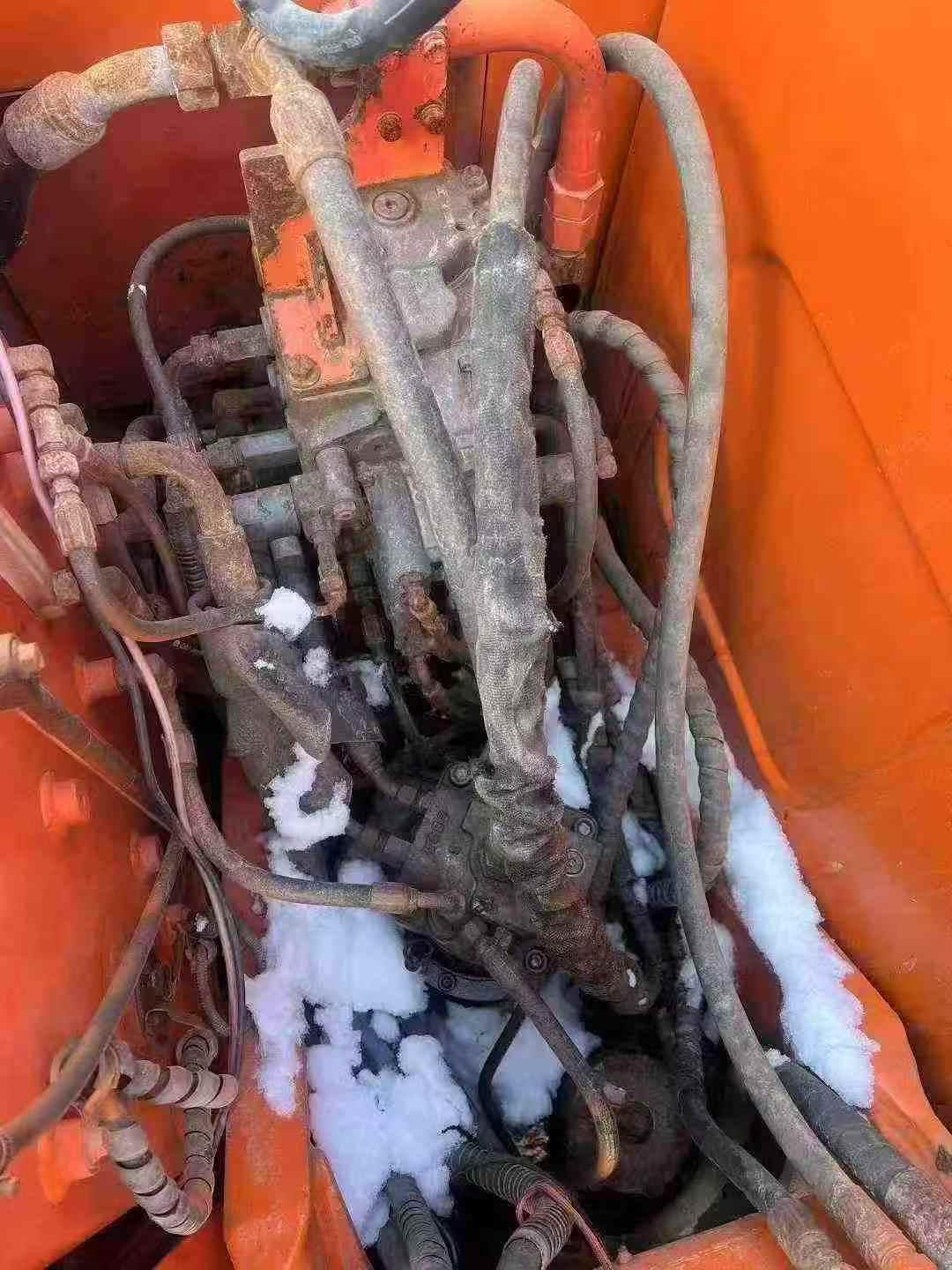

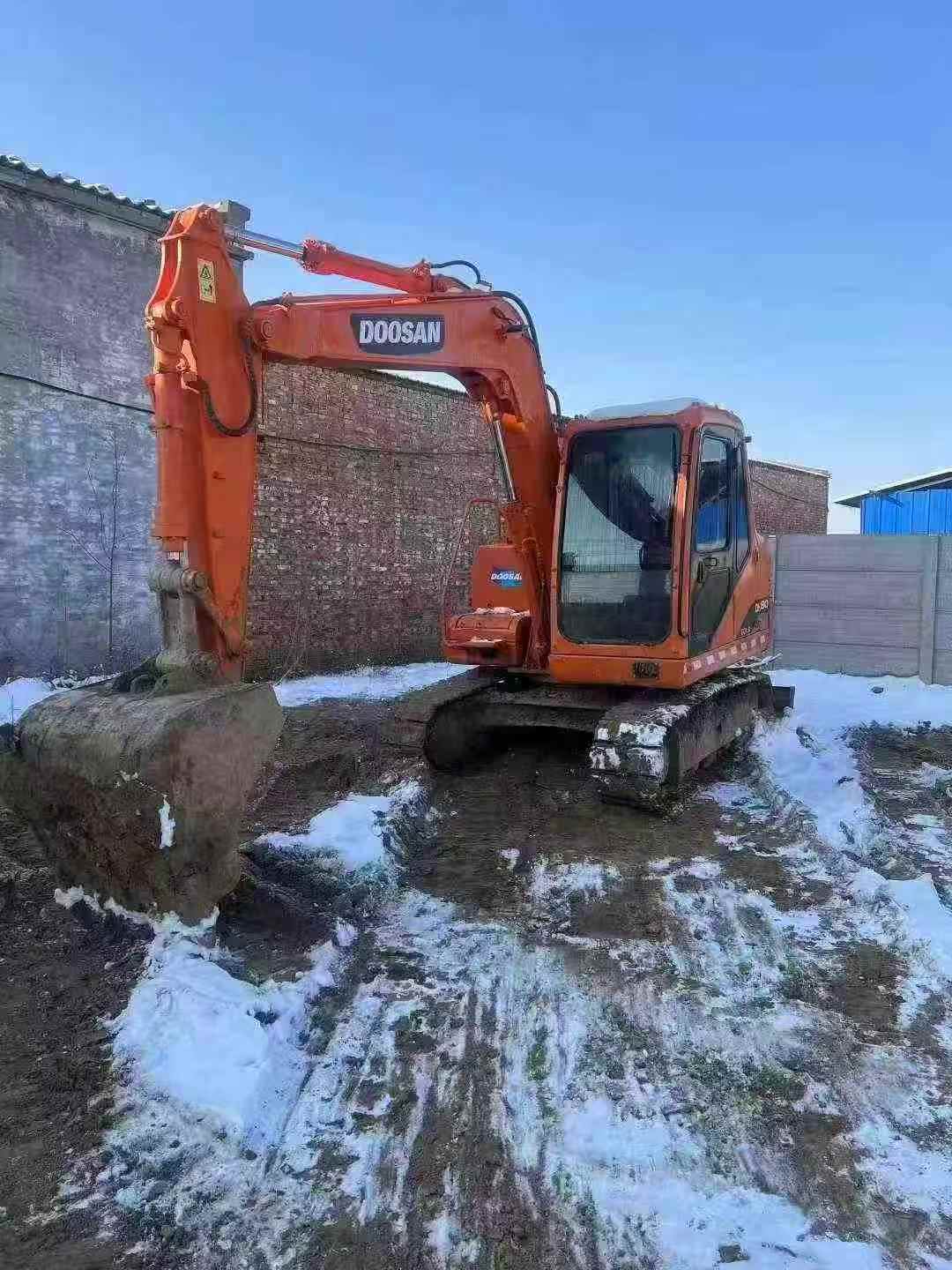

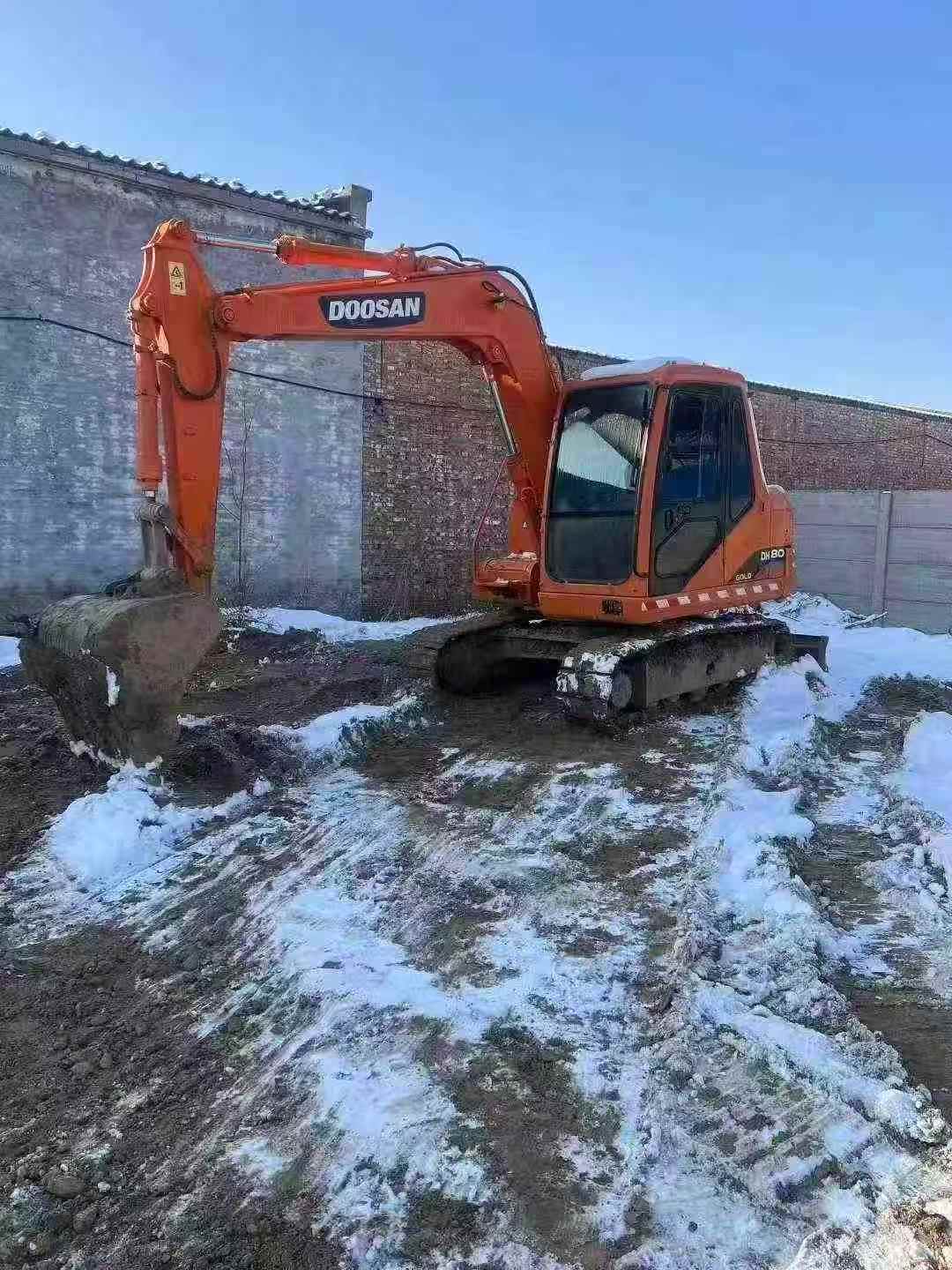

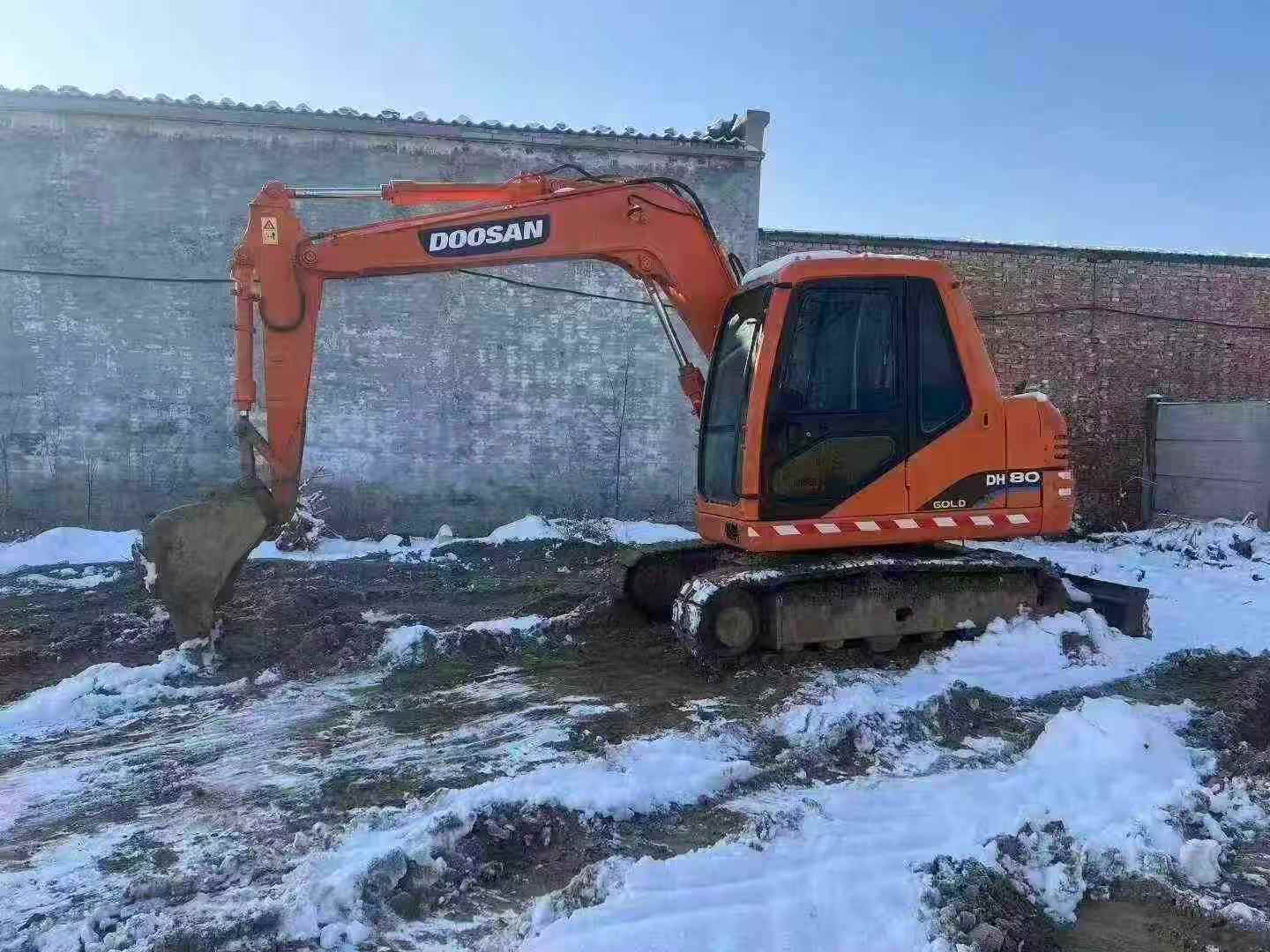

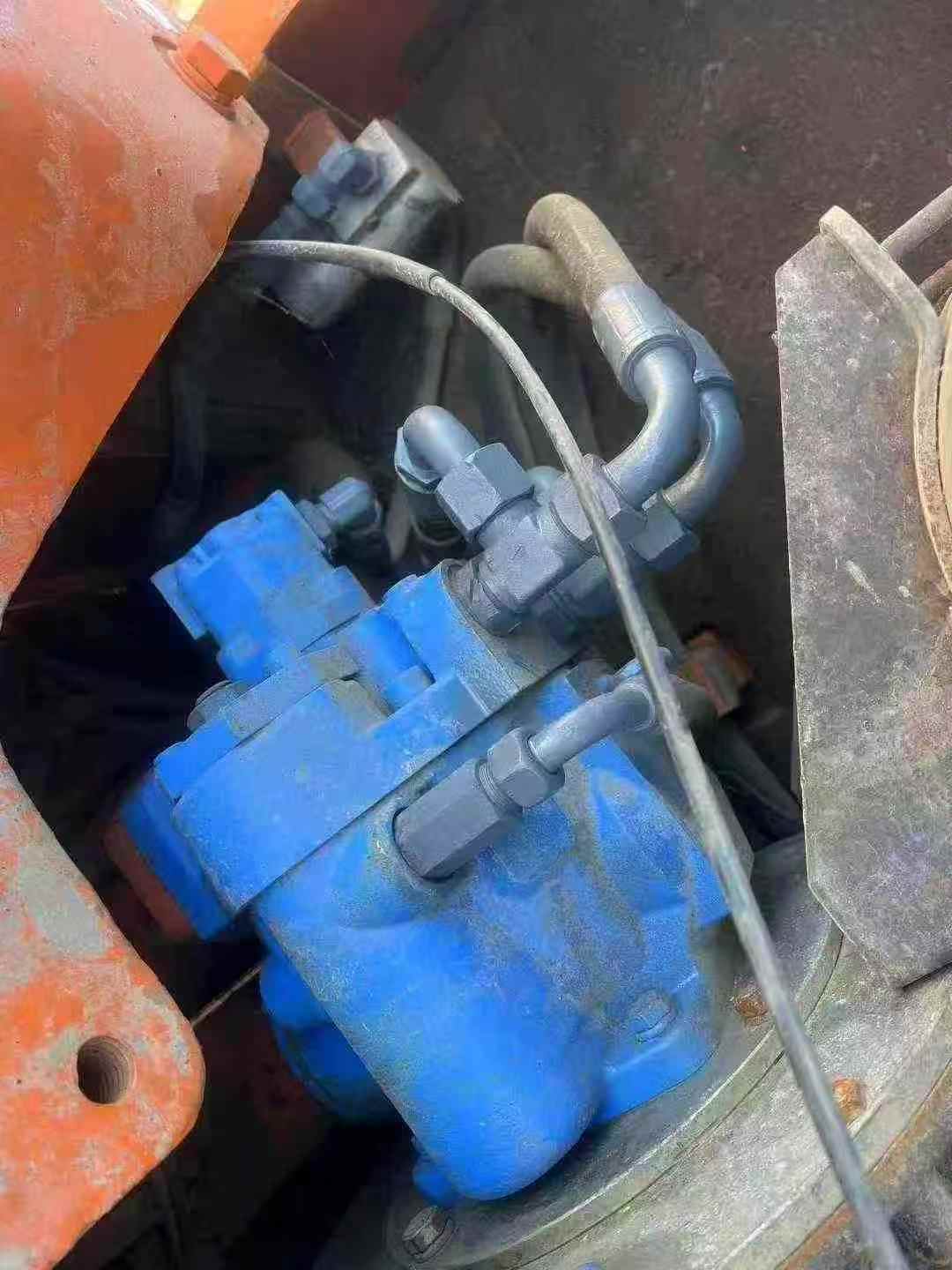

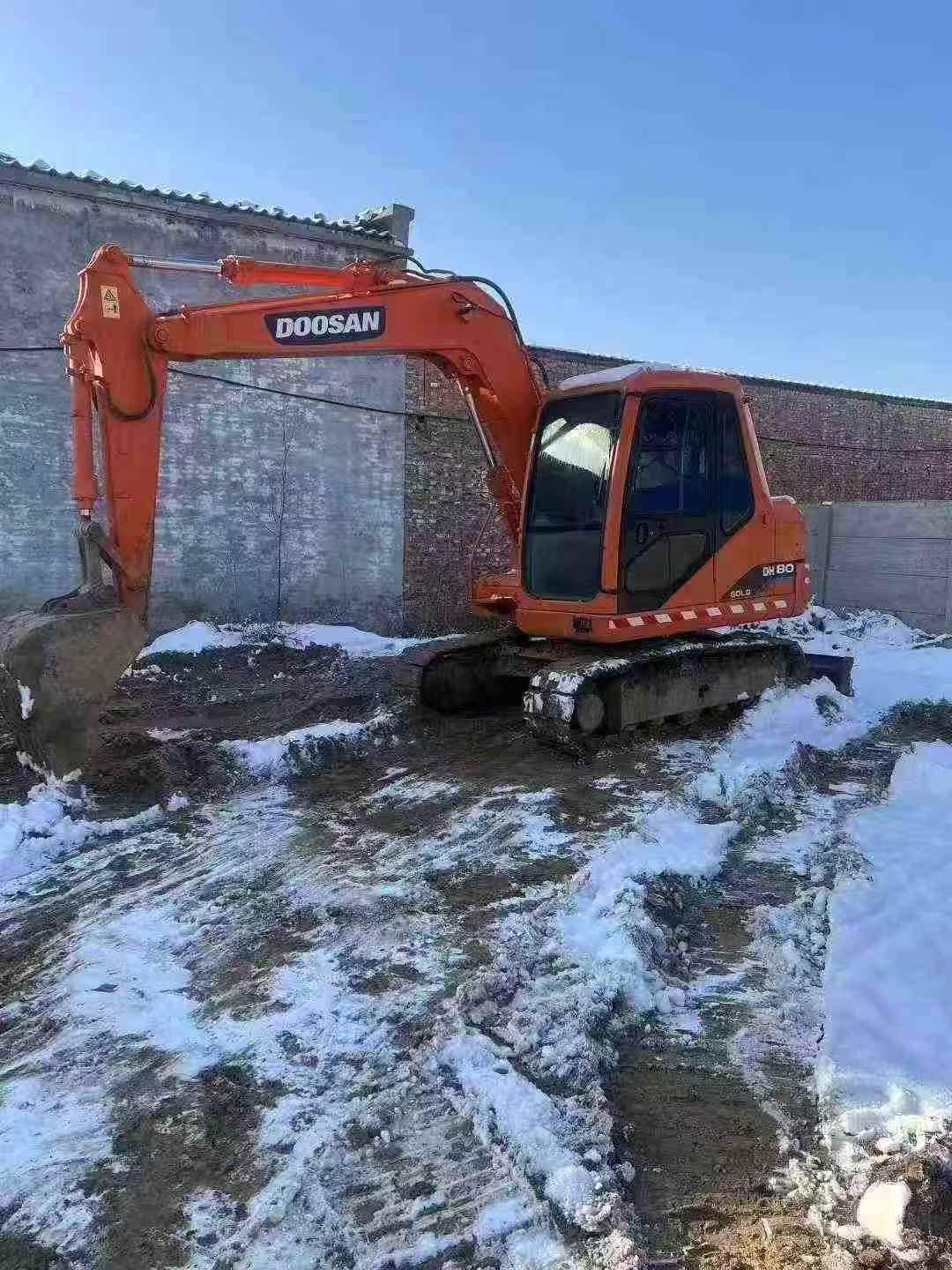

【 Doosan DH80 Second-hand Excavator Transfer Information 】 Dear customer, hello! There is currently a second-hand Doosan DH80 excavator for personal use available for sale. This excavator has been meticulously maintained since its purchase and has been in use for only 2,500 hours, which is far shorter than the average working time of similar equipment, ensuring the machine's good condition and a longer service life. This excavator is equipped with an original imported Yanmar engine, which is powerful and has high fuel economy. It can demonstrate outstanding performance both in land leveling and in complex terrain operations. Its highly efficient hydraulic system is provided by world-renowned suppliers, featuring rapid response and flexible operation, capable of easily meeting various construction demands. More importantly, this advanced hydraulic technology has significantly reduced energy consumption and improved work efficiency. From the perspective of appearance, this Doosan DH80 is in excellent condition. The "three major components" - the engine, the pump and the main control valve - are all in top form, with no obvious signs of wear or damage. Overall, it looks almost as good as a new car. In addition, it has a powerful diggin
| Specifications | Value |
|---|---|
| No. | 971100 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

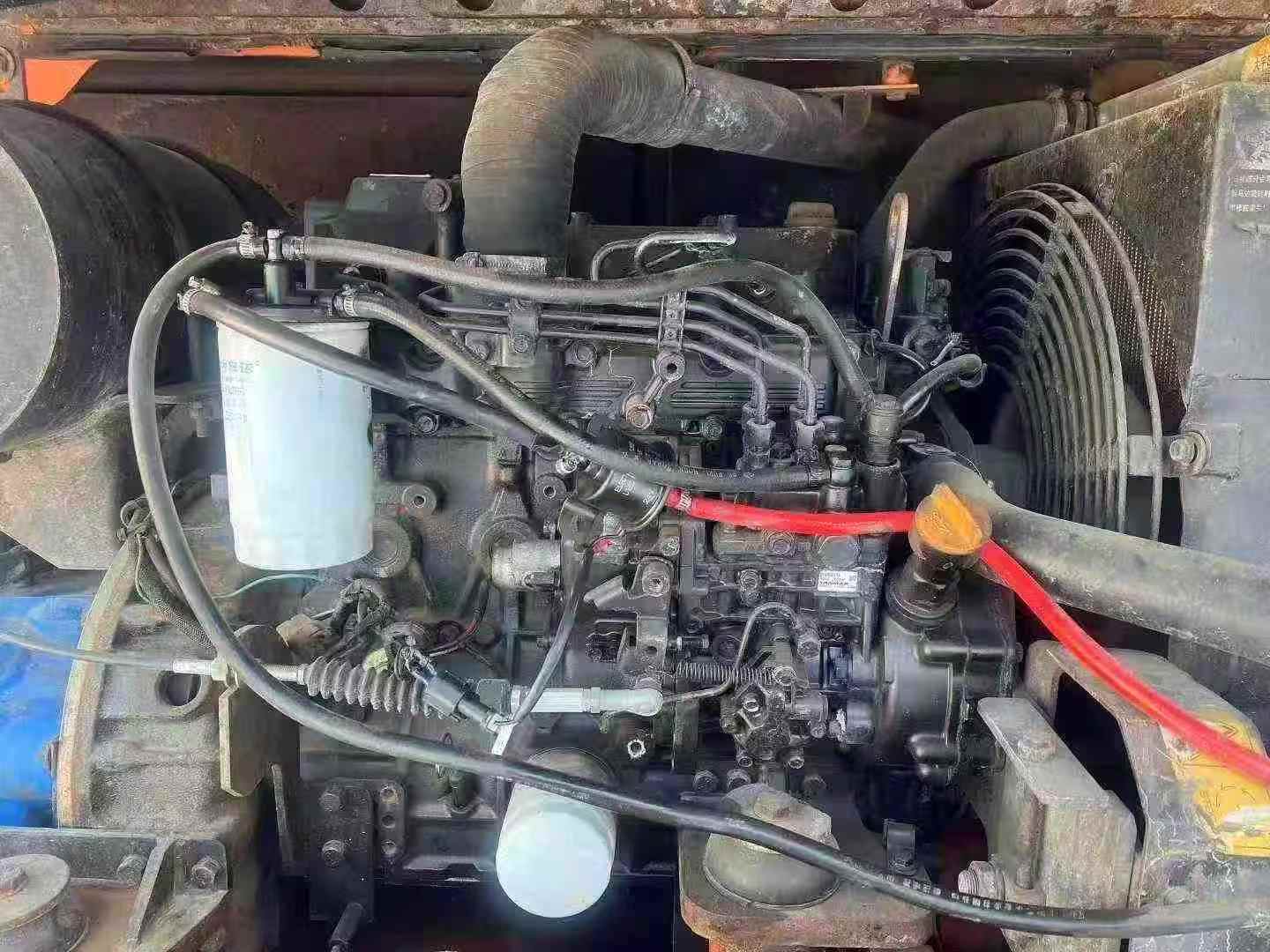

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
