Product Description

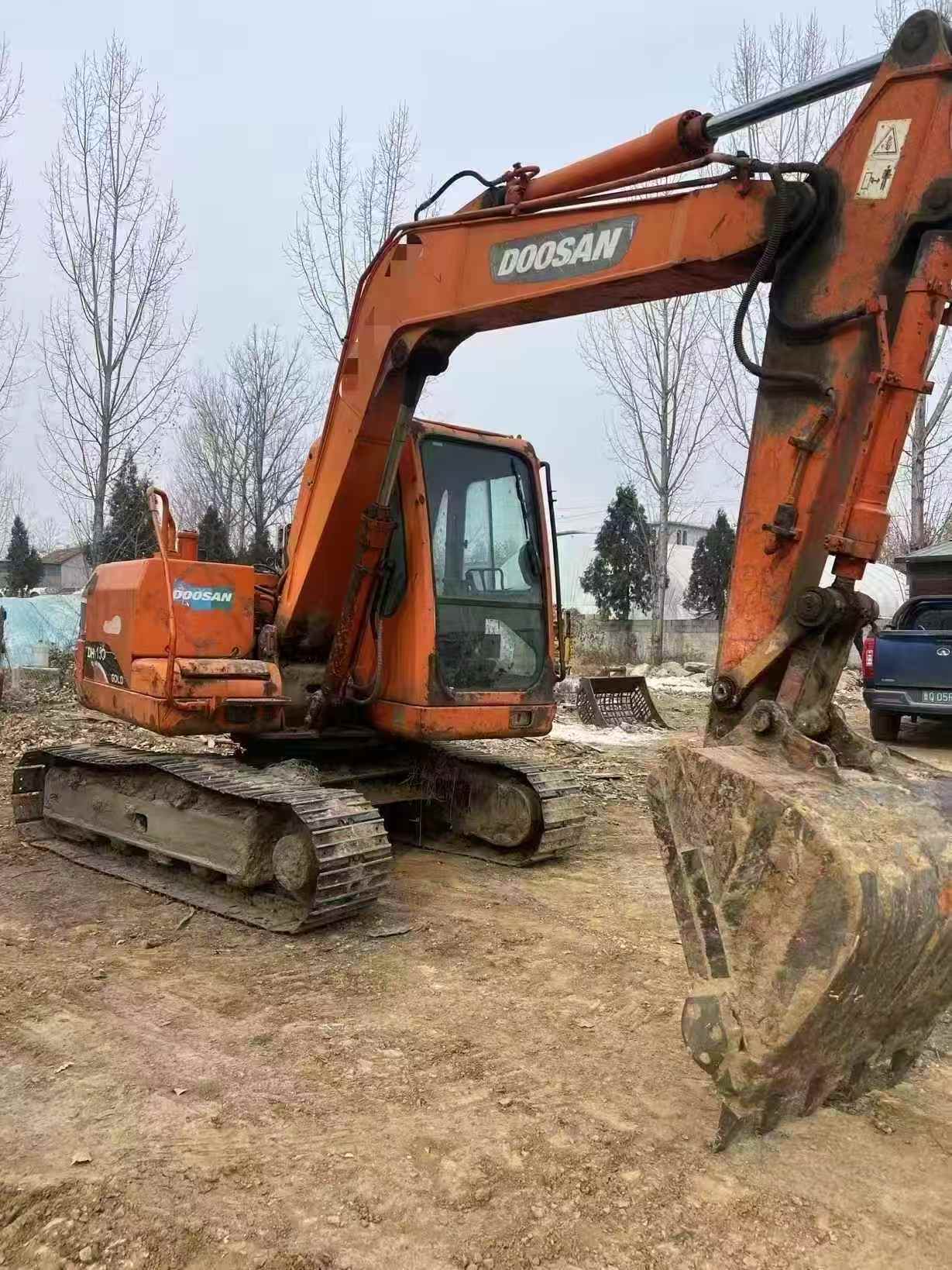

We are selling a second-hand Doosan DH80 excavator purchased in 2012, with a cumulative working time of approximately 5,000 hours. This equipment has won wide acclaim in the market for its outstanding performance and reliability, and is an ideal choice for small and medium-sized engineering projects. In terms of power, this excavator is equipped with the highly efficient and energy-saving Yanma 4TNV98 engine, with a maximum output power of up to 40.5 kilowatts, ensuring strong and stable power support under all working conditions. Meanwhile, its low fuel consumption feature helps to reduce operating costs and improve economic benefits. In terms of the hydraulic system, an advanced load-sensitive control system is adopted, equipped with a high-quality main pump and motor combination. This not only ensures rapid response and precise operation but also effectively reduces energy loss and extends service life. In addition, this machine also features an excellent heat dissipation design, ensuring it remains in good condition even in high-temperature environments. The main advantages include: compact structure and flexible mobility; The cab is spacious and comfortable with a wide field of vision. Maintenance and upkeep are simple and quic
| Specifications | Value |
|---|---|
| No. | 976392 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
