Product Description

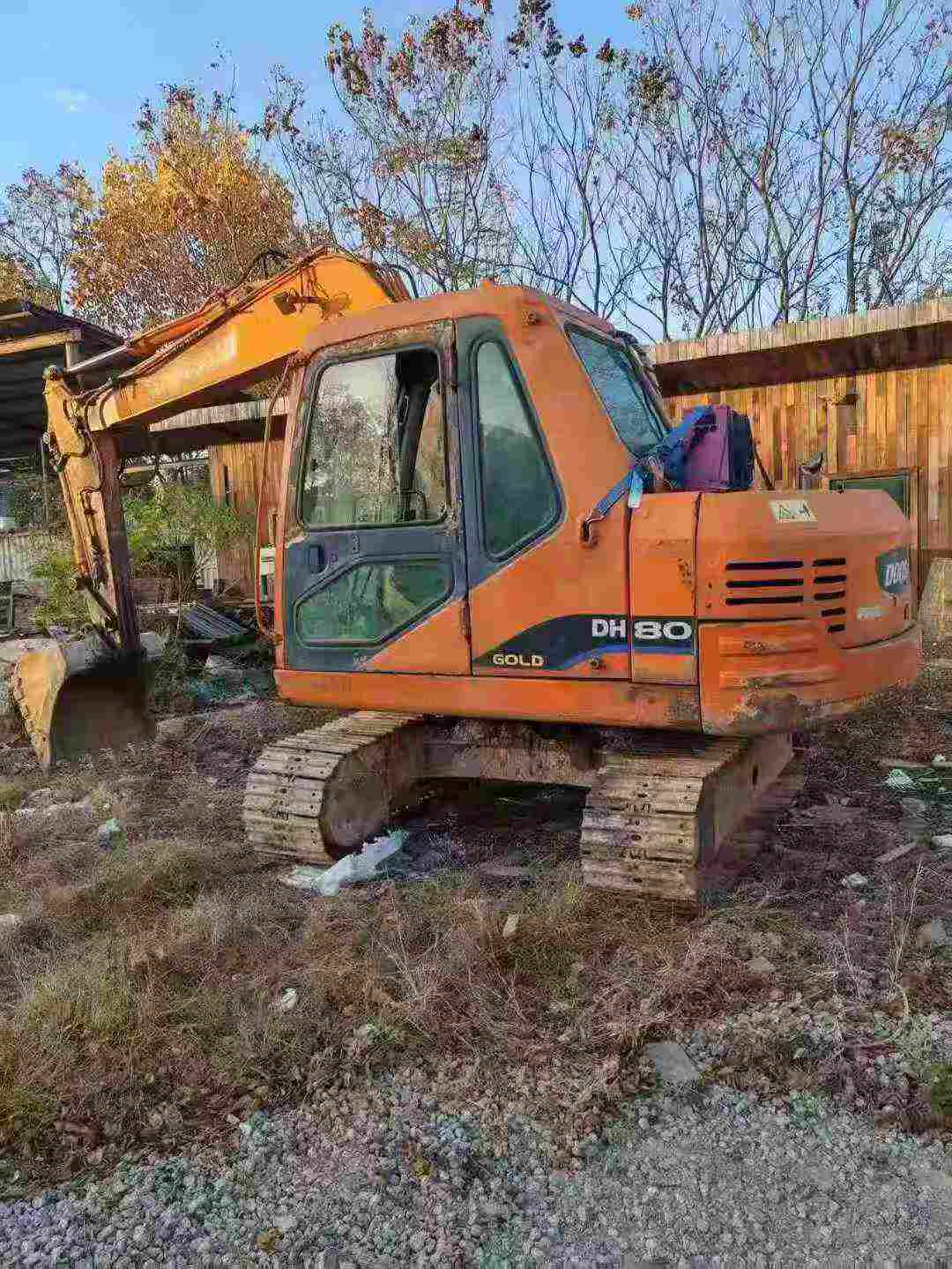

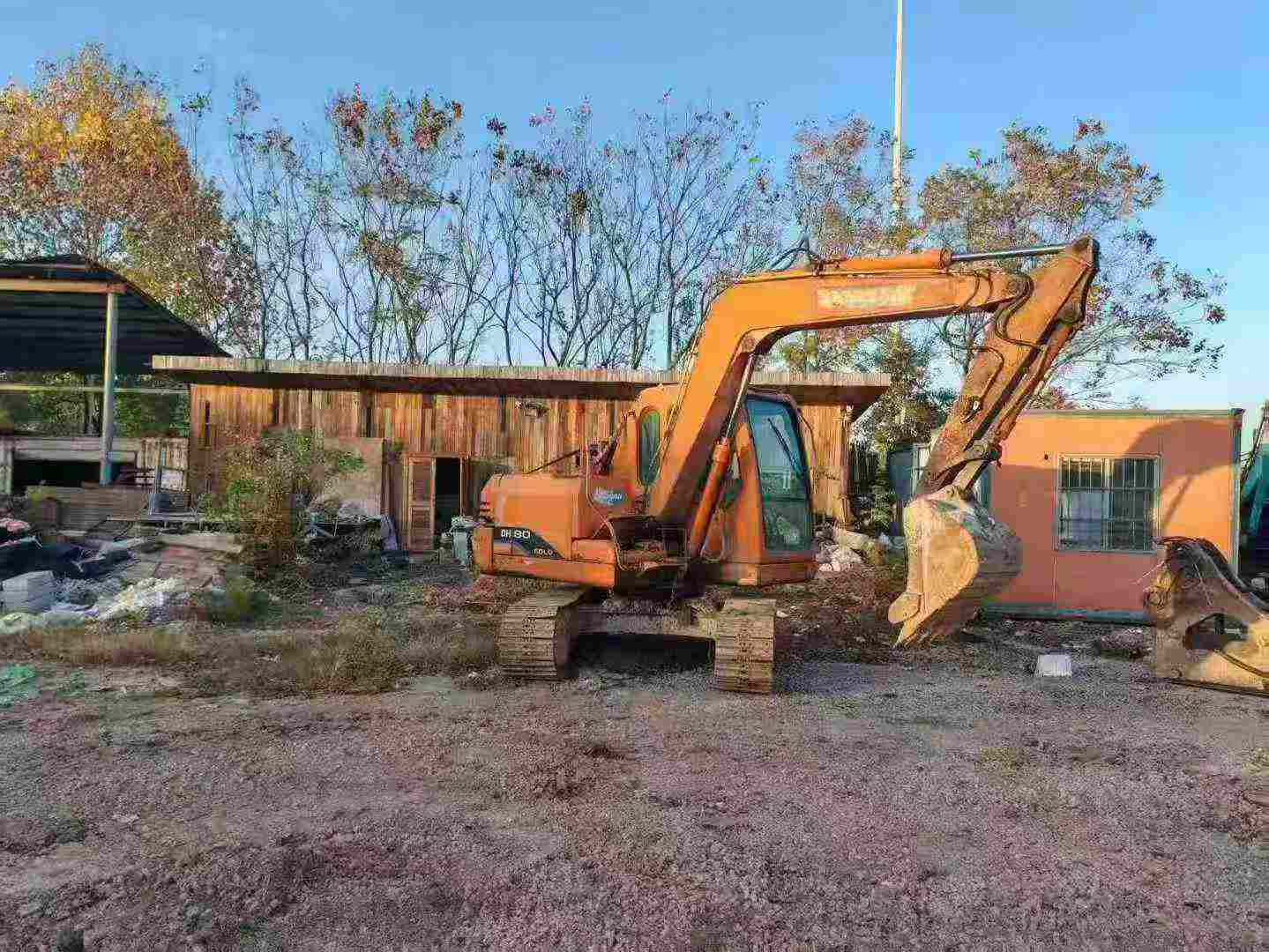

The second-hand Doosan 80G excavator, with its affordable price (over 30,000 yuan) and outstanding performance, has become a popular choice in the market. This device has an estimated working time of approximately 4,000 hours, demonstrating its durability and reliability. In terms of the power system, the Doosan 80G is equipped with an efficient and reliable engine, which may be from the Yanmar or Cummins series, with an output power of approximately 50 horsepower, ensuring strong performance under various operating conditions. This engine is renowned for its low fuel consumption and high efficiency, capable of meeting users' demands for energy conservation and emission reduction while ensuring operational efficiency. The hydraulic system is a major highlight of this model. It adopts an advanced combination design of hydraulic pumps and hydraulic motors, providing a smooth and precise operation experience. Even in the face of complex and ever-changing construction environments, it can handle them with ease, demonstrating outstanding excavation ability and stability. In addition, the Doosan 80G also features a compact body design, making it highly suitable for operations in narrow urban Spaces. The user-friendly human-machine interfa
| Specifications | Value |
|---|---|
| No. | 977811 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

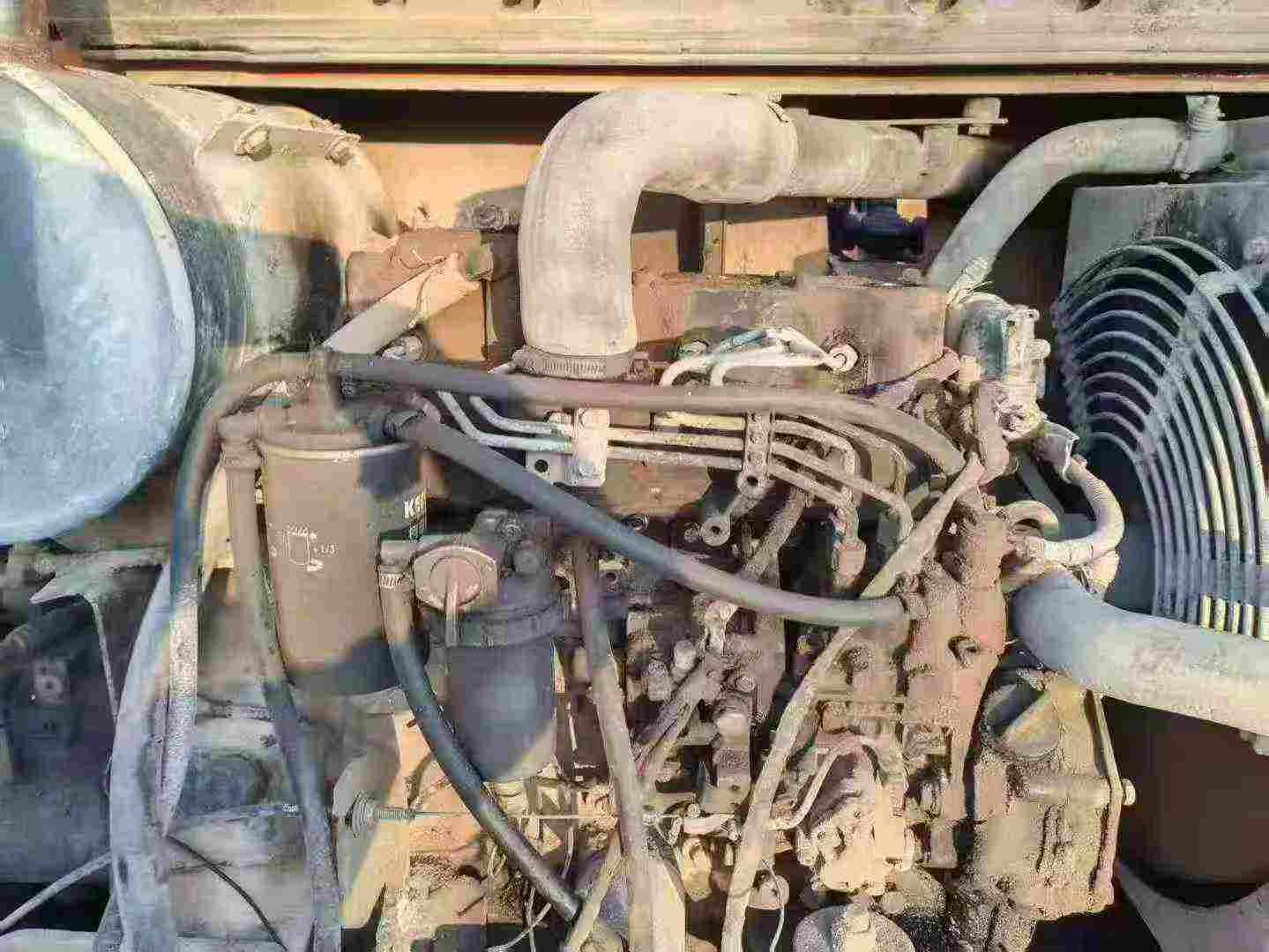

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
