| Specifications | Value |
|---|---|
| No. | 964663 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 4653 |
| Country of origin | America |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar V2403-M-D1-E3B-BC-5 |
| Rated power (kw/rpm) | 30.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 87.1 by 102.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 35.8 |
| Rod digging force (kN) | 25.7 |
| Travel speed (km/h) | 2.4/4.2 |
| Maximum flow of main pump (l/min) | 99.1 |
| Fuel Tank (L) | 79.9 |
| Hydraulic Tank (L) | 15.1 |
| Engine Oil changes (L) | 7.1 |
| Coolant (L) | 8.3 |
| Hydraulic System (L) | 54.9 |
| Total transport length (mm) | 5353 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2532 |
| Full cab height (mm) | 2532 |
| Counterweight ground clearance (mm) | 640 |
| Minimum turning radius of front working device (mm) | 2491 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1998 |
| Maximum digging radius (mm) | 5802 |
| Maximum digging depth (mm) | 3300 |
| Maximum excavation height (mm) | 5345 |
| Maximum unloading height (mm) | 3697 |
| Maximum vertical digging depth (mm) | 2815 |
| Bulldozer lift or depth (mm) | 384/465 |
| Dodging plate width × height (mm) | 1960 x 446 |
| Maximum excavation radius of stop surface (mm) | 5670 |
| Boom turning Angle (left/right °) | 70/55 |
Description

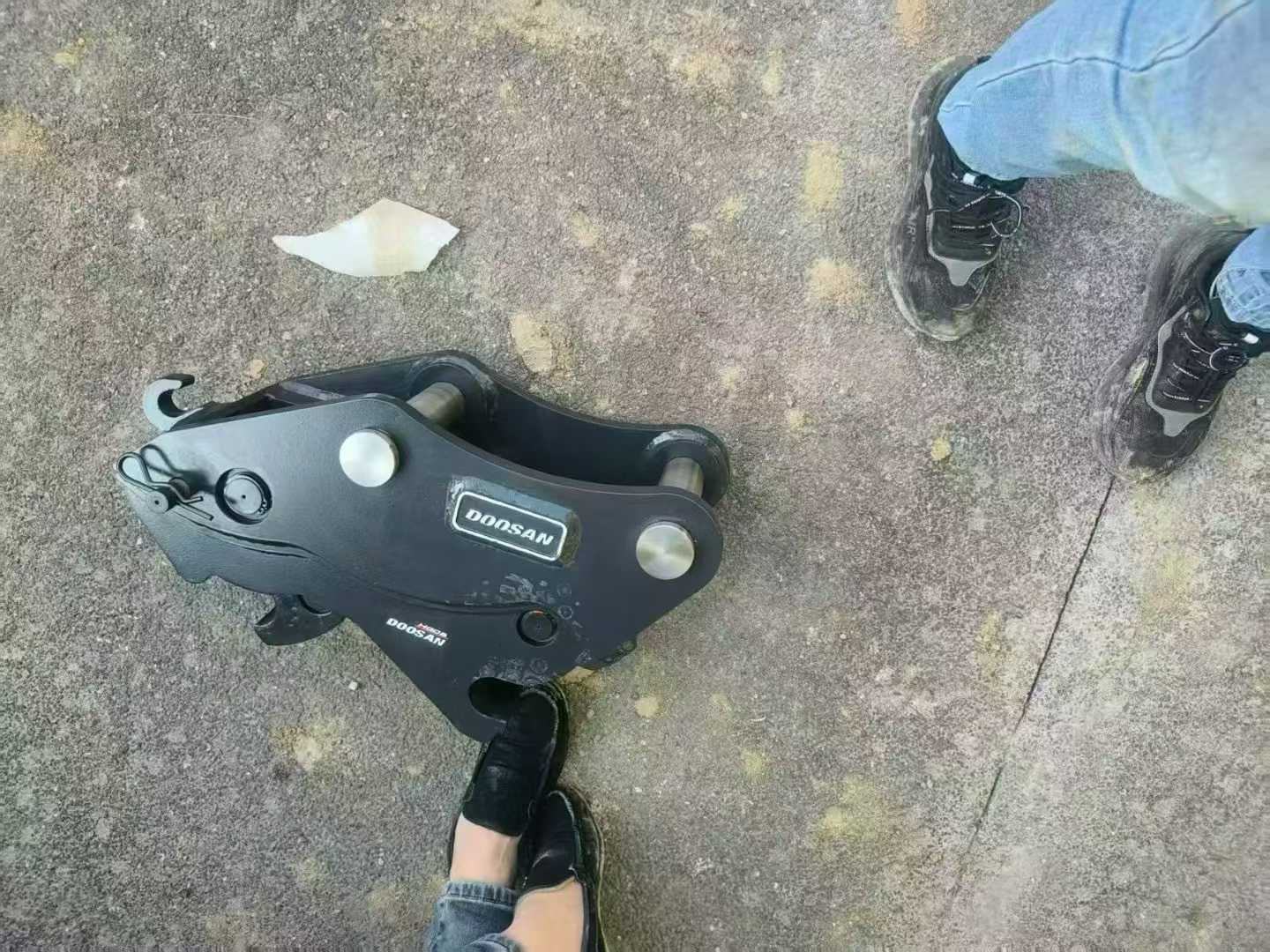

【 Recommendations for Premium Second-hand Excavators We currently have a second-hand Doosan excavator in 95% new condition. The overall condition of this equipment is excellent, with almost no signs of use. This excavator has been in operation for approximately 1,000 hours and is in the best working condition, featuring outstanding performance and a long service life. The power system adopts an efficient and energy-saving engine, ensuring strong power output and low fuel consumption. It can handle both plain and mountainous operations with ease. In terms of the hydraulic system, this machine is equipped with a 45-axis hydraulic quick-connect device from Doosan, which ensures high efficiency and smoothness during operation, significantly enhancing the construction speed and accuracy. Equipment highlights The -68 hammer, 50-axis small bucket (width 40cm), 45-axis and other accessories are complete, which can meet the requirements of various complex working conditions. It is particularly worth mentioning that this machine is also equipped with two 45-axis small rakes, which are very suitable for fine excavation or cleaning work. All attachments are sold at low prices with extremely high cost performance! In conclusion, this is a second-
