| Specifications | Value |
|---|---|
| No. | 962628 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

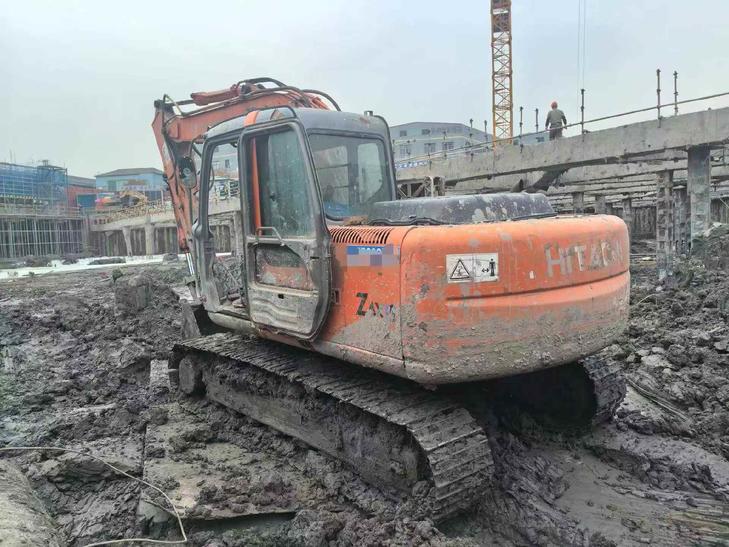

【 Hitachi 120-6 Second-hand excavator in stock for Sale We are delighted to recommend this high-quality second-hand Hitachi 120-6 excavator to you. It not only boasts outstanding performance but also has a highly competitive price. This excavator has a working time of only 3,500 hours. For a medium-sized excavator, such a usage duration means it is still in the best working condition and can provide you with long-term stable service. In terms of the power system, the Hitachi 120-6 is equipped with an efficient and energy-saving engine, ensuring strong power output while maintaining a low fuel consumption rate. Whether on urban construction sites or in outdoor working environments, it can easily handle all kinds of complex working conditions. In addition, this model is also equipped with an advanced electronic control system, which can achieve the best matching of engine speed and torque, thereby improving work efficiency and reducing maintenance costs. The hydraulic system is one of the key factors in evaluating the performance of an excavator. This Hitachi 120-6 model adopts an optimized design of the main pump and control valve combination, making the overall operation of the machine more smooth and effortless, and the response sp
