| Specifications | Value |
|---|---|
| No. | 963323 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

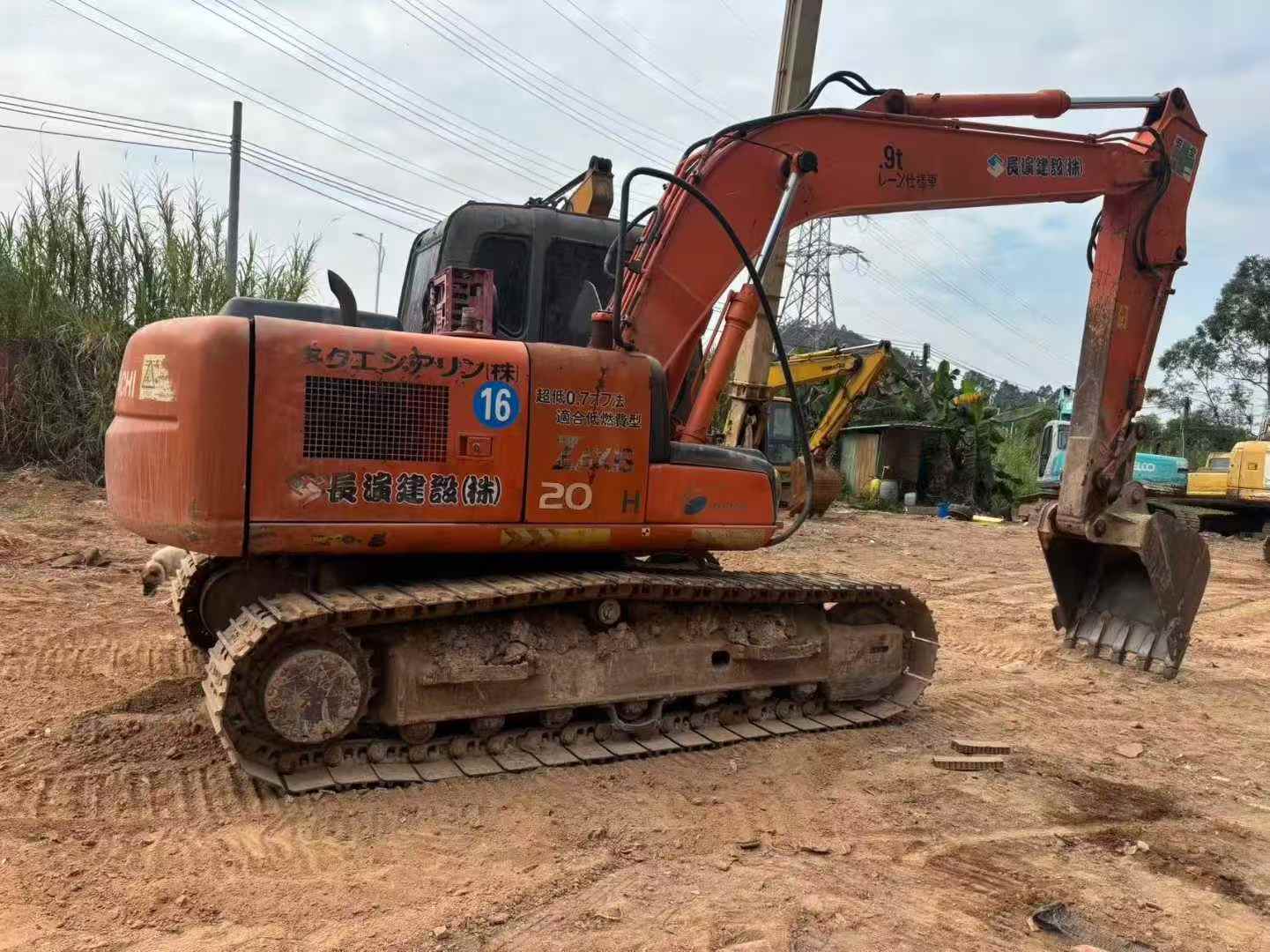

Detailed Introduction to the second-hand Hitachi 120-6 Excavator This second-hand Hitachi 120-6 excavator is one of the highly praised classic models in the market. It features a brand-new chassis, ensuring the stability and durability of the equipment, and also significantly extending the service life of the machine. According to our records, the working time of this excavator is only about 3,500 hours, which is far shorter than the average service life of similar machinery, and it is in very good condition. In terms of power, this machine is equipped with an original imported high-efficiency and energy-saving engine from Hitachi. It not only has strong power but also excellent fuel economy. While ensuring powerful digging force, it can also effectively reduce operating costs. In addition, its advanced hydraulic system design makes the operation smoother and more precise, enabling it to handle both meticulous work and heavy-load excavation with ease. It is worth mentioning that this excavator is also equipped with multiple intelligent control technologies, such as the automatic idle function, which further enhances work efficiency and reduces unnecessary energy consumption. To sum up, this second-hand Hitachi 120-6 excavator has be
