| Specifications | Value |
|---|---|
| No. | 963855 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

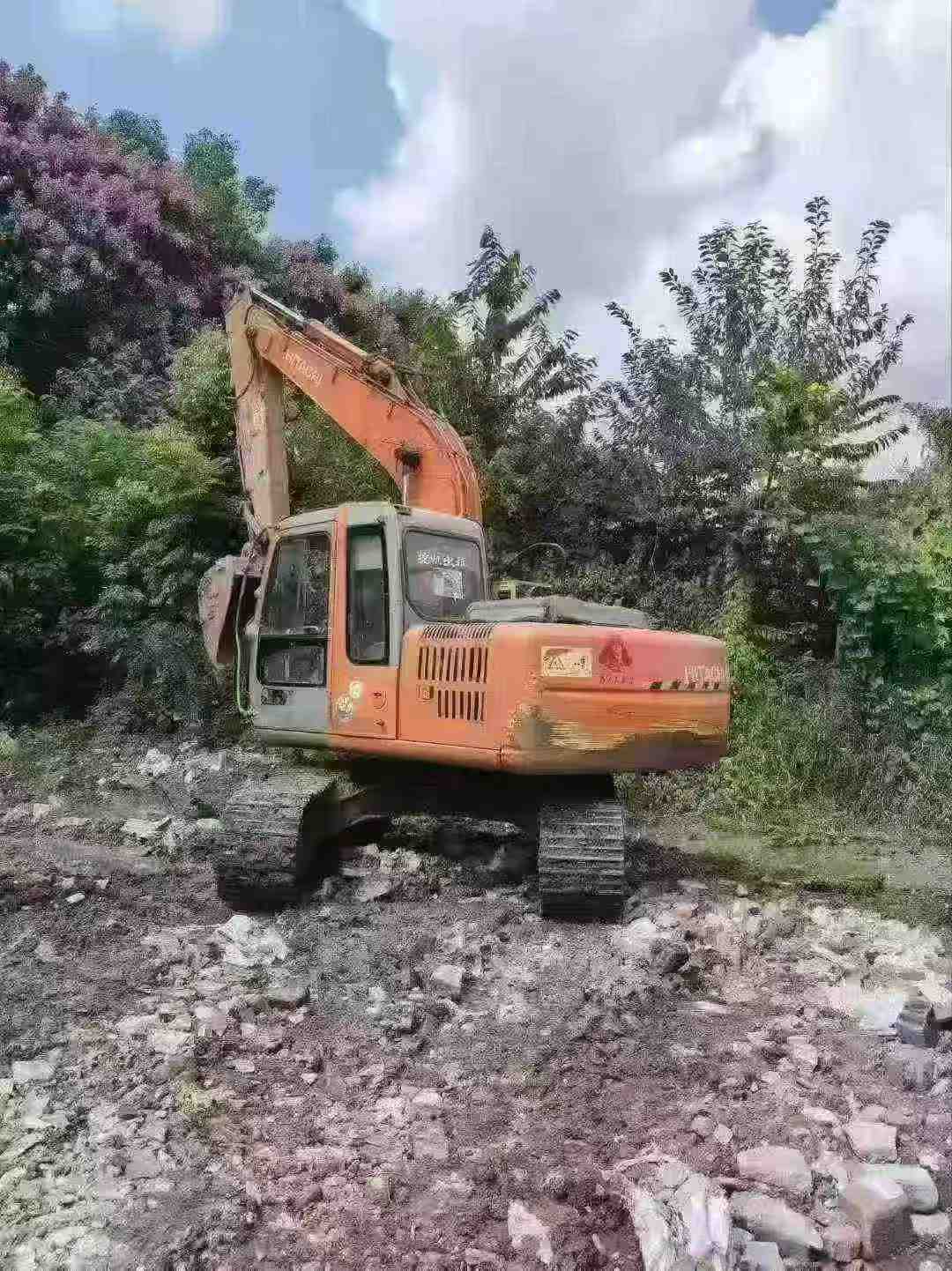

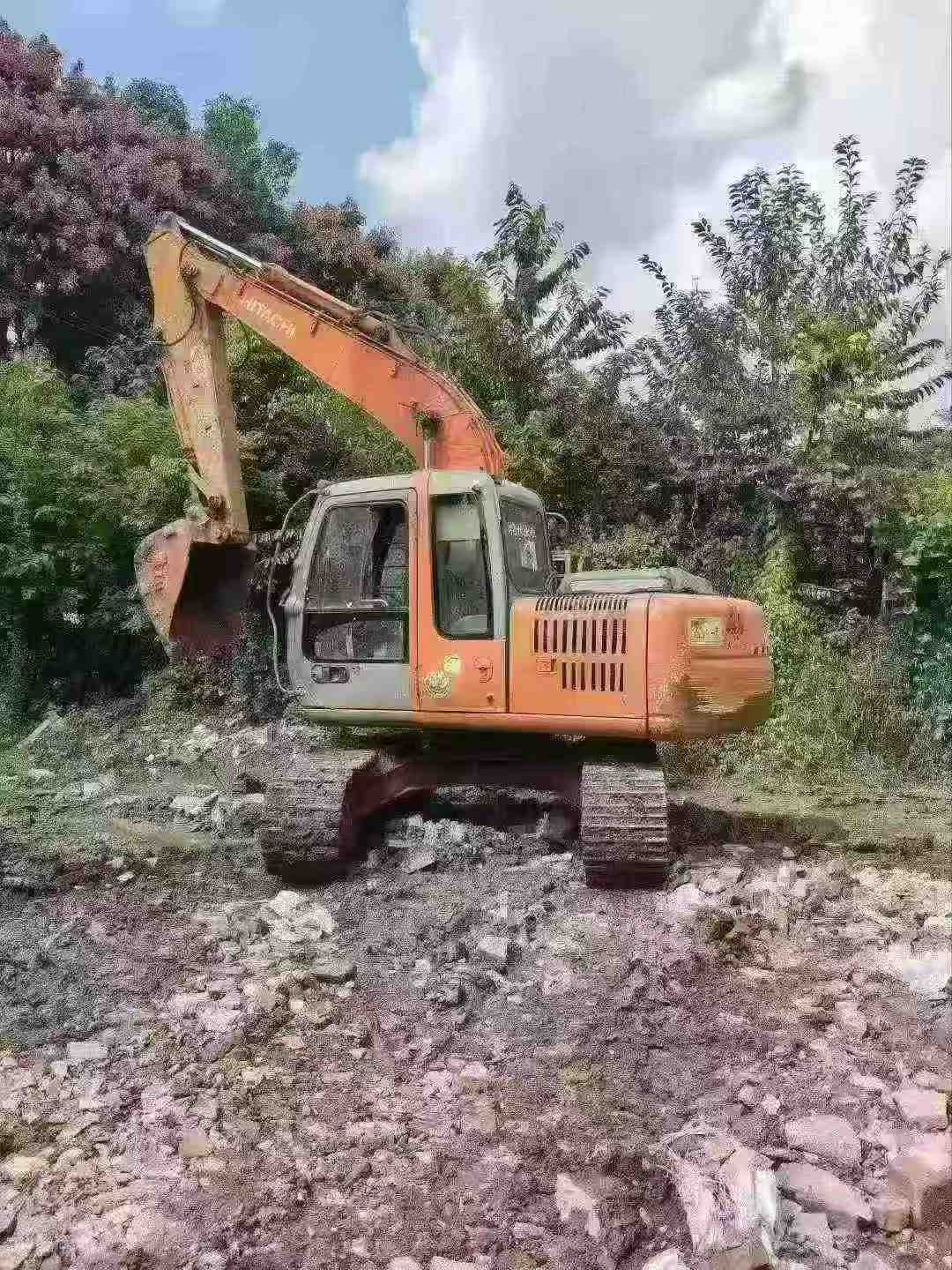

【 Premium Recommendation 】 Pure imported 2013 Hitachi ZX120 second-hand excavator, first-hand supply now recruiting agents, only over 90,000! This Hitachi ZX120 excavator was imported from Japan in its original form in 2013. Up to now, it has only worked for 4,500 hours. With low usage frequency and proper maintenance, its overall condition is good. This equipment is equipped with Hitachi's classic Isuzu 4JG1 engine, which is powerful, fuel-efficient and has a maximum output power of up to 70.9 kilowatts. It can handle operations such as excavation, loading and crushing with ease. In terms of the hydraulic system, this excavator is equipped with the HIOS III hydraulic control system independently developed by Hitachi. It responds quickly and operates flexibly, effectively enhancing work efficiency while reducing energy consumption. In addition, this machine is also equipped with a spacious and comfortable cab, offering a wide field of vision. The robust and durable chassis design ensures stability and passability under various complex working conditions. If you purchase now, you can also enjoy the professional after-sales service support we provide, including but not limited to regular maintenance checks, rapid response to faults and
