| Specifications | Value |
|---|---|
| No. | 965300 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

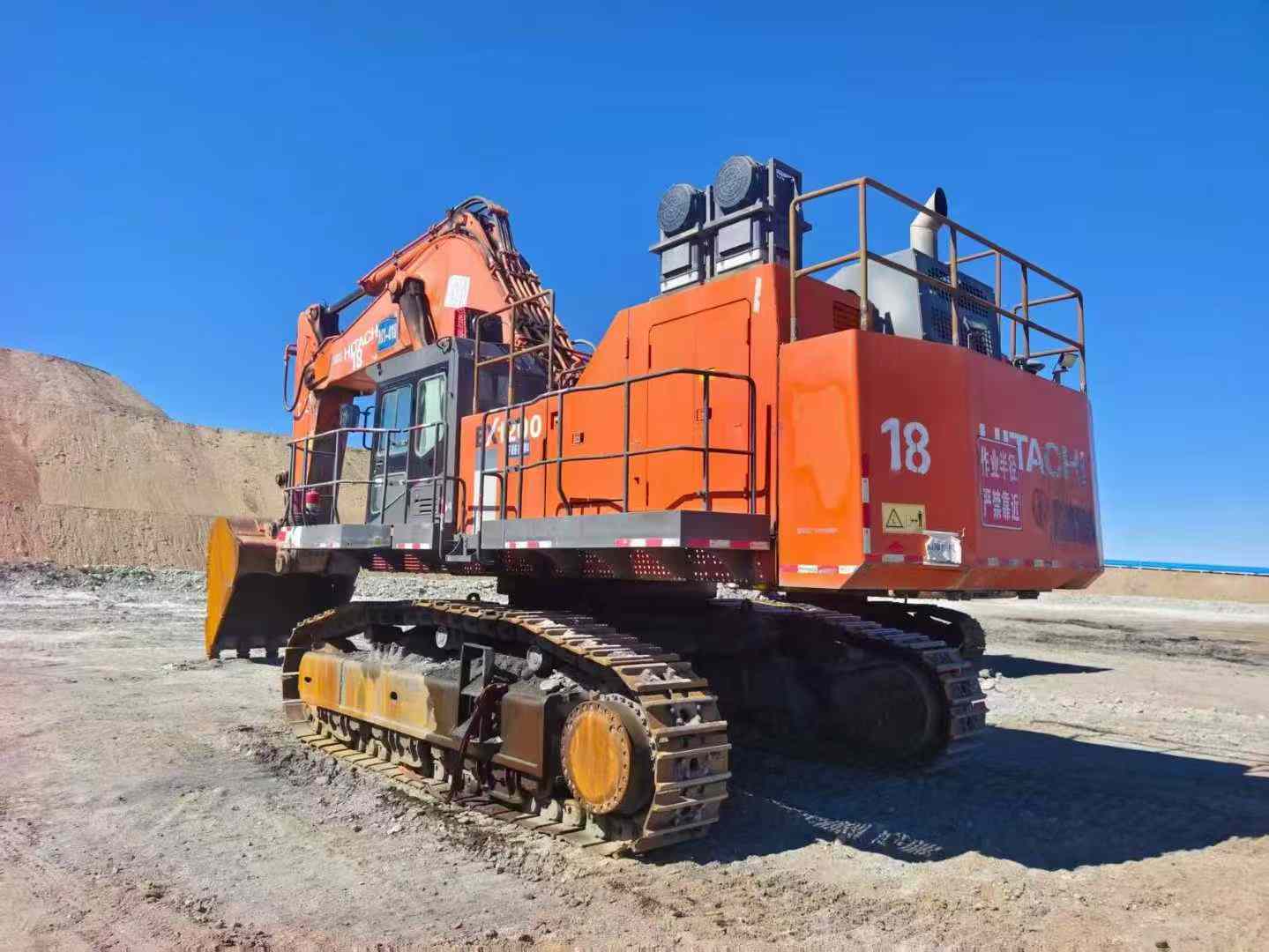

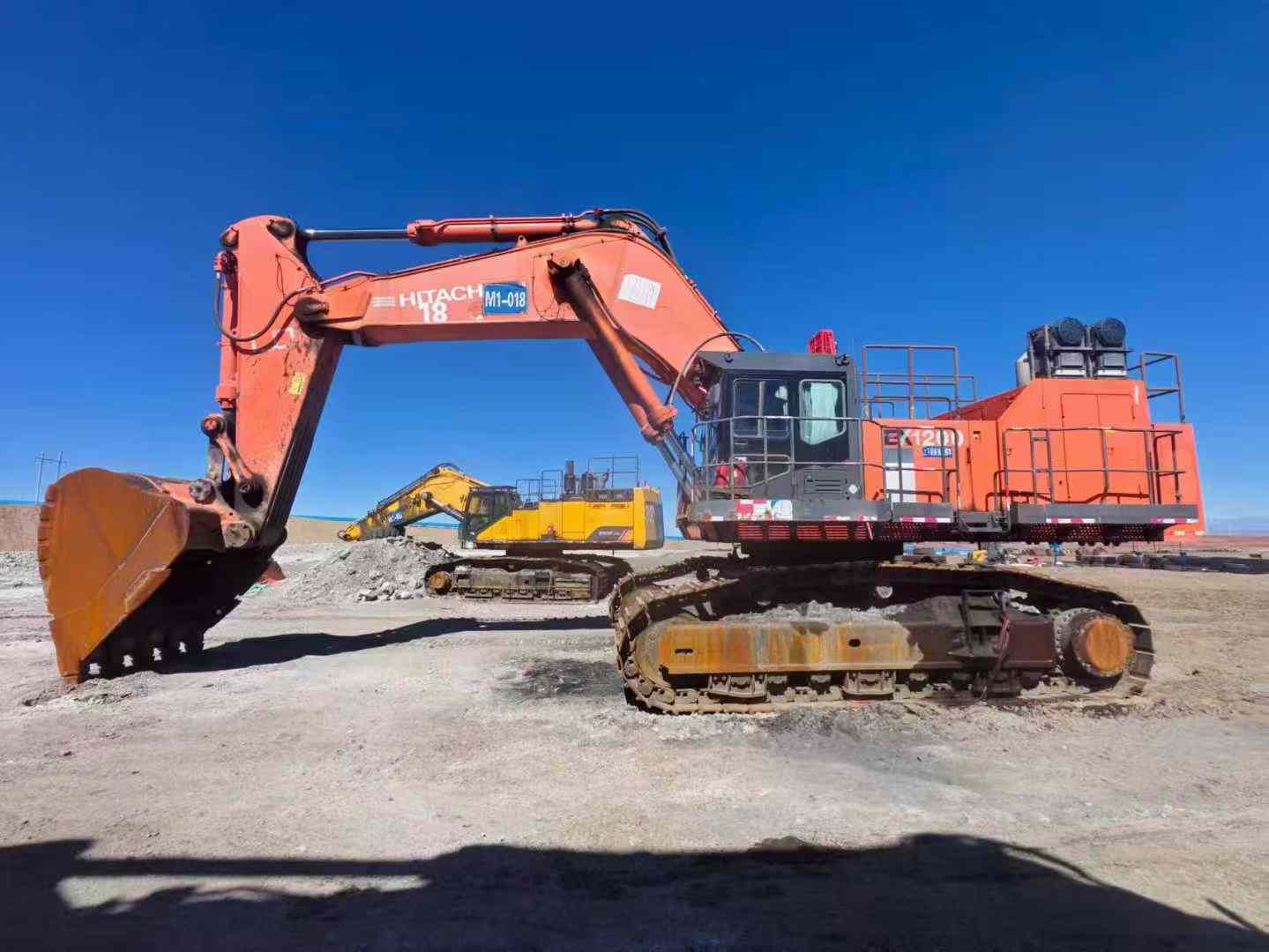

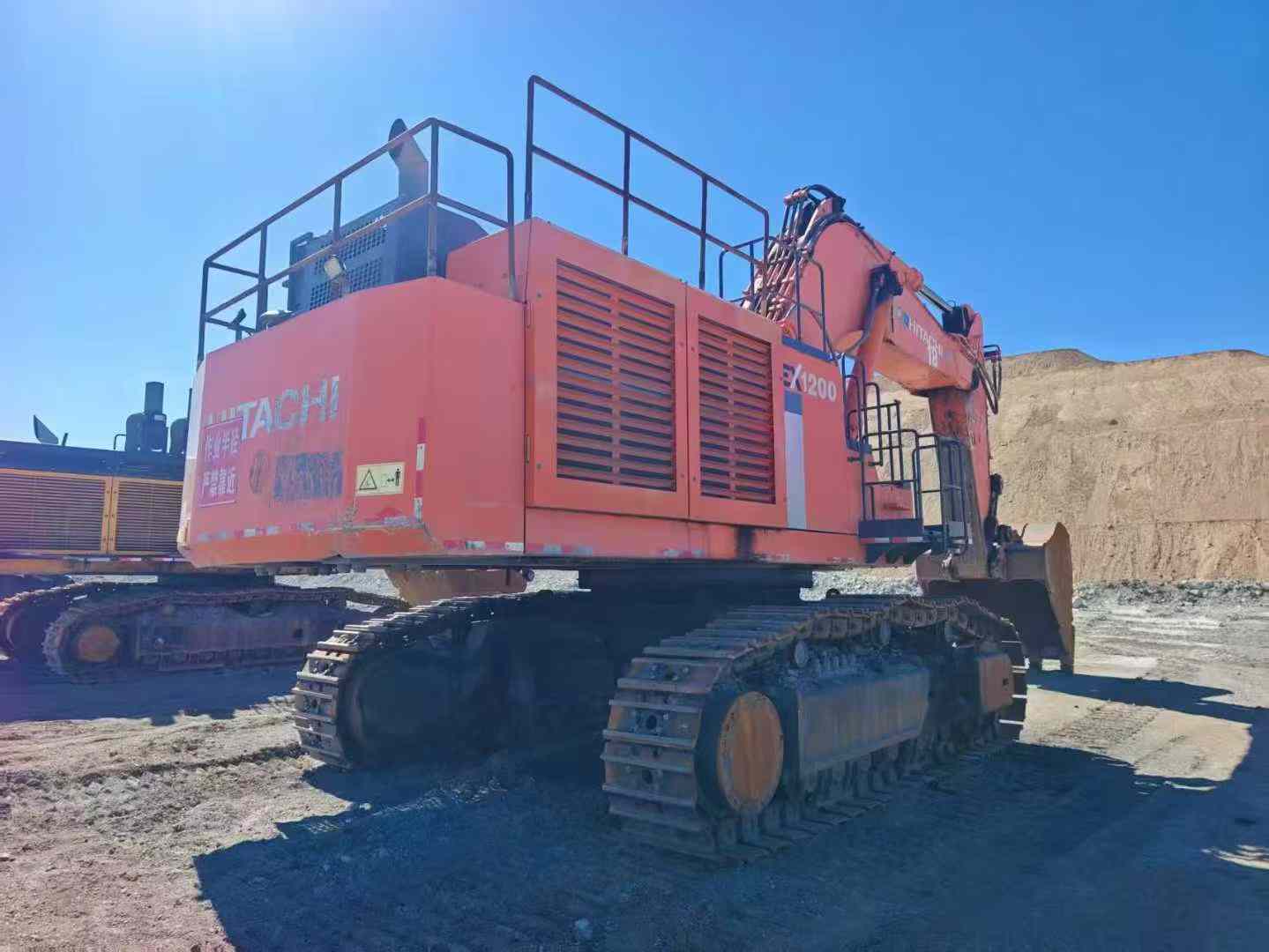

Hitachi 1200-6 second-hand excavator on sale at special price We are very glad to recommend to you this Hitachi 1200-6 second-hand excavator with extremely high cost performance. Since its commissioning, the cumulative working time of this equipment has only been around 5,000 hours, far below the industry average. This indicates that it still has a long service life and good mechanical condition. This is undoubtedly an ideal choice for engineering projects that require an efficient and stable working environment. In terms of power, this machine is equipped with an original imported Hitachi high-efficiency and energy-saving engine, which not only has strong power but also good fuel economy. While ensuring strong digging force, it also significantly reduces operating costs. In addition, its advanced electronic control system can achieve precise control, ensuring optimal performance under various complex working conditions. The hydraulic system adopts Hitachi's unique HIOS III intelligent control system. By optimizing the matching relationship between the pump and the valve, it achieves a faster and smoother operation response, effectively reduces energy loss, and further improves work efficiency. It is worth mentioning that this syste
