| Specifications | Value |
|---|---|
| No. | 965309 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

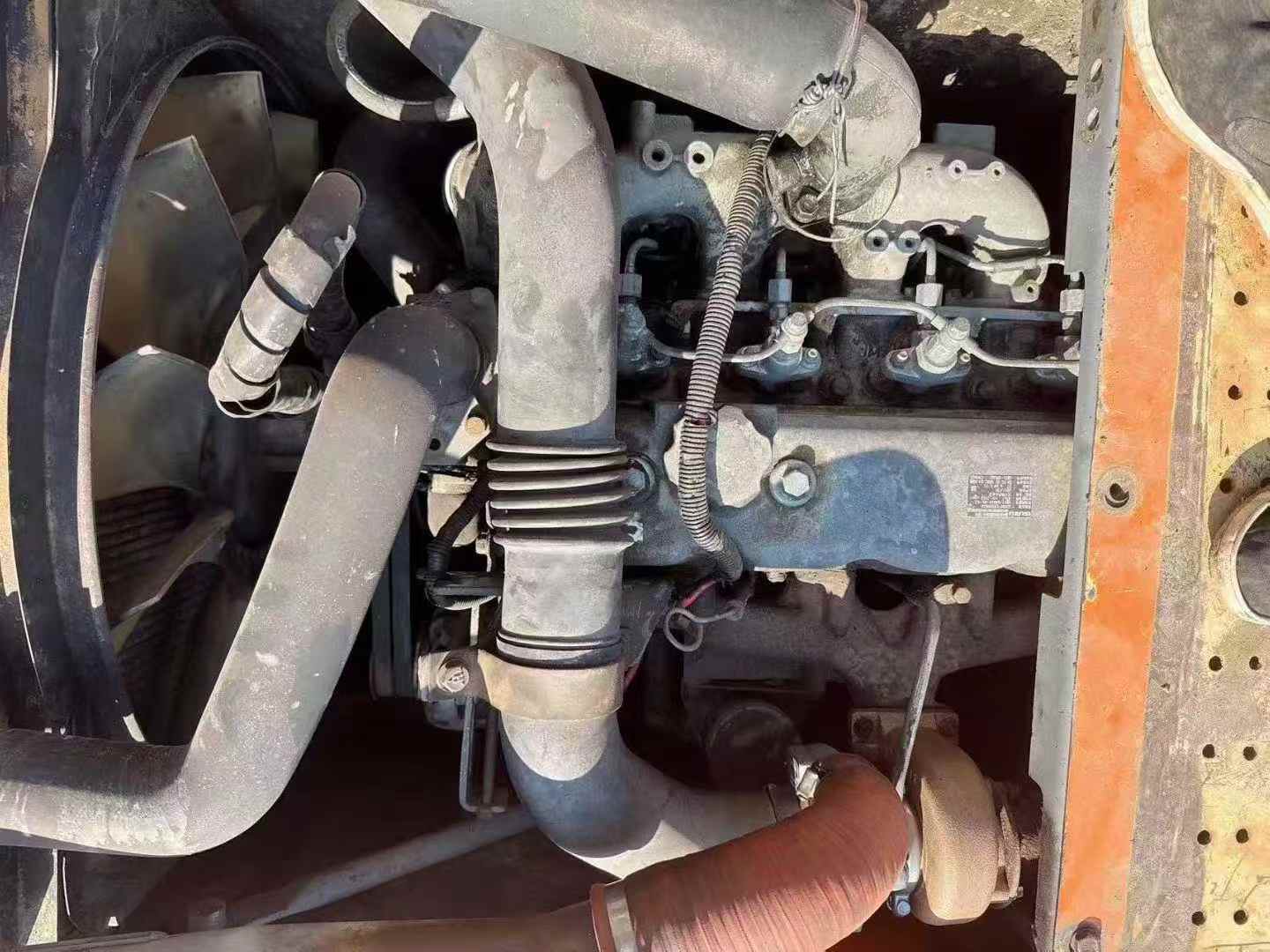

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

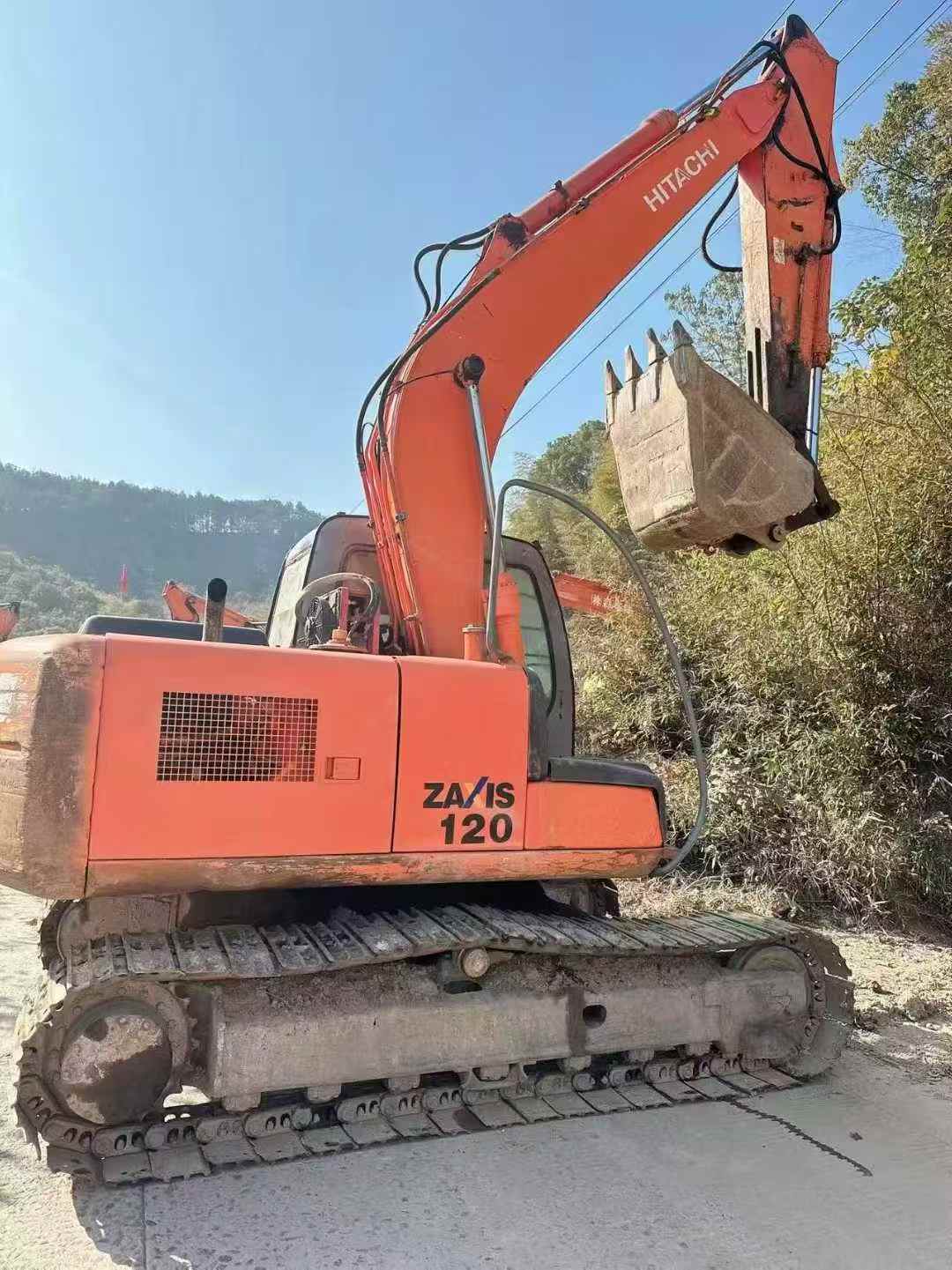

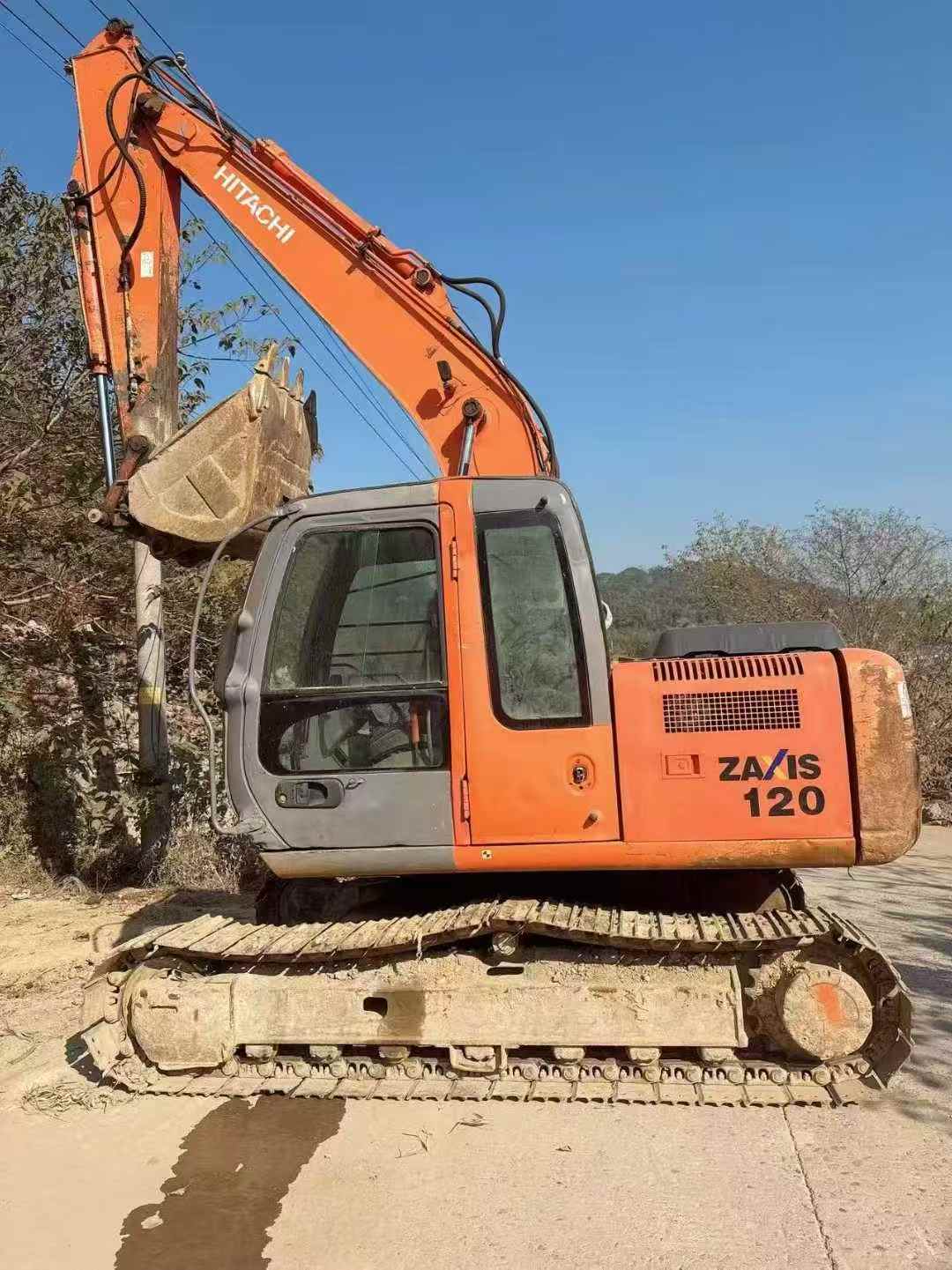

【 Second-hand Hitachi 120-6 Excavator This second-hand Hitachi 120-6 excavator is currently priced at only 77,000 yuan, offering an extremely high cost performance. Since its commissioning, this machine has worked for a total of 4,500 hours, which is a medium usage frequency. The mechanical condition is good and it is well maintained, capable of meeting various construction requirements. It is equipped with a Cummins 6BTAA-5.9-C150 engine, with a maximum power of 89KW at 2000rpm. It is powerful and stable, and can handle operations such as excavation, loading and crushing with ease. In addition, this machine is equipped with an advanced hydraulic system, featuring fast response speed, high control accuracy and flexible operation, which can significantly improve work efficiency. More importantly, the Hitachi brand itself enjoys a high reputation in the field of construction machinery, and its products are renowned for their durability and reliability. This 120-6 model is no exception. It not only has a solid structure but also low maintenance costs, making it an ideal choice for your earthwork projects, municipal construction and other projects. If you purchase now, you can also enjoy the professional transportation services and after-s
