| Specifications | Value |
|---|---|
| No. | 965474 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

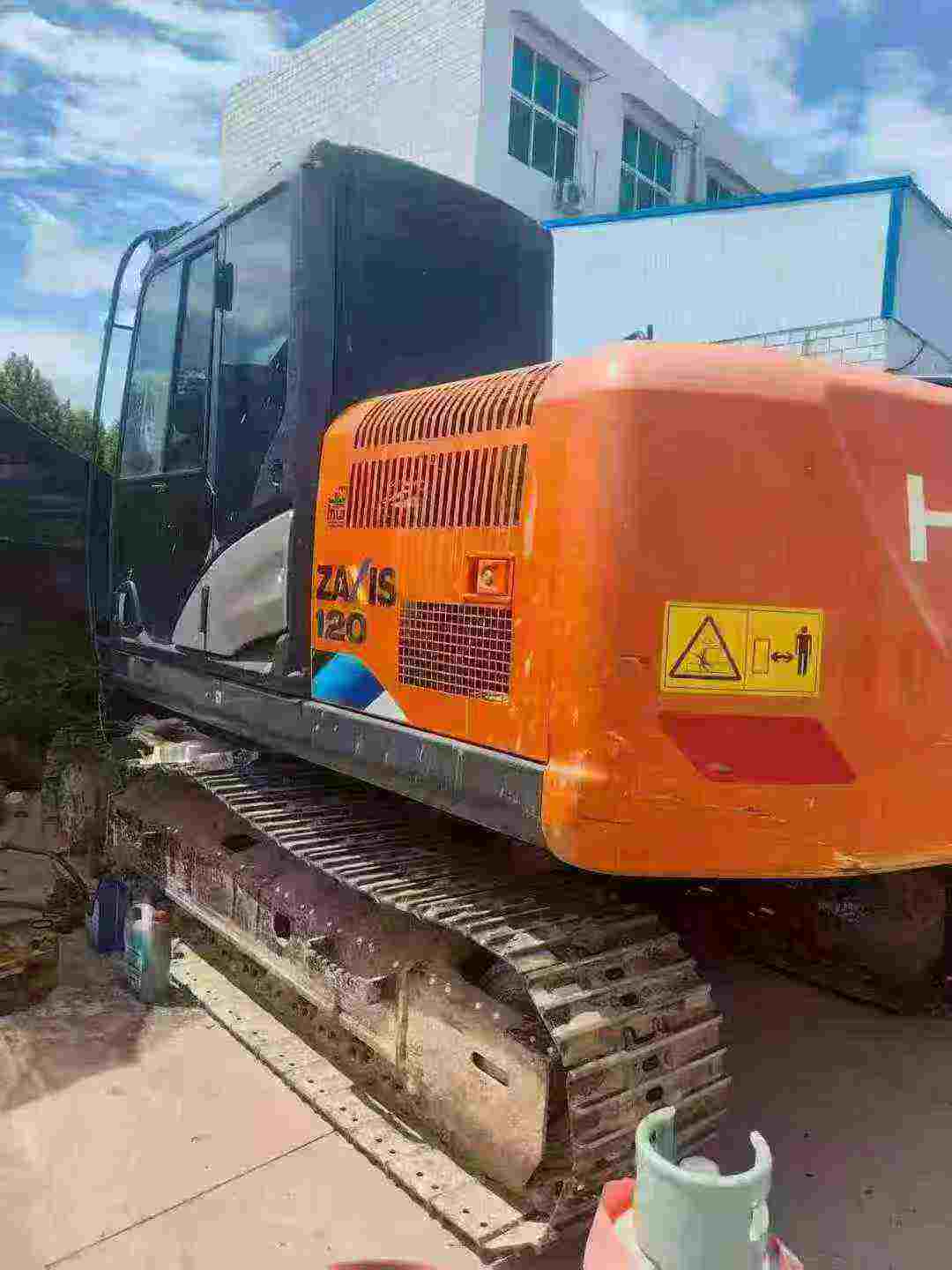

【 Premium Recommendation 】2021 Hitachi ZX120-5A second-hand excavator, pure earthwork operation, 4000 hours of actual performance, complete procedures, outstanding performance, ideal choice for your engineering projects! Since its commissioning in 2021, this Hitachi ZX120-5A excavator has been dedicated to earthwork excavation, with a cumulative working time of only 4,000 hours. It has a moderate usage frequency and is in good mechanical condition. Its power system is equipped with an original imported Hitachi engine, which features strong power output and smooth operation performance. Even under complex working conditions, it can maintain efficient operation. At the same time, it has good fuel economy, saving you more operating costs. In terms of the hydraulic system, this machine is equipped with an advanced negative flow control system, ensuring precise and sensitive movements. Whether it is excavation, loading or crushing operations, it can handle them with ease, significantly enhancing work efficiency. In addition, the hydraulic cylinders and pipelines have all undergone strict inspection and maintenance, with no leakage, ensuring the stability and durability of the entire machine. The vehicle body structure is solid and reliab
