| Specifications | Value |
|---|---|
| No. | 965548 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

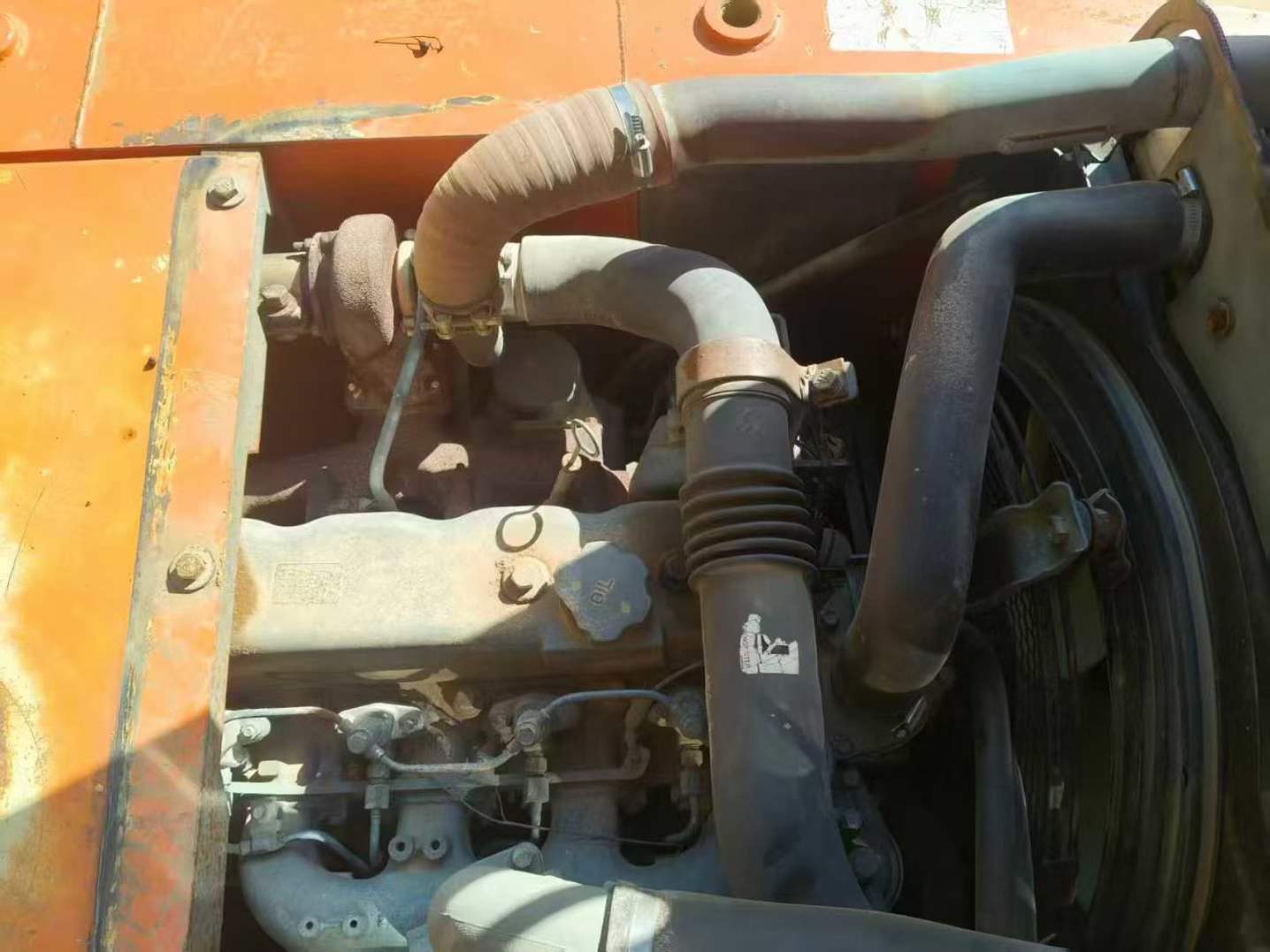

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |

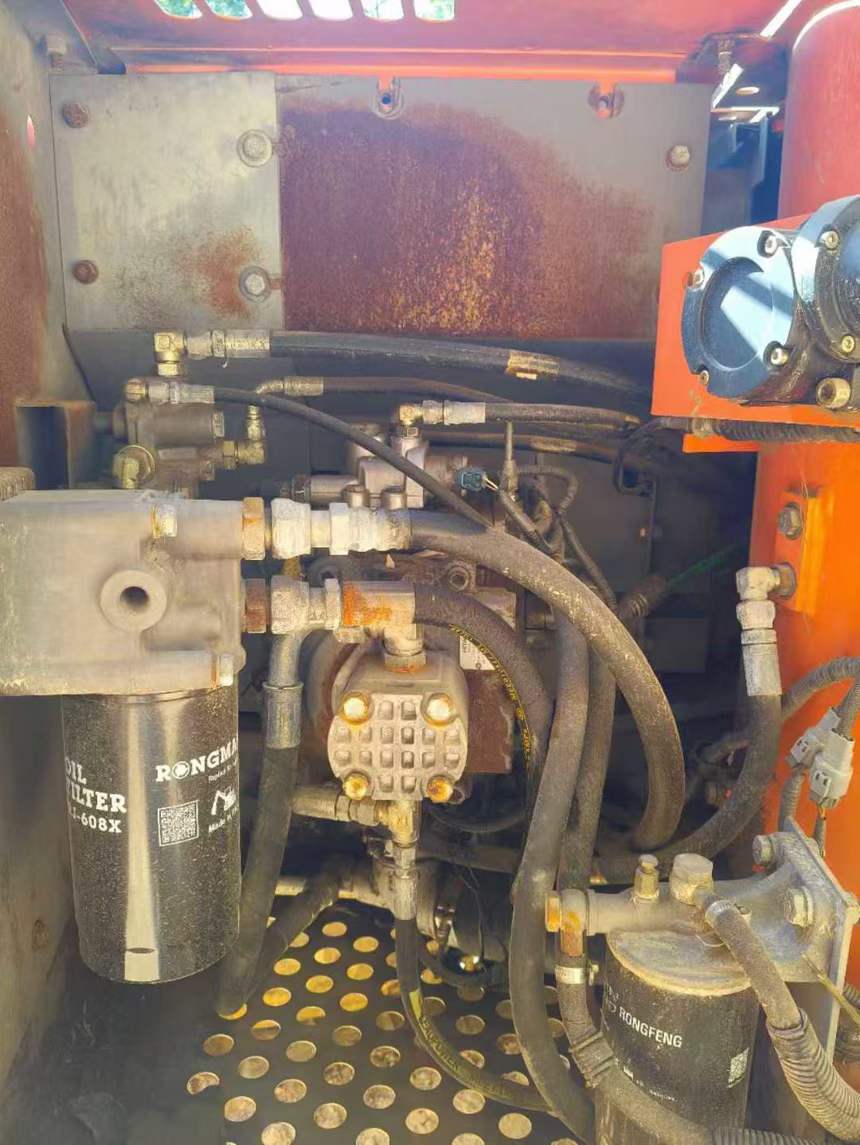

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |

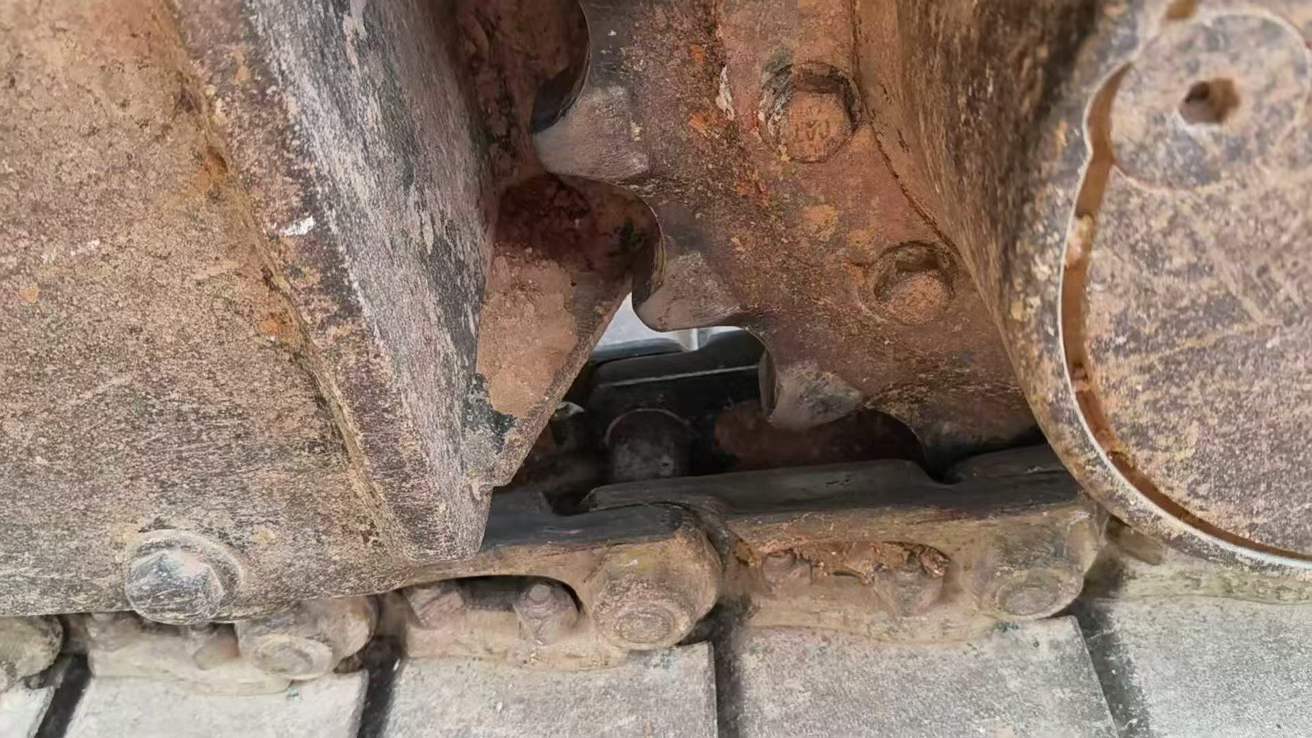

| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description
【 Premium Recommendation 】2012 Hitachi ZX120 second-hand excavator, available for on-site viewing and test operation at any time! This 2012 Hitachi ZX120 excavator is a very popular medium-sized excavator in the market. It has a low working time of 4,500 hours, which means it still has a long service life and high residual value. For customers who need efficient and stable work, this device is definitely an ideal choice. In terms of power, this machine is equipped with a high-performance engine imported from Hitachi, which features excellent fuel economy and strong power output. It can maintain a good operating state even in a complex and changeable working environment, ensuring work efficiency while reducing operating costs. In addition, its advanced waste gas treatment system meets environmental protection requirements and reduces the impact on the environment. The hydraulic system adopts Hitachi's unique HIOS III hydraulic technology, which can achieve more precise operation control and smooth action transition. It can handle both excavation and loading tasks with ease. More importantly, this system also has a self-diagnostic function, which can promptly identify and solve potential problems, significantly enhancing the reliabili
