| Specifications | Value |
|---|---|
| No. | 965609 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

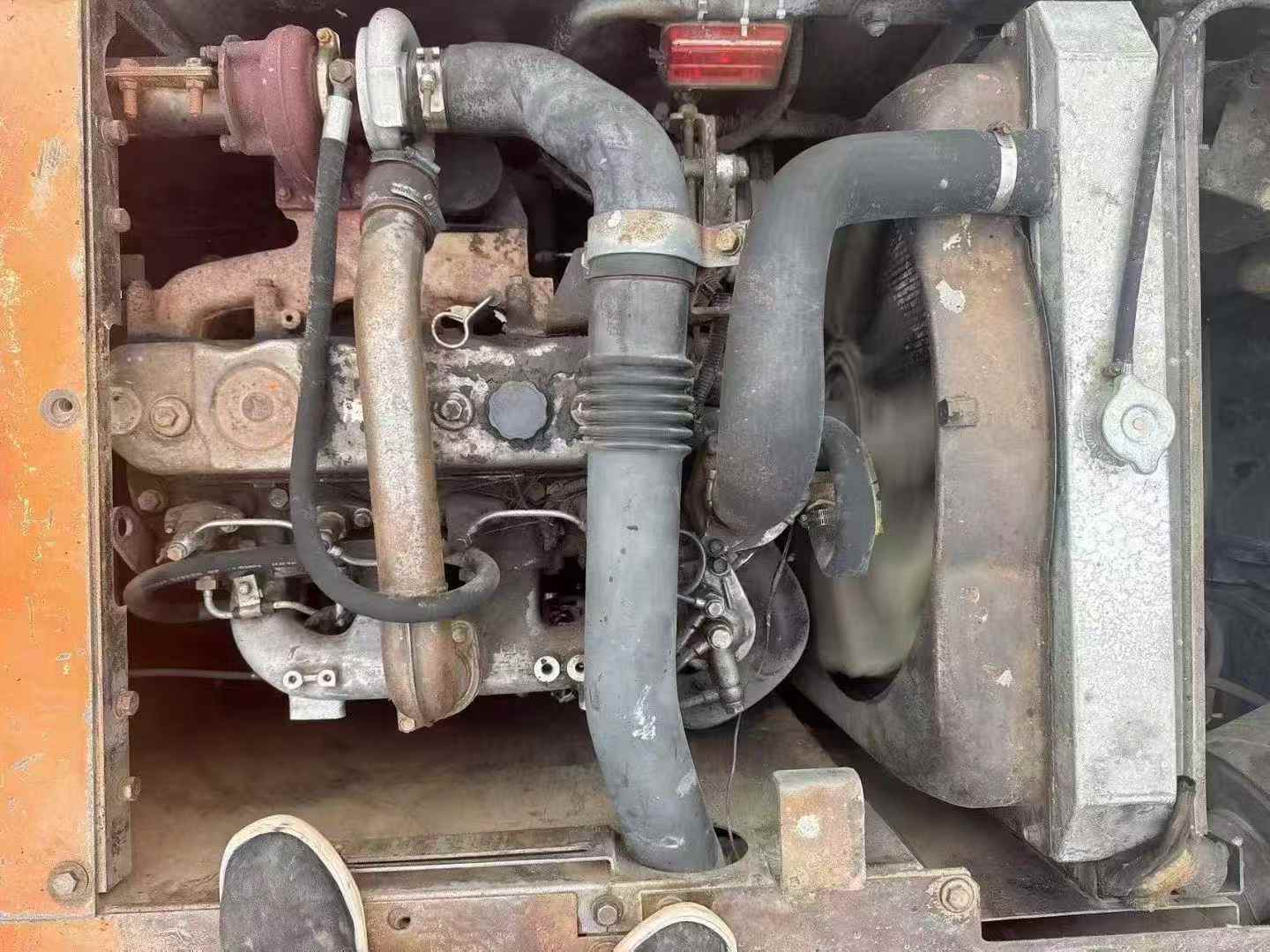

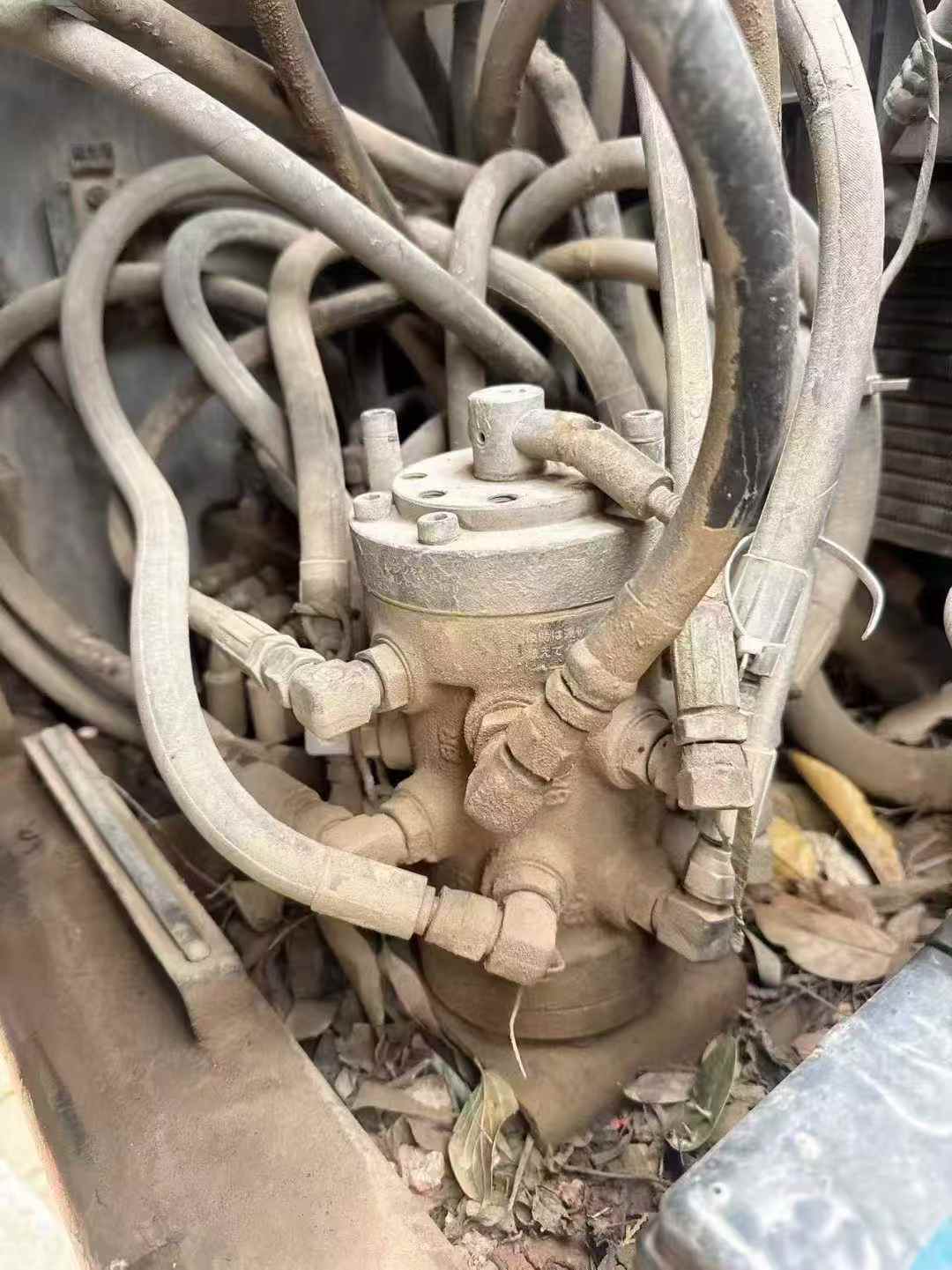

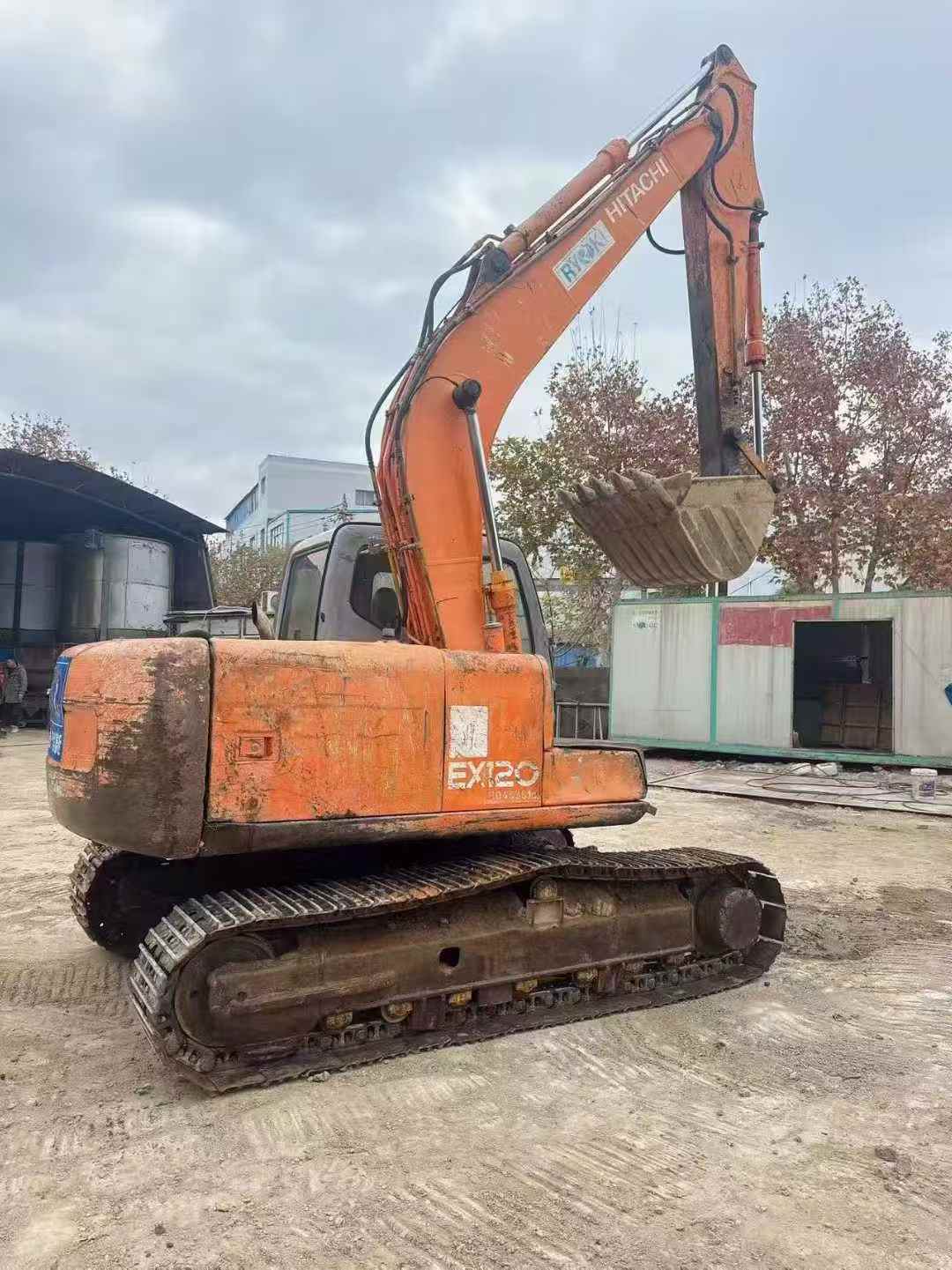

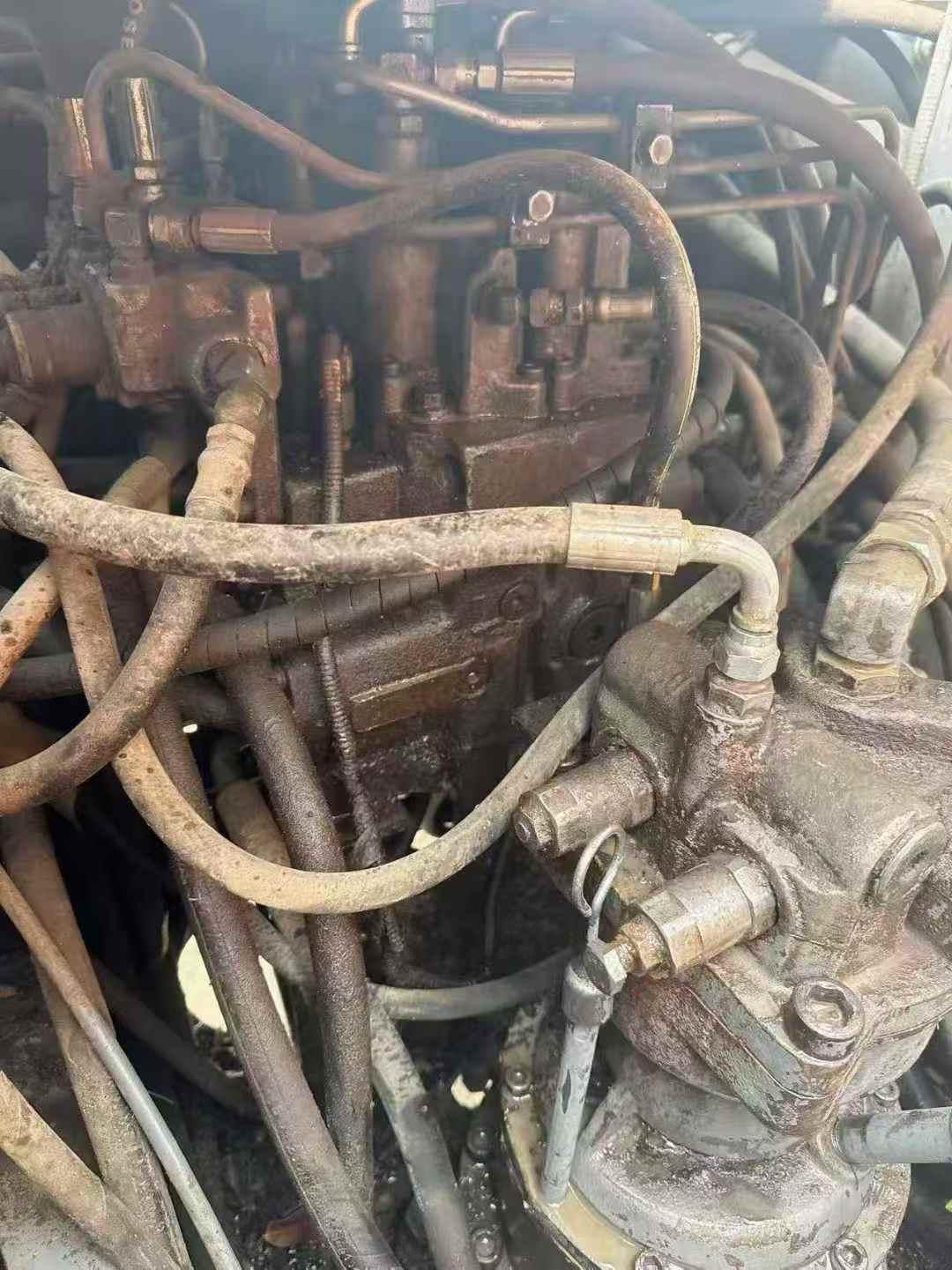

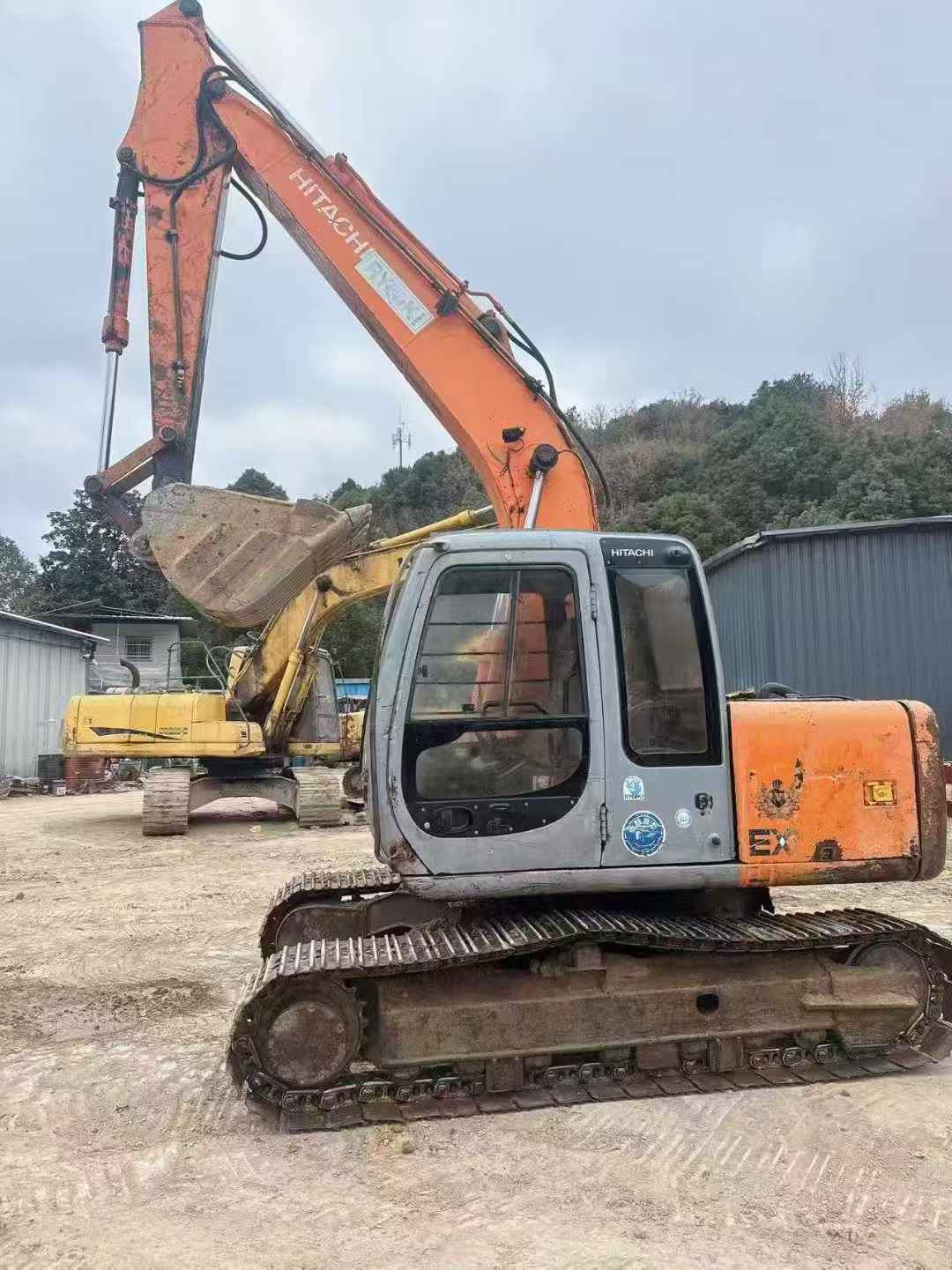

【 Premium Recommendation 】 Second-hand Hitachi 120-5 excavator We present to you a second-hand Hitachi 120-5 excavator with outstanding performance. This equipment not only has a well-maintained appearance but also maintains excellent overall performance. The working time of this excavator is only about 3,000 hours, which means it is still in the best working condition and far from reaching the limit of its service life. In terms of the power system, this excavator is equipped with an original imported Hitachi engine, which operates smoothly, has low noise and economical fuel consumption. It can provide strong and stable power output, ensuring efficient operation in various complex working conditions. In addition, with the meticulous maintenance and regular servicing by a professional team, the engine always remains in good working condition, so you don't need to worry about any problems during subsequent use. The hydraulic system is one of the key factors in evaluating the quality of an excavator. This machine adopts advanced negative flow control technology, combined with an efficient hydraulic pump and motor, making the operation of the entire machine more flexible and precise. Both the digging force and the rotating speed have r
