| Specifications | Value |
|---|---|
| No. | 965753 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

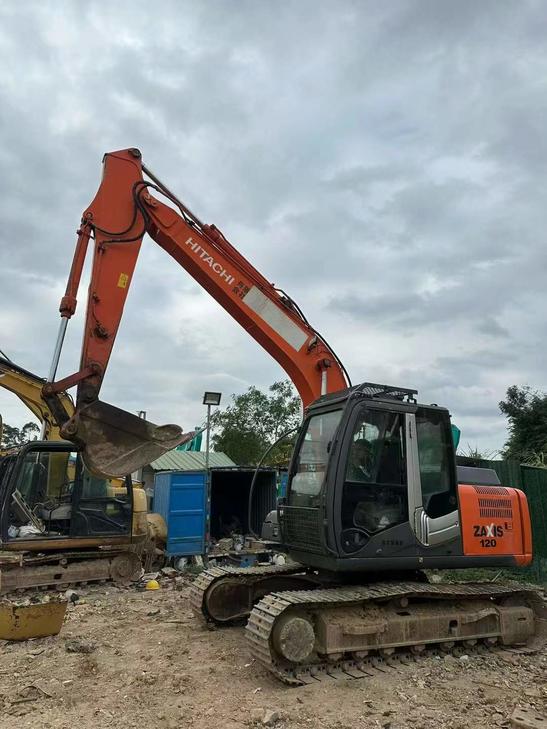

【 Hitachi 120 Electric 3 Imported Second-hand Excavator This Hitachi 120 Electric 3 excavator is a carefully selected imported second-hand device by us. It not only has excellent performance and durability, but also offers an extremely high cost-performance ratio. The cumulative working time of this machine is only 4,500 hours, which is far lower than the average service life of similar equipment. This means that its main components are still in good working condition and it has a long service life in the future. In terms of power, this excavator is equipped with a high-performance engine imported from Hitachi, with a maximum power of up to 80KW (approximately 107 horsepower), enabling it to handle complex and ever-changing construction environments with ease. Its advanced fuel injection technology effectively enhances fuel efficiency, reduces operating costs, and minimizes environmental impact at the same time. In addition, an efficient cooling system ensures a stable engine temperature during long-term operation, thereby extending the overall lifespan of the machine. The hydraulic system is one of the key factors in evaluating the quality of an excavator, and this Hitachi 120 Electric 3 also performs well in this aspect. It adopts
