| Specifications | Value |
|---|---|
| No. | 967299 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

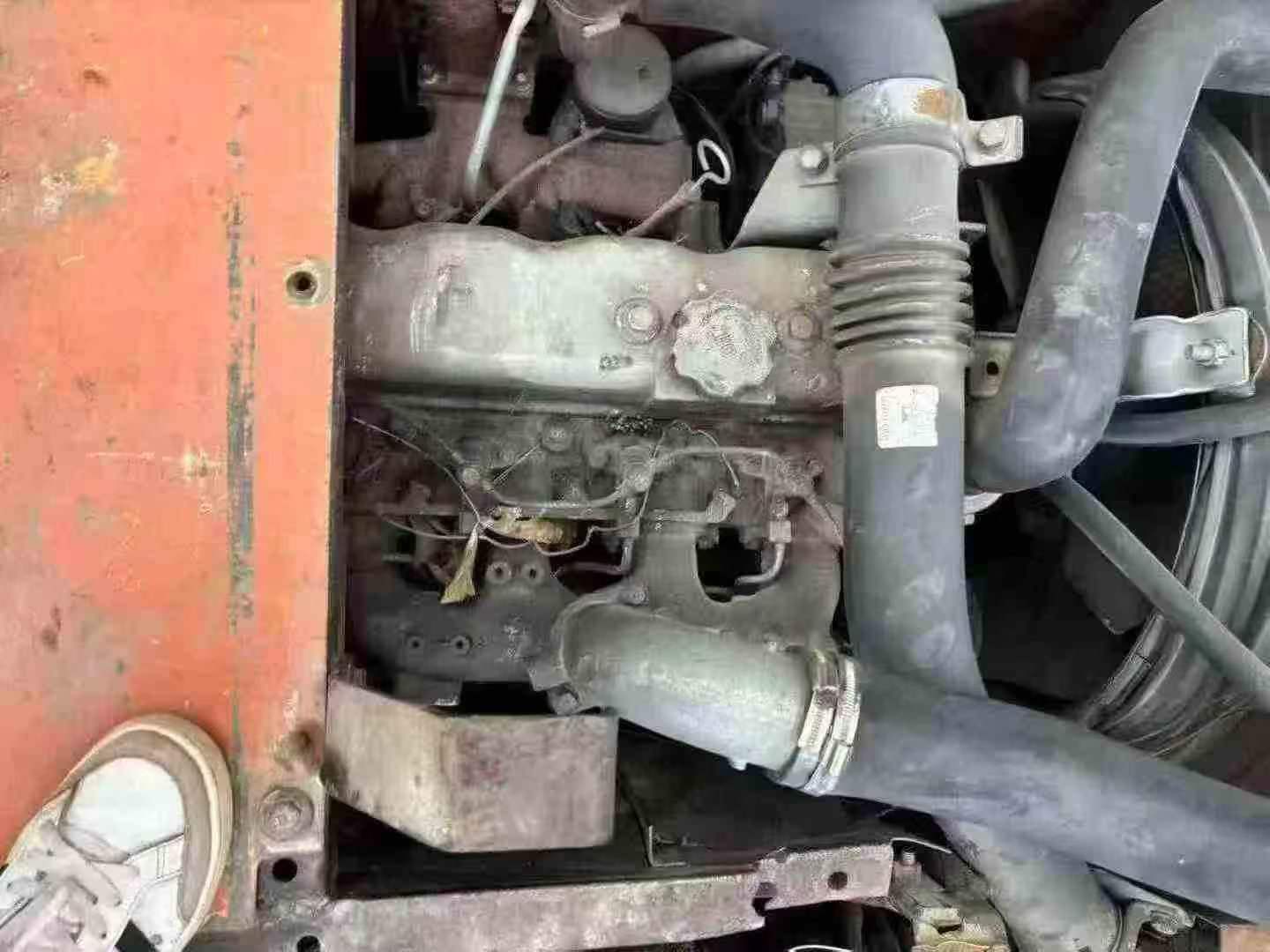

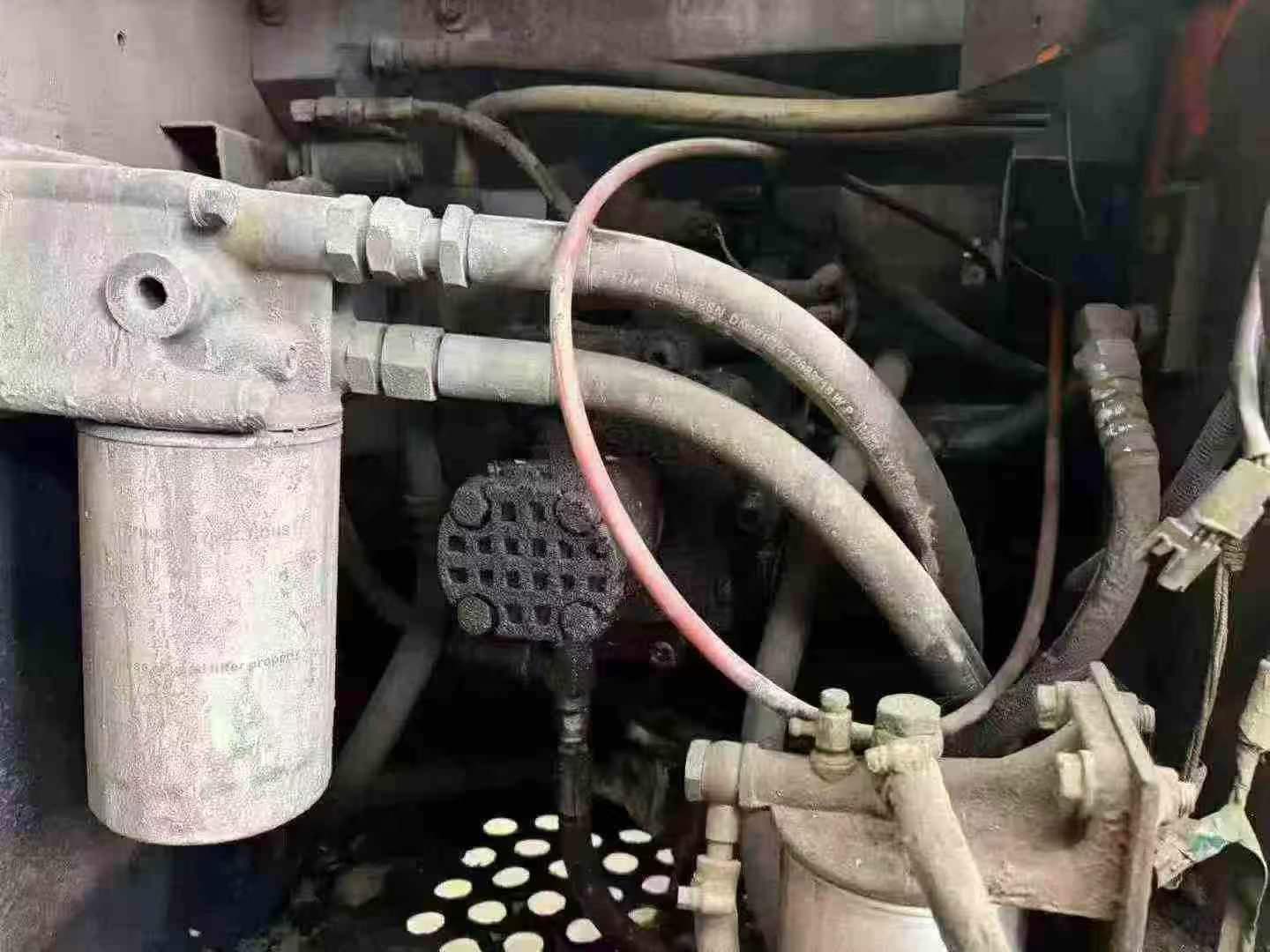

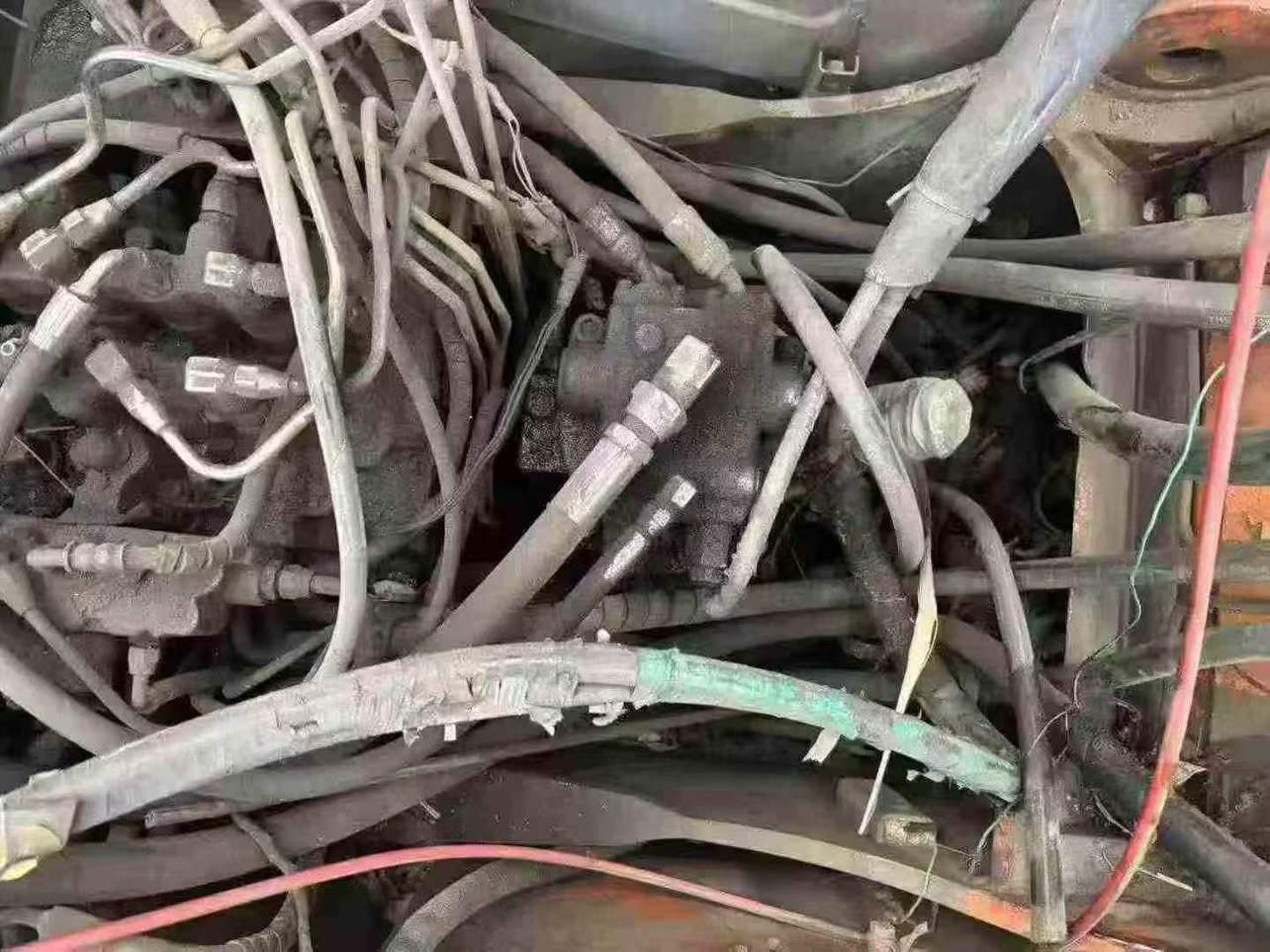

【 Second-hand Hitachi 120-6 Excavator This second-hand Hitachi 120-6 excavator is in good overall condition and is very suitable for use in medium and small-sized engineering projects. Since it was put into use, the cumulative working time of this machine has only been 3,500 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life and extremely high cost performance. In terms of the engine, this machine is equipped with a high-performance diesel engine imported from Hitachi. There has never been any exhaust emission issue. It operates stably with low noise, which not only ensures construction efficiency but also significantly reduces maintenance costs. More importantly, against the backdrop of increasingly strict environmental protection policies at present, a pollution-free and emission-compliant mechanical equipment will bring more convenience and competitive advantages to your project. The hydraulic system is one of the key factors in evaluating the performance of an excavator. This Hitachi 120-6 is equipped with an advanced closed center load sensing hydraulic system, featuring fast response and flexible and precise operation. It can handle both excavation and
