| Specifications | Value |
|---|---|
| No. | 968461 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

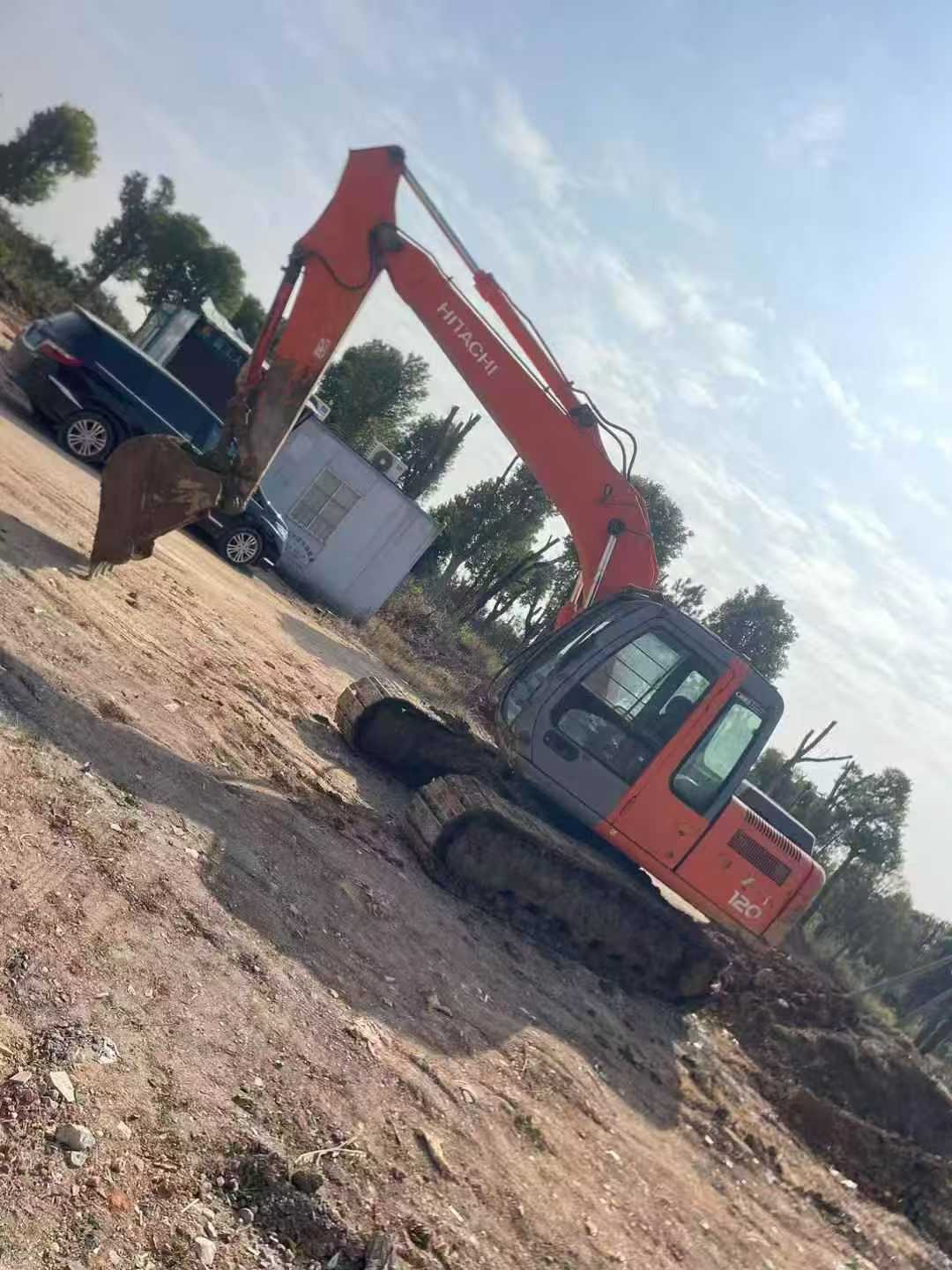

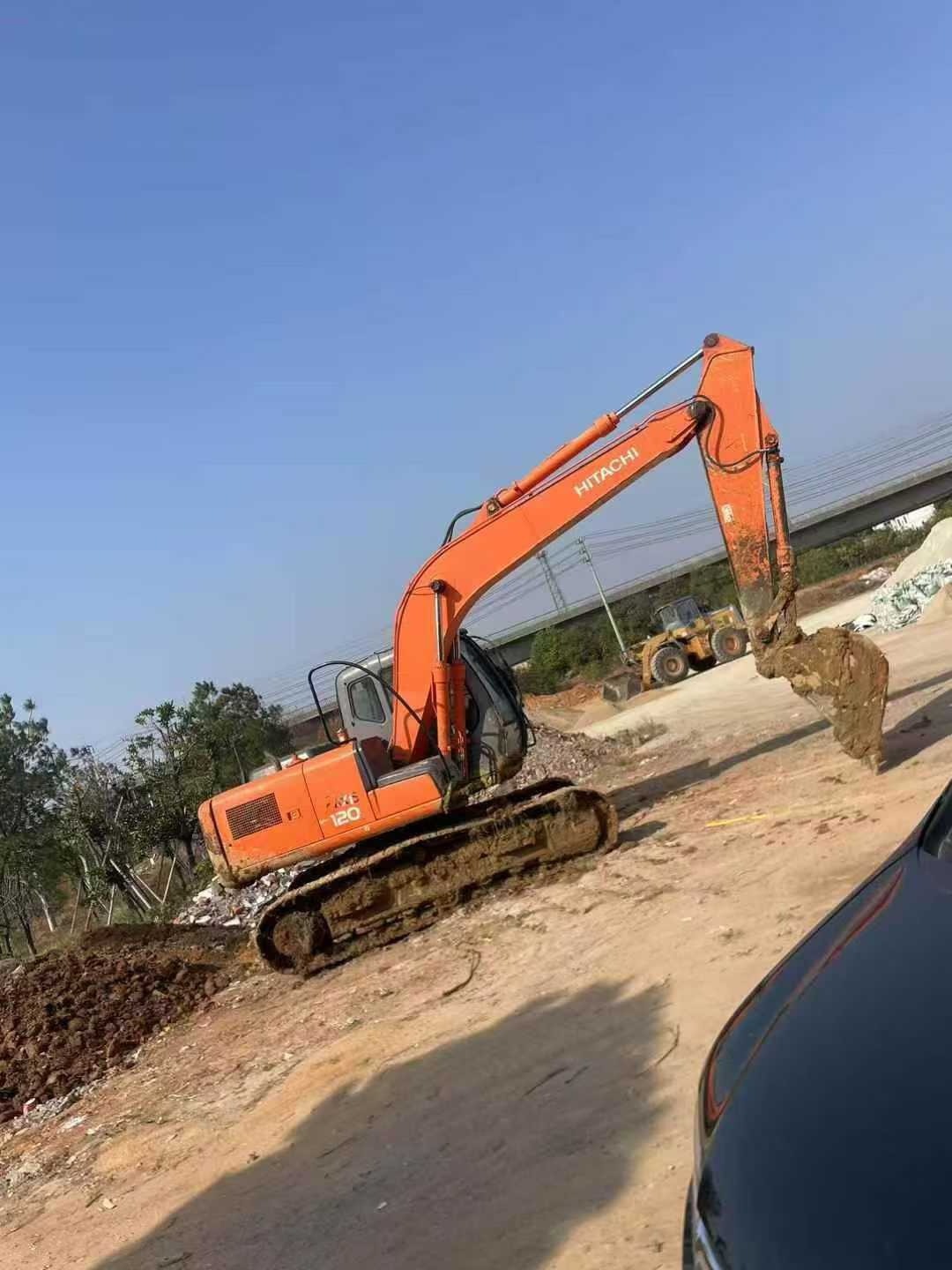

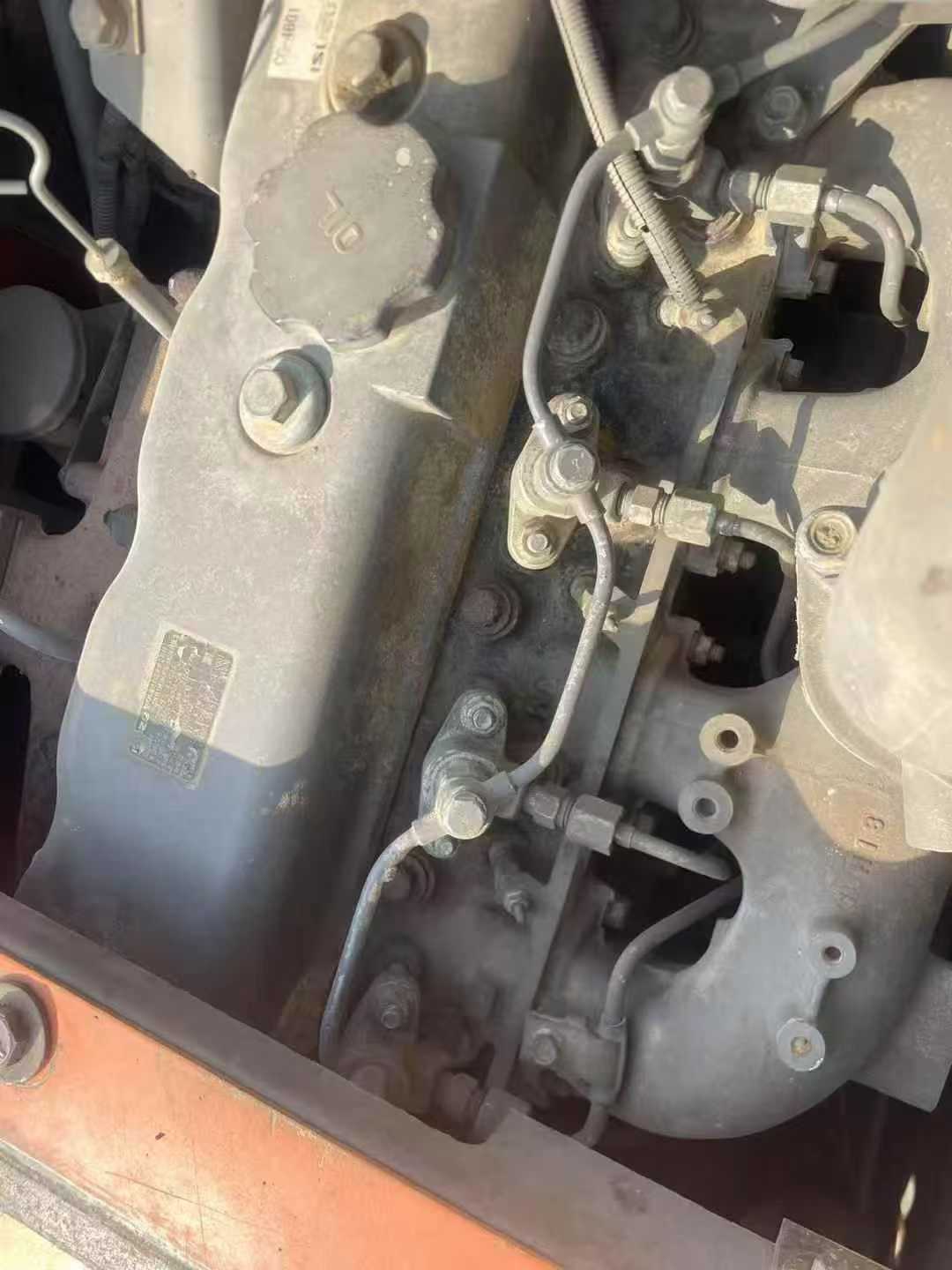

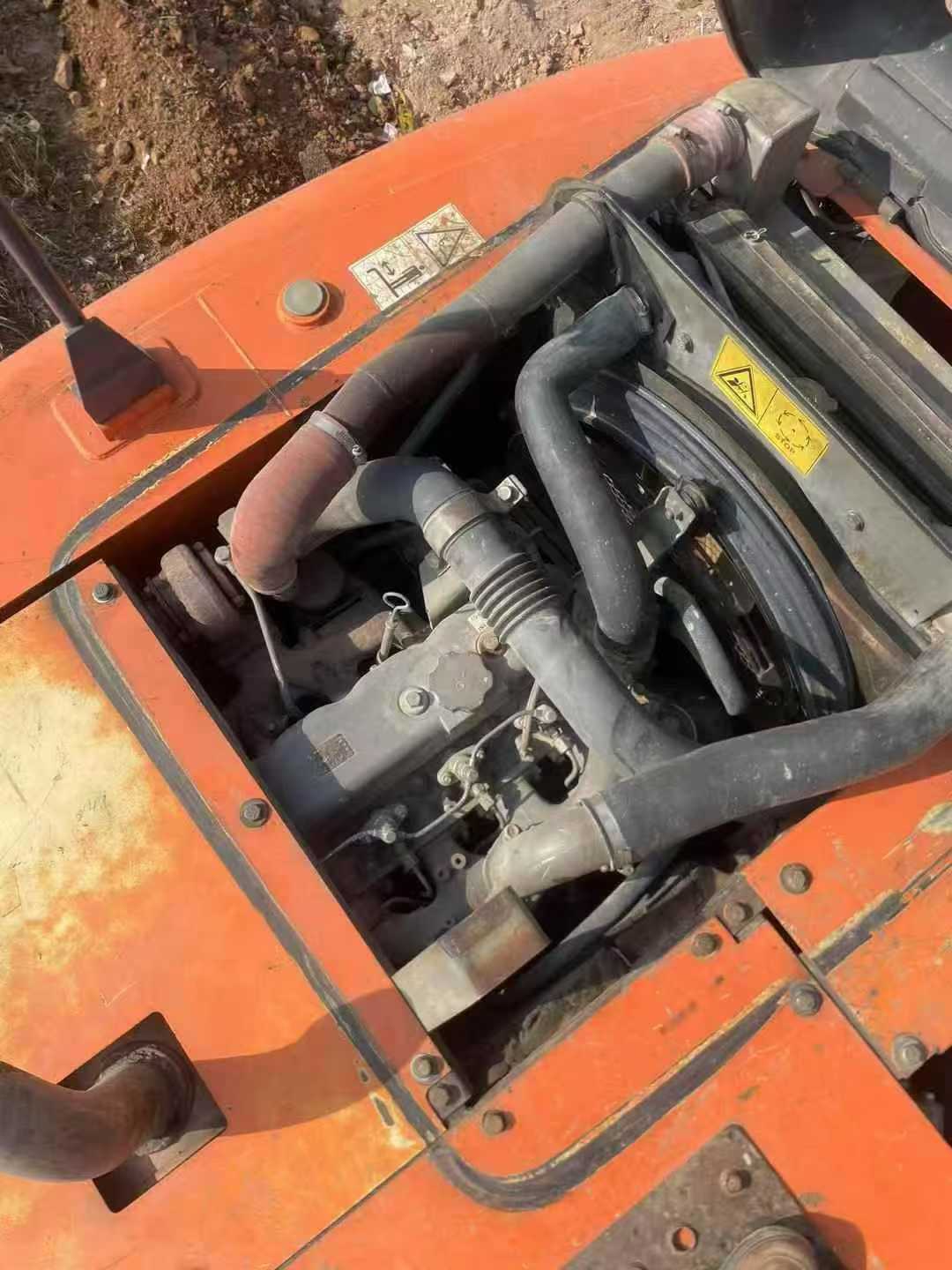

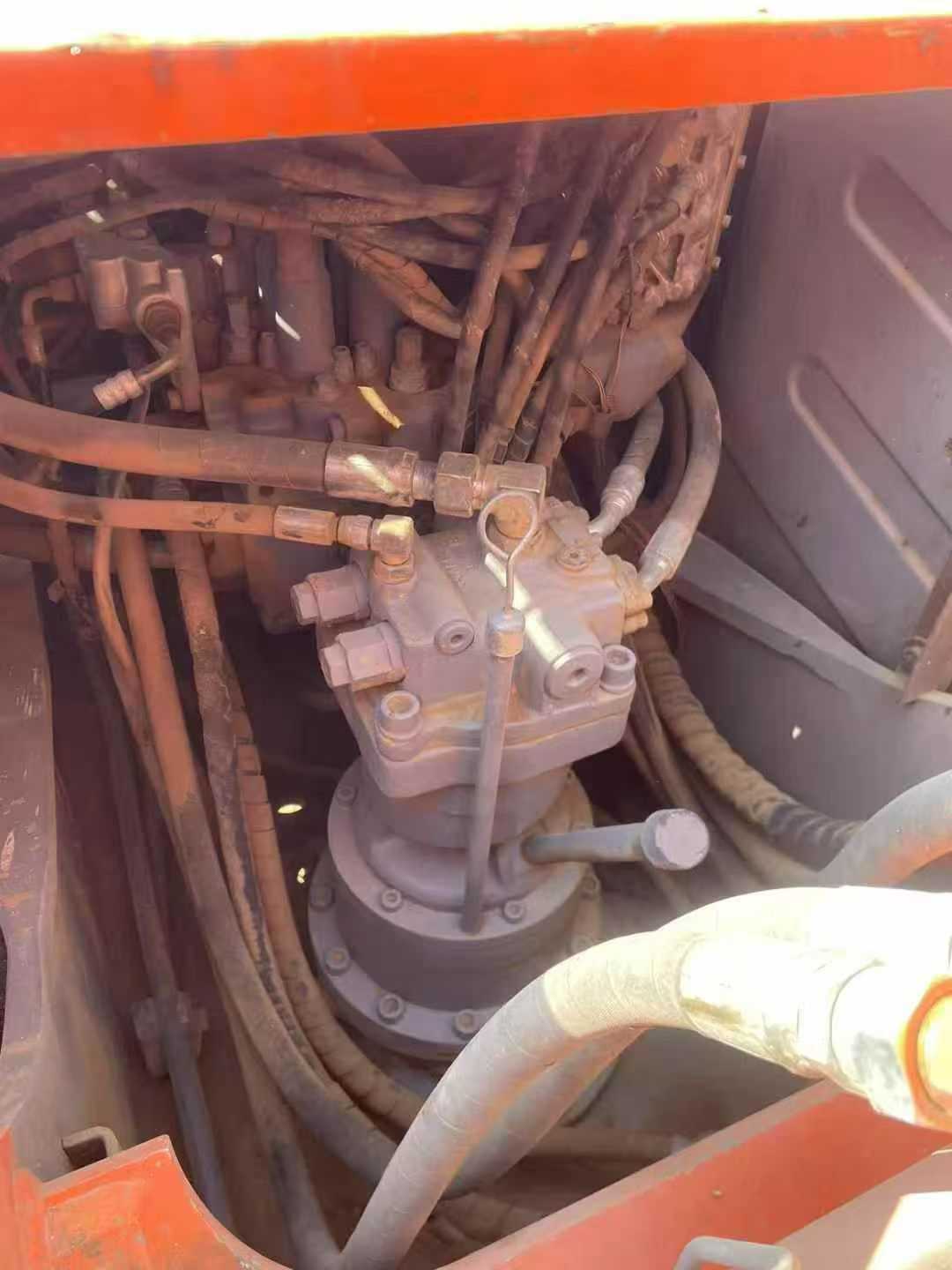

【 Premium Recommendation 】2013 Hitachi ZX120-6 second-hand excavator, with outstanding performance, fast speed and complete procedures, is your ideal choice for engineering operations! Since its commissioning in 2013, this Hitachi ZX120-6 excavator has accumulated a working time of only 5,000 hours, which is far lower than the average usage time of equipment of the same model. This indicates that it is still in the best mechanical performance condition. The entire machine is well maintained, with a clean appearance and no obvious bumps or damages. The internal structure is in perfect condition, almost comparable to a new car. In terms of the power system, it is equipped with a highly efficient and energy-saving Hitachi original imported engine, which not only has strong power and quick response, but also has excellent fuel economy. It ensures efficient operation while effectively reducing operating costs. In addition, this model adopts advanced electronic control injection technology, making emissions more environmentally friendly and meeting the latest national standards. The hydraulic system is a major highlight of this excavator. It is equipped with high-quality hydraulic pumps and control valve groups, ensuring smooth and precis
