| Specifications | Value |
|---|---|
| No. | 968467 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

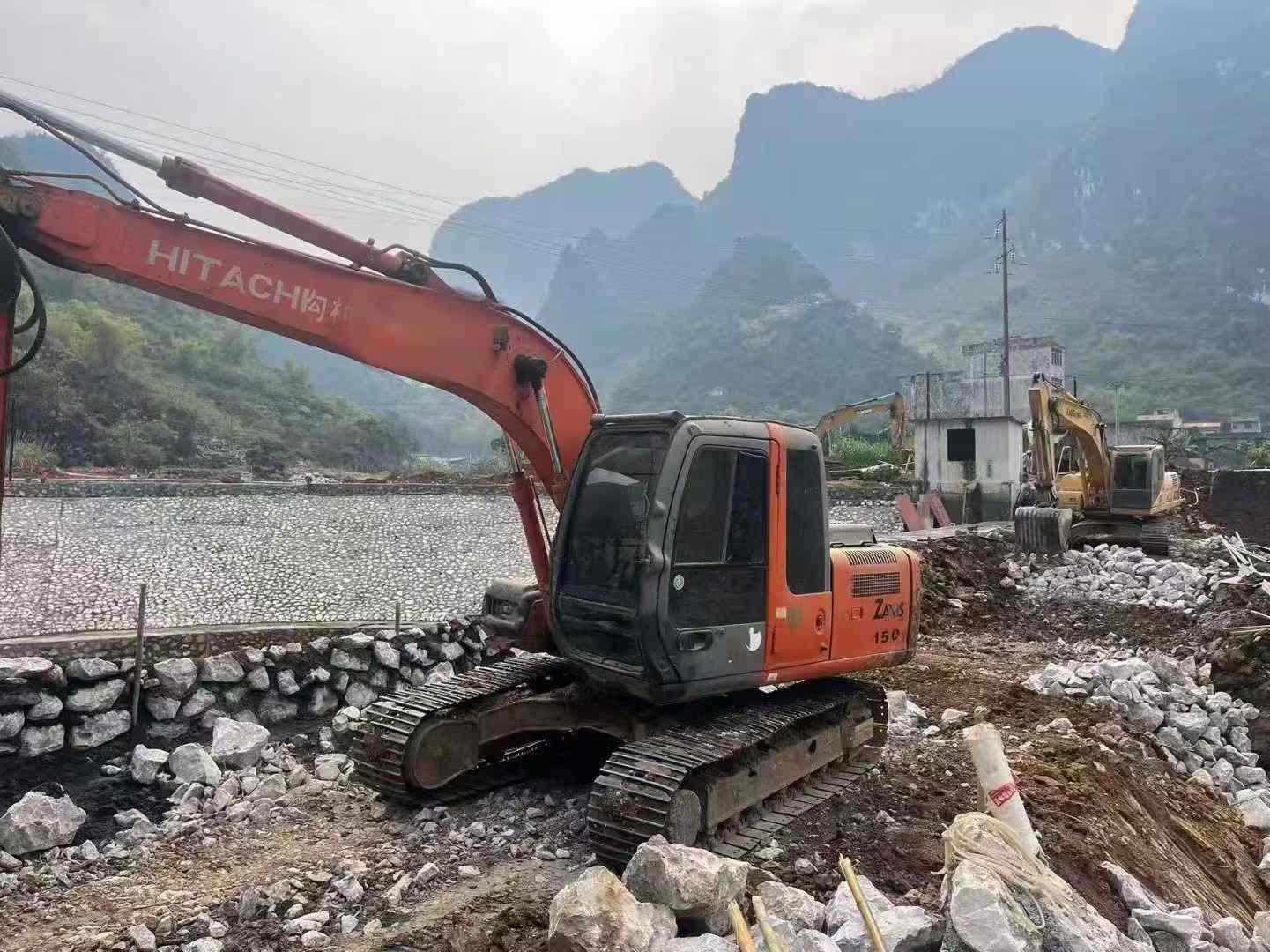

【 Transfer Information There is currently a Hitachi 120 excavator in excellent condition waiting for someone with the right connection to take over. This machine has been meticulously maintained since its purchase, and its appearance has almost remained in the state it was in when it left the factory. It is perfect both visually and mechanically. The working hours were only recorded at 3,800 hours. For a medium-sized excavator, such a usage frequency is very reasonable, meaning it still has a long service life. "Power System This machine is equipped with an original imported Hitachi engine, featuring strong power output and smooth operation performance. Even when operating under full load or complex terrain conditions, it can handle the situation with ease, ensuring the efficient completion of all tasks. More importantly, this engine has been specially tuned to ensure powerful performance while also taking fuel economy into account, effectively reducing operating costs. "Hydraulic System It adopts an advanced load-sensing hydraulic control system, making the operation more precise and smooth. Whether it is operations such as excavation, loading or crushing, it can achieve rapid response and smooth transition, greatly improving work e
