| Specifications | Value |
|---|---|
| No. | 968736 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

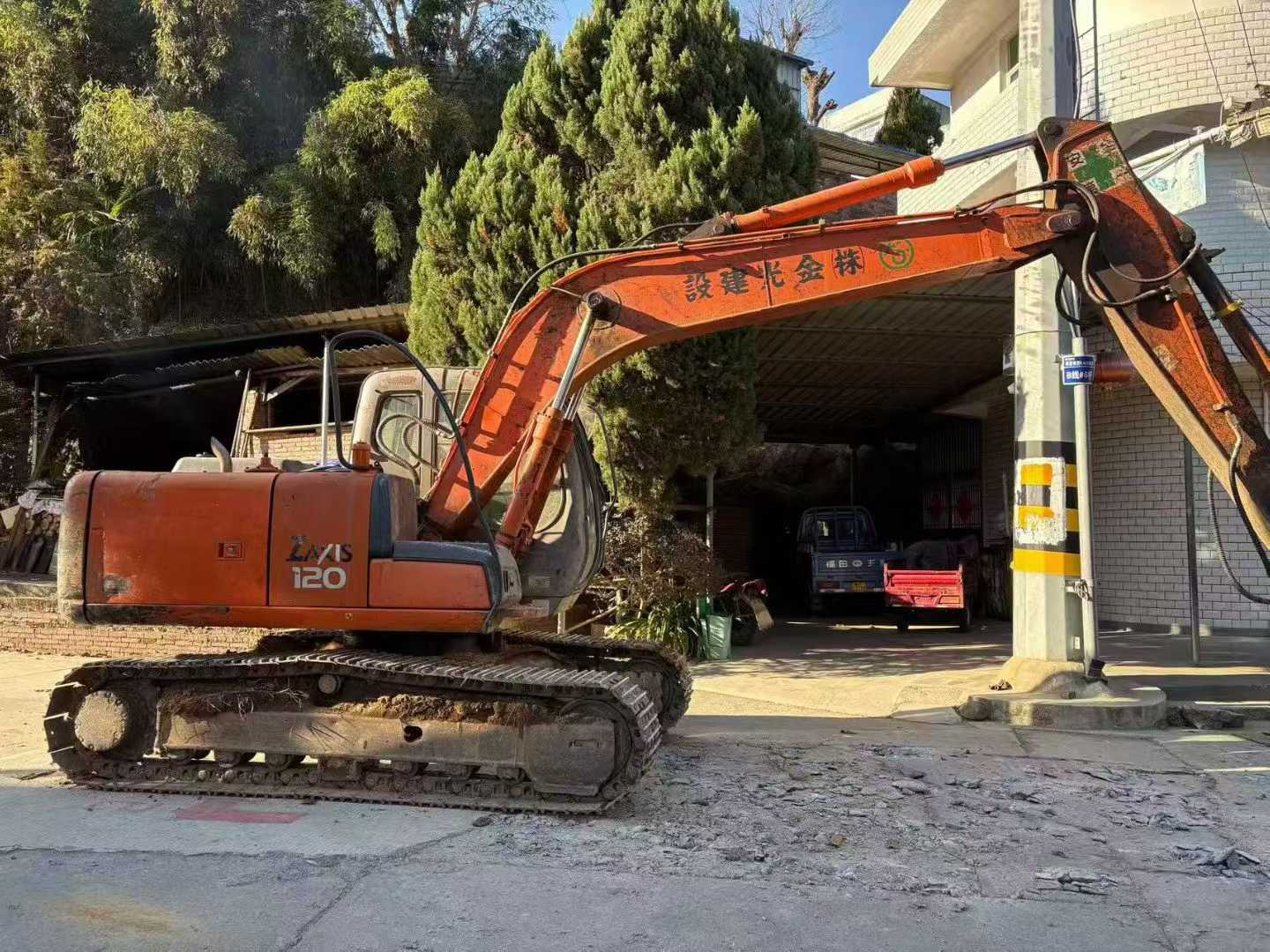

Detailed description of the second-hand Hitachi 120-6 excavator This imported Hitachi 120-6 excavator is a very popular medium-sized excavator in the market. It not only has outstanding performance, but also features good economy and durability. This machine has a working time of approximately 4,000 hours and is in the best working condition, suitable for the operation requirements in various construction environments. In terms of the power system, it is equipped with an efficient and energy-saving Isuzu engine, with a maximum power output of up to 75kW (approximately 102 horsepower), which can provide strong and stable power output and handle complex terrains with ease. The hydraulic system adopts advanced negative flow control technology, ensuring smooth and precise operation during the process, while reducing energy consumption and improving work efficiency. In addition, this excavator is also equipped with a sturdy and durable work bucket, which can meet the requirements of digging, loading and other tasks in different scenarios. It is worth noting that although a breaker (commonly known as a "cannon") is not installed, this also means that you do not need to pay for additional accessories and can flexibly choose whether to instal
