| Specifications | Value |
|---|---|
| No. | 969726 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

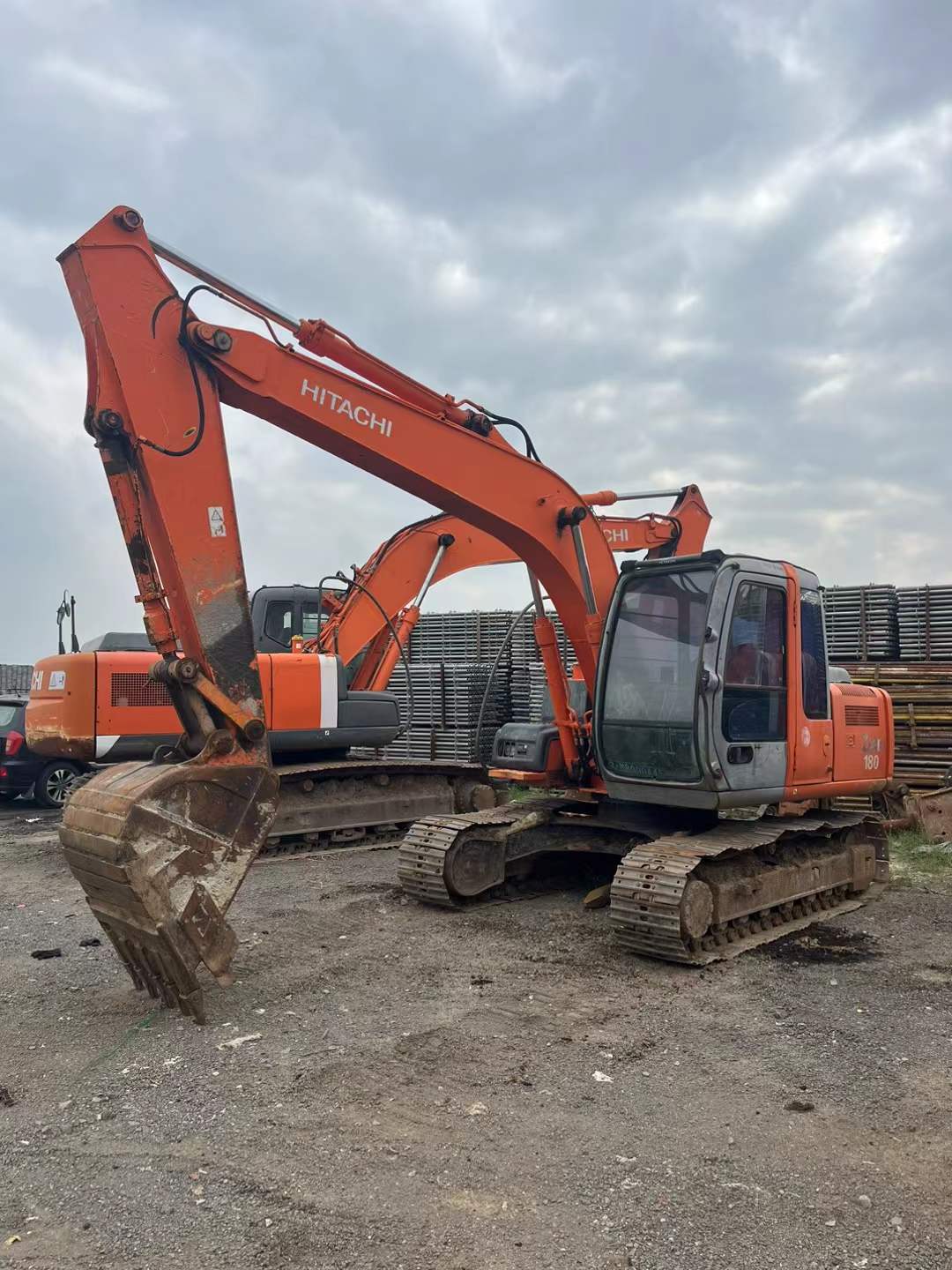

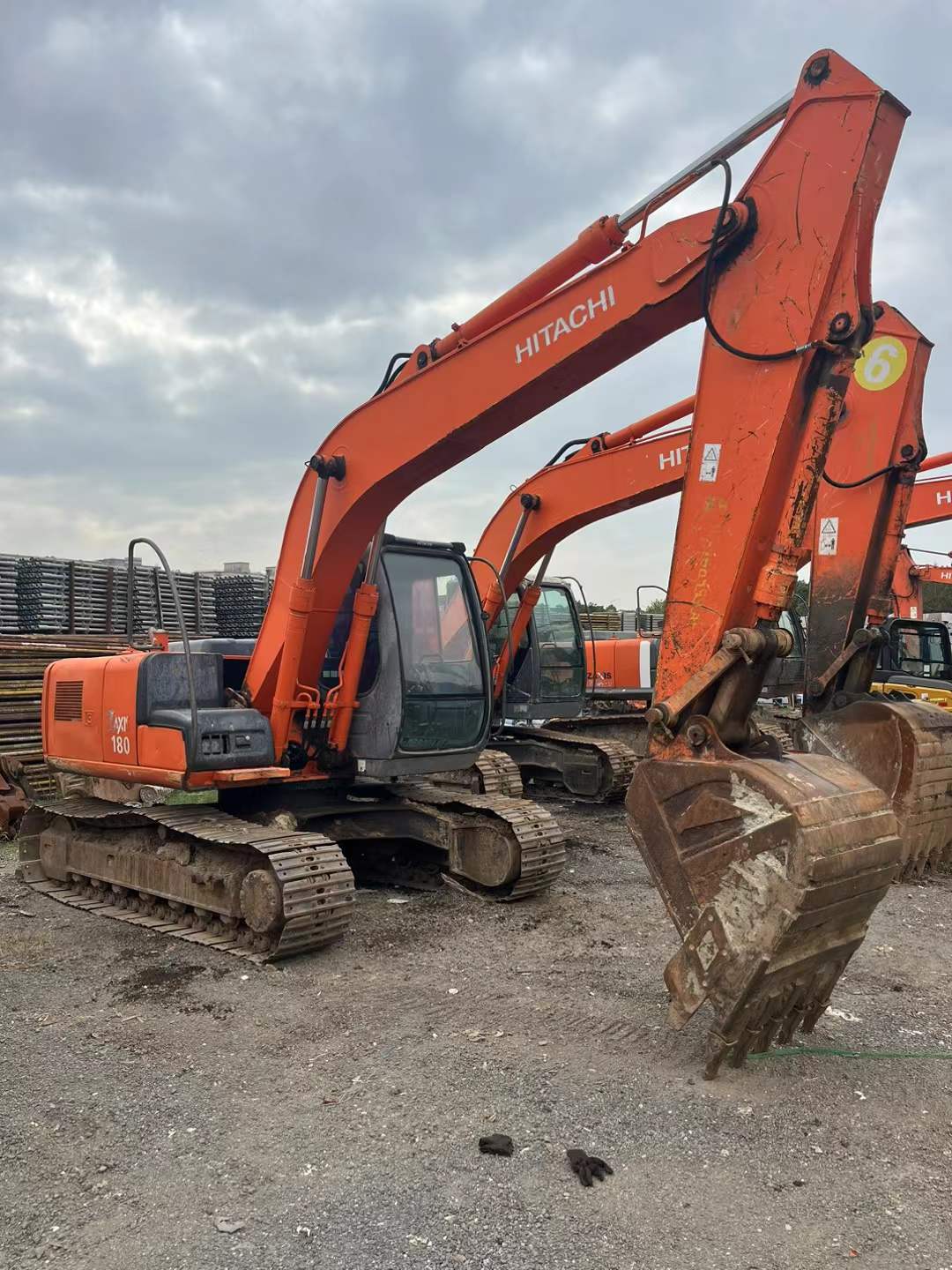

【 Premium Recommendation 】 Second-hand Hitachi 120-6 excavator This Hitachi 120-6 excavator is a rare top-quality model in the market. With outstanding overall performance and proper maintenance, it is highly suitable for customers who pursue efficient and stable operation performance. The cumulative working time of this machine is 4,500 hours, which is far lower than the average usage time of similar equipment, indicating that it still has a long service life to be excavated. In terms of power, it is equipped with a high-quality engine imported from Hitachi, which features strong power output and smooth operation characteristics. Even under harsh working conditions, it can maintain good working efficiency. Meanwhile, an advanced fuel management system ensures a low fuel consumption level and reduces operating costs. The hydraulic system adopts Hitachi's unique technology, which can provide precise and rapid operation response, and can easily handle both excavation and loading tasks. Its excellent heat dissipation design ensures the stability of the system during long-term operation, reduces the failure rate and extends the service life of the machine. In addition, this excavator is equipped with a spacious and comfortable cab, off
