| Specifications | Value |
|---|---|
| No. | 969950 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

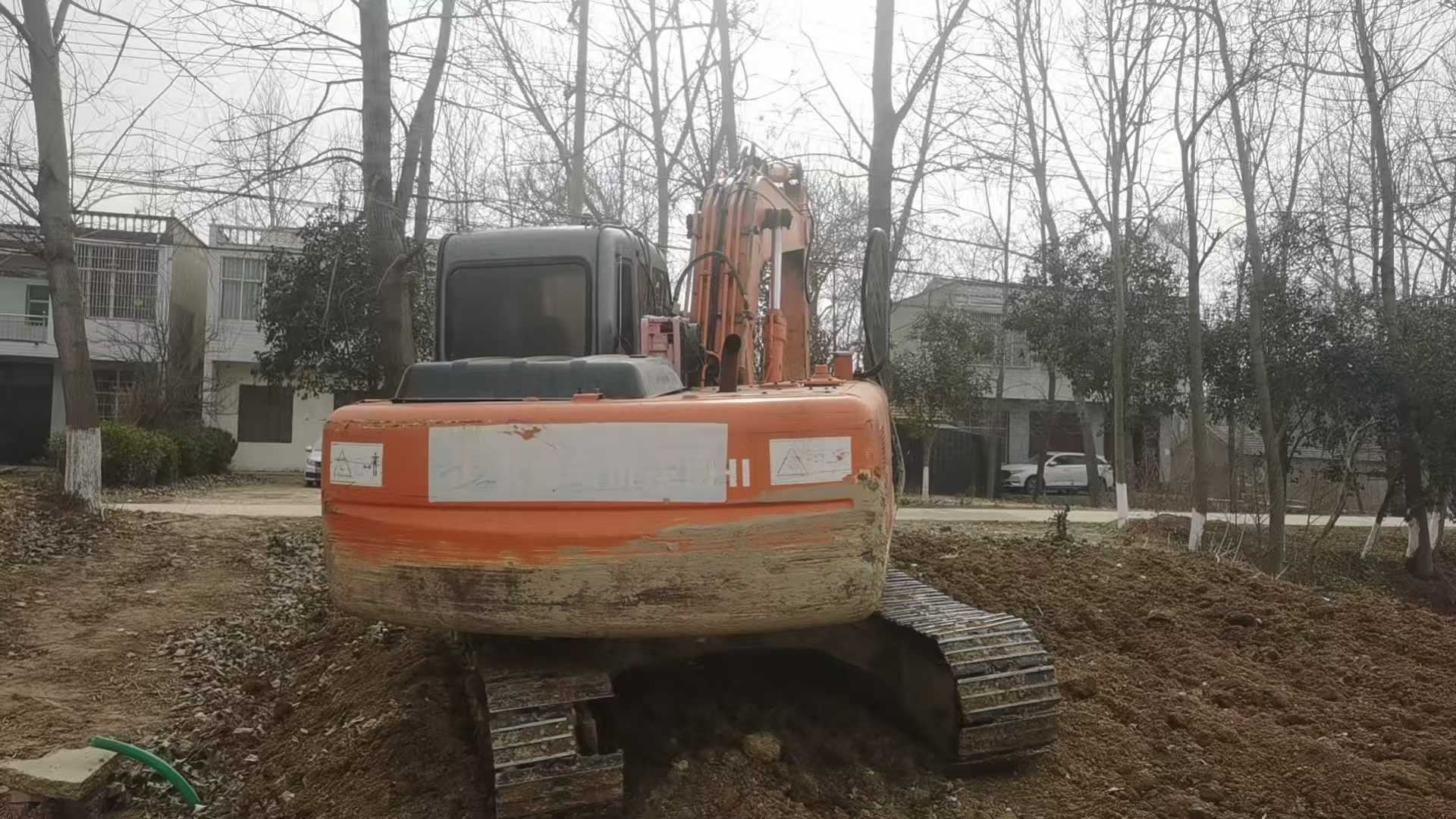

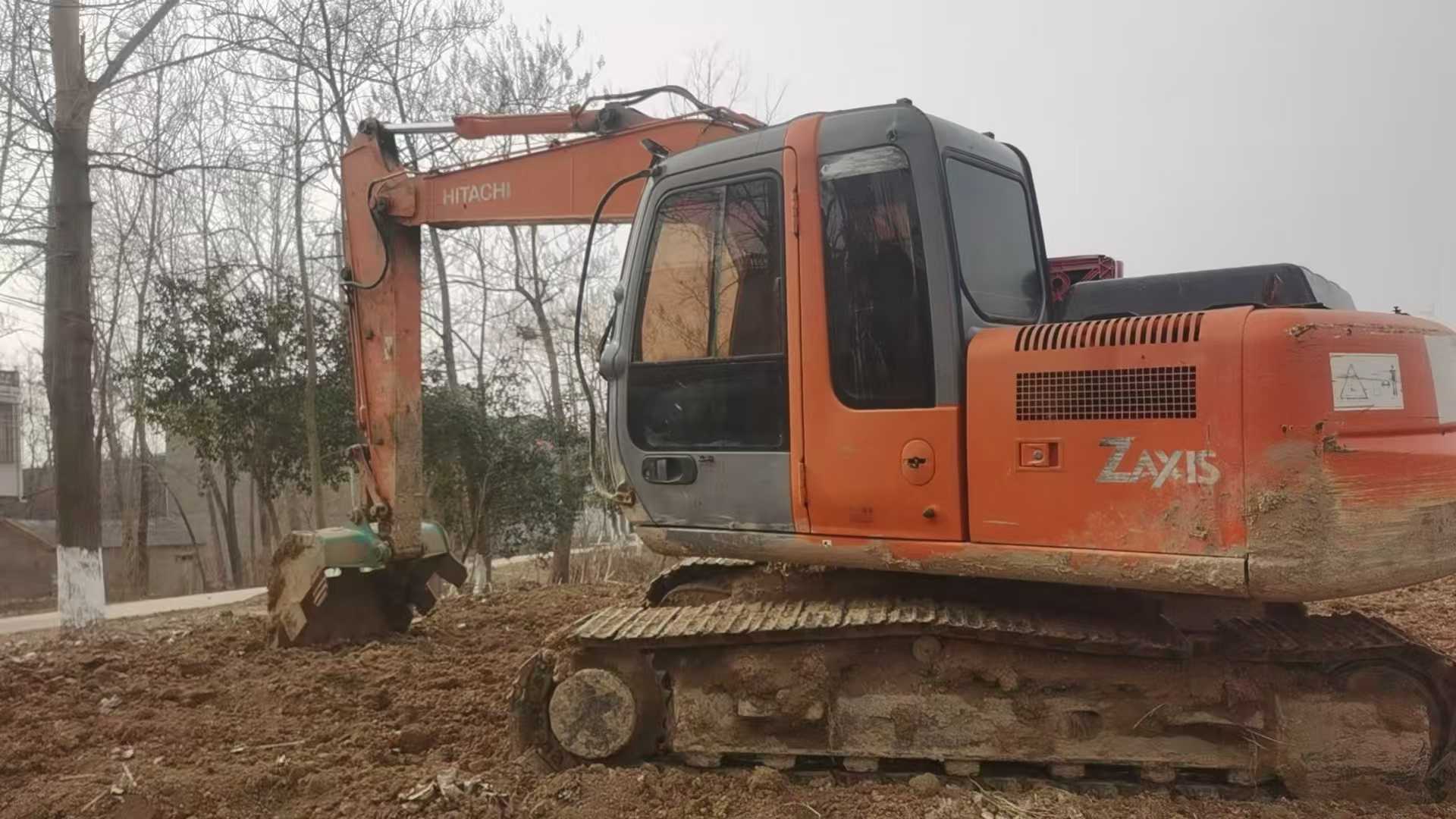

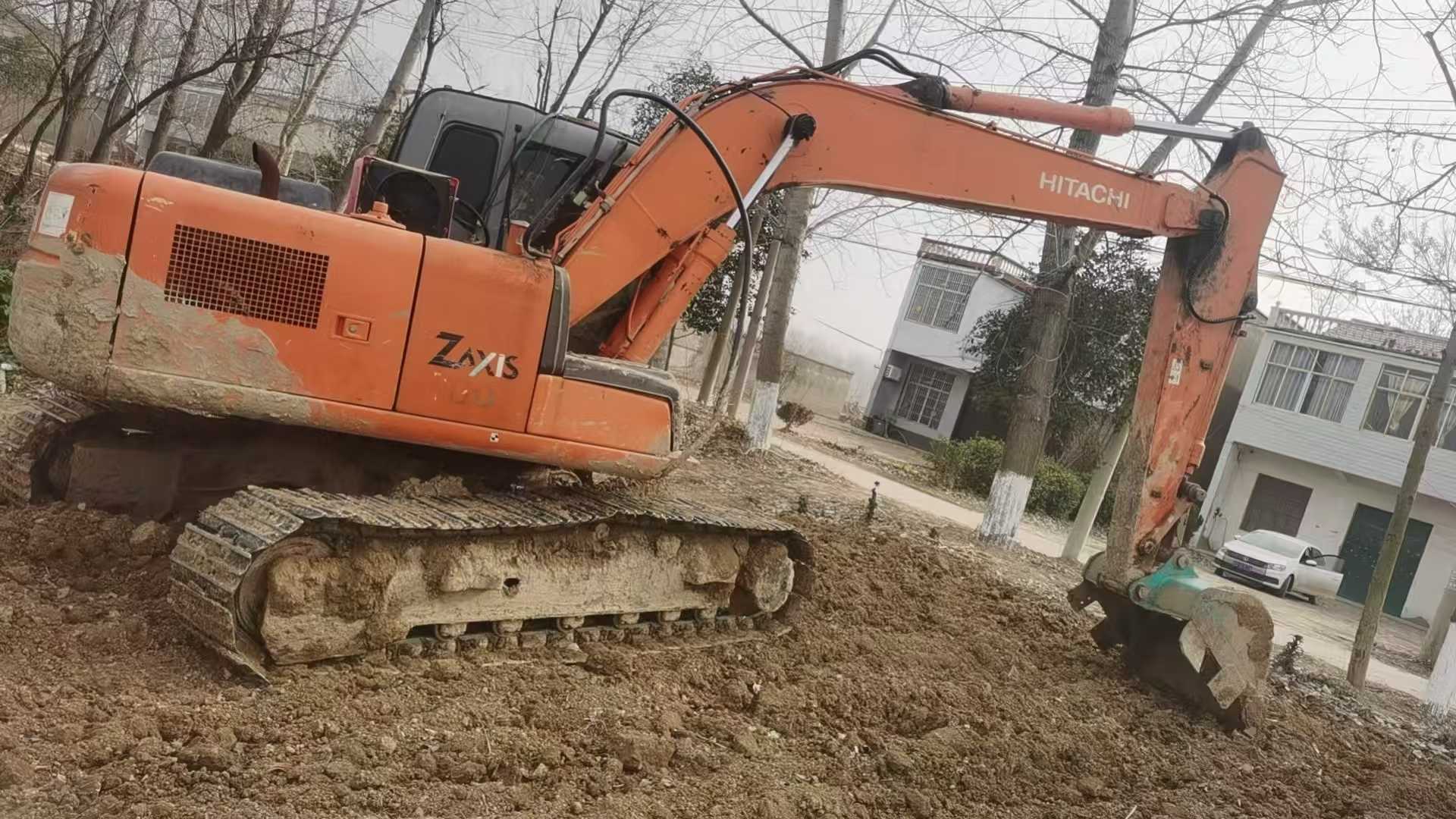

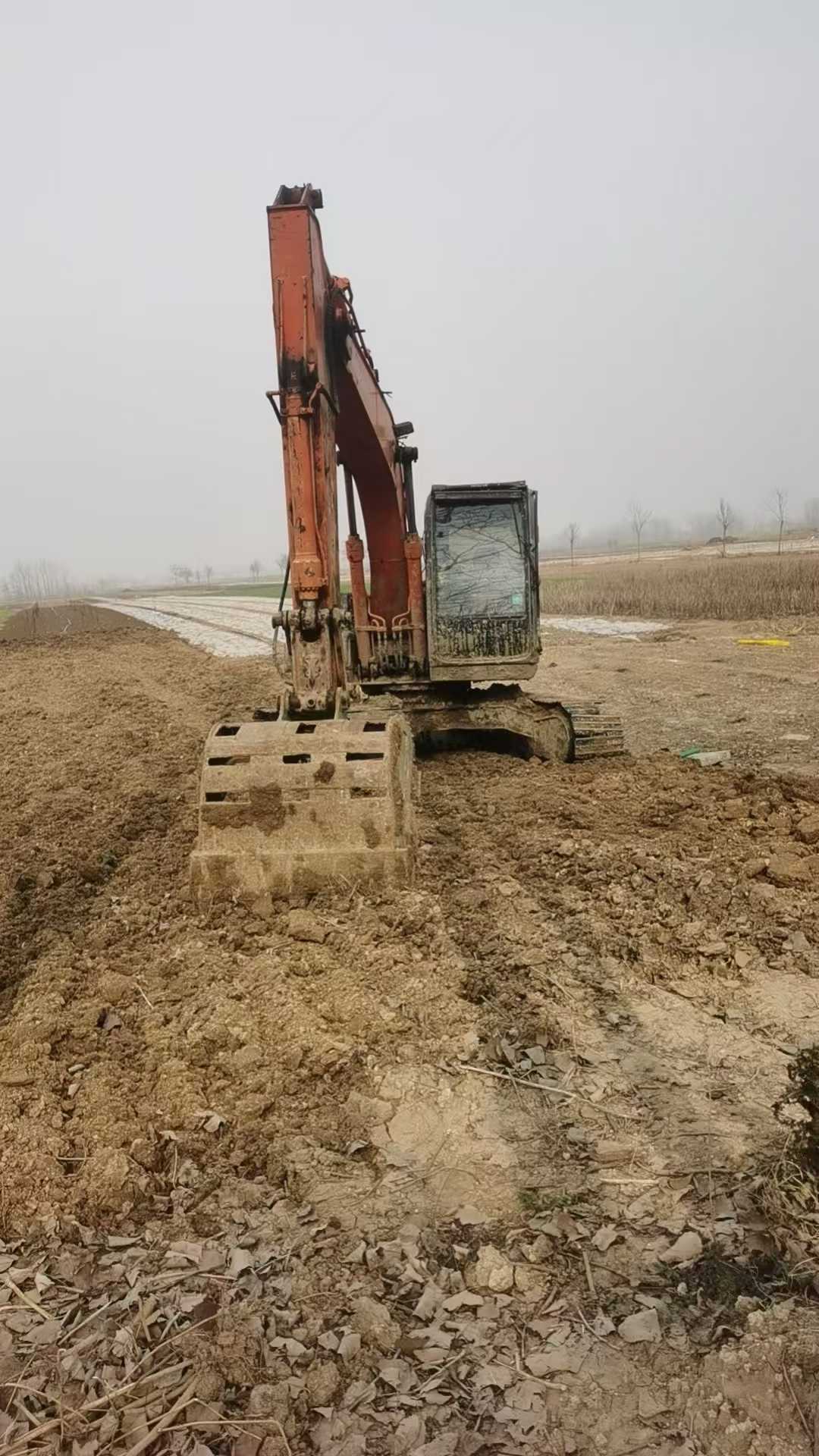

【 Premium Recommendation 】 A second-hand Hitachi ZX120-6 excavator from 2012. Since it was put into use in 2012, the total working time of this equipment has only been 5,800 hours. It is well maintained and in excellent condition. It not only has complete procedures, but also features outstanding performance and reliable quality, making it an ideal choice for your engineering projects. In terms of the power system, this excavator is equipped with a high-efficiency engine imported from Hitachi, which is powerful and has good fuel economy, and can maintain stable output under various working conditions. Whether it is earthwork excavation or rock crushing operations, they can all be handled with ease. In addition, the advanced electronic control system can automatically adjust the rotational speed according to the actual load, further reducing fuel consumption and improving work efficiency. The hydraulic system adopts Hitachi's latest generation of high-pressure common rail technology, ensuring smooth operation and rapid response. The large-capacity oil tank design ensures that long-term continuous operation is not affected. At the same time, it is equipped with an efficient filtration device, effectively extending the service life of h
