| Specifications | Value |
|---|---|
| No. | 970480 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

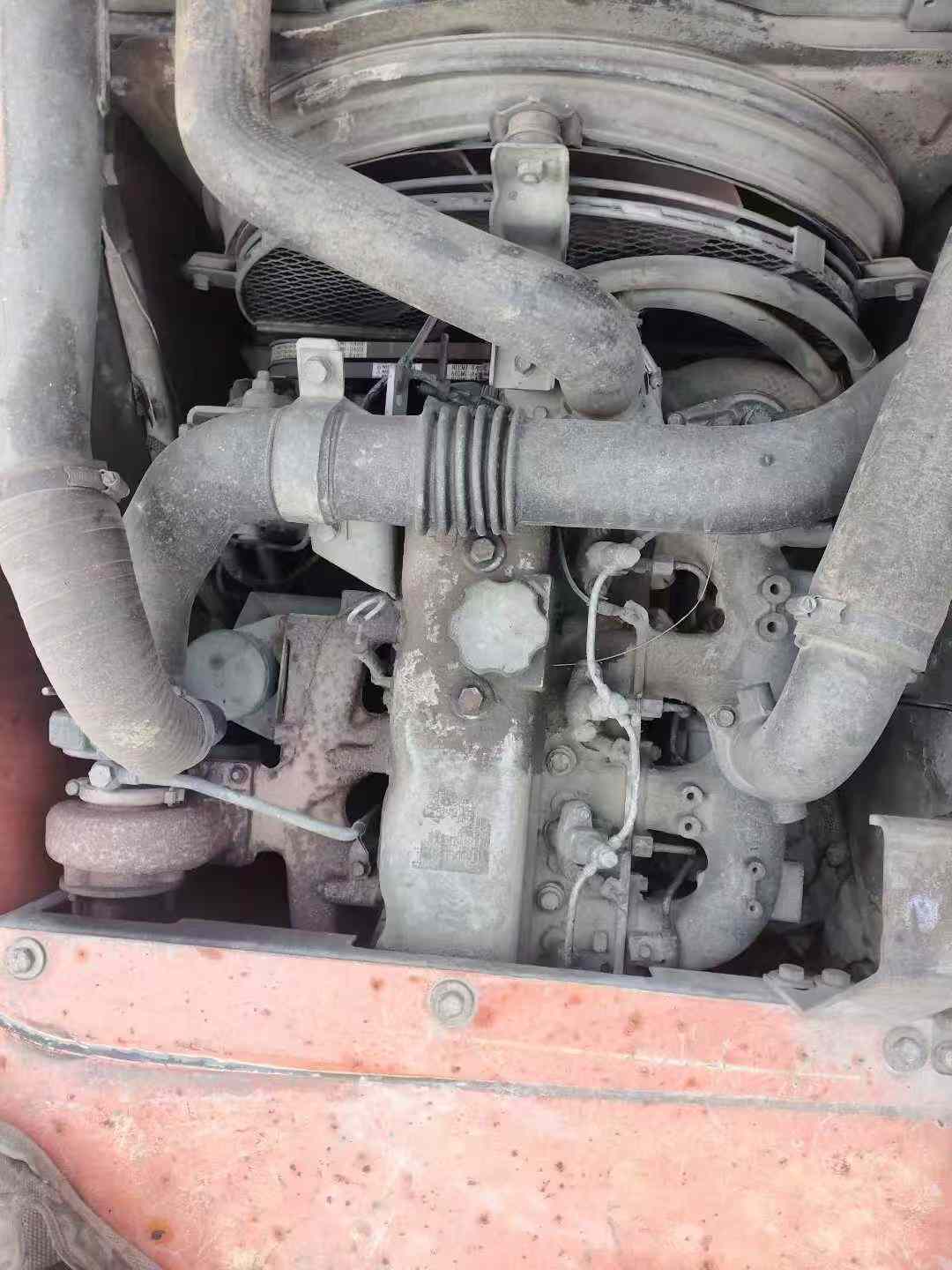

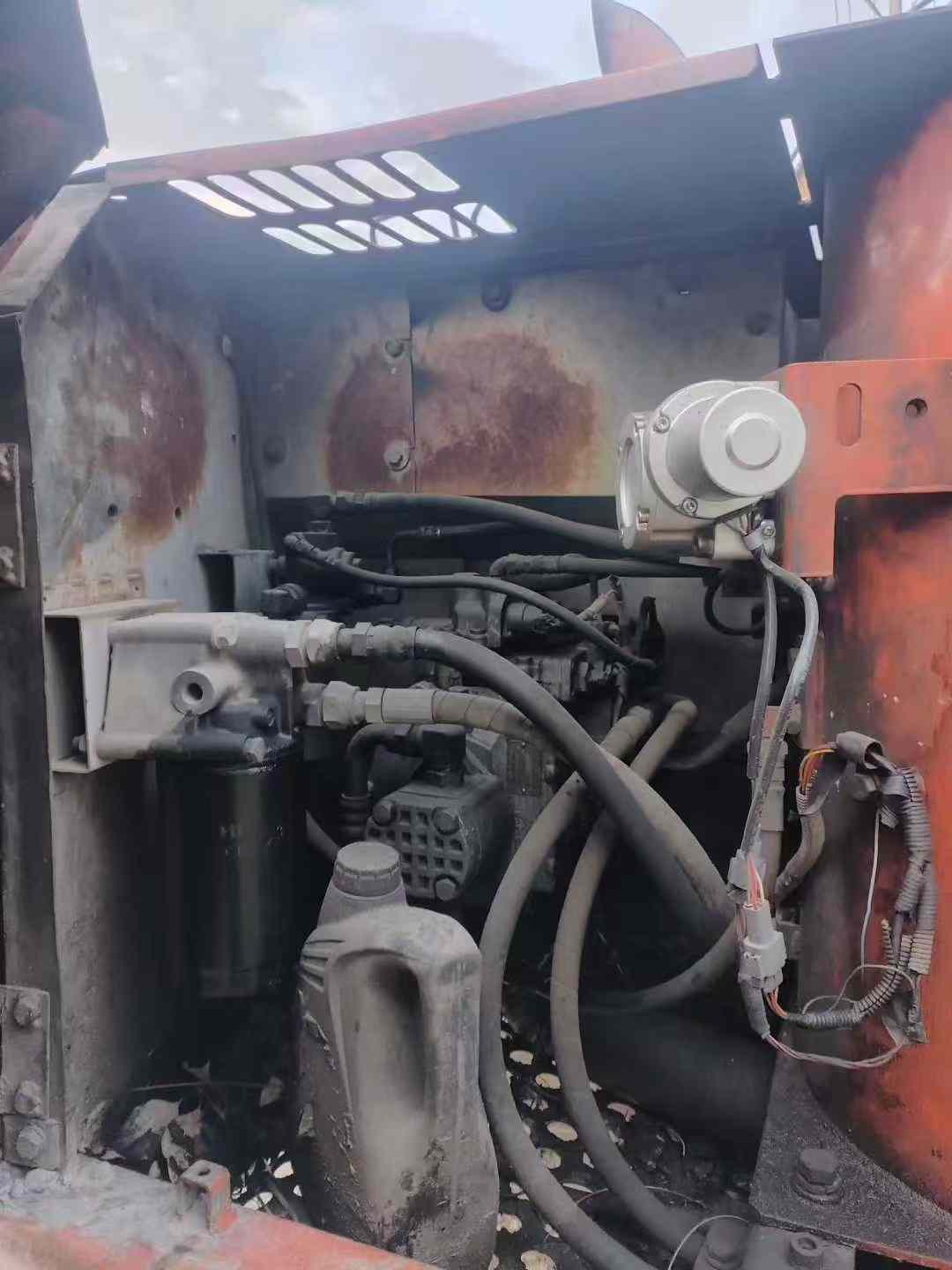

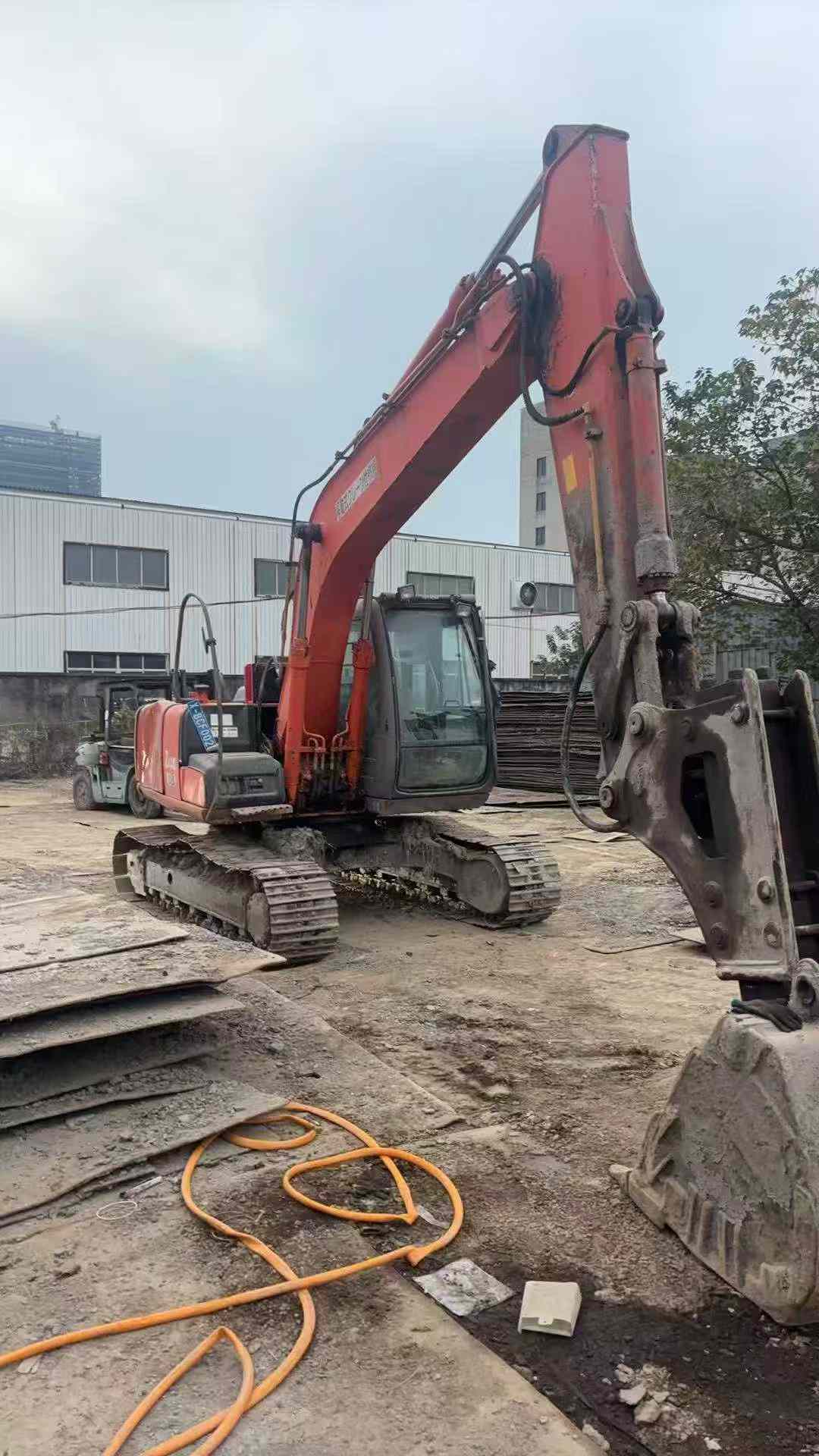

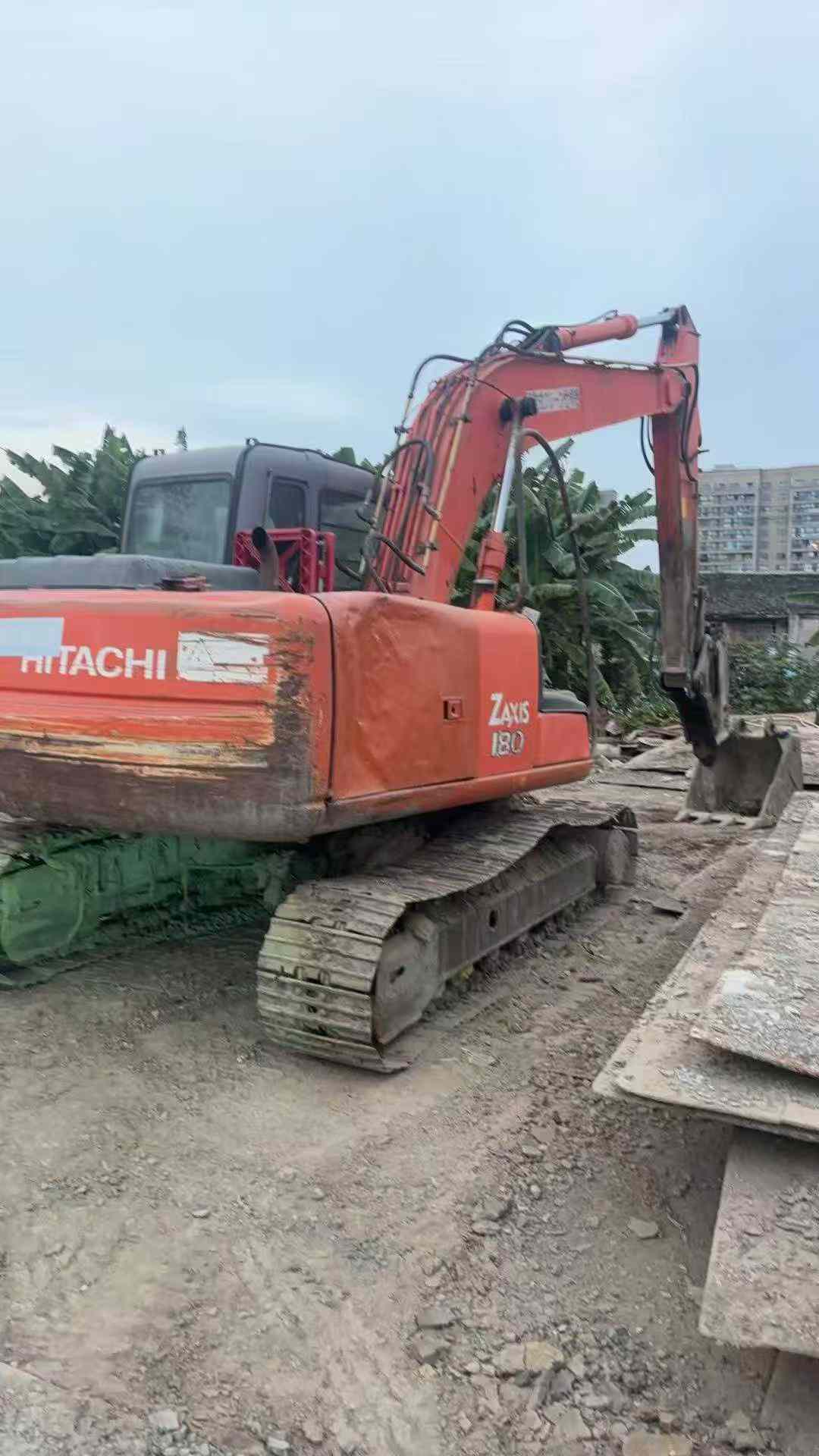

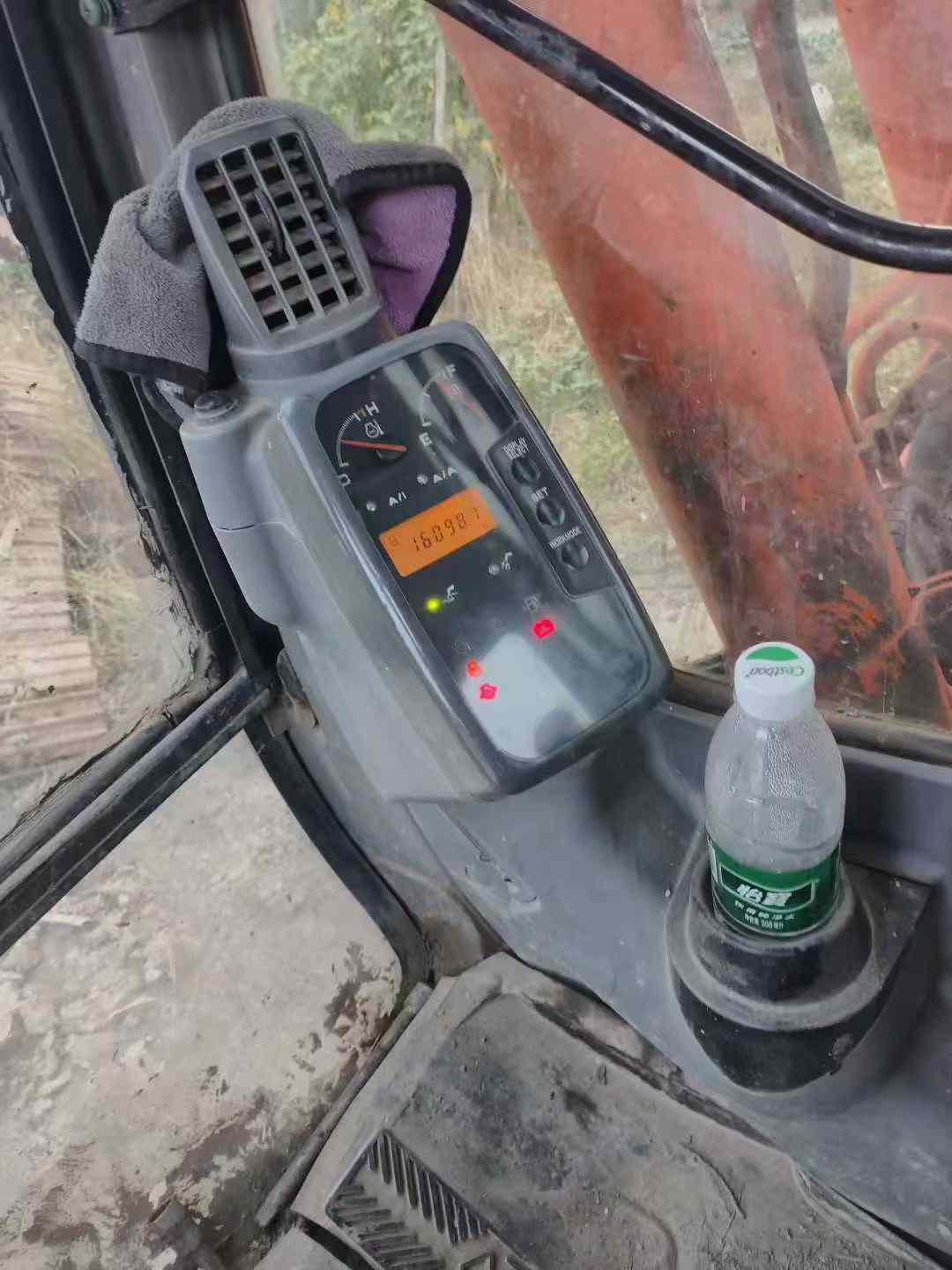

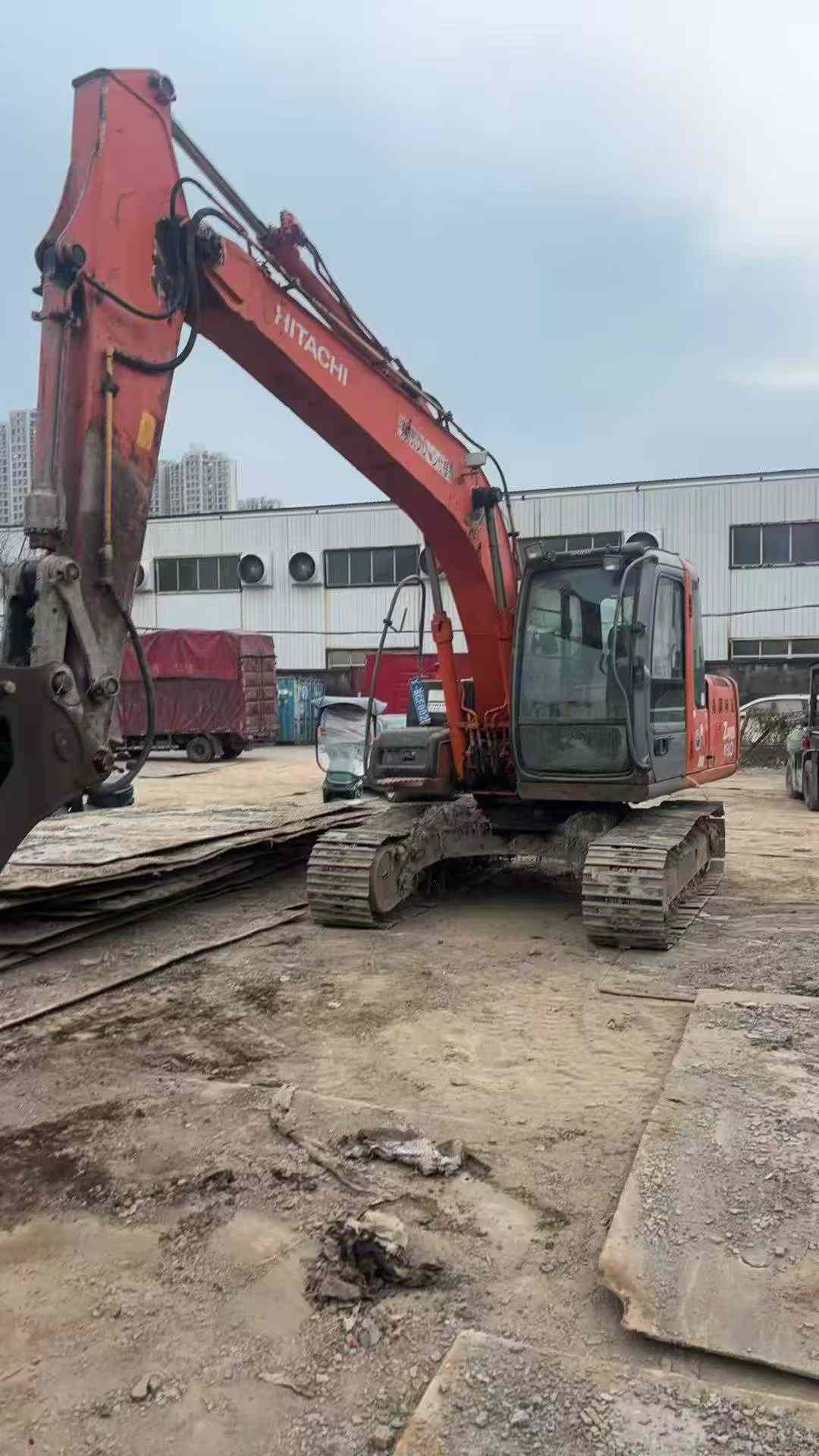

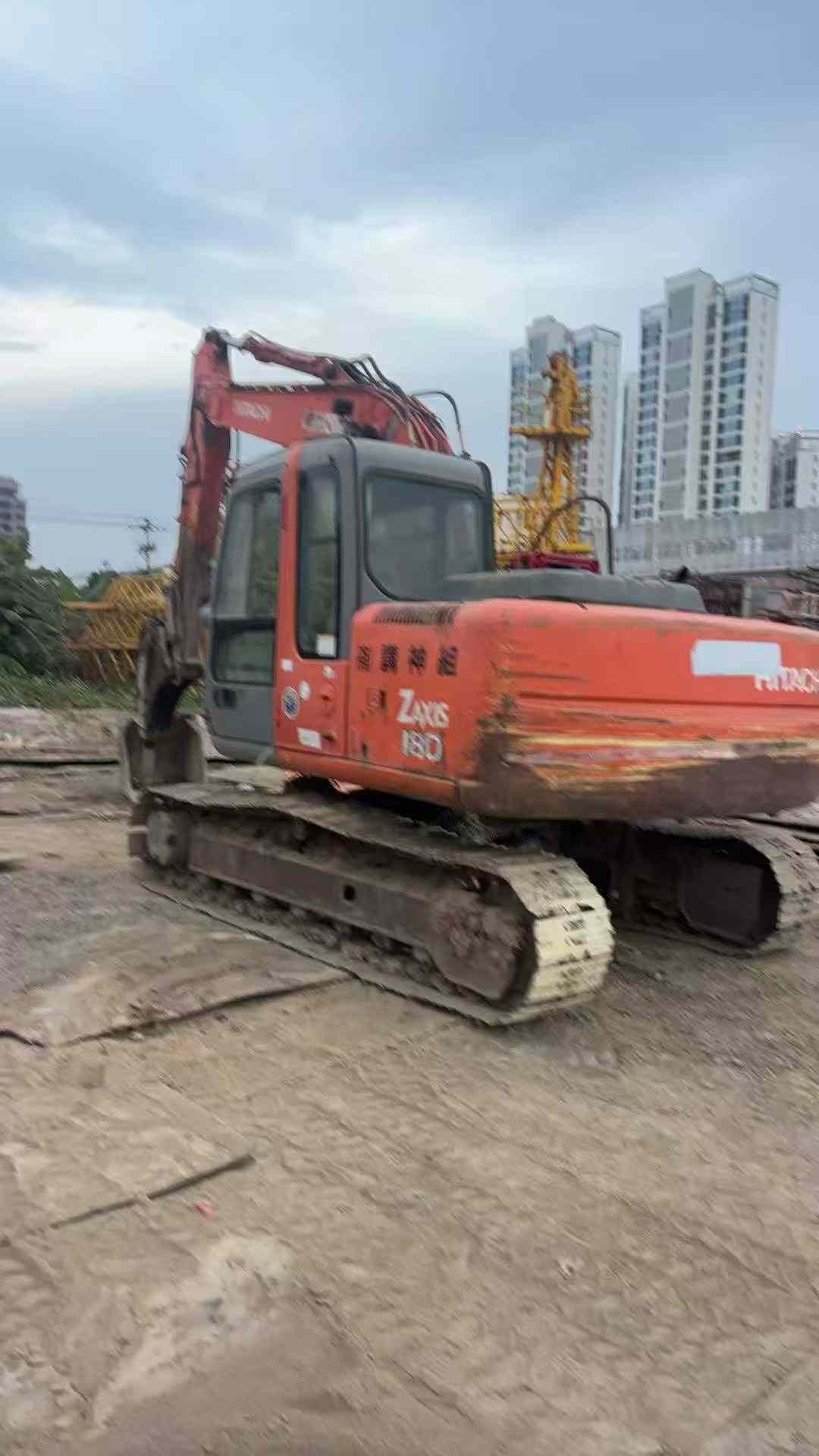

【 Premium Recommendation 】 Imported Hitachi 120-6 excavator, original version, a cost-effective choice! This imported Hitachi 120-6 excavator is a rare high cost-performance choice in the market. It has a working time of only 3,500 hours. For a second-hand excavator, this working time is very short, which means that its mechanical wear is low and its service life is also very long. The entire machine is equipped with an original Hitachi engine, which is powerful, stable and reliable. It can maintain efficient operation even under harsh working conditions. The hydraulic system has been meticulously maintained, responding promptly and operating flexibly. It can handle tasks such as excavation, loading, and crushing with ease, ensuring construction efficiency and safety. In addition, the appearance of the equipment is clean and tidy without obvious damage, the internal structure is intact as before, and all key components are in good condition. More importantly, as an original imported model, its quality far exceeds that of the domestic assembled version. Not only does it have excellent performance, but also an extremely low failure rate and lower maintenance costs in the later stage. In conclusion, this Hitachi 120-6 excavator stands o
