| Specifications | Value |
|---|---|
| No. | 970717 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
Description

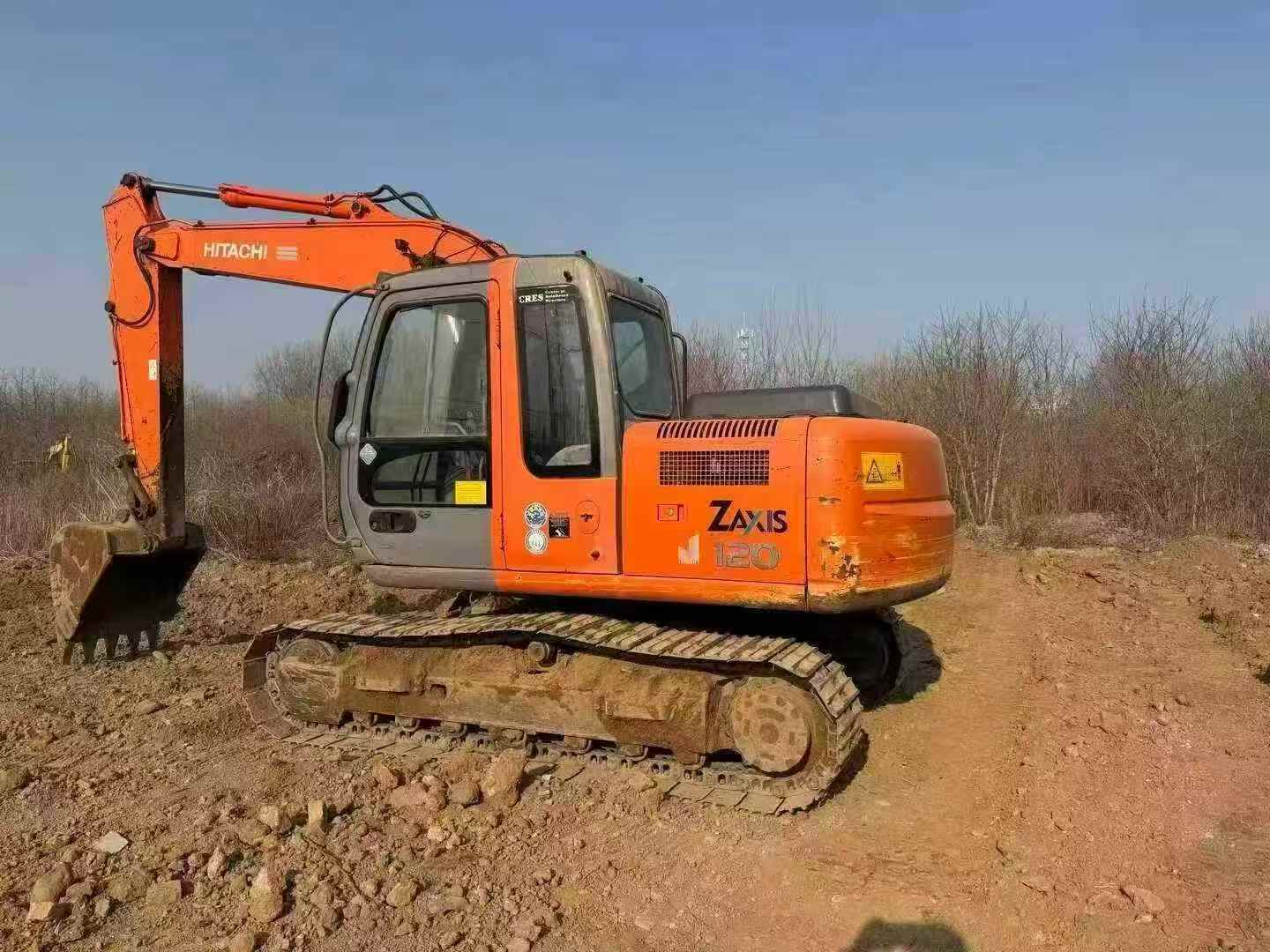

【 Premium Recommendation 】 Second-hand Wynn Hitachi 120-6 excavator This second-hand Wynn Hitachi 120-6 excavator is a high-quality piece of equipment rarely seen in the market. It has an enviable work record: it has only been used for earthwork and has never engaged in high-intensity work such as hammering, so the overall condition of the vehicle is maintained in excellent condition. The entire vehicle is equipped with the original configuration and has not undergone any modification or major overhaul, ensuring the stability and reliability of mechanical performance. The cumulative working time of this excavator is 3,500 hours. For a medium-sized excavator, this usage time is relatively short, which means it still has a long service life and extremely high cost performance. The power system adopts an original imported Hitachi engine, which not only has strong power but also low fuel consumption, and can easily meet the construction demands under various complex working conditions. In terms of the hydraulic system, an advanced closed central load sensing system is adopted, which responds quickly and controls precisely. Whether it is excavation or loading, it can handle everything with ease. In terms of appearance, the chassis of thi
