Product Description

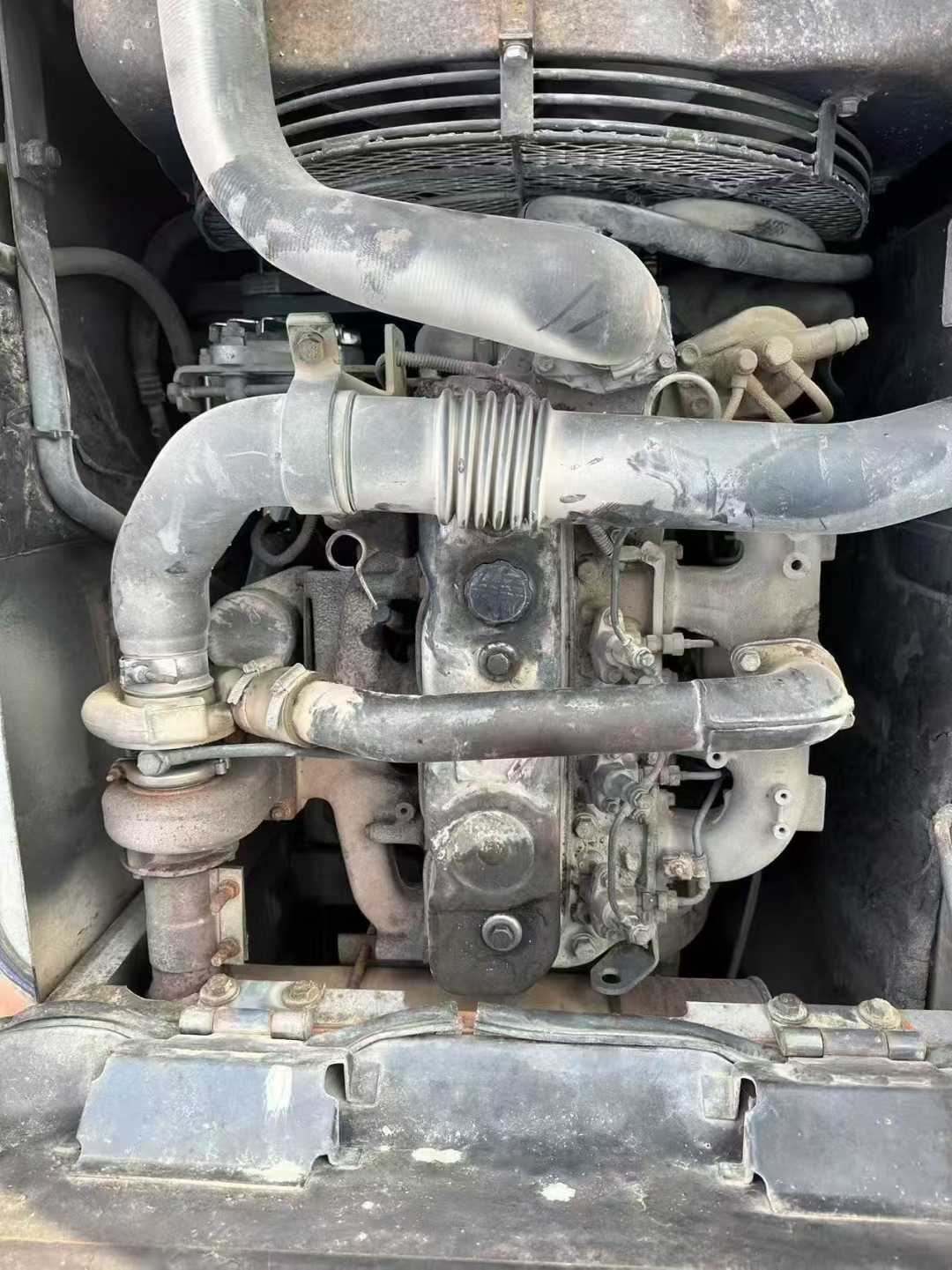

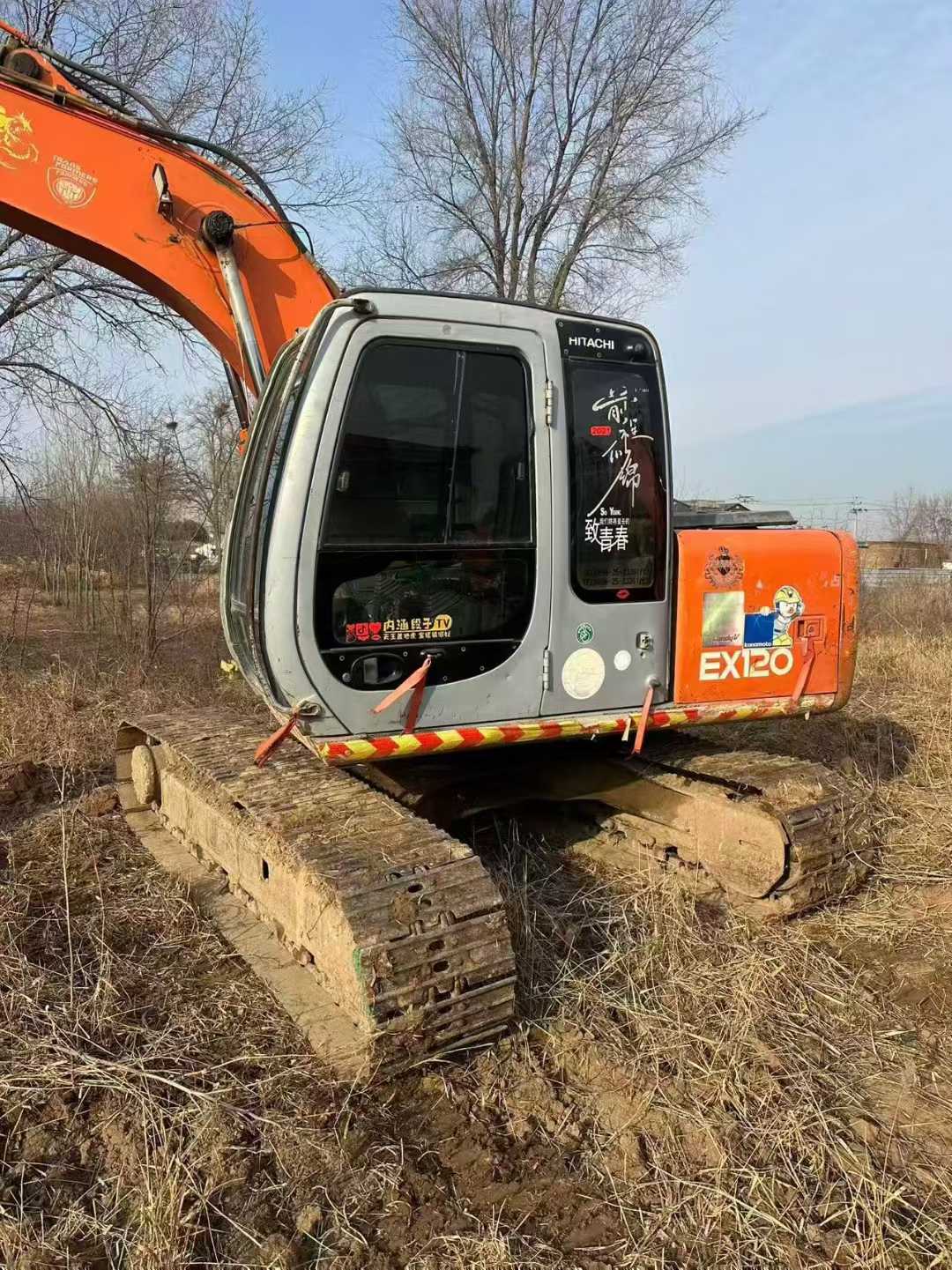

This high-quality second-hand Hitachi ZX120-5 excavator has a working time of only 1,500 hours and is in excellent condition. It is your ideal choice for engineering operations. This excavator is equipped with an efficient and reliable Isuzu 4BG1TRP engine with a rated power of 67.3 kilowatts, ensuring strong power output and excellent fuel economy, providing continuous and stable power support for your construction projects. In terms of the hydraulic system, the Hitachi ZX120-5 adopts advanced negative flow control technology, combined with high-performance hydraulic pumps and motors. This not only enhances the operational flexibility and response speed of the entire machine but also effectively reduces energy consumption and extends its service life. In addition, this model is equipped with an optimized working device, which makes the digging force more powerful and significantly improves the operation efficiency. As a highly praised small excavator, the Hitachi ZX120-5 performs exceptionally well in terms of operability, stability and durability, making it highly suitable for applications such as urban construction, landscaping and small-scale earthwork projects. Its compact body design facilitates flexible operation in narrow Spa
| Specifications | Value |
|---|---|
| No. | 976007 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
