Product Description

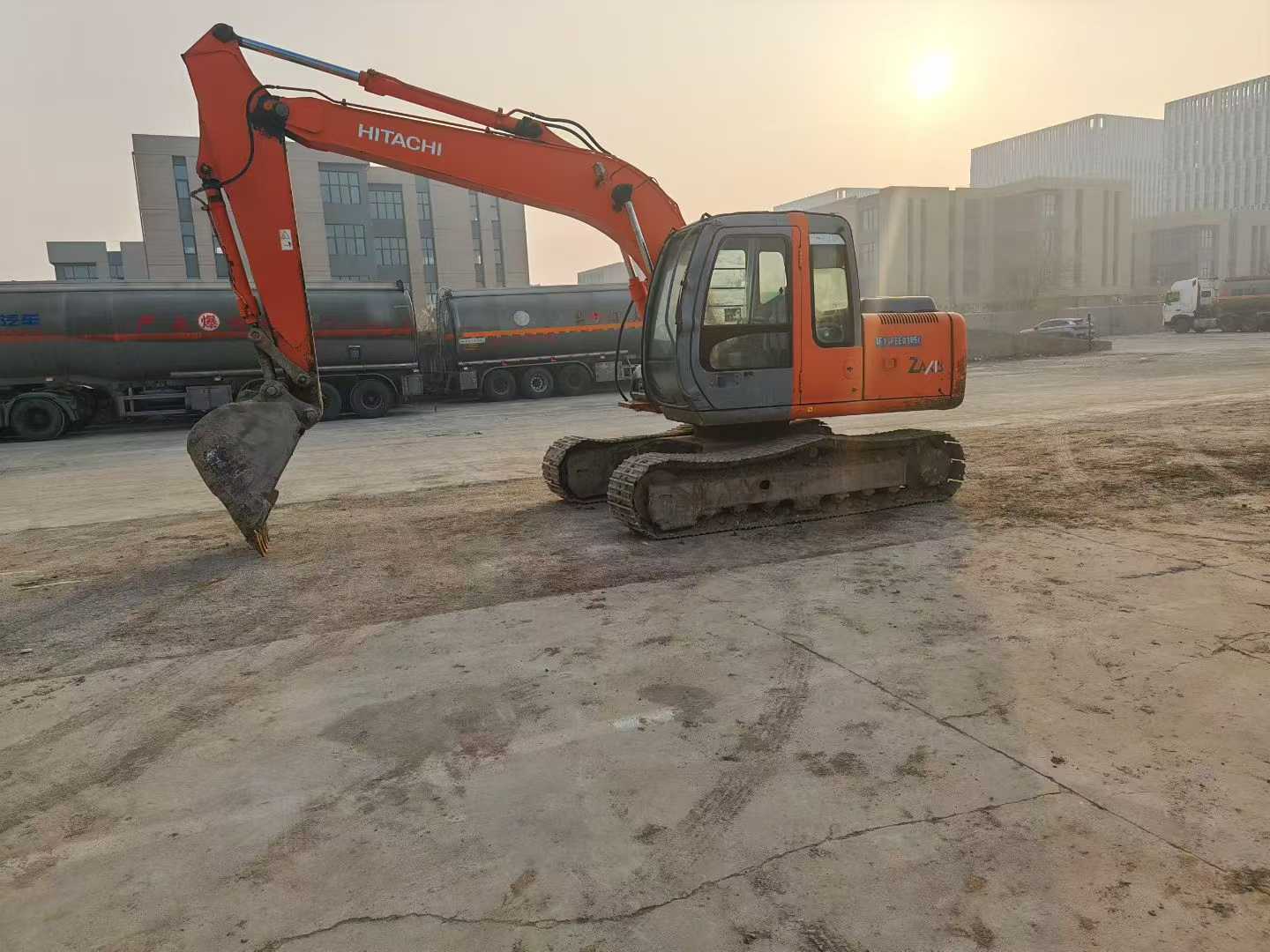

This top-quality Hitachi ZX120-6 excavator, with its outstanding performance and excellent maintenance conditions, is the ideal choice for your engineering projects. This equipment was only used for about 3,000 hours, which is far lower than the average working time of similar second-hand excavators, ensuring its good mechanical condition and long service life. In terms of power, it is equipped with a high-performance engine imported from Hitachi, model Isuzu 4LE2X, with a rated power of 75 kilowatts, ensuring strong and stable power output. This engine not only features excellent fuel economy but also has passed strict emission standard tests, meeting environmental protection requirements. The hydraulic system is a major highlight of this excavator. It is equipped with an efficient dual-pump and dual-loop quantitative hydraulic system. The main pump has a displacement of 100cc/rev, and the auxiliary pump has a displacement of 50cc/rev. Combined with an advanced hydraulic motor design, the entire machine operates more smoothly and smoothly, with a quick response. Whether it is excavation, loading or crushing operations, it can handle them with ease. It is particularly worth mentioning that this vehicle has maintained its original pa
| Specifications | Value |
|---|---|
| No. | 976447 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

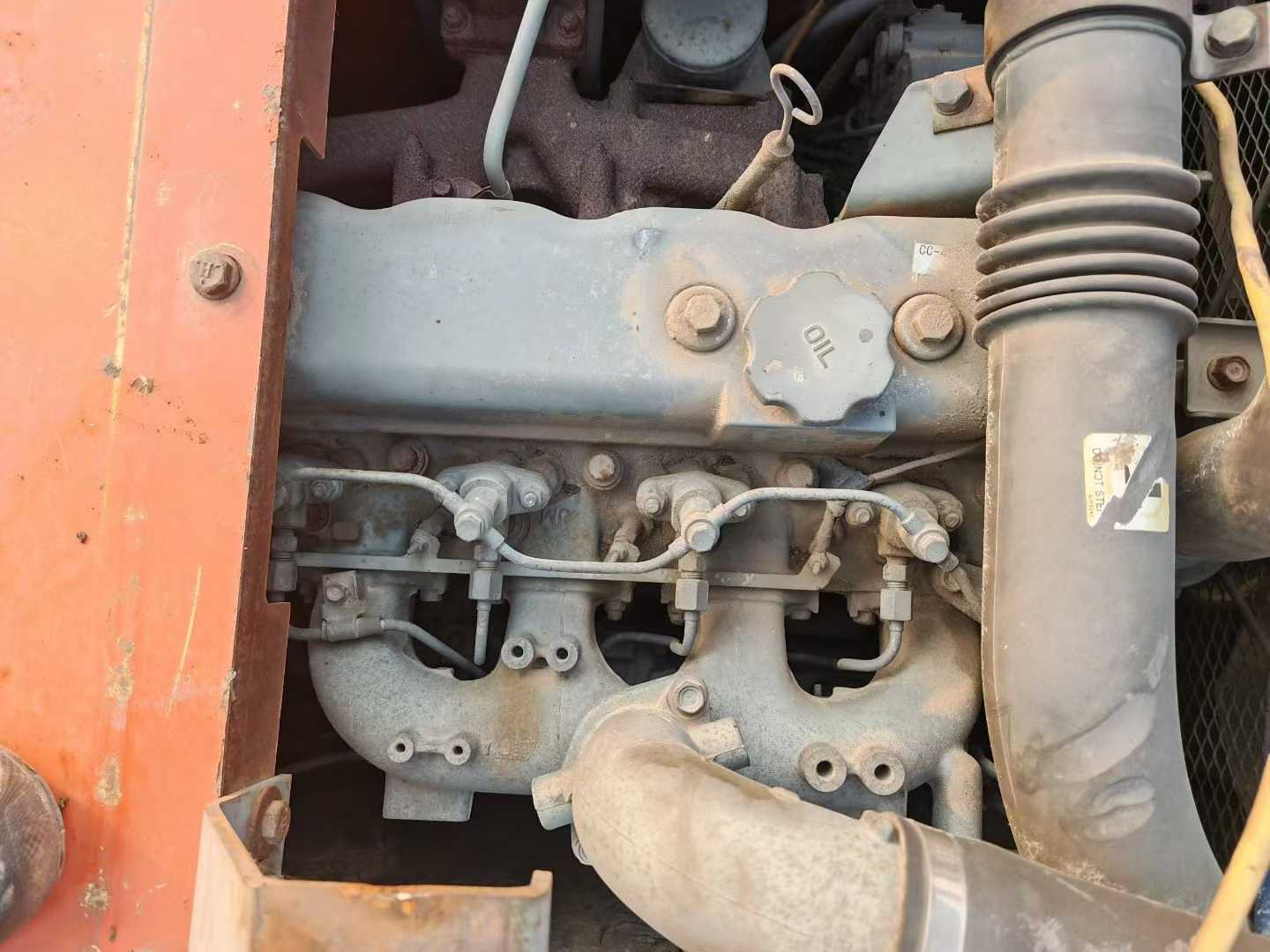

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
