Product Description

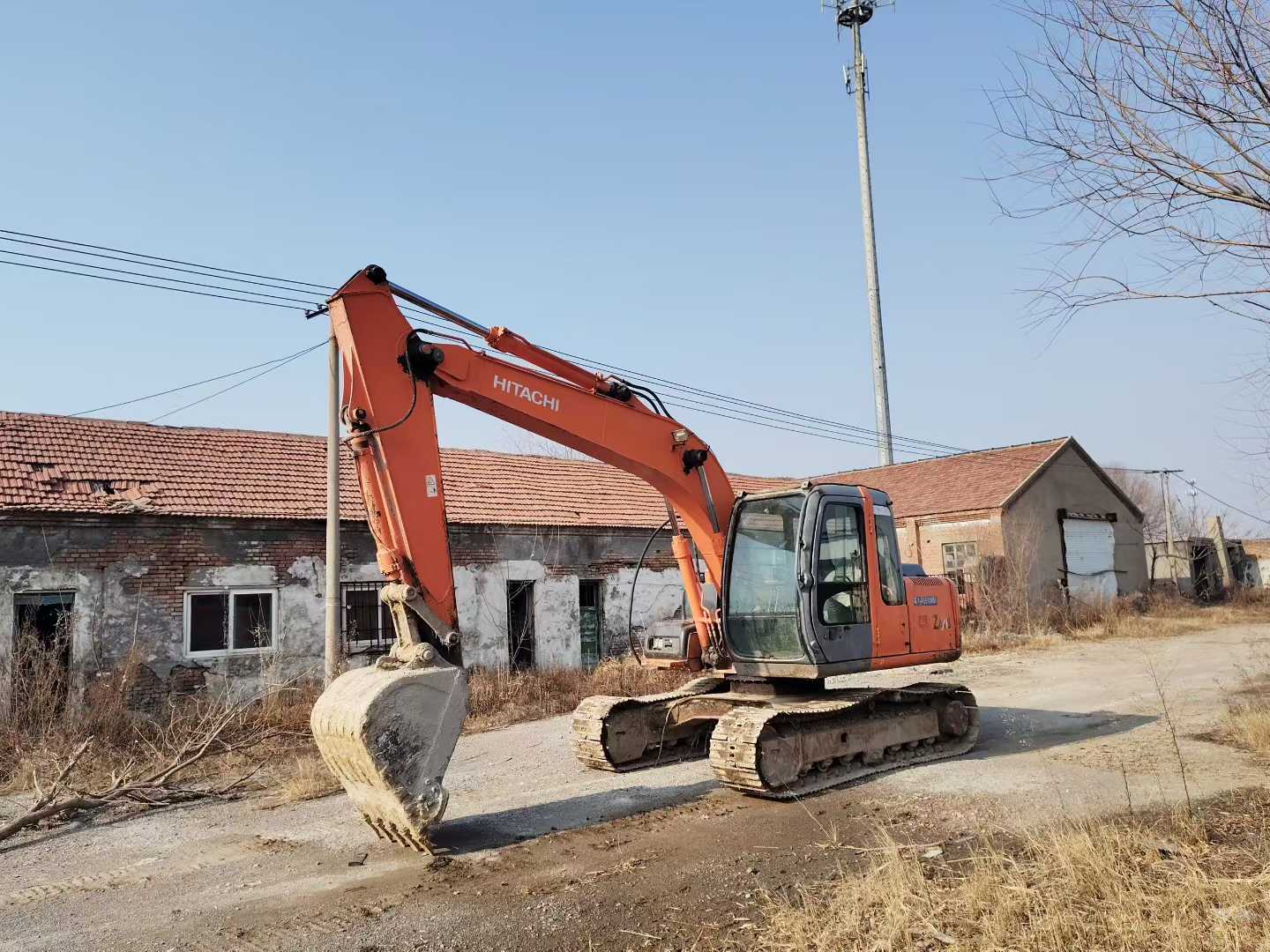

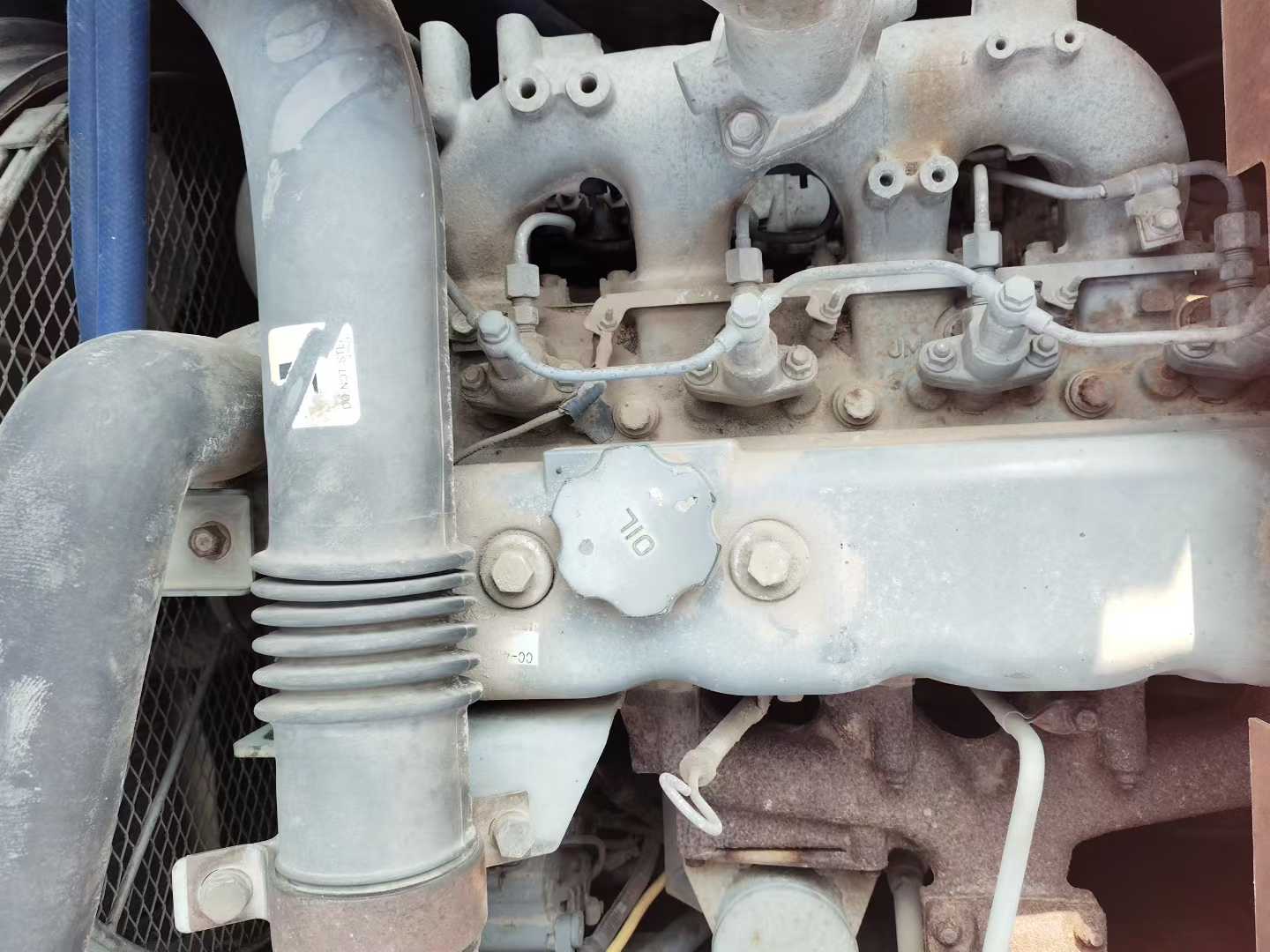

This top-quality Hitachi ZX120-6 excavator, with its outstanding performance and reliable quality, has become a highly favored choice in the market. This device has a working time of only 3,500 hours and is in excellent condition. It has undergone comprehensive testing to ensure there are no major maintenance records. It is your ideal investment choice. In terms of the power system, this excavator is equipped with an efficient Isuzu 4JG1-TCC engine with a rated power of 78 kilowatts, ensuring a perfect combination of strong power output and fuel economy. Whether it is urban construction or mining operations, it can easily handle all kinds of complex working conditions. The hydraulic system adopts Hitachi's advanced negative flow control technology, combined with high-performance variable piston pumps and durable hydraulic motors. This not only enhances the operational sensitivity and smoothness of the entire machine but also significantly reduces energy consumption, thereby greatly improving work efficiency. In addition, this ZX120-6 excavator also features a number of humanized designs: a spacious and comfortable cab, an intuitive and user-friendly operation interface, as well as a structure layout that is convenient for maintenanc
| Specifications | Value |
|---|---|
| No. | 977128 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
