Product Description

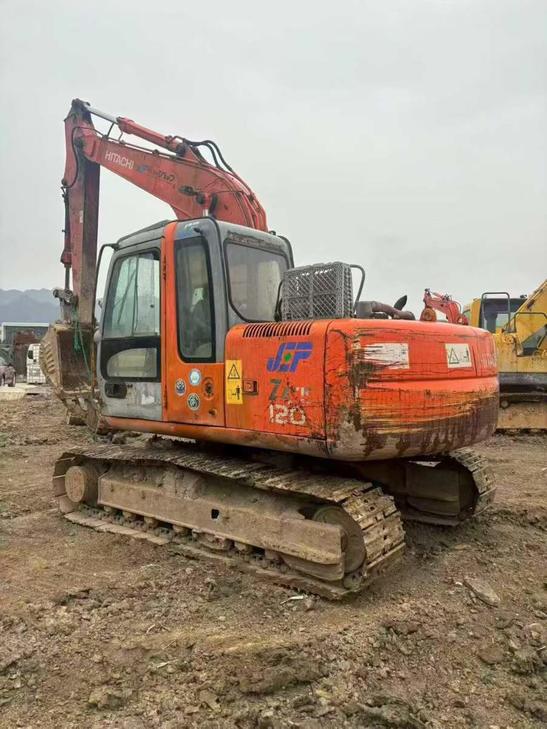

This imported Hitachi 120-6 excavator has a usage record of 78,000 hours, demonstrating its outstanding durability and reliability. This device is equipped with an efficient engine system. Although the specific model is not provided, based on Hitachi's consistent high standards, it is expected that its power will be between 90 and 100 horsepower, ensuring a perfect balance between strong power output and fuel economy. In terms of the hydraulic system, this excavator is equipped with a high-performance variable piston pump and a matching hydraulic motor combination. This not only ensures smooth and precise operation but also greatly enhances work efficiency. Especially for complex and ever-changing working environments, such a configuration can easily handle various challenges. In addition, as a second-hand construction machine, this machine also has the following major highlights: It is well maintained and has a clean appearance without obvious damage. 2. The operation is simple and comfortable, and the cab has a wide field of vision. 3. The accessories are complete and easy to replace, with low maintenance costs in the later stage. 4. Strong adaptability, capable of handling both earthwork excavation and rock crushing. In conclusio
| Specifications | Value |
|---|---|
| No. | 977950 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
