Product Description

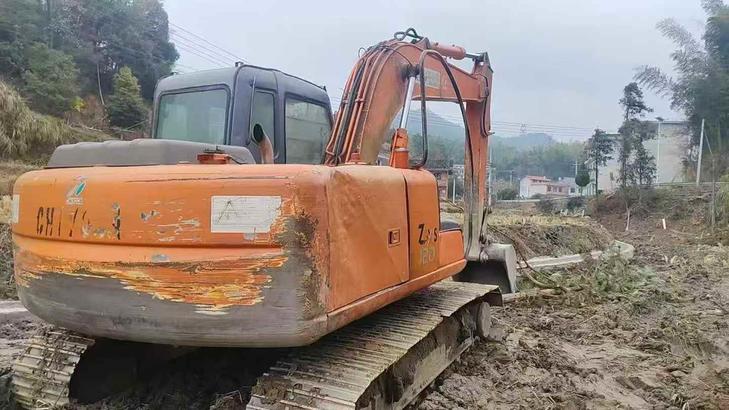

This imported Hitachi ZX120-6 excavator has a working time of only 89,900 hours, yet its overall performance remains outstanding. Its power system adopts the well-tested original Hitachi engine, model ISUZU 4LE2X, with a rated power of 63kW (approximately 85 horsepower), ensuring efficient and stable working performance. In terms of the hydraulic system, this equipment is equipped with an advanced Hitachi hydraulic pump and motor combination, providing a powerful and precise operation experience. It can handle tasks such as excavation, loading, and leveling with ease. The chassis parts were just replaced not long ago, which means that you won't need to worry about the maintenance of this part for a period of time in the future, greatly reducing the usage cost. In addition, this excavator also features excellent fuel economy and a low-noise design. It not only effectively reduces operating costs but also creates a more comfortable working environment for operators. As a second-hand construction machinery with extremely high cost performance, it not only has reliable quality assurance but also has a significant price advantage, making it very suitable for the needs of small and medium-sized engineering projects. Choosing this Hitachi Z
| Specifications | Value |
|---|---|
| No. | 978998 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
