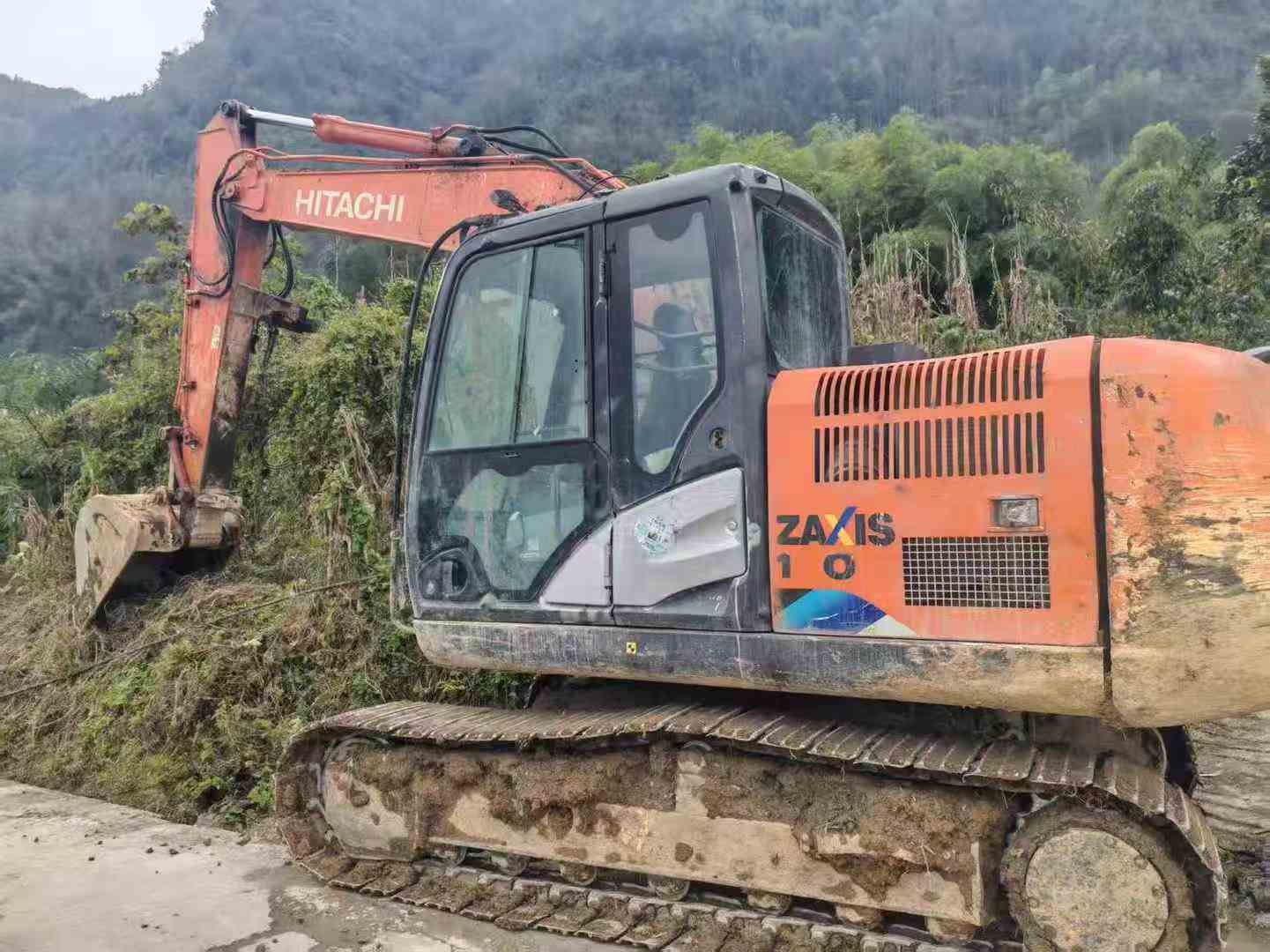

2017 Hitachi ZX130-5A

1/9
Used Hitachi ZX130-5A Excavator 2017 Model / 1

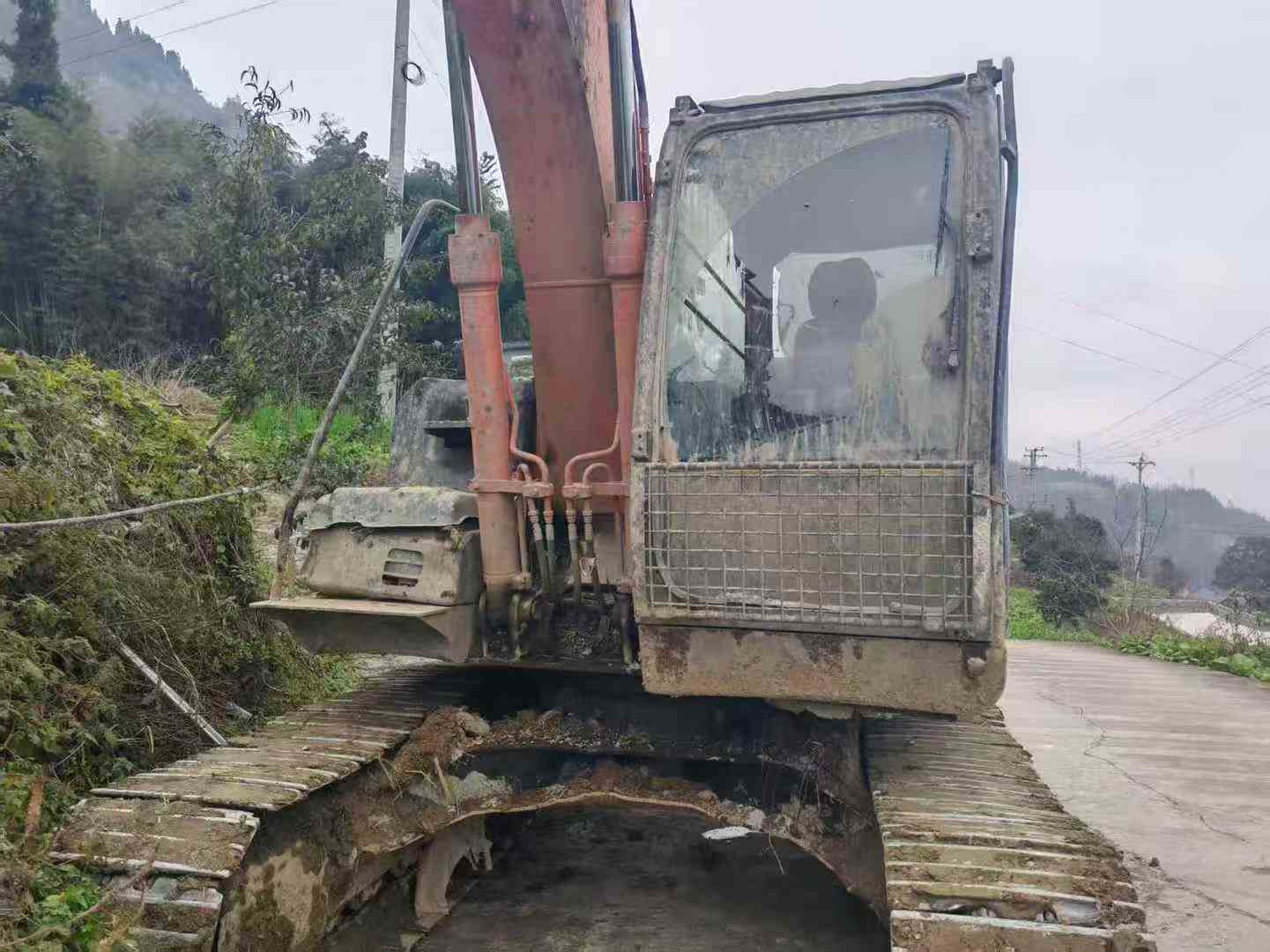

Used Hitachi ZX130-5A Excavator 2017 Model / 2

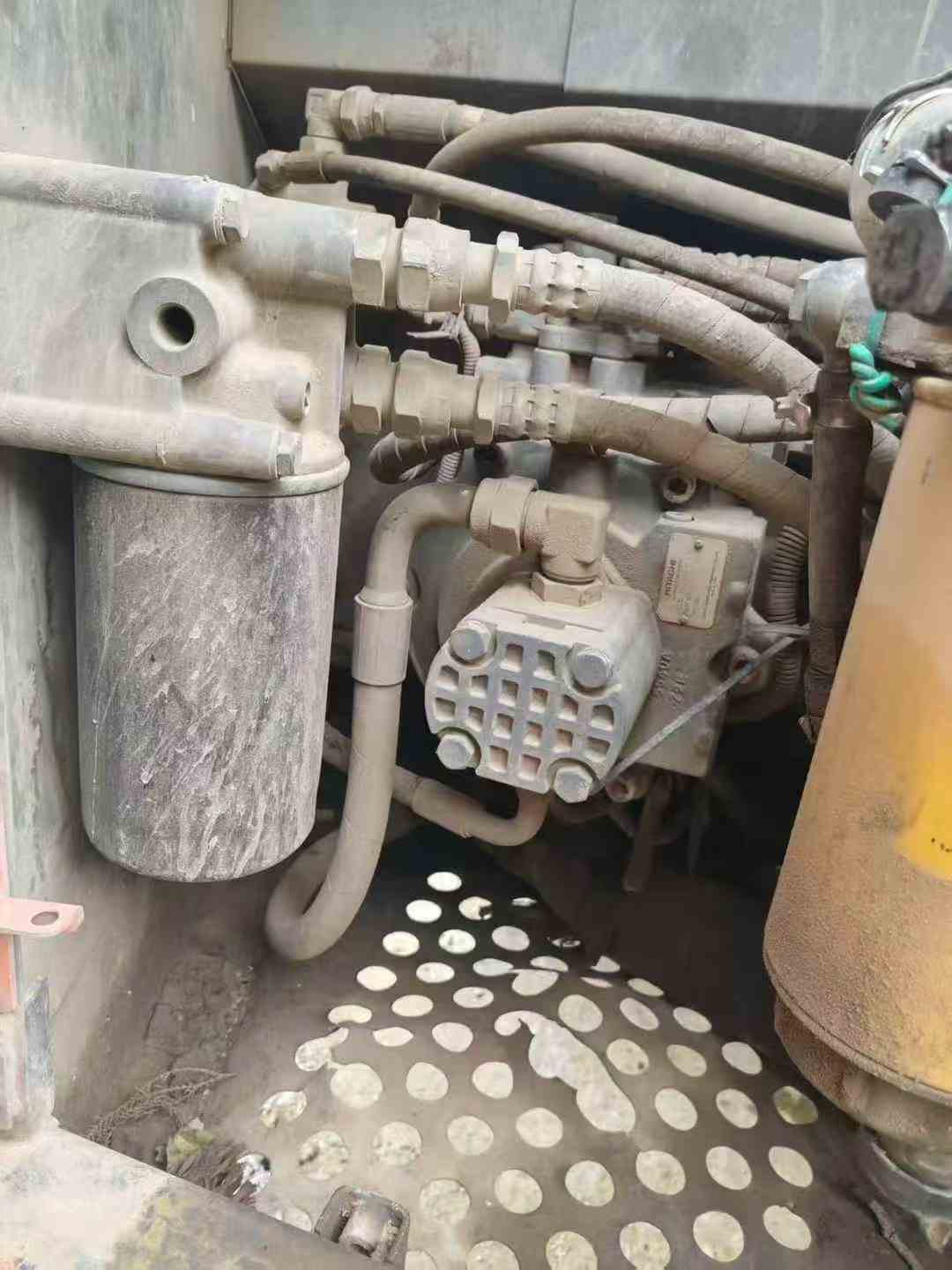

Used Hitachi ZX130-5A Excavator 2017 Model / 3

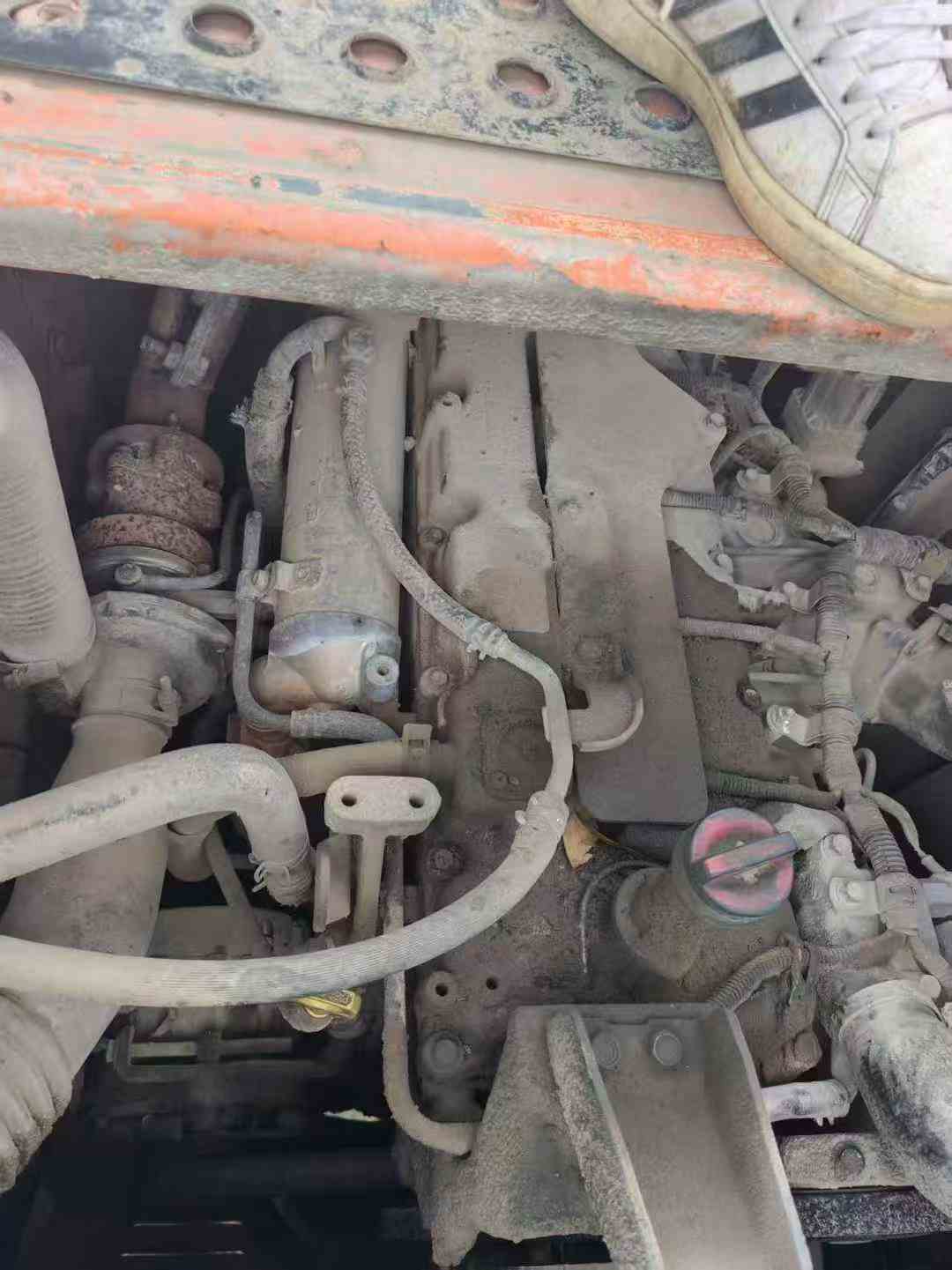

Used Hitachi ZX130-5A Excavator 2017 Model / 4

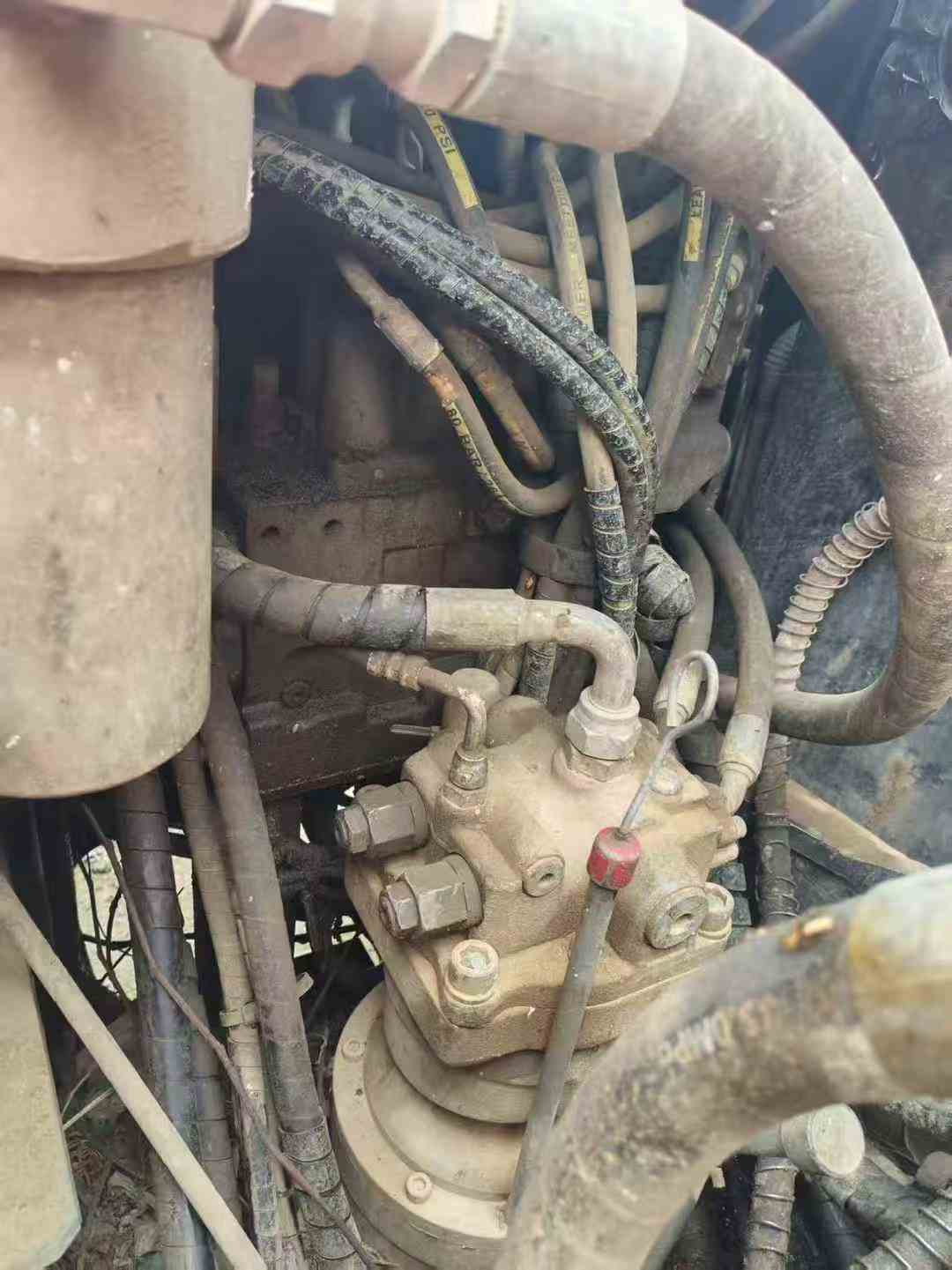

Used Hitachi ZX130-5A Excavator 2017 Model / 5

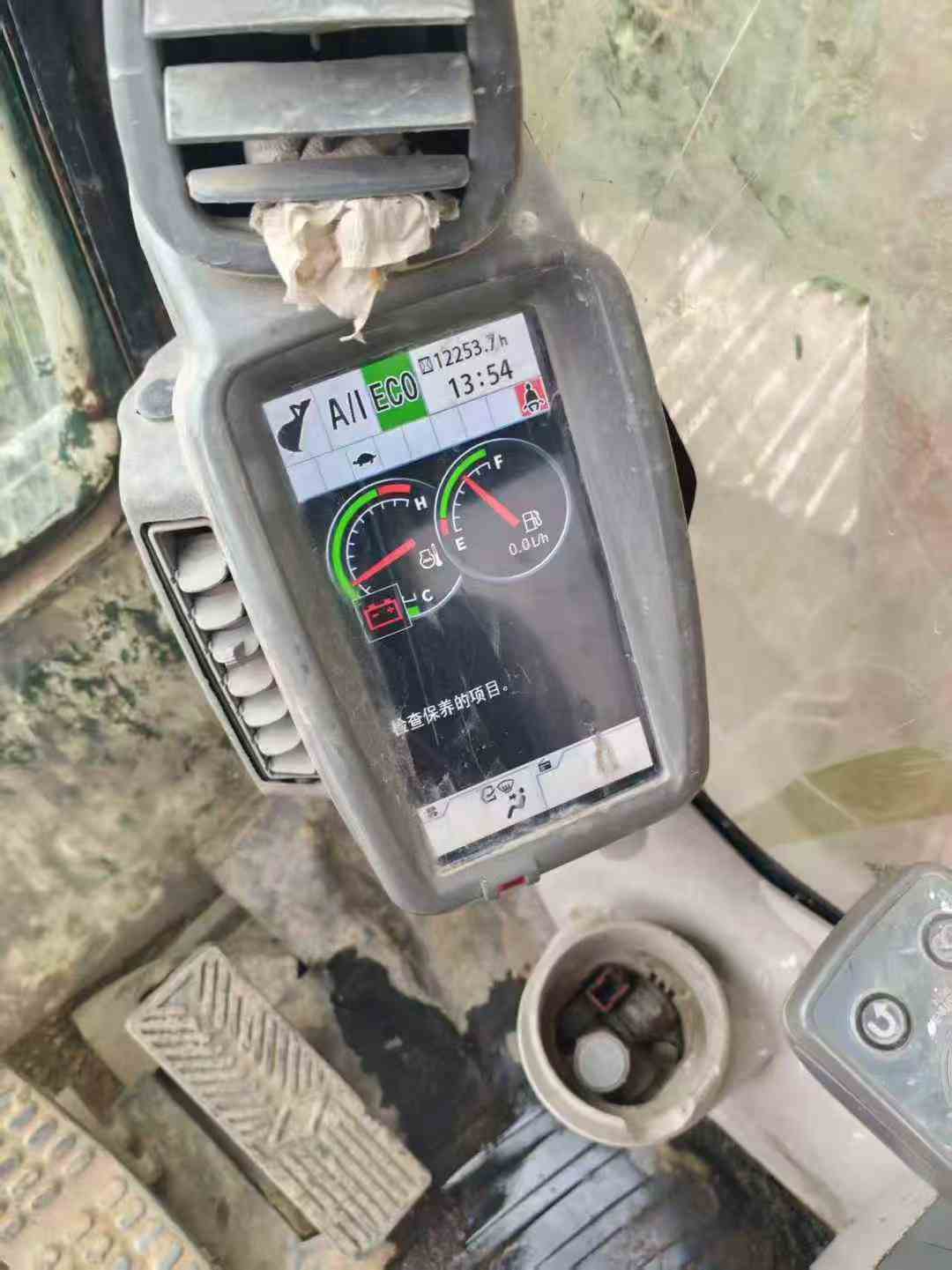

Used Hitachi ZX130-5A Excavator 2017 Model / 6

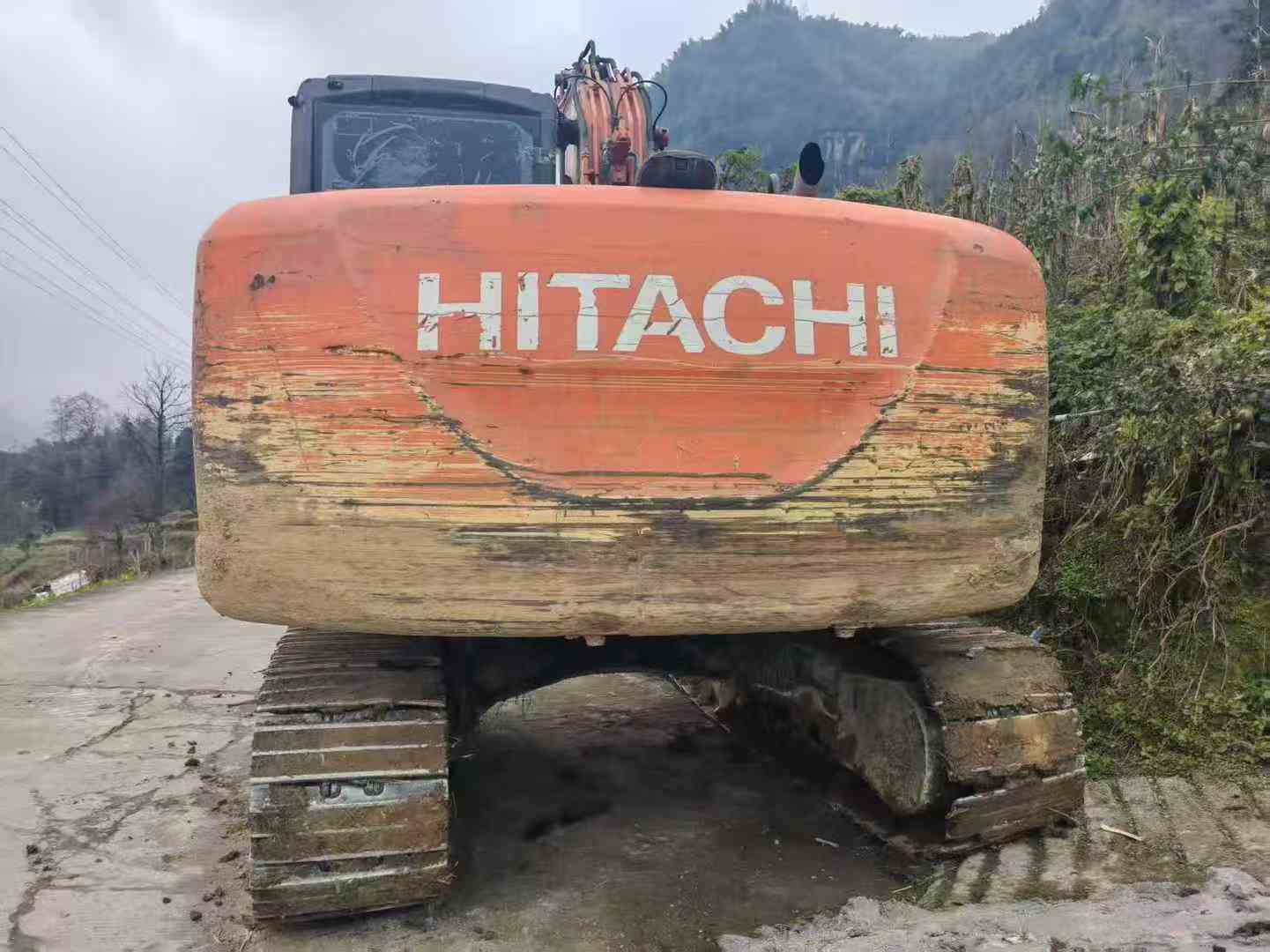

Used Hitachi ZX130-5A Excavator 2017 Model / 7

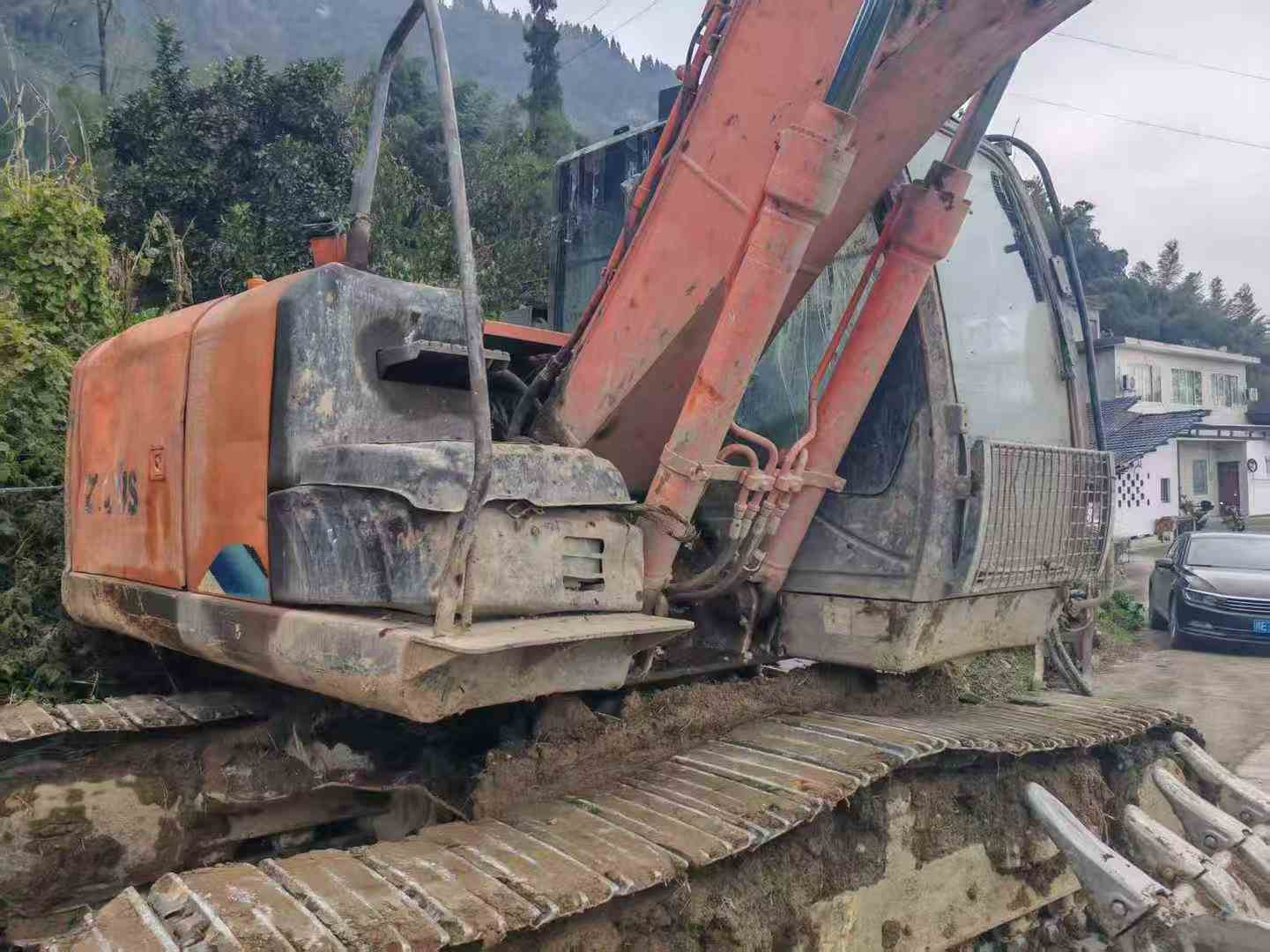

Used Hitachi ZX130-5A Excavator 2017 Model / 8

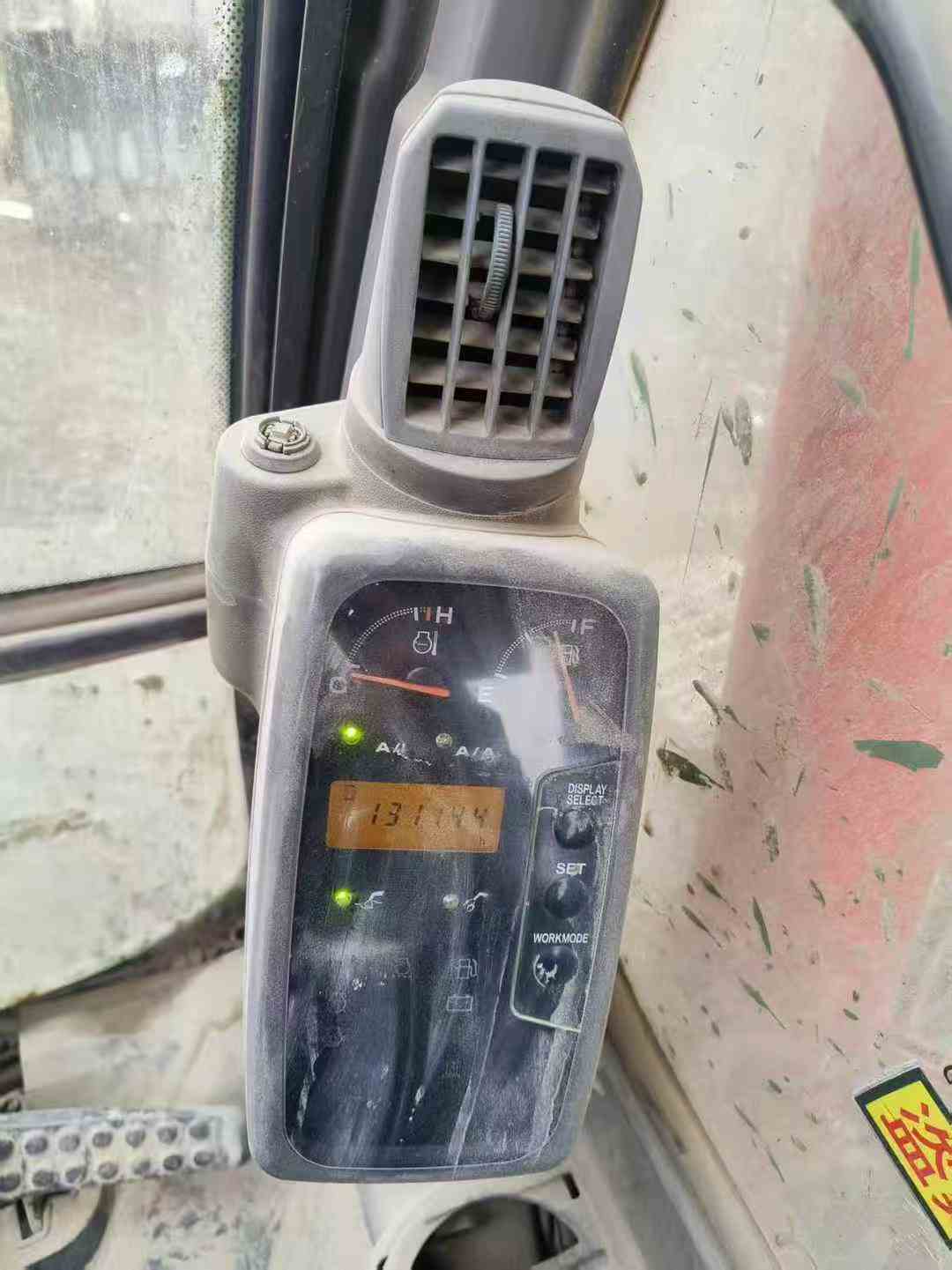

Used Hitachi ZX130-5A Excavator 2017 Model / 9

Product Description

This 2017 Hitachi ZX130-5A excavator is priced at only 165,000 yuan, offering an extremely high cost performance. It has a working time of approximately 4,000 hours, is in a medium usage state, but still maintains good working performance and mechanical condition. This excavator is equipped with an original imported Isuzu engine, which is powerful, stable and reliable. It can handle both plain and mountainous operations with ease. Isuzu engines are renowned for their excellent fuel economy and low noise characteristics, which enables this type of excavator to maintain a relatively low operating cost even during long-term operation. In terms of the hydraulic system, the Hitachi ZX130-5A adopts advanced negative flow control technology, ensuring high efficiency, energy conservation and precise control during operation. This design not only enhances work efficiency but also significantly reduces energy consumption and prolongs the service life of the equipment. In addition, its robust and durable structural design, combined with the selection of high-quality materials, enables this machine to perform well even in harsh working conditions, reducing the failure rate and ensuring the smooth progress of the project. In conclusion, for users

SpecificationsValue
No.971219
Tonnage (tons)13
Working weight (kg)12500
Bucket capacity (m³)0.52
Rod length (mm)2520
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu GJ-4JJ1XKSA-03
Rated power (kw/rpm)69/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95 x 105
Maximum torque (N.m)354/1600
Number of cylinders (PCS)4
Displacement (L)2.999
Working form4 stroke, water cooled, electrically controlled direct injection
Ground specific pressure (Kpa)39
Rotation speed (rpm)13.3
Climbing ability (%)70
Bucket digging force (kN)104
Rod digging force (kN)69
Maximum tractive force (kN)117
Travel speed (km/h)3.3-5.5
Rotary hydraulic motor type1 swashplate plunger motor
Type of walking hydraulic motor2 variable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 117
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)32.3
Main pump type2 variable axial piston pumps
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.0
Pilot pump flow (L/min)33.6
Bucket cylinders - Number × diameter × stroke (mm)1*100*70
Bucket rod cylinders - Number × diameter × stroke (mm)1*115*80
Boom cylinders - Number × diameter × stroke (mm)2*105*70
Pilot pump type1 gear pump
Fuel Tank (L)280
Hydraulic Tank (L)70
Engine Oil changes (L)17
Coolant (L)24
Hydraulic System (L)170
Total transport length (mm)7700
Total transport width (mm)2490
Total transport height (mm)2790
Full cab height (mm)2790
Counterweight ground clearance (mm)840
Minimum ground clearance (mm)410
Minimum turning radius of front working device (mm)2400
Back end turning radius (mm)2190
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2880
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)44
Maximum digging radius (mm)8300
Maximum digging depth (mm)5540
Maximum excavation height (mm)8600
Maximum unloading height (mm)6190
Maximum vertical digging depth (mm)4750
Maximum excavation radius of stop surface (mm)8170
see more

Overview

No.971219

Brand Name:

Hitachi

Model Number:

ZX130-5A

Year:

2017

Location:

Zhejiang China
