Product Description

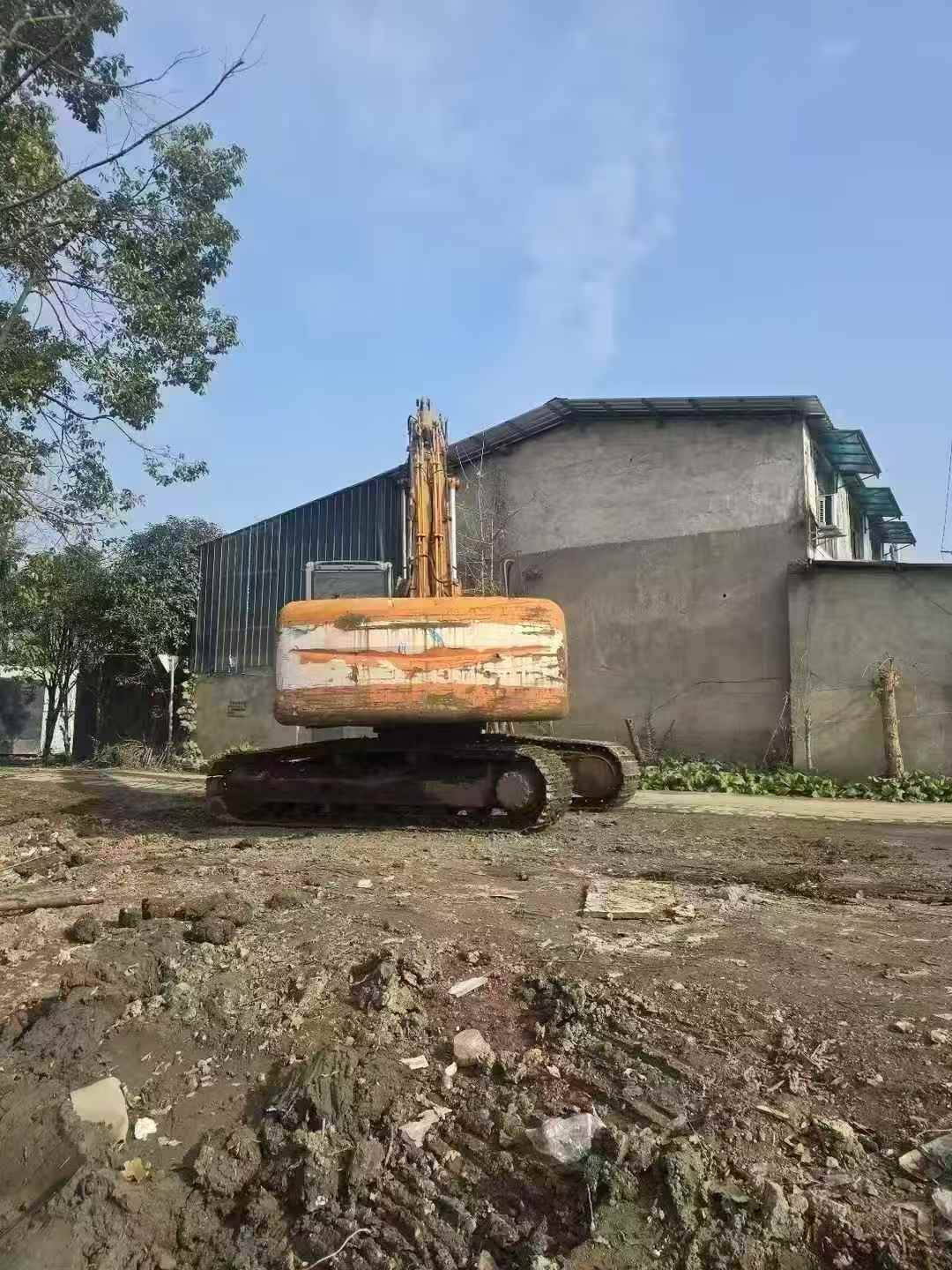

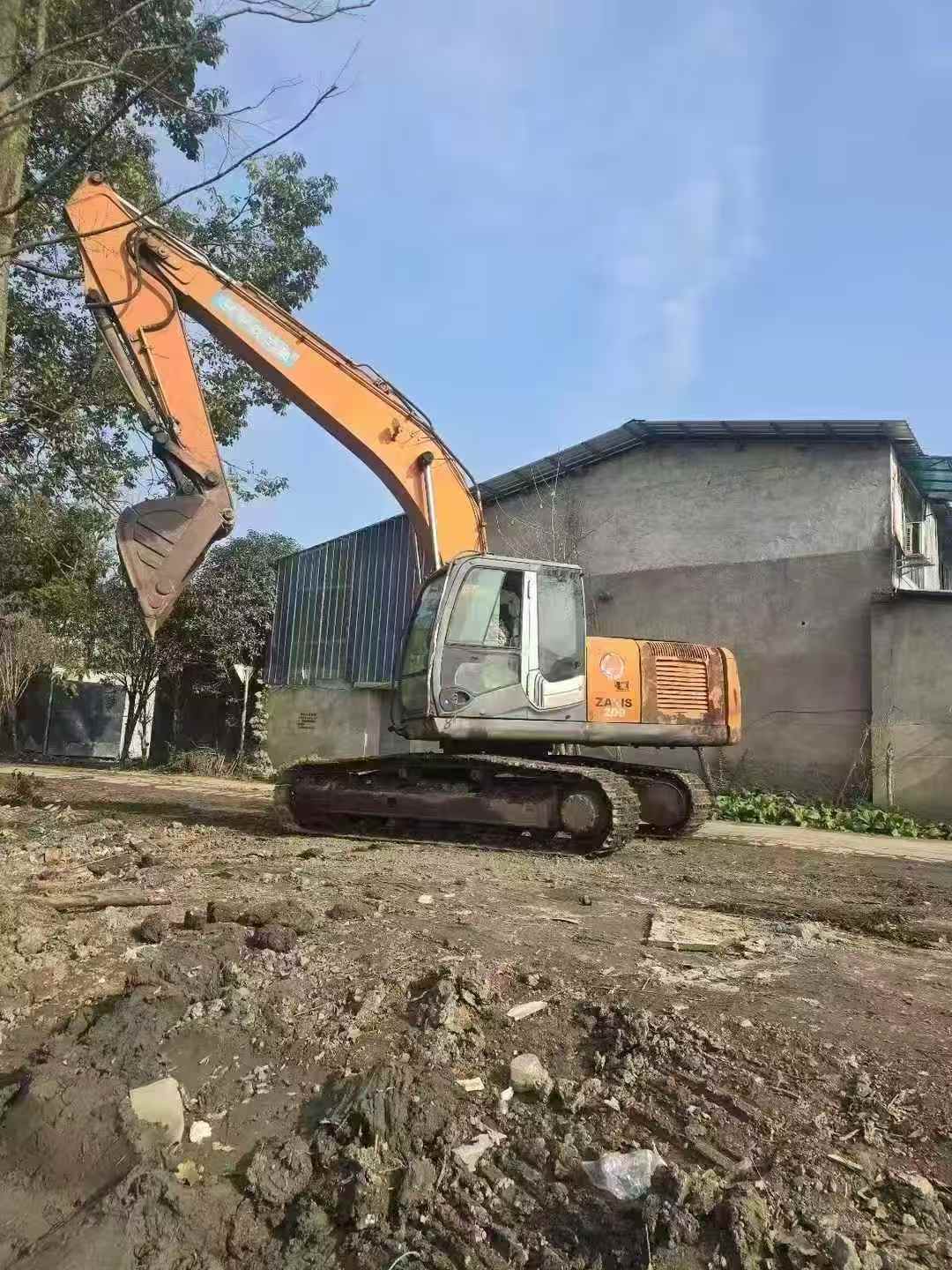

Built for demanding excavation work, this 2016 Hitachi ZX200-3 delivers reliable 20-ton performance with proven Japanese engineering. Powered by a robust ISUZU AI-4HK1X engine producing 122kW, this machine tackles heavy digging operations with 151kN bucket force and reaches 9.92m maximum digging radius.
Key operational specifications include:
- 0.8m³ bucket capacity for efficient material handling
- 6.67m maximum digging depth for deep excavation projects
- 70% climbing ability on steep terrain
- Dual variable piston pumps with 34.3MPa working pressure
- 400L fuel tank for extended operation cycles

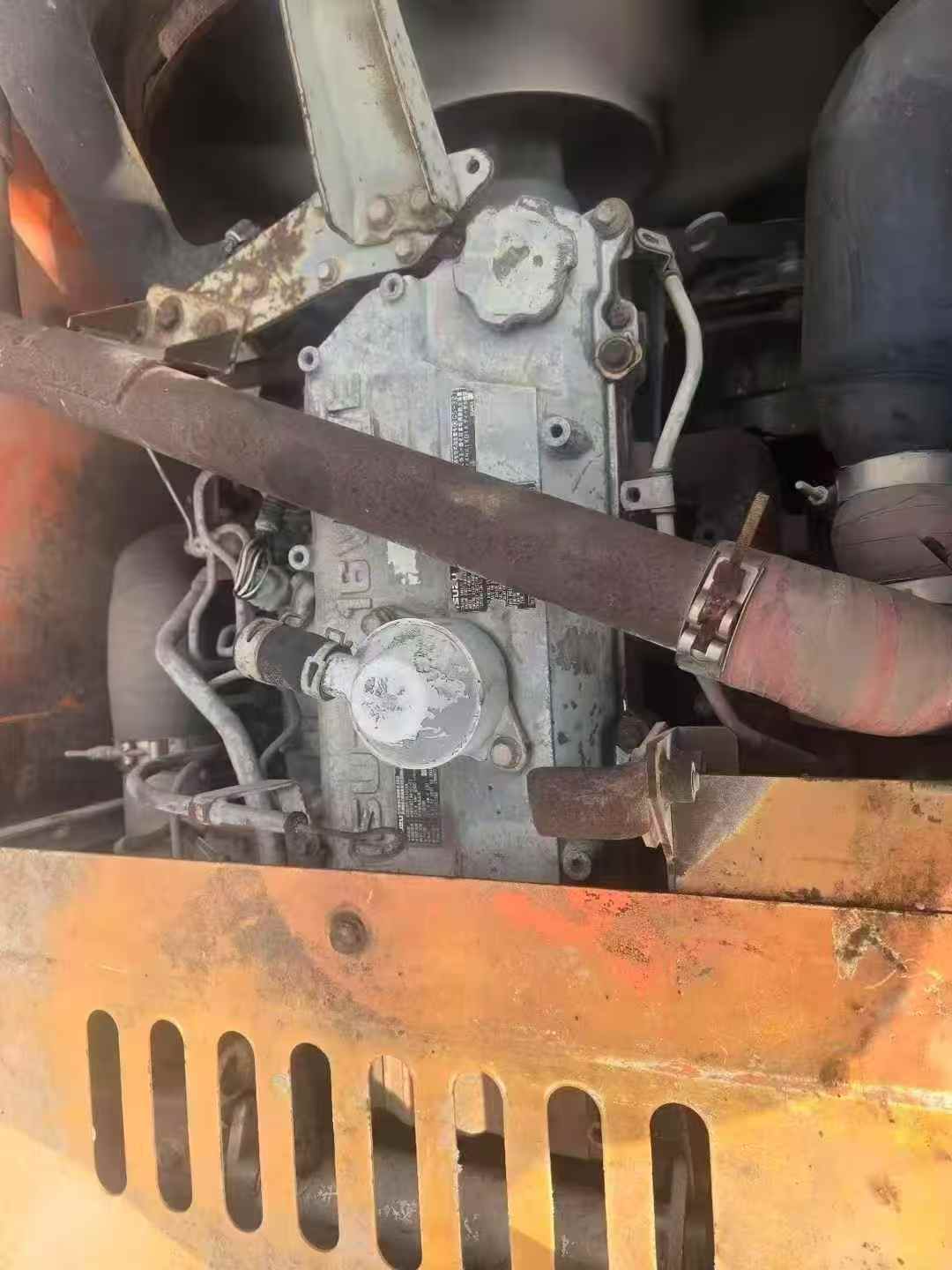

Currently located in Guizhou, this excavator features water-cooled turbocharged engine with intercooler, ensuring consistent performance in challenging conditions. With 600mm track plates and 2.2m track gauge, it provides stable operation across varied job sites. Ready for immediate deployment on construction, demolition, or earthmoving projects requiring dependable mid-size excavation capability.
| Specifications | Value |
|---|---|
| No. | 986076 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5.68 (H Type) |
| Rod length (mm) | 2.91 (H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

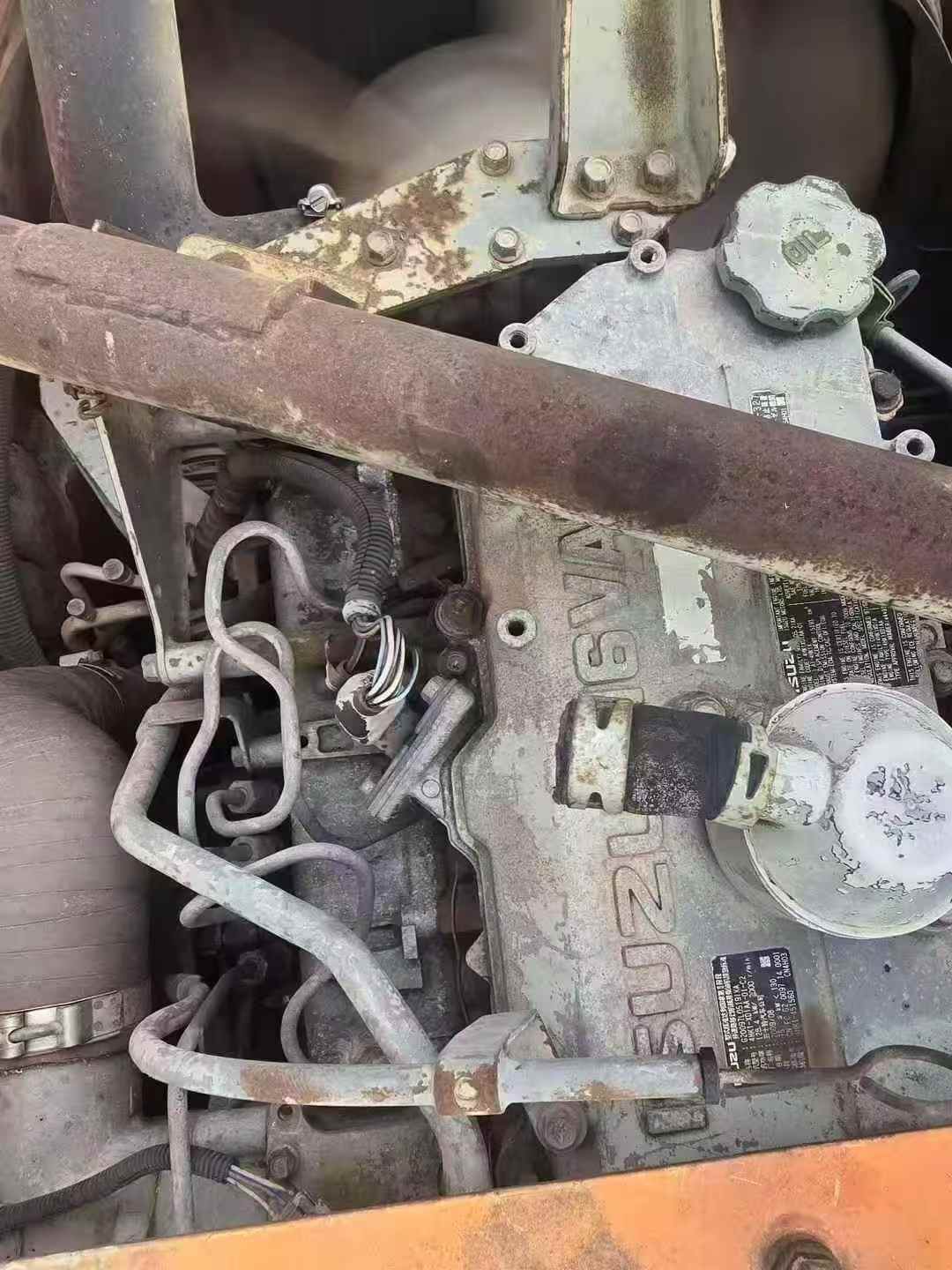

| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 122/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

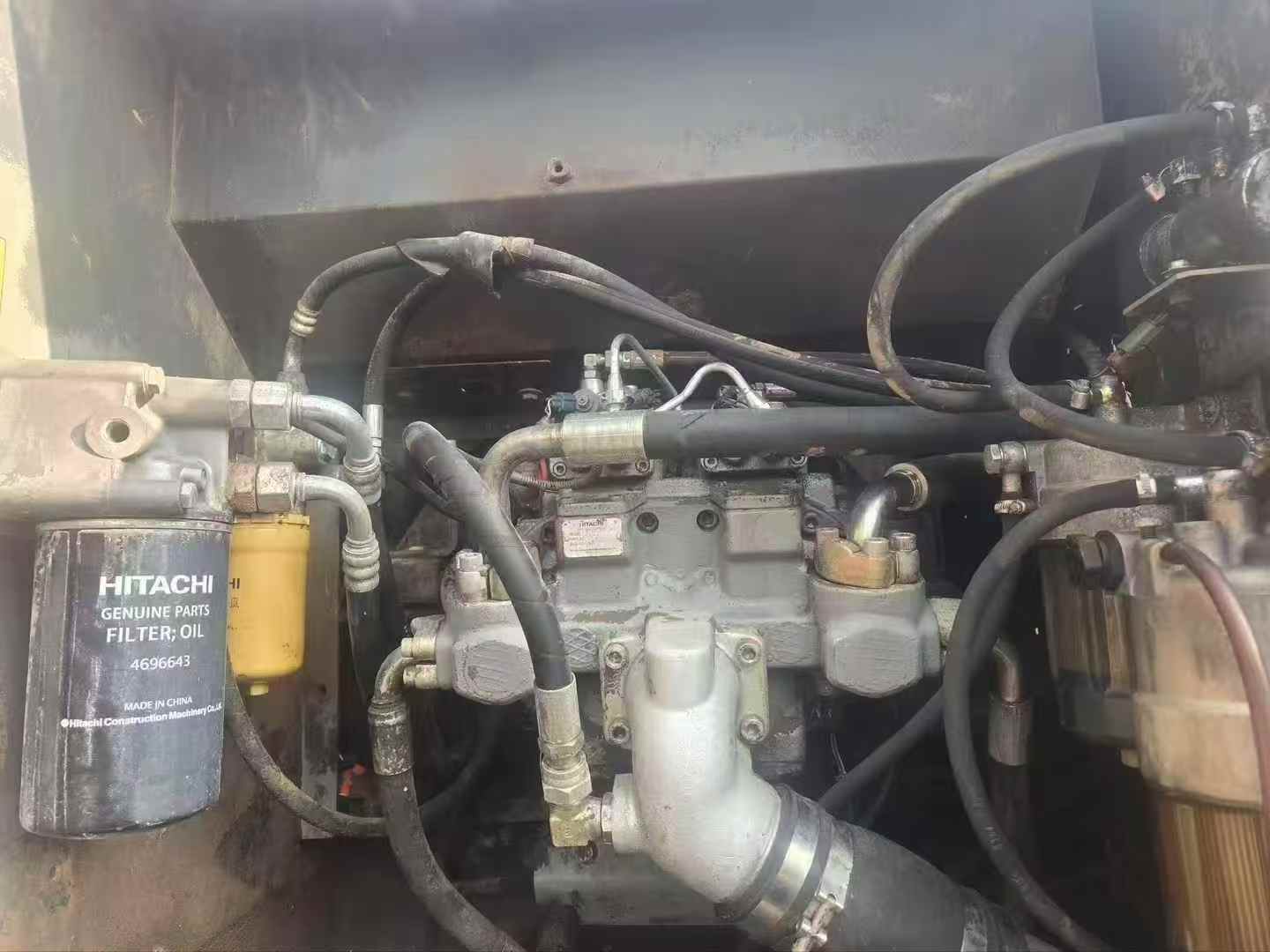

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135(Full box 200) |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Bulldozer lift or depth (mm) | No bulldozer |
