2016 Hitachi ZX200-3G

1/8
Used Hitachi ZX200-3G Excavator 2016 Model / 1
Used Hitachi ZX200-3G Excavator 2016 Model / 2
Used Hitachi ZX200-3G Excavator 2016 Model / 3
Used Hitachi ZX200-3G Excavator 2016 Model / 4
Used Hitachi ZX200-3G Excavator 2016 Model / 5
Used Hitachi ZX200-3G Excavator 2016 Model / 6
Used Hitachi ZX200-3G Excavator 2016 Model / 7
Used Hitachi ZX200-3G Excavator 2016 Model / 8

Product Description

There is currently a second-hand Hitachi 200-3G excavator, an original painted earthmoving truck, with a working time of only 1,500 hours. It is well maintained and has stable performance. This machine is equipped with the efficient and reliable ISUZU AH-6HK1X engine, with a power output of 110kW, ensuring strong power output and excellent fuel economy, suitable for the operation requirements under various complex working conditions. In terms of the hydraulic system, this Hitachi 200-3G adopts an advanced KPM series hydraulic pump combined with a high-performance hydraulic motor, providing excellent operational response speed and smoothness, while ensuring the stable operation of the equipment under high-load conditions. In addition, it is equipped with an efficient cooling system that can effectively lower the oil temperature and extend the service life of hydraulic components. As a model specifically designed for earthwork projects, the Hitachi 200-3G not only features a robust and durable body structure but also places particular emphasis on operational comfort and safety. The spacious and bright cab is equipped with an air conditioning system, providing the driver with a good working environment. The all-round vision design great

SpecificationsValue
No.977378
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)0.91
Boom length (mm)5.68(H Type)
Rod length (mm)2.91(H type)
Country of originHefei, Anhui Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AA-6BG1T
Rated power (kw/rpm)110/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)105 x 125
Number of cylinders (PCS)6
Displacement (L)6.494
Working form4 stroke, water cooled, direct injection, turbocharged, intercooled
Ground specific pressure (Kpa)44
Bucket digging force (kN)151
Rod digging force (kN)109

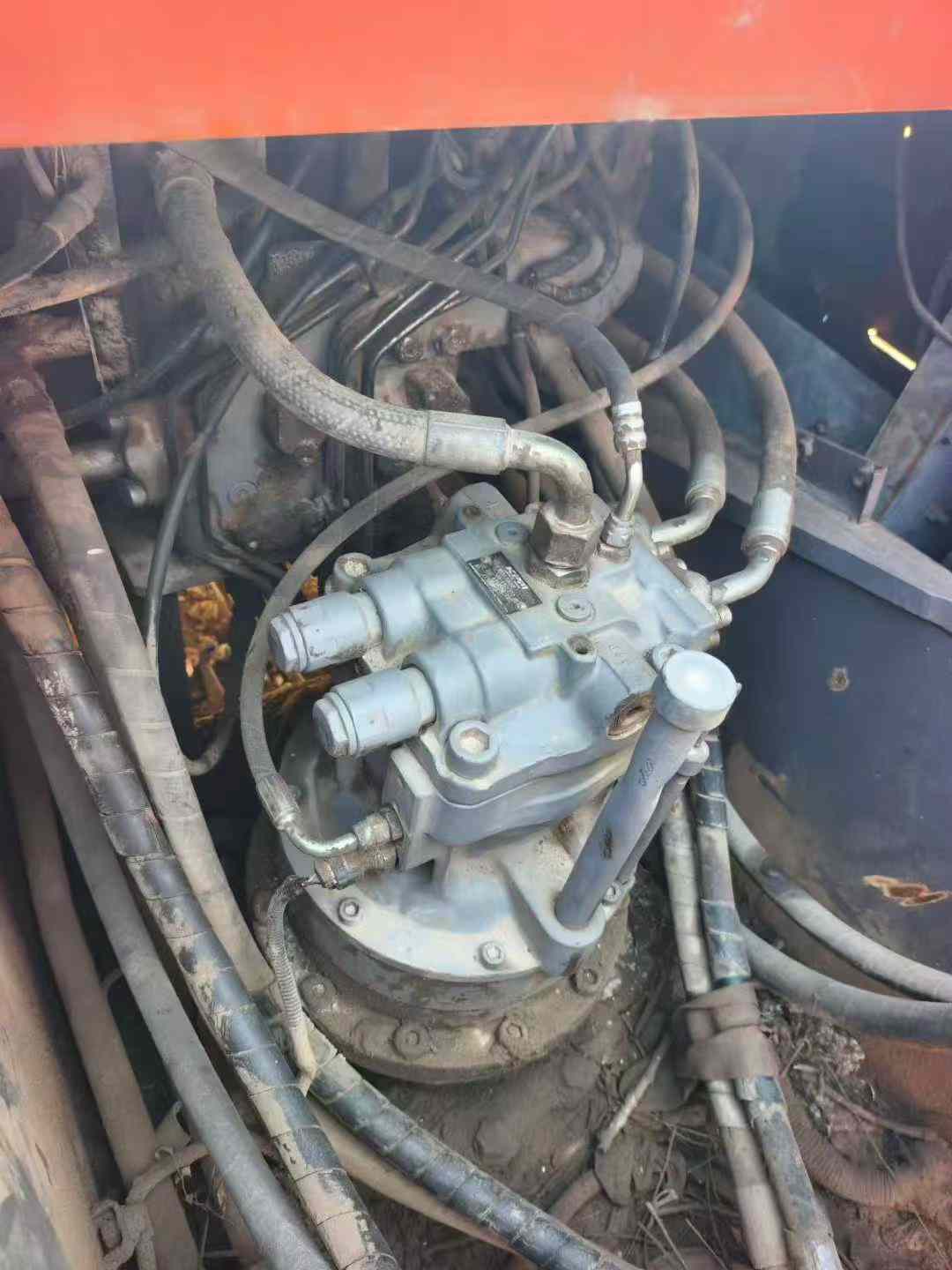

Rotary hydraulic motor typeAxial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)194 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30.4
Main pump typeVariable axial piston pump ×2
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1-115x80
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 95
Boom cylinders - Number × diameter × stroke (mm)2-120 x 85
Fuel Tank (L)360
Hydraulic Tank (L)135
Engine Oil changes (L)25
Coolant (L)23
Hydraulic System (L)240
Total transport length (mm)9500
Total transport width (mm)2860
Total transport height (mm)2970
Full cab height (mm)2960
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6660
Maximum excavation height (mm)9610
Maximum unloading height (mm)6790
Maximum vertical digging depth (mm)6040
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Boom turning Angle (left/right °)There is no
see more

Overview

No.977378

Brand Name:

Hitachi

Model Number:

ZX200-3G

Year:

2016

Location:

Shandong China
