2018 Hitachi ZX210K-5A

1/8
Used Hitachi ZX210K-5A Excavator 2018 Model / 1

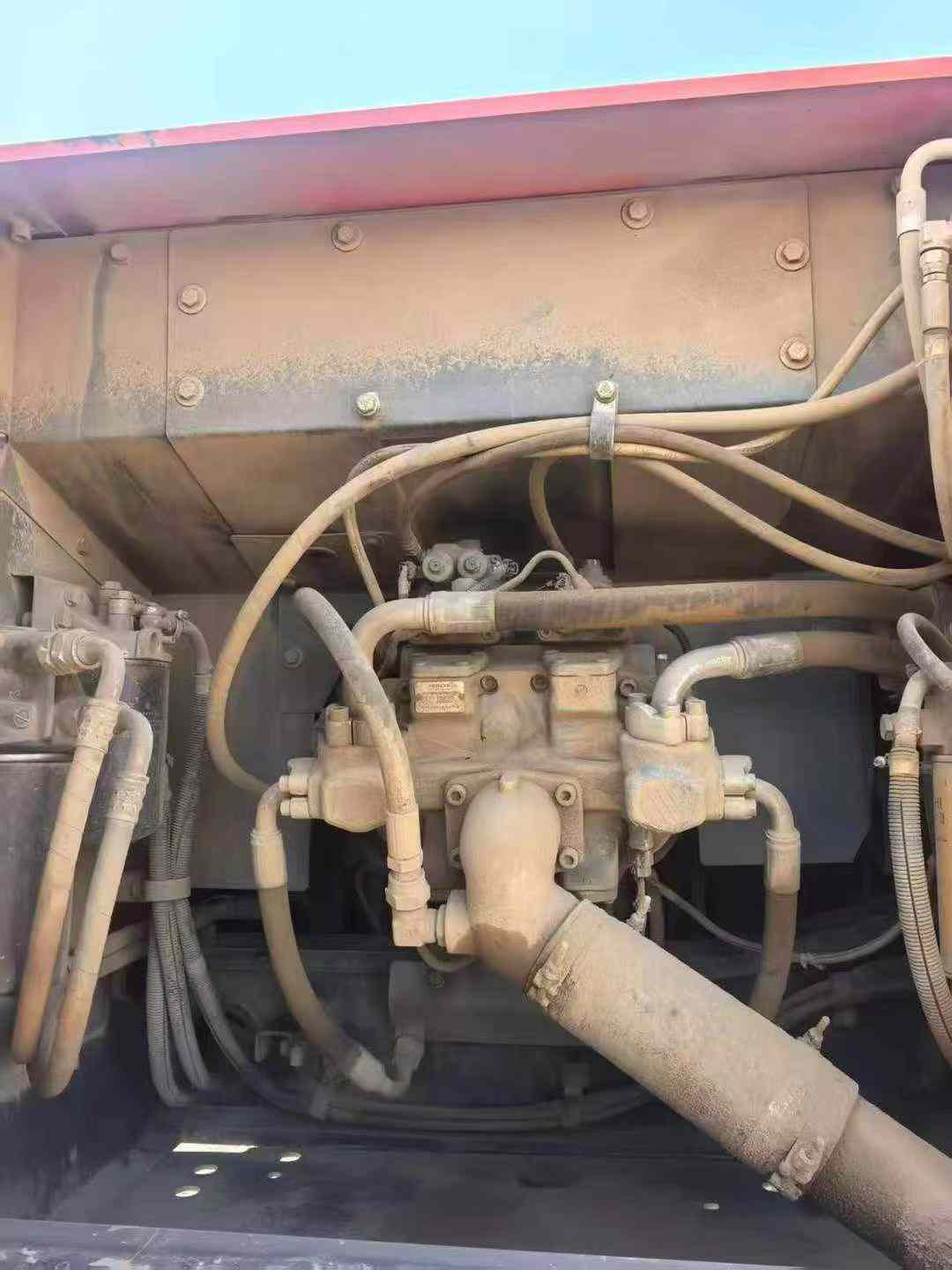

Used Hitachi ZX210K-5A Excavator 2018 Model / 2

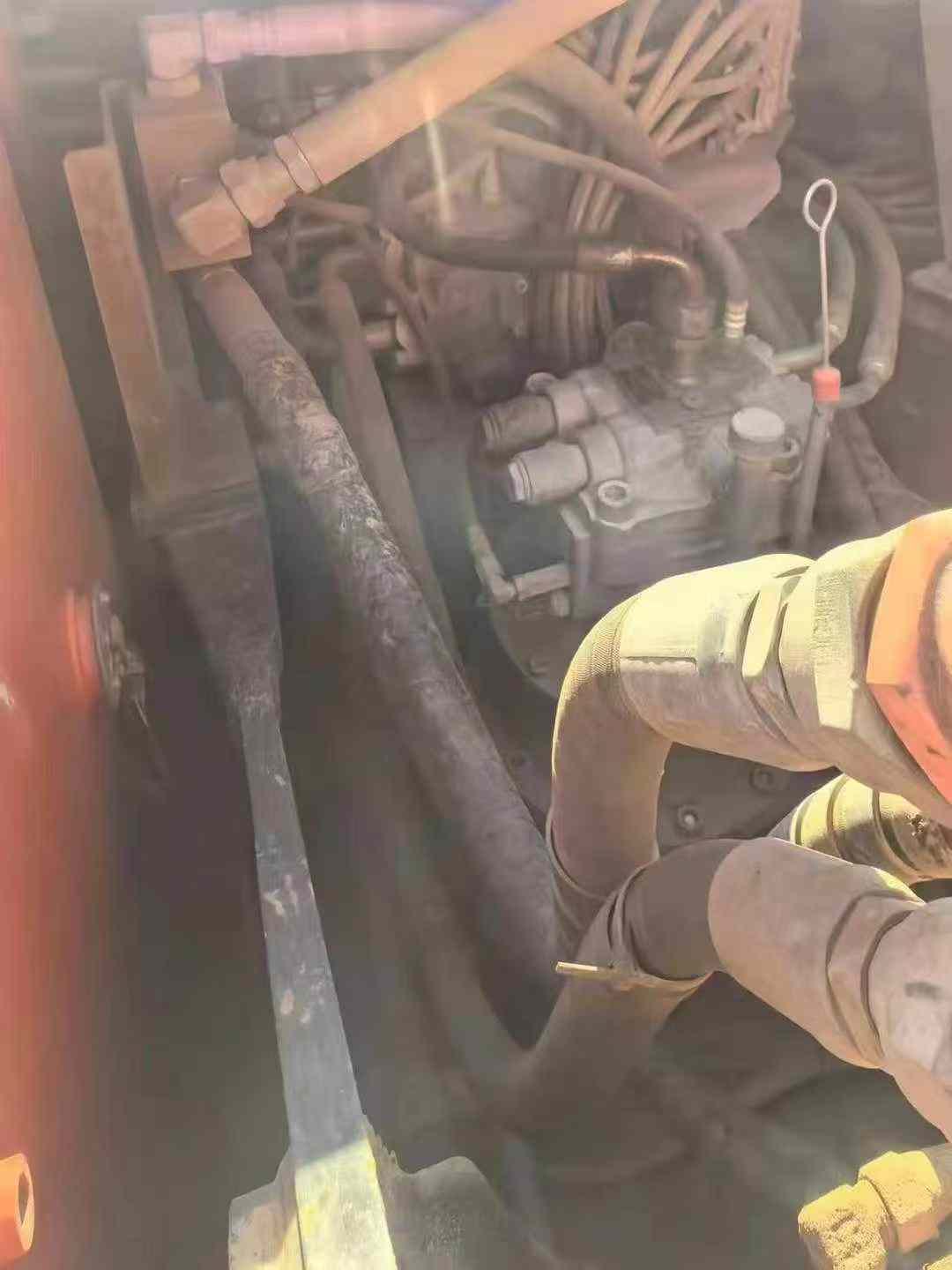

Used Hitachi ZX210K-5A Excavator 2018 Model / 3

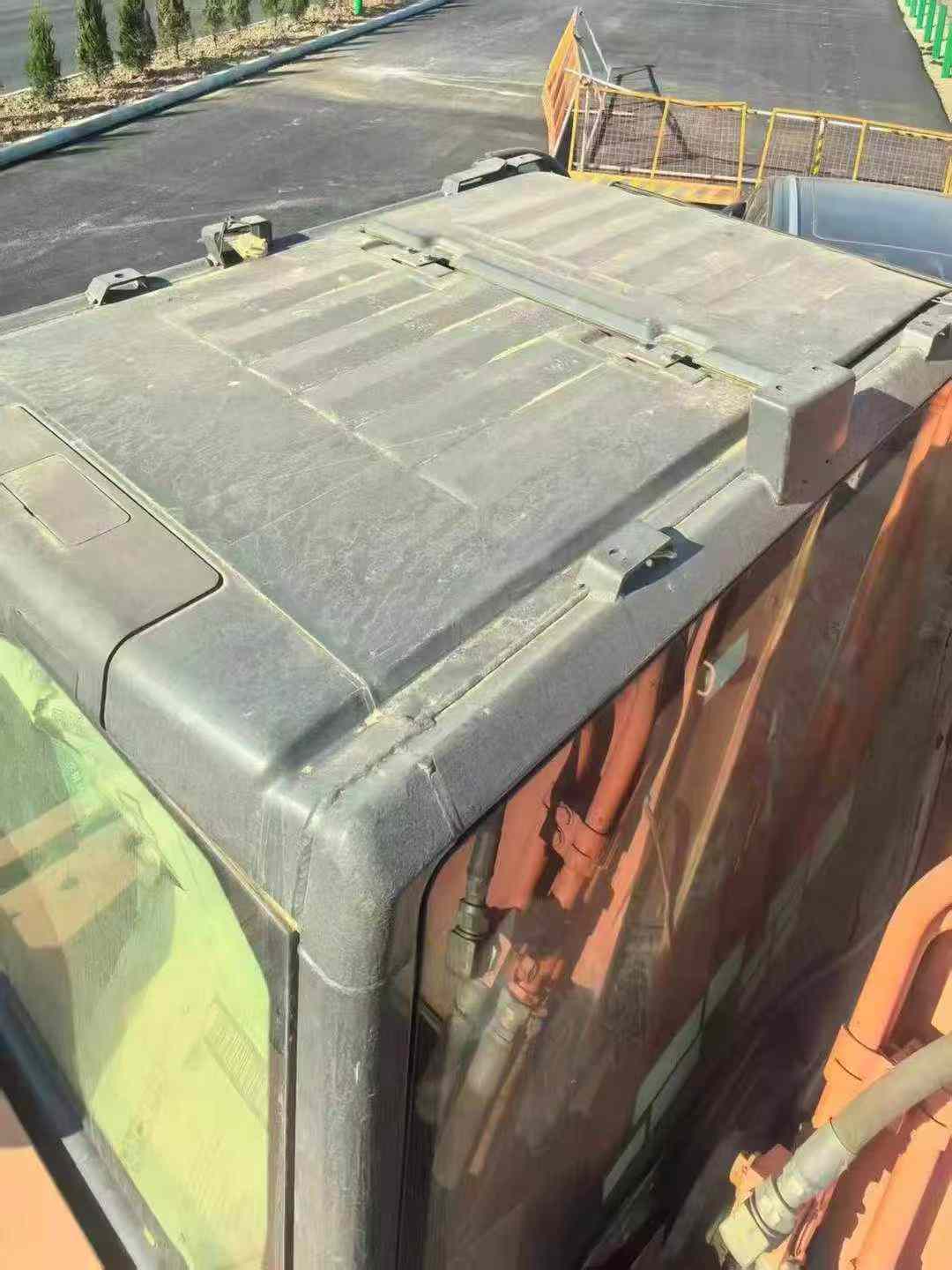

Used Hitachi ZX210K-5A Excavator 2018 Model / 4

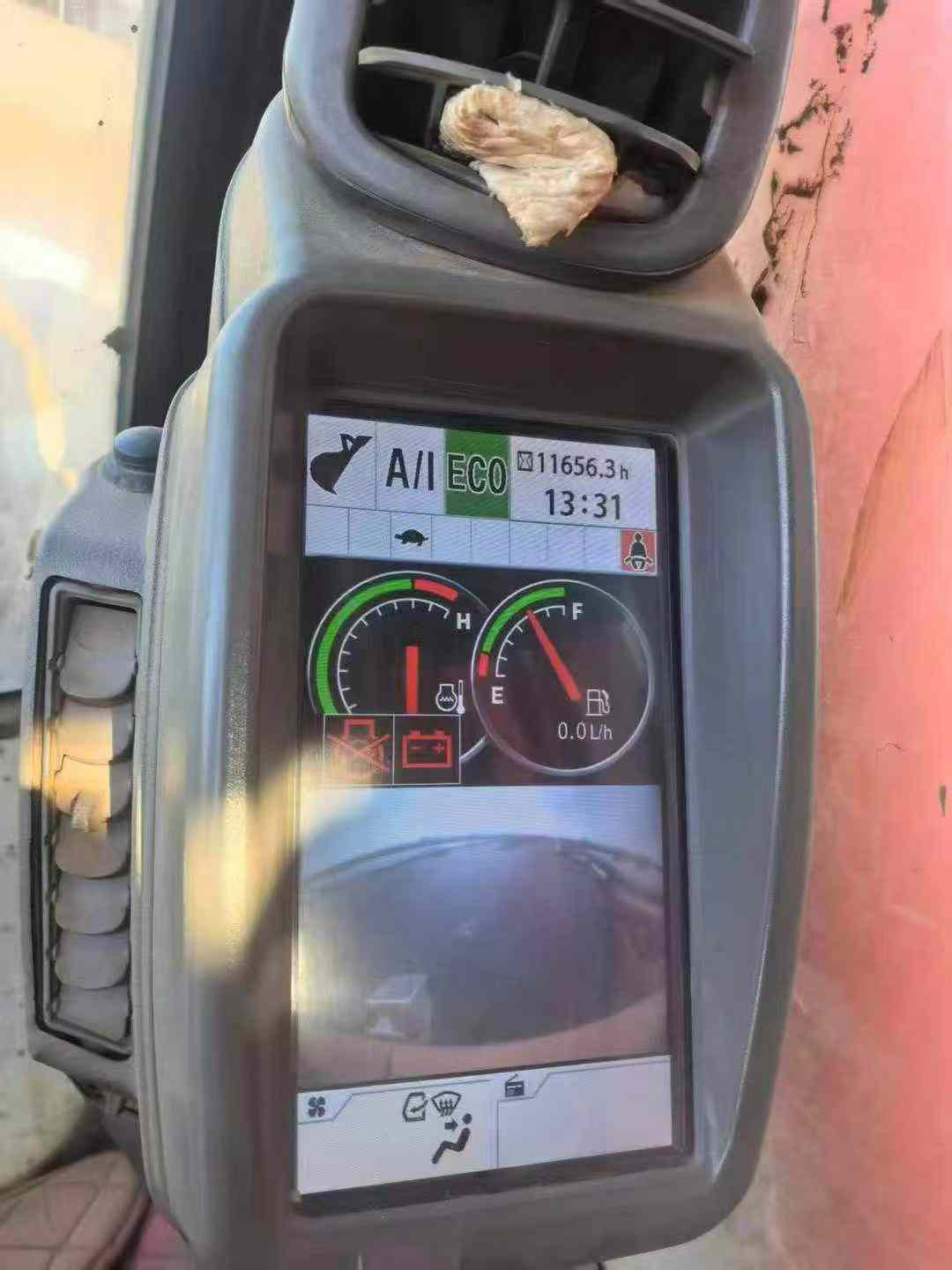

Used Hitachi ZX210K-5A Excavator 2018 Model / 5

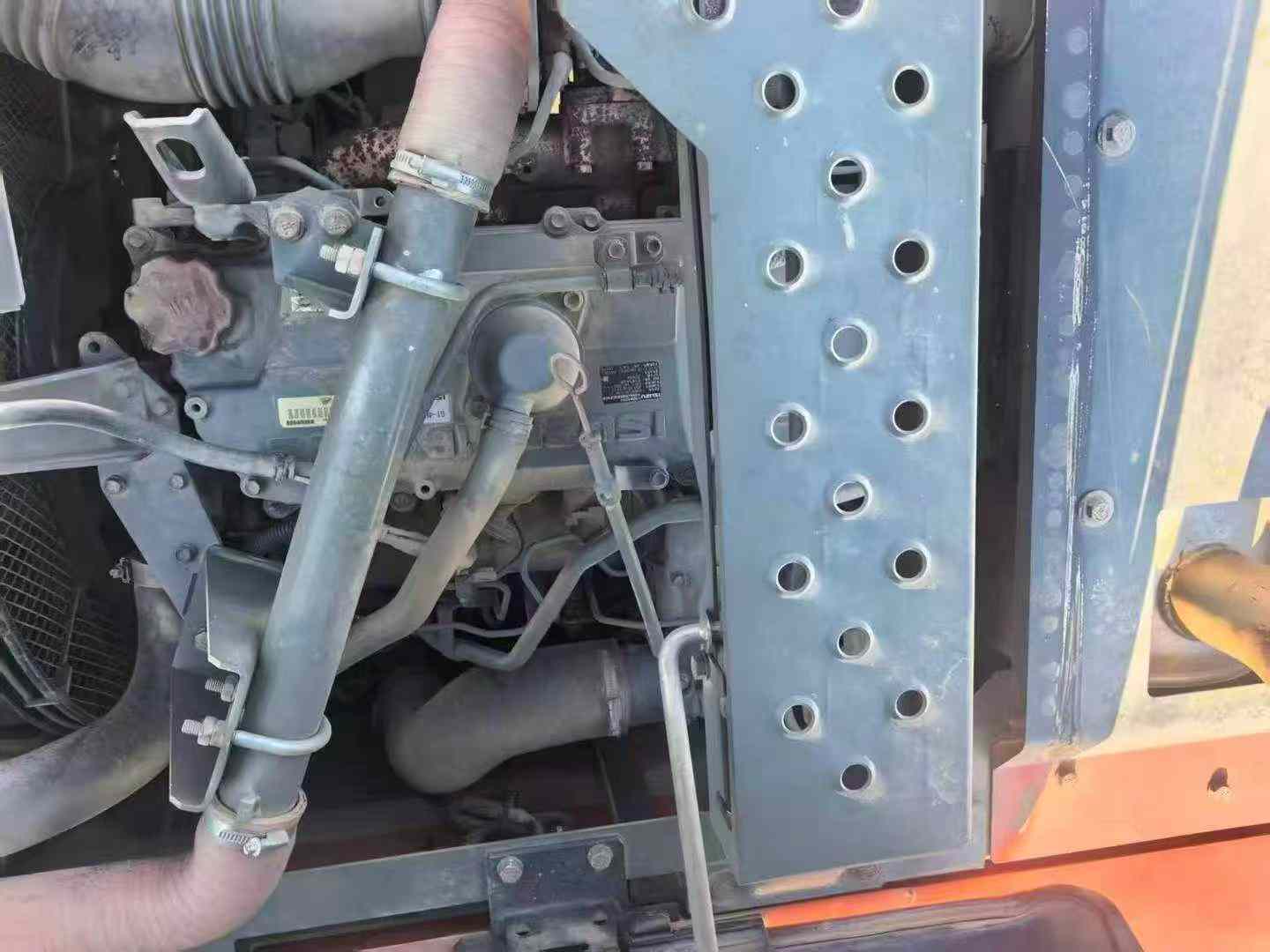

Used Hitachi ZX210K-5A Excavator 2018 Model / 6

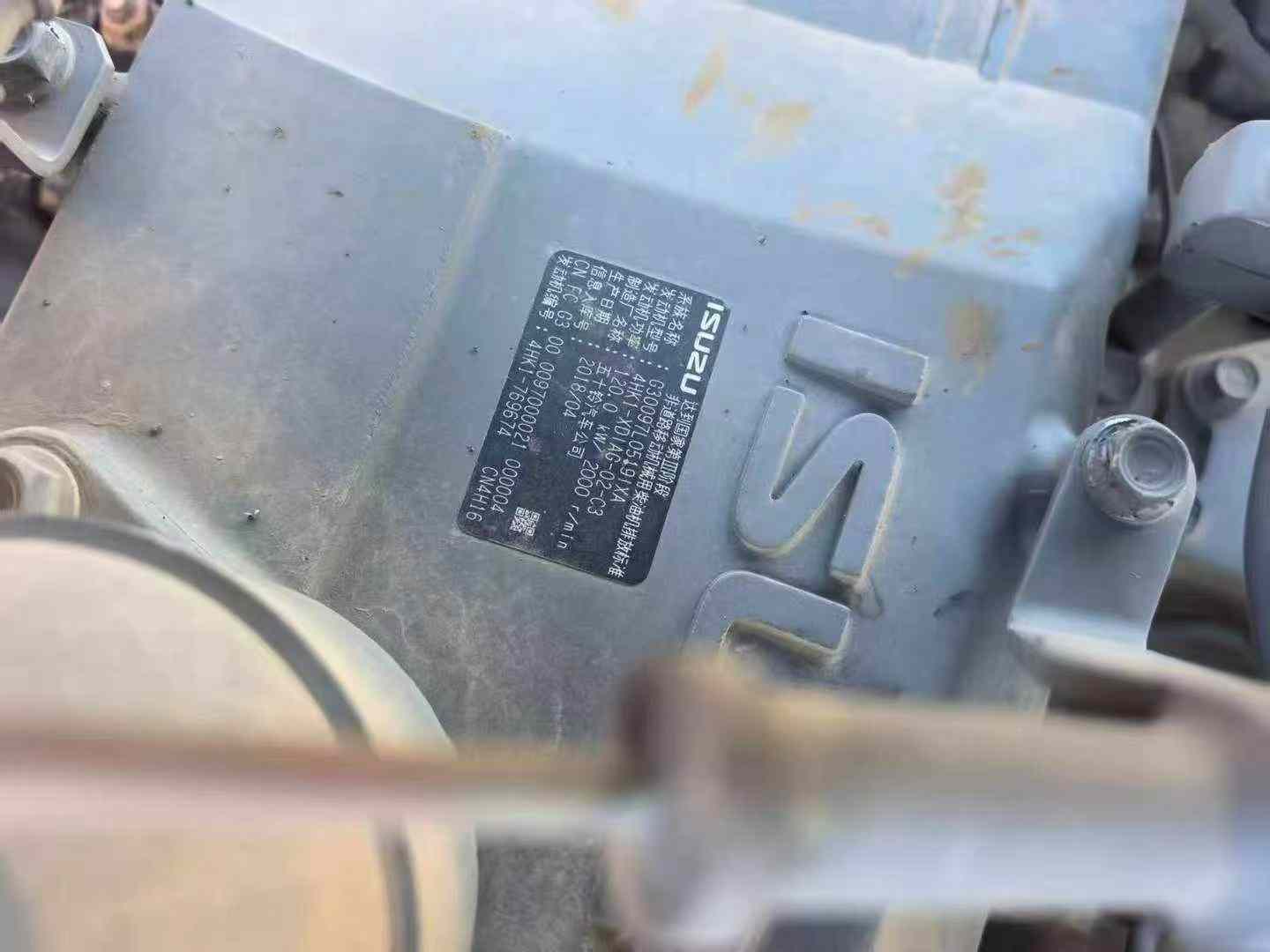

Used Hitachi ZX210K-5A Excavator 2018 Model / 7

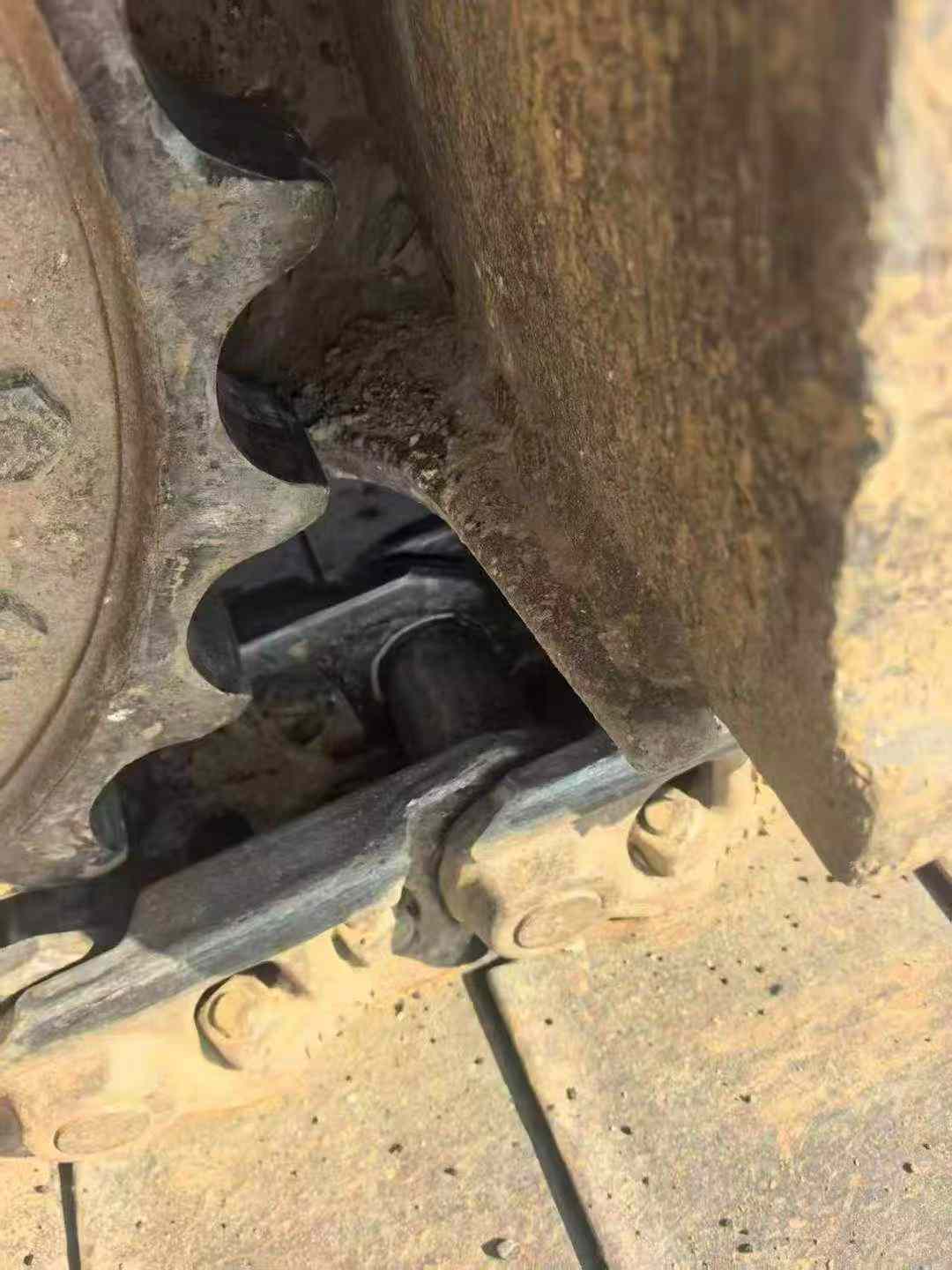

Used Hitachi ZX210K-5A Excavator 2018 Model / 8

Product Description

There is currently a second-hand Hitachi ZX210K-5A excavator produced in 2018, with a total working time of approximately 2,500 hours and in overall good condition. This device is equipped with an original imported high-efficiency and energy-saving engine from Hitachi. The model is expected to be Isuzu AH-6HK1X, with a rated power of up to 110kW, ensuring excellent power performance and fuel economy. In addition, it is equipped with an advanced high-pressure common rail electronic control injection system, which not only enhances combustion efficiency but also further reduces emission pollution. In terms of hydraulics, this excavator adopts Hitachi's patented HIOS III hydraulic system. Through the optimized main pump and multi-way valve design, it achieves a faster and more accurate operation response speed. Meanwhile, the efficient configuration of hydraulic motors and cylinders enables the entire machine to demonstrate strong and stable power output during operations such as excavation and loading. As a medium-sized excavator, the Hitachi ZX210K-5A features outstanding flexibility and adaptability, capable of handling both urban construction sites and mining sites with ease. The spacious and comfortable cab, combined with an intell

SpecificationsValue
No.976954
Tonnage (tons)21
Working weight (kg)21000~21100
Bucket capacity (m³)0.91~1.0
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu GI-4HK1XKSA-02
Rated power (kw/rpm)113 / 2000
Cooling modewater-cooling
Displacement (L)5.193
Working form4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled
Ground specific pressure (Kpa)47
Rotation speed (rpm)13.5
Climbing ability (%)70
Bucket digging force (kN)158
Rod digging force (kN)114
Travel speed (km/h)5.5 / 3.5
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Main pump type2 variable axial piston pumps, 1 gear pump
Fuel Tank (L)400
Hydraulic Tank (L)200
Engine Oil changes (L)23
Total transport length (mm)9660
Total transport width (mm)2880
Total transport height (mm)3010
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3180
Back end turning radius (mm)2890
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Maximum digging radius (mm)9920
Maximum digging depth (mm)6670
Maximum excavation height (mm)10040
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)5990
Maximum excavation radius of stop surface (mm)9750
see more

Overview

No.976954

Brand Name:

Hitachi

Model Number:

ZX210K-5A

Year:

2018

Location:

Zhejiang China
