| Specifications | Value |
|---|---|
| No. | 965684 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

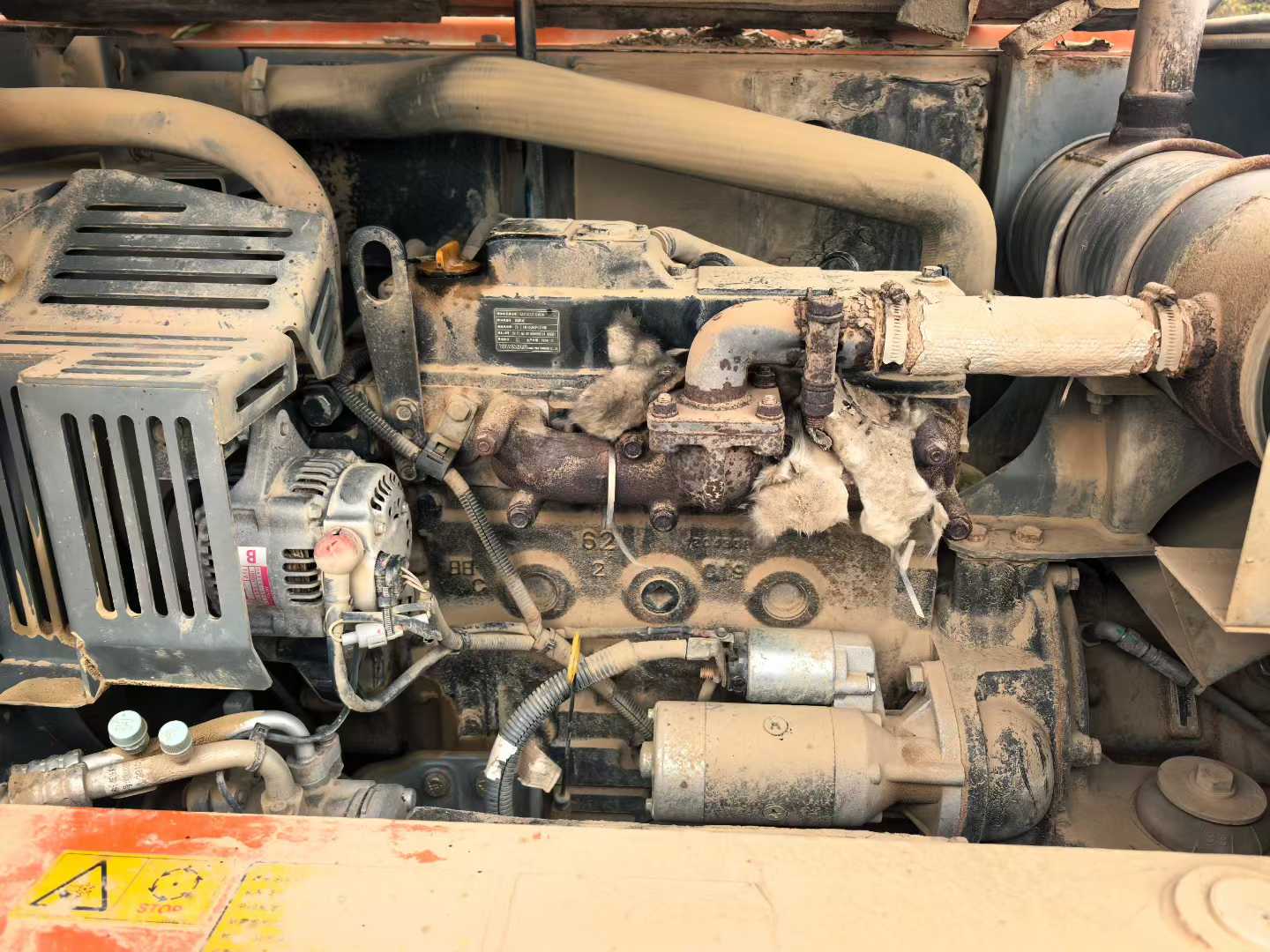

| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 High/low |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 9.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 80 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 105 x 60 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Bulldozer lift or depth (mm) | 430 x 400 |
| Dodging plate width × height (mm) | 2000 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
Description

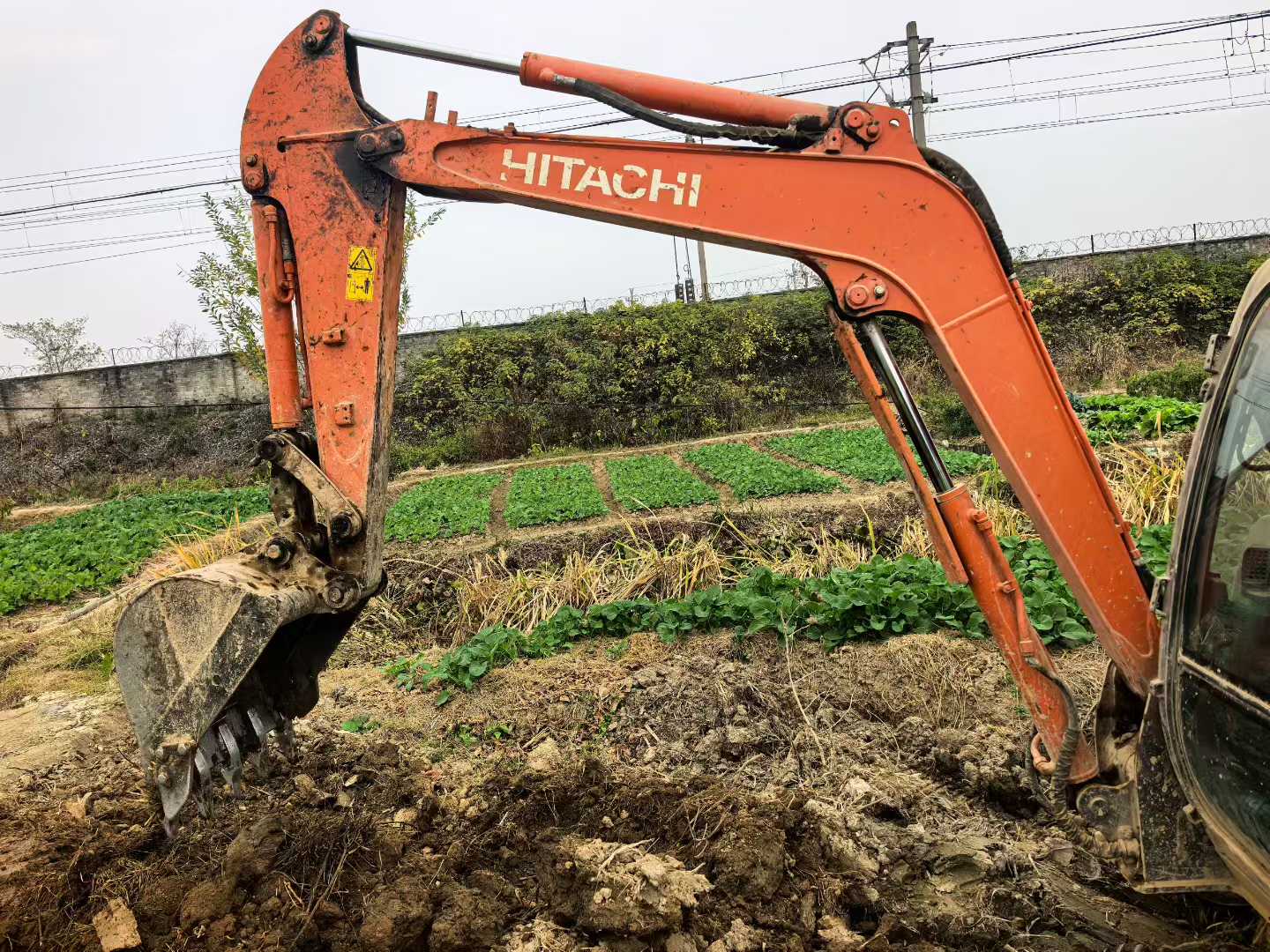

【 Premium Recommendation 】 The second-hand Hitachi ZX60-5A excavator produced in 2021 is one of the most sought-after medium and small-sized excavators in the market. This machine has only been in operation for 1,800 hours since it left the factory and is in the best condition for use. It can almost be said to be nearly new. The Hitachi ZX60-5A stands out among many similar products with its outstanding performance, reliable quality and excellent fuel economy. In terms of power, this machine is equipped with a high-performance Isuzu 4JG1 engine, with a maximum power output of 37.7kW at 2200rpm. It not only ensures strong power output but also has good fuel economy, reducing operating costs. More importantly, this engine adopts advanced emission control technology and complies with the latest environmental protection standards, making your construction more green and low-carbon. In terms of the hydraulic system, the Hitachi ZX60-5A adopts the highly efficient and energy-saving HIOS III hydraulic system, which features a fast response speed and high operational sensitivity, and can easily meet the operational requirements under various complex working conditions. Whether it is tasks such as excavation, loading or crushing, they can all
