HOME>>Find Excavators>>Hitachi ZX60-5A

2016 Hitachi ZX60-5A

1/6
Used Hitachi ZX60-5A Excavator 2016 Model / 1

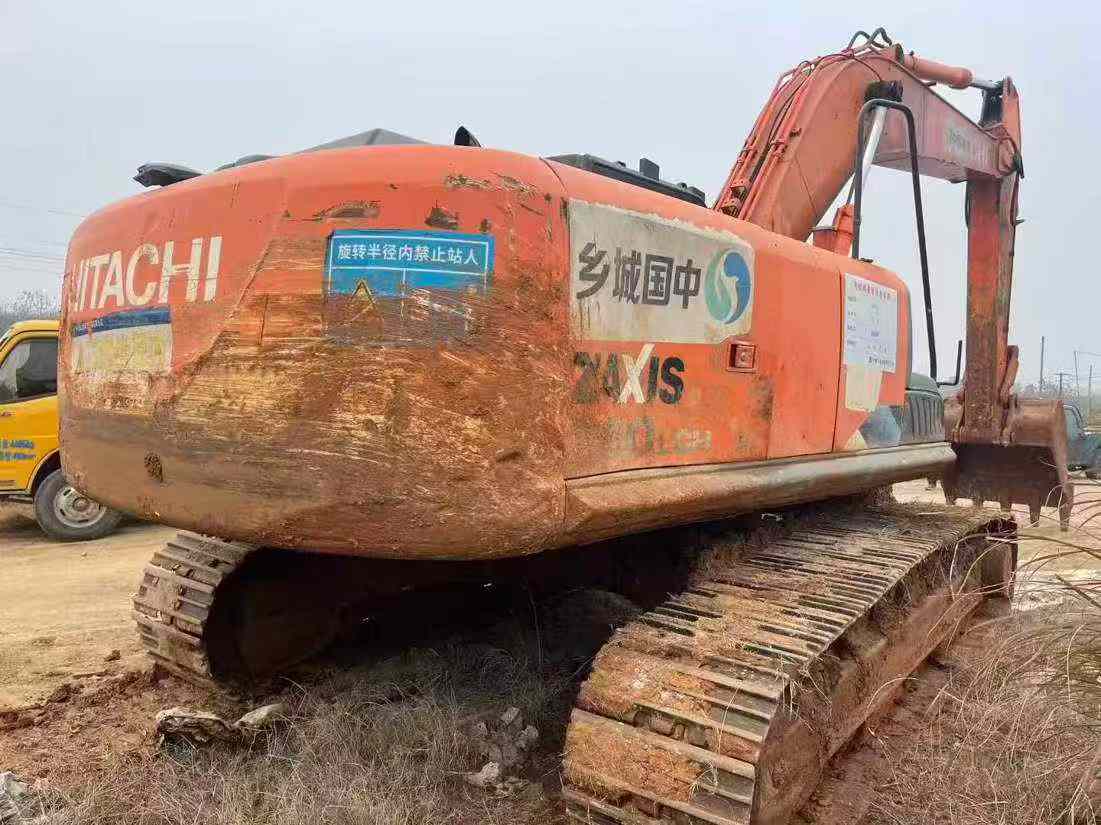

Used Hitachi ZX60-5A Excavator 2016 Model / 2

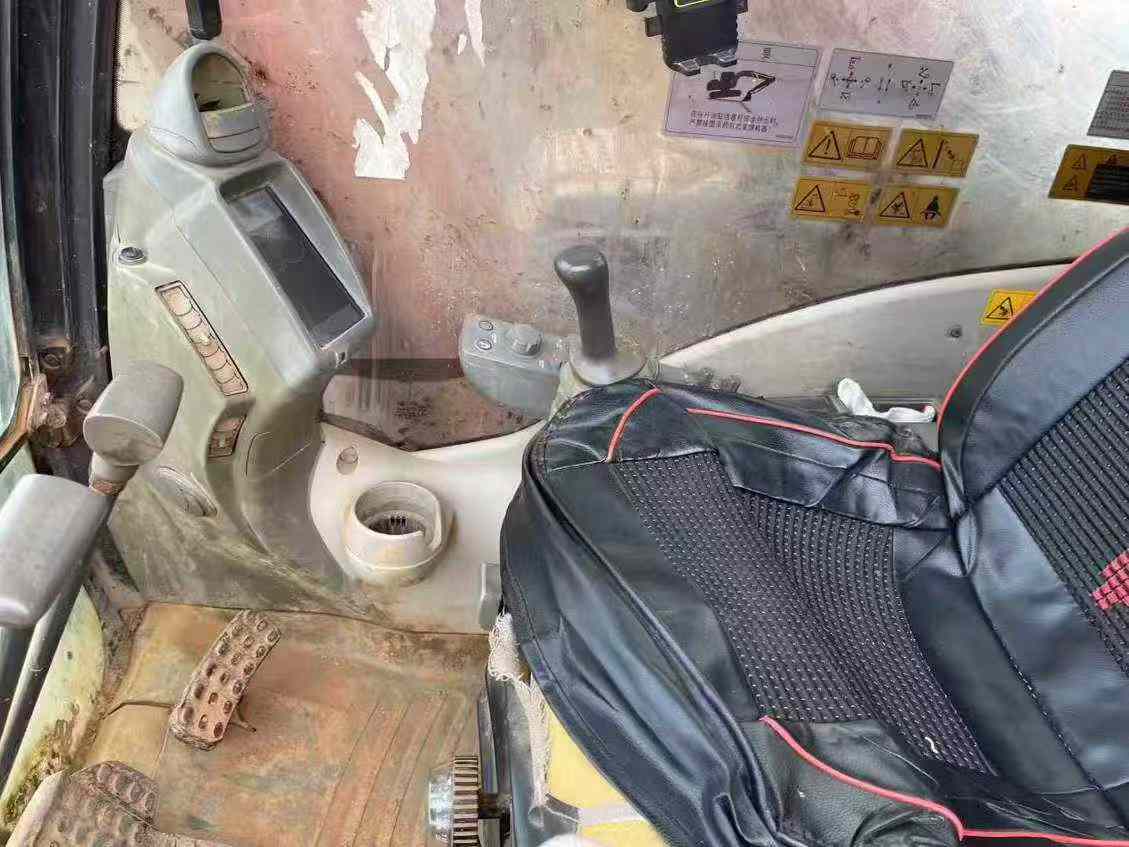

Used Hitachi ZX60-5A Excavator 2016 Model / 3

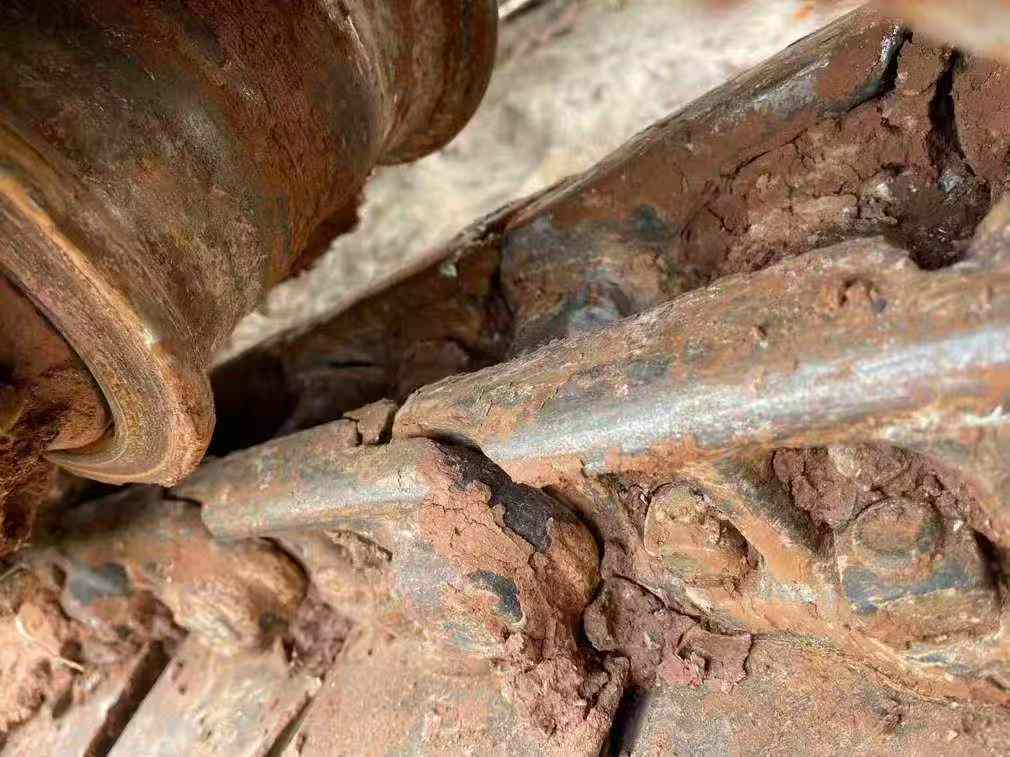

Used Hitachi ZX60-5A Excavator 2016 Model / 4

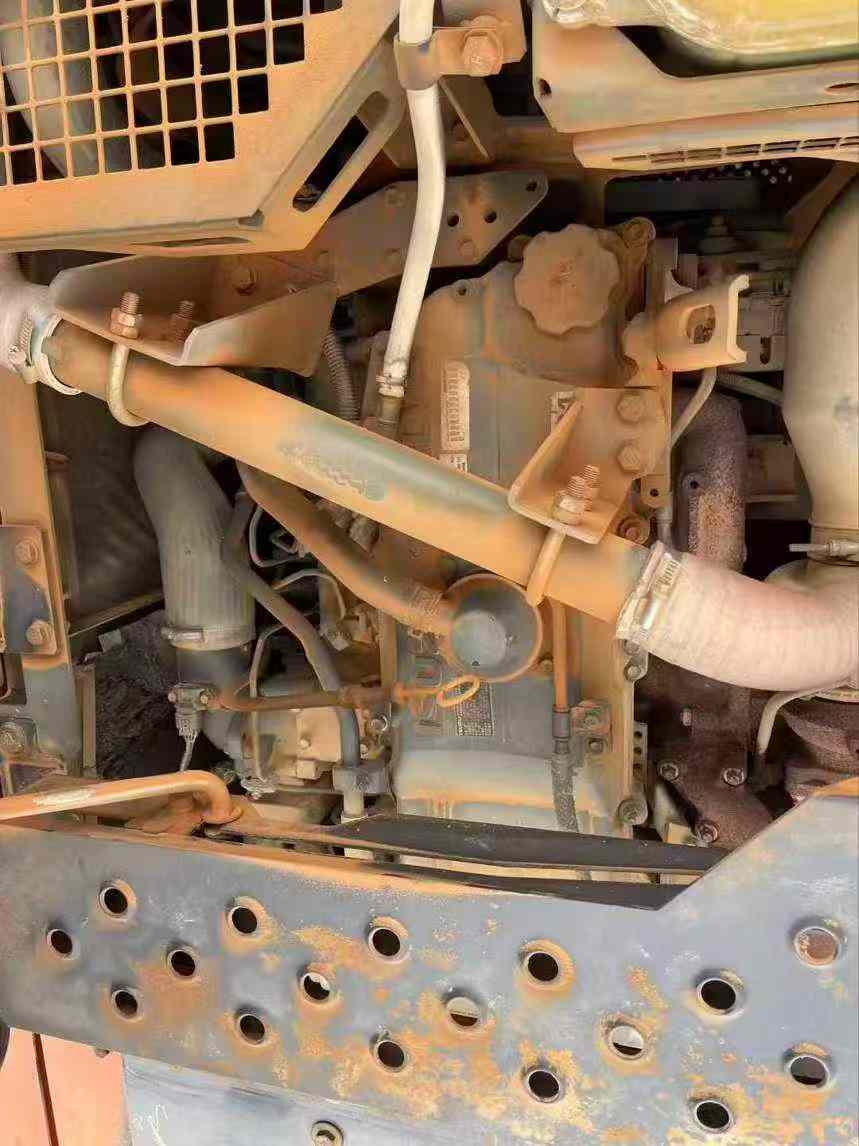

Used Hitachi ZX60-5A Excavator 2016 Model / 5

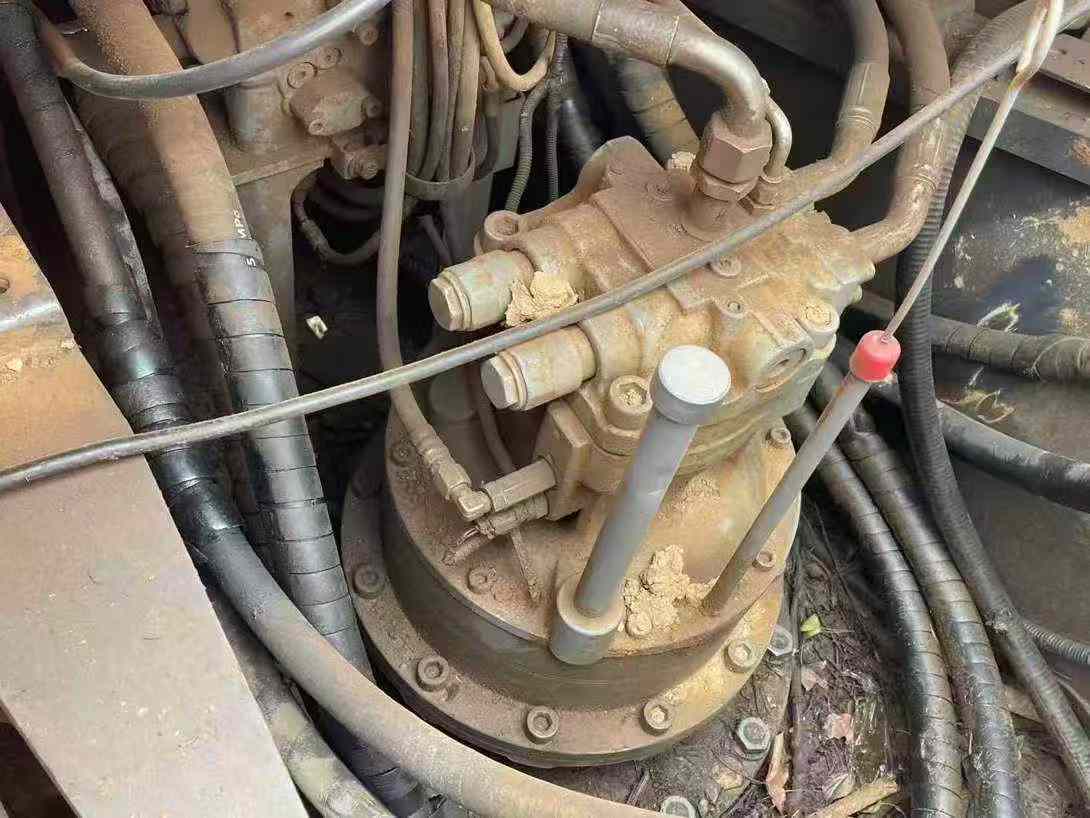

Used Hitachi ZX60-5A Excavator 2016 Model / 6

Product Description

This 2016 Hitachi ZX260-5A excavator has been highly praised in the market for its outstanding performance and reliability. It has approximately 20,000 hours of working time, which indicates that it has maintained a good working condition over the past few years. For a medium-sized excavator, such working hours are very reasonable and also prove its durability and stability. In terms of the power system, this excavator is equipped with an efficient four-cylinder turbocharged engine, which can provide strong and smooth power output. Whether working in plains or mountains, it can easily handle all kinds of complex working conditions. In addition, this engine also features low fuel consumption and low emissions, meeting modern environmental protection requirements while significantly reducing operating costs. The hydraulic system is another major highlight of this excavator. Advanced negative flow control technology is adopted to ensure high efficiency and stability during the operation process. Whether it is tasks such as excavation, loading or crushing, precise control can be achieved, improving work efficiency. Meanwhile, its robust and durable design enables it to maintain long-term stable operation even in harsh environments. The

SpecificationsValue
No.972447
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.24
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type4TNV98
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)236/1350
Number of cylinders (PCS)4
Displacement (L)3.318
Working form4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)31
Rotation speed (rpm)9.1
Climbing ability (%)70% (35°)
Bucket digging force (kN)41.4
Rod digging force (kN)28.4
Maximum tractive force (kN)38.5
Travel speed (km/h)0-4.5/0-2.5 High/low
Turning torque (Nm)10
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Maximum flow of main pump (l/min)2 x 52.5
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)17.6
Main pump type3 variable axial piston pumps
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)9.5
Bucket cylinders - Number × diameter × stroke (mm)1 x 80 x 50
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 85 x 55
Boom cylinders - Number × diameter × stroke (mm)1 x 105 x 60
Fuel Tank (L)120
Hydraulic Tank (L)60
Engine Oil changes (L)12.3
Coolant (L)8
Hydraulic System (L)93
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2085
Full cab height (mm)2475
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Onboard width (mm)2060
Track gauge (mm)1600
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)5800
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)3440
Bulldozer lift or depth (mm)430 x 400
Dodging plate width × height (mm)2000 x 400
Maximum excavation radius of stop surface (mm)6130
see more

Overview

No.972447

Brand Name:

Hitachi

Model Number:

ZX60-5A

Year:

2016

Location:

Zhejiang China
