Product Description

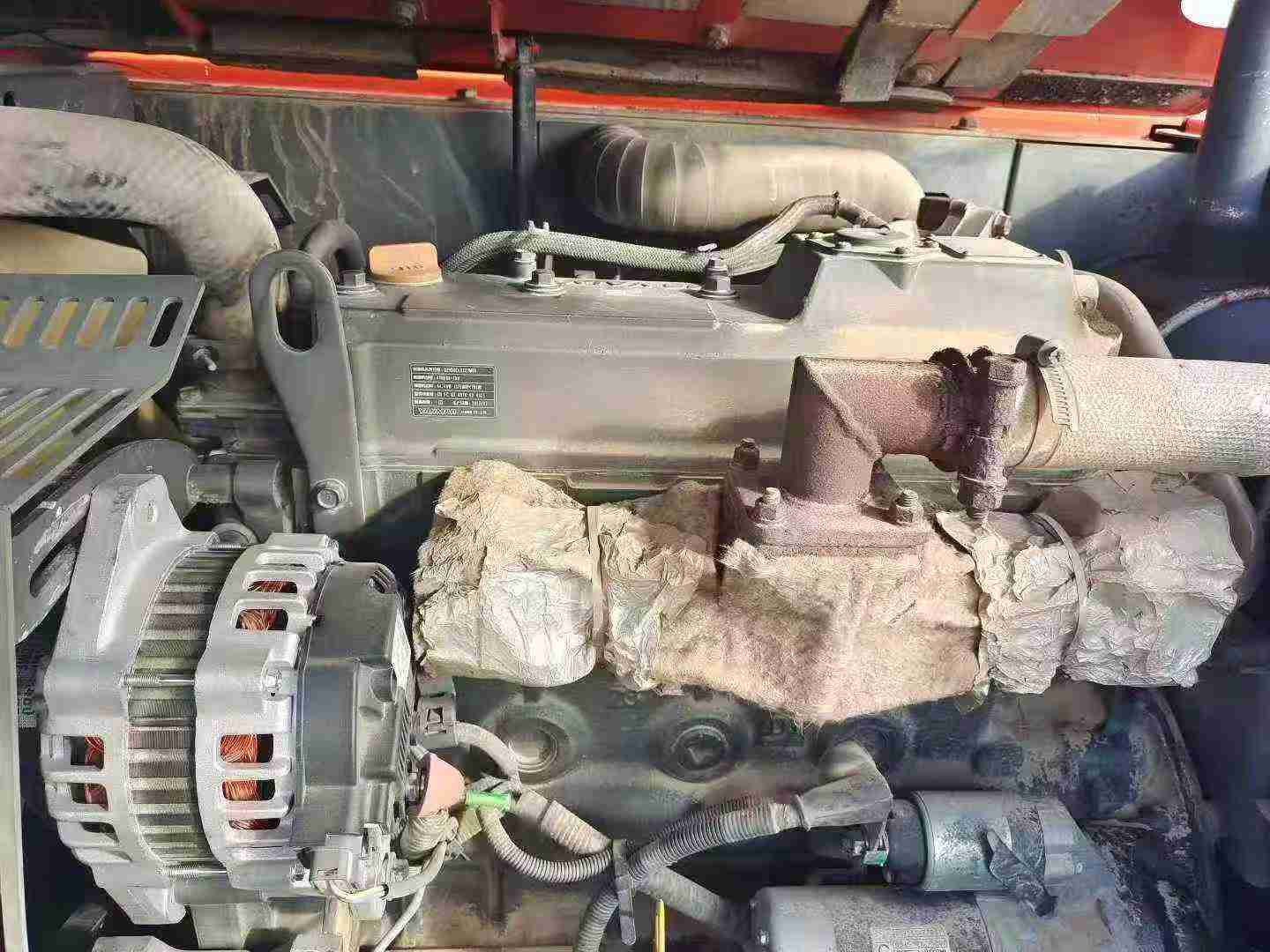

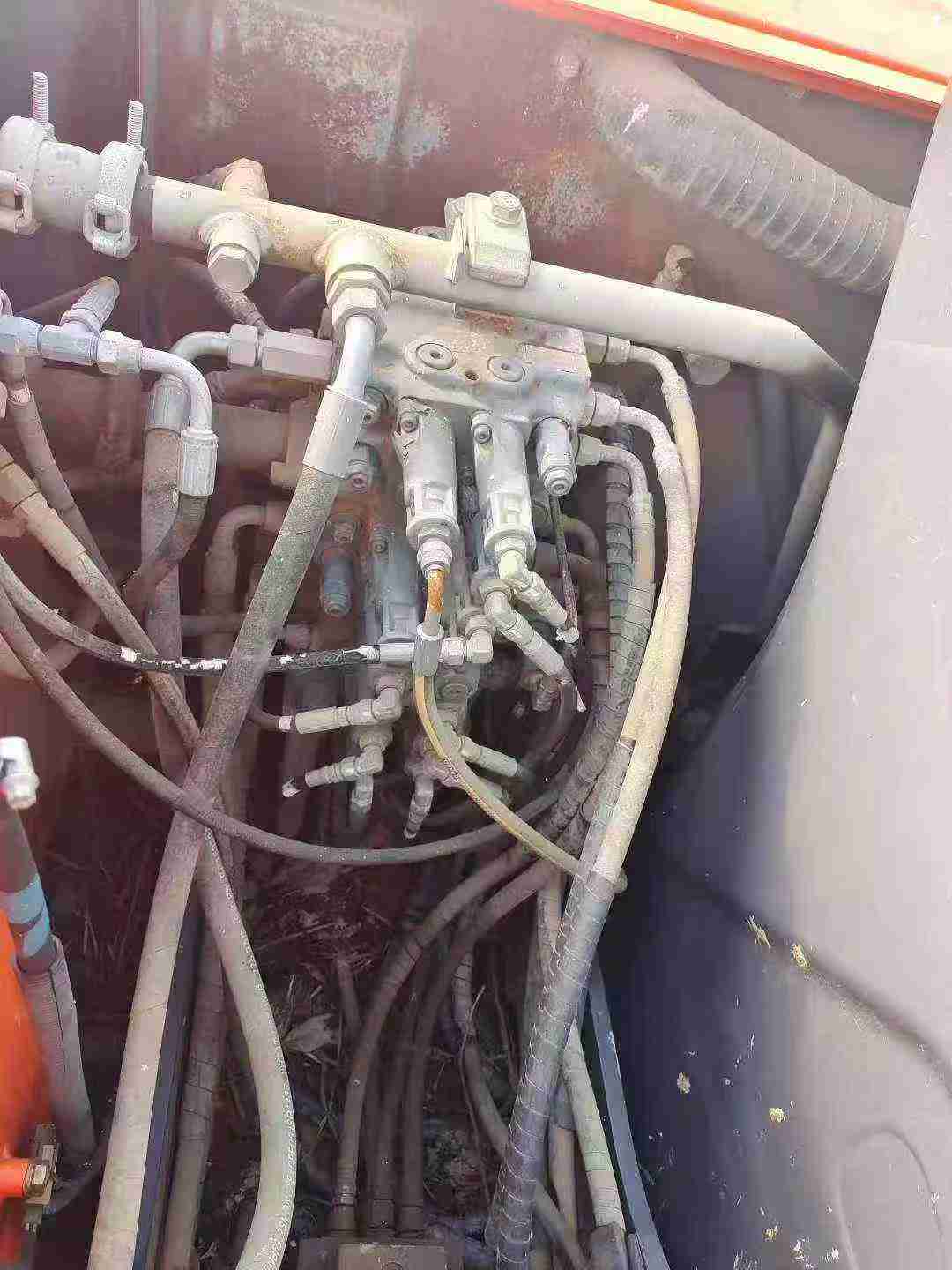

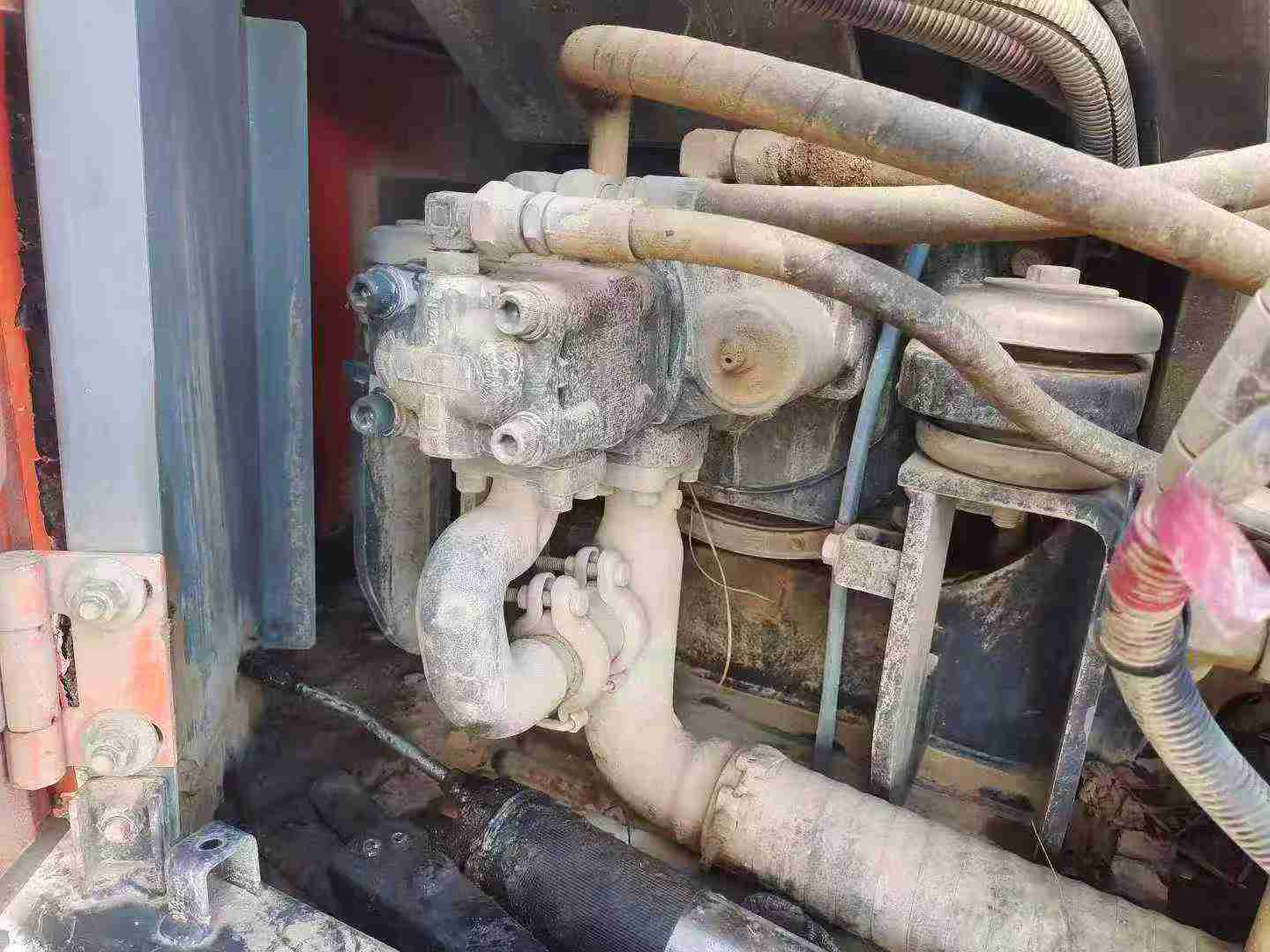

We are selling a second-hand Hitachi 60-5A excavator of top quality from 2018. This equipment has a working time of only 2,500 hours and is in excellent working condition. This excavator is equipped with the well-tested Isuzu 4JG1 engine, which has a power output of 37.7 kilowatts, ensuring efficient and stable working performance. Its hydraulic system is equipped with high-quality Hitachi original hydraulic pumps and motors, providing powerful and smooth power output. Whether it is excavation, loading or crushing operations, it can handle them with ease. This Hitachi 60-5A excavator is renowned for its outstanding operational flexibility. Its compact design enables it to move freely even in confined Spaces, making it highly suitable for construction needs on urban construction sites or in complex terrain conditions. In addition, it also features excellent fuel economy and low maintenance costs, which can significantly reduce operating expenses over long-term use. For professional users who pursue cost performance and pay attention to work efficiency, this is undoubtedly an ideal choice. Please note: The above data regarding the engine model and specific power are inferred based on industry standards. The actual parameters should be
| Specifications | Value |
|---|---|
| No. | 975813 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 4TNV98 |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236/1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 High/low |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 52.5 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 9.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 80 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 105 x 60 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Bulldozer lift or depth (mm) | 430 x 400 |
| Dodging plate width × height (mm) | 2000 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
