2019 Hitachi ZX60-5A

1/9
Used Hitachi ZX60-5A Excavator 2019 Model / 1

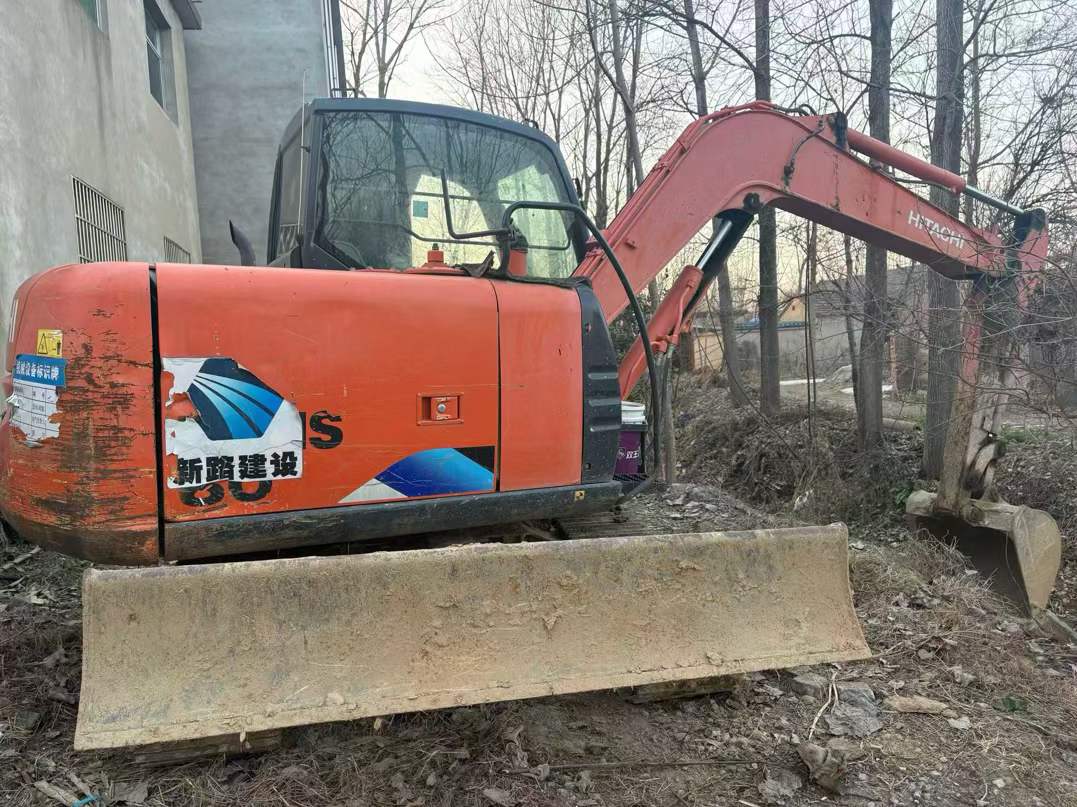

Used Hitachi ZX60-5A Excavator 2019 Model / 2

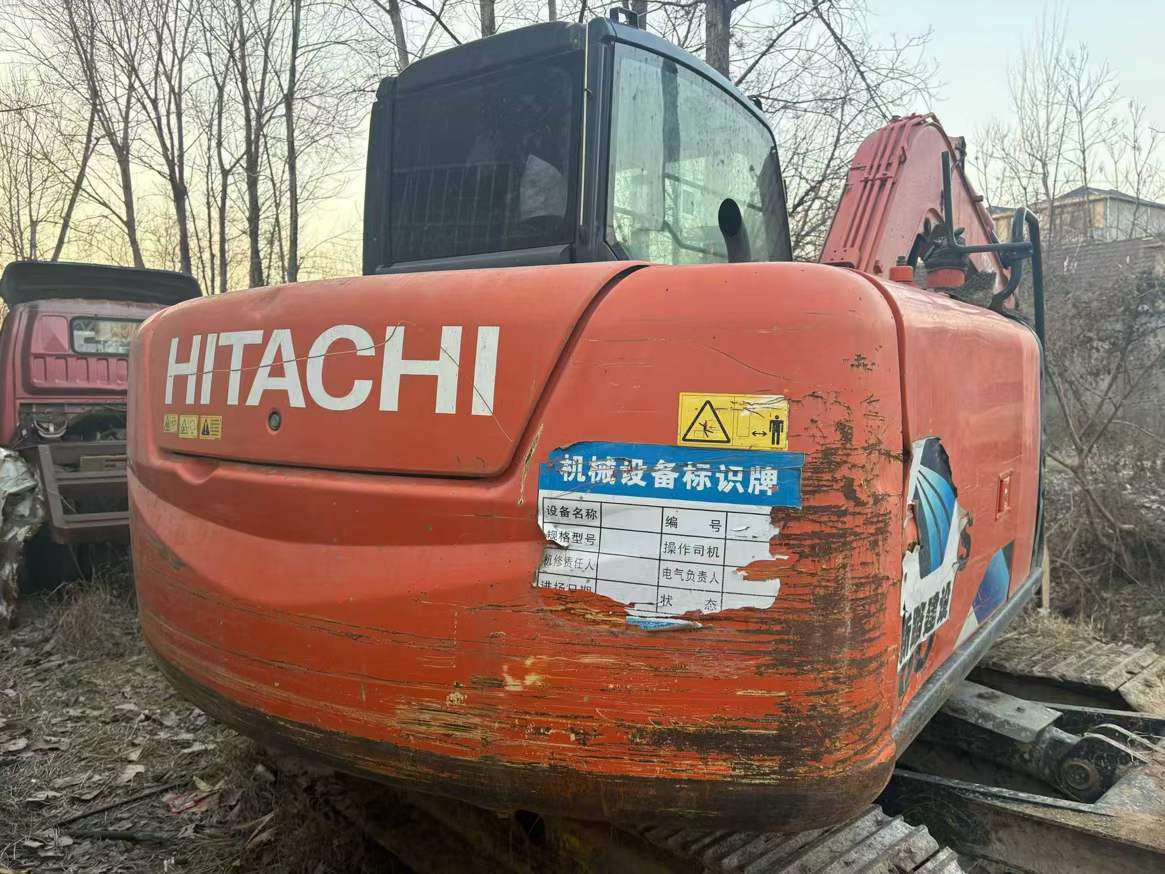

Used Hitachi ZX60-5A Excavator 2019 Model / 3

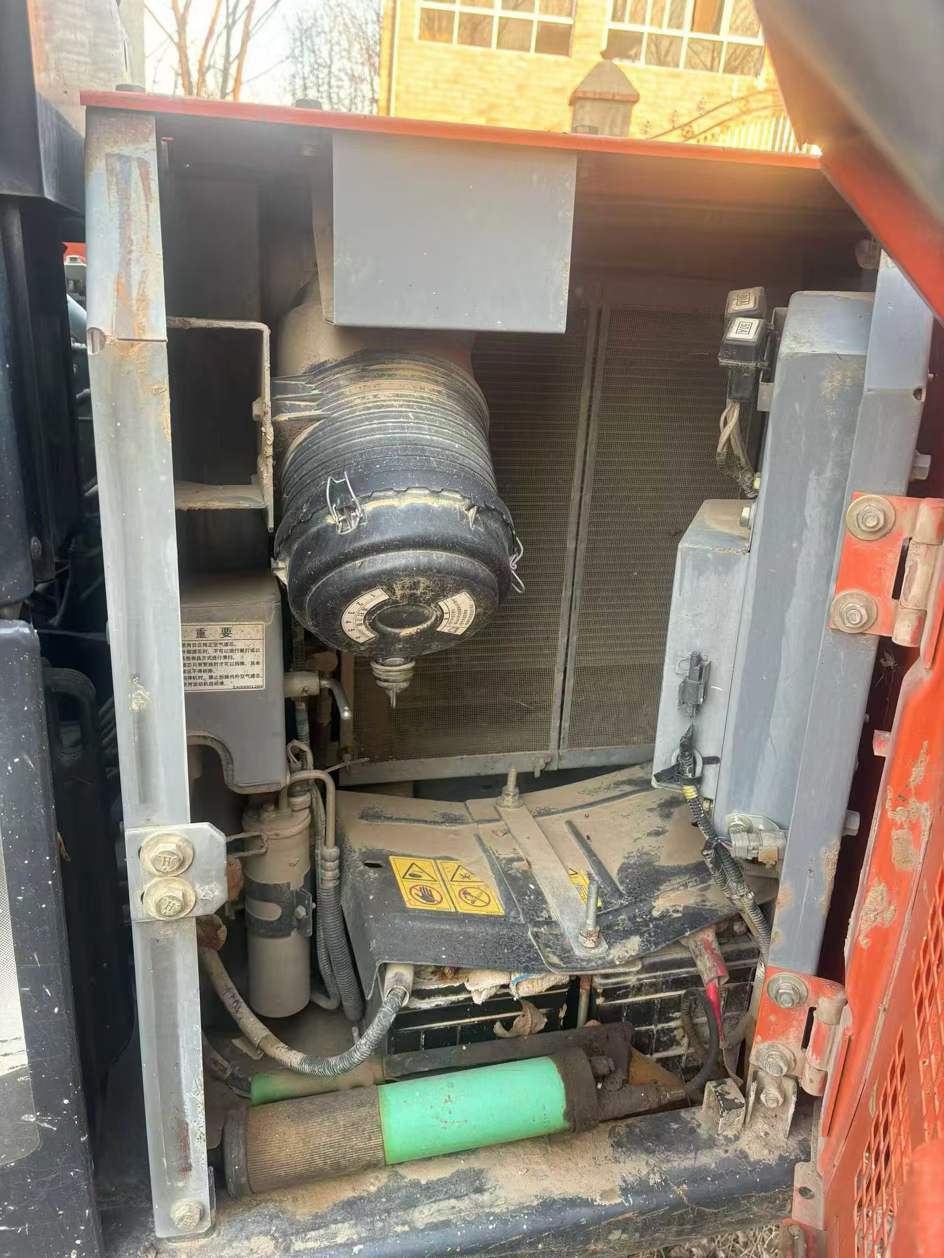

Used Hitachi ZX60-5A Excavator 2019 Model / 4

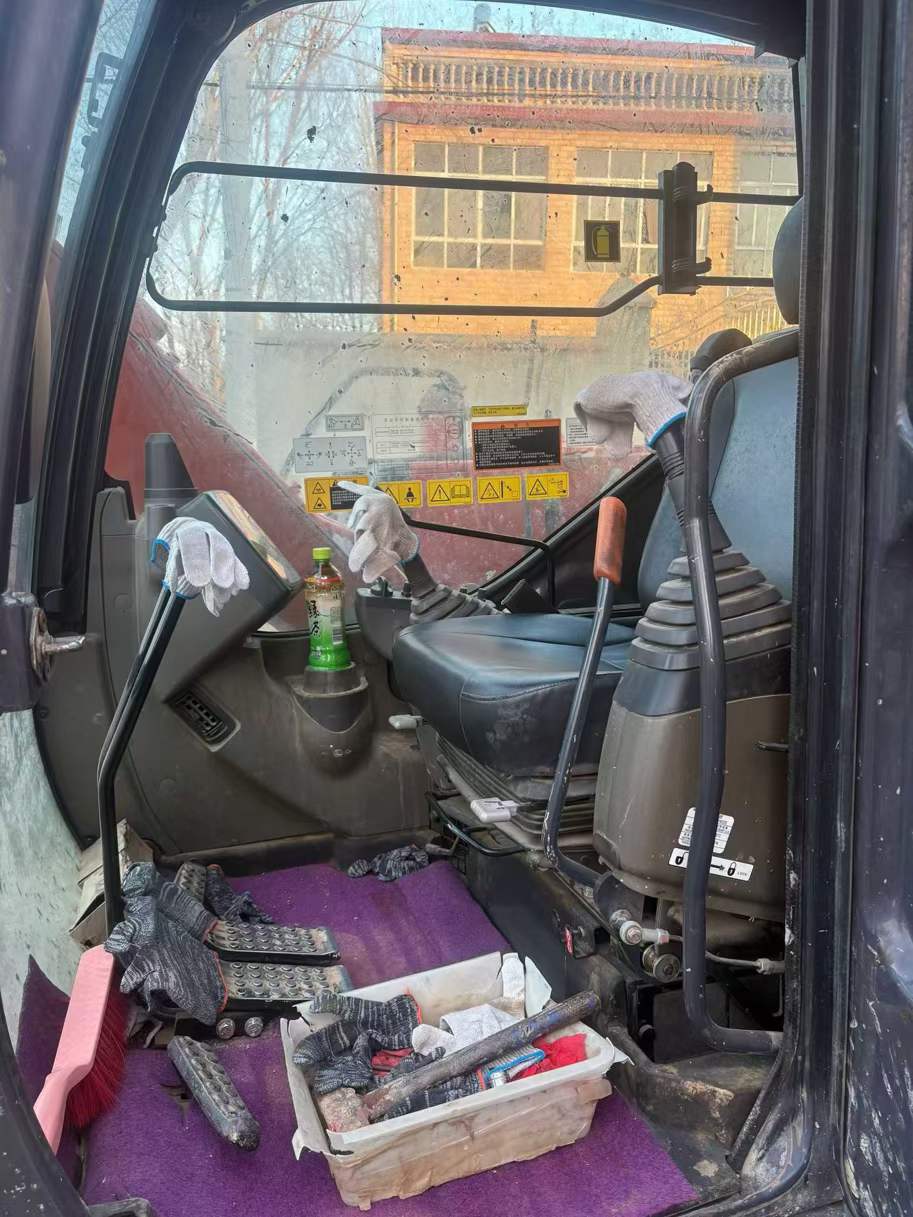

Used Hitachi ZX60-5A Excavator 2019 Model / 5

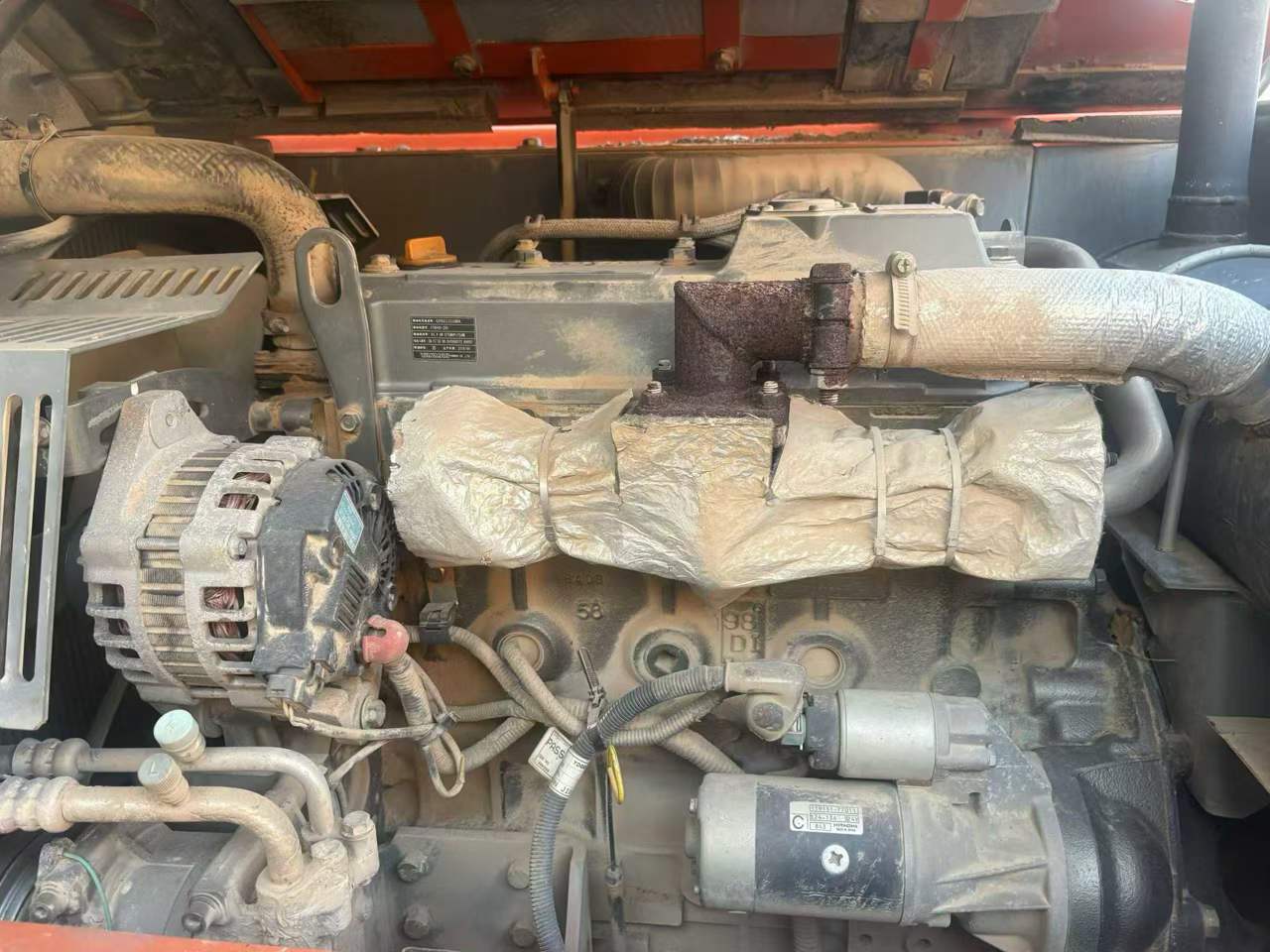

Used Hitachi ZX60-5A Excavator 2019 Model / 6

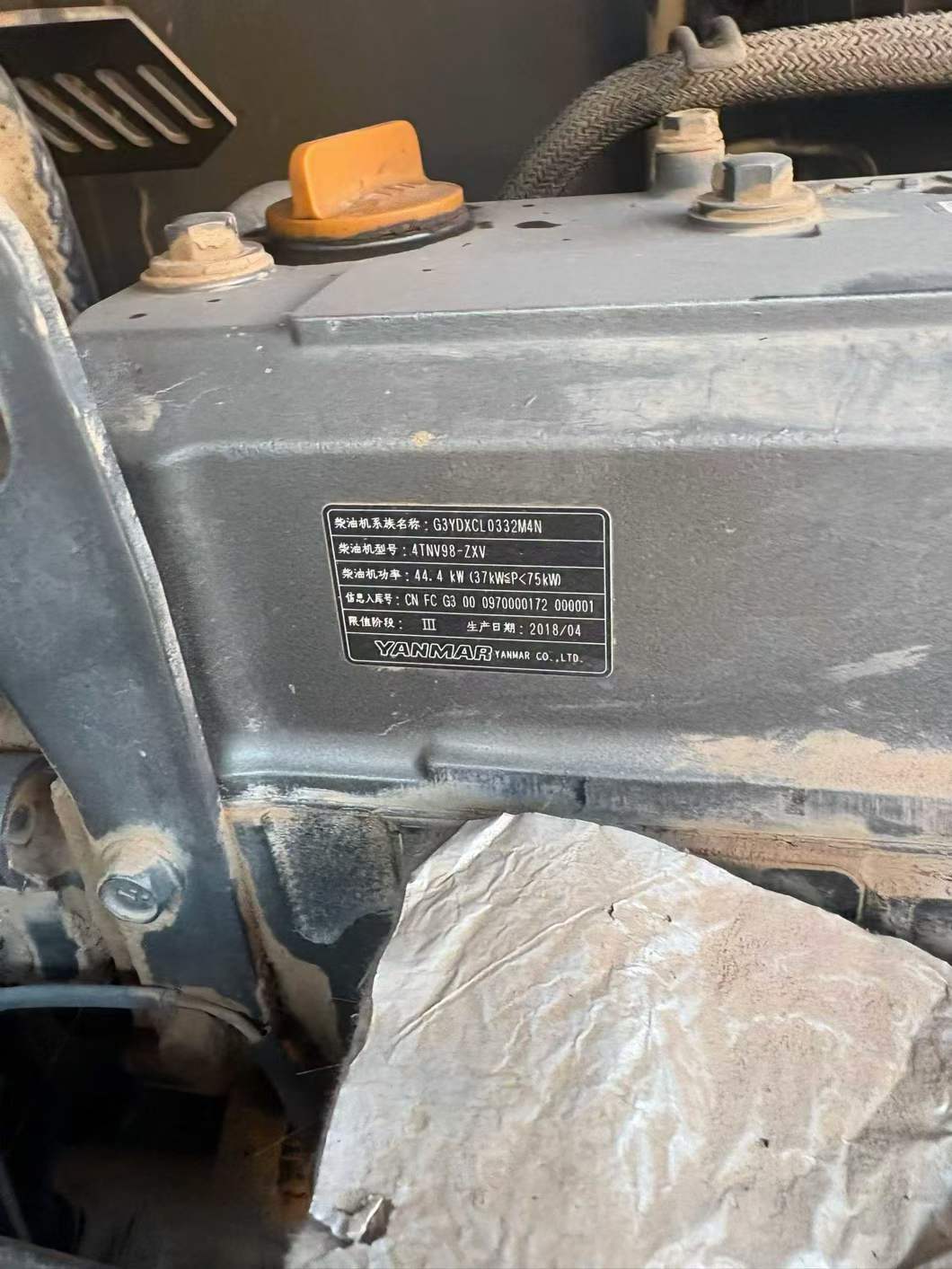

Used Hitachi ZX60-5A Excavator 2019 Model / 7

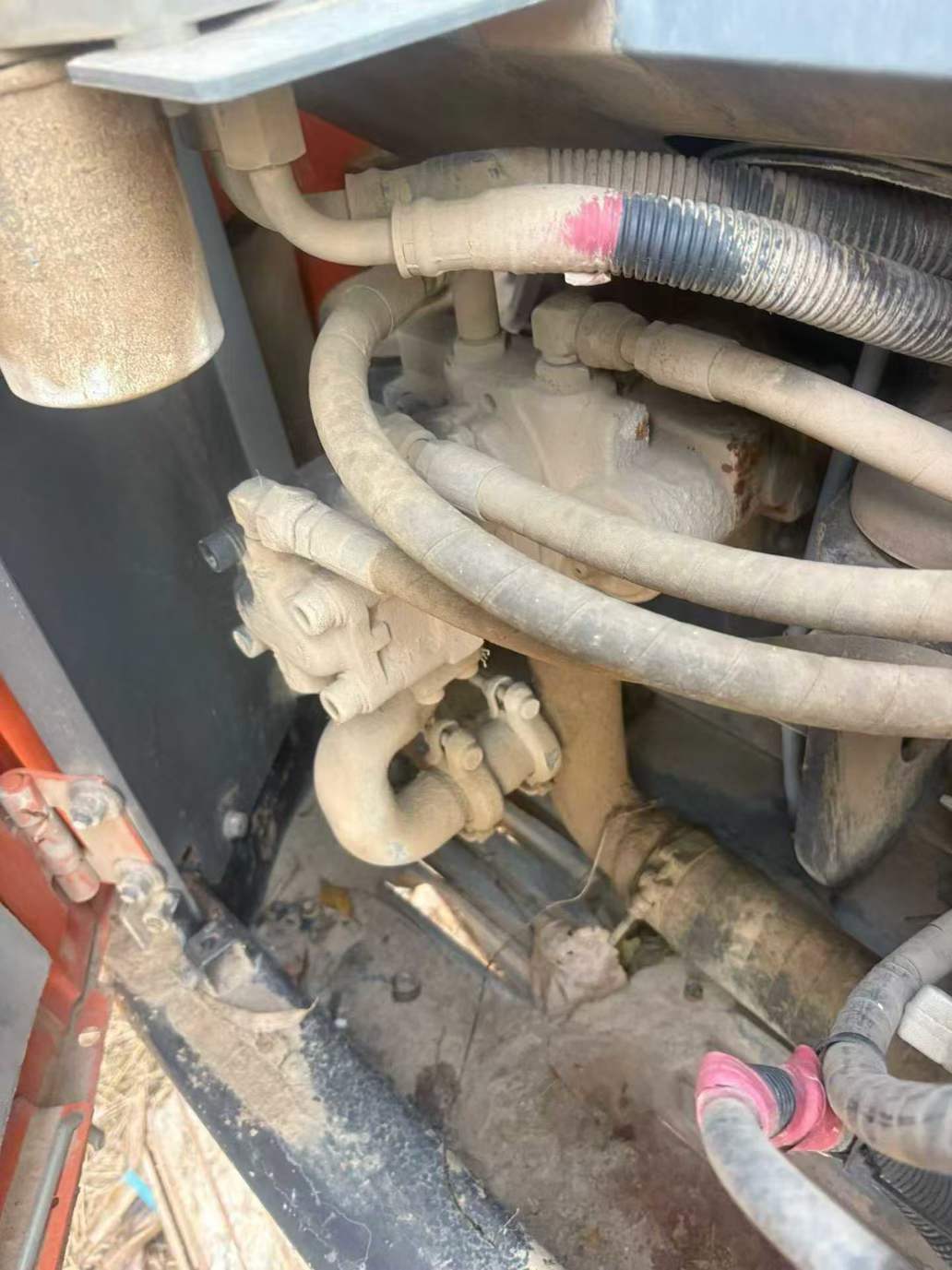

Used Hitachi ZX60-5A Excavator 2019 Model / 8

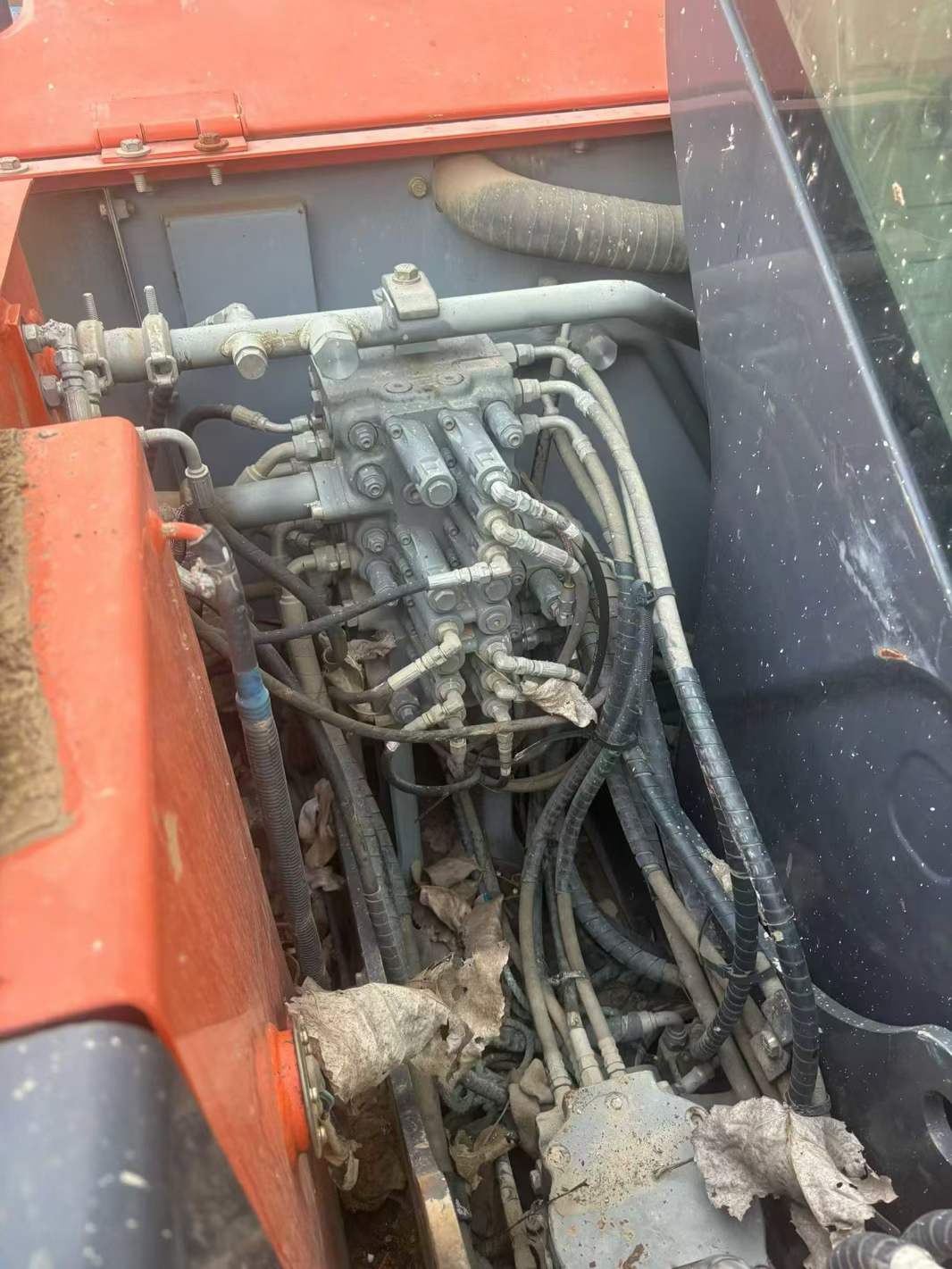

Used Hitachi ZX60-5A Excavator 2019 Model / 9

Product Description

There is currently a second-hand Hitachi ZX60-5A excavator produced in 2019, which is a local first-hand vehicle source. It is in good condition and has a working time of approximately 3,000 hours. This device is equipped with the highly efficient and reliable Yanmar 4TNV98 engine, with a power output of up to 40.5 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, advanced negative flow control technology hydraulic pumps and high-performance hydraulic motors are adopted, which not only enhance operational efficiency but also reduce energy consumption, making the operation smoother and more precise. The main advantage of this excavator lies in its outstanding working performance and durability. The compact design enables it to operate flexibly even in narrow Spaces. The spacious and comfortable cab, combined with ergonomic seats, effectively reduces the driver's fatigue from long hours of work. In addition, the all-round vision design has greatly enhanced the safety of the construction site. In addition, this Hitachi ZX60-5A is also equipped with features that are easy to maintain and service, such as detachable heat sinks and other components, which facilitate daily inspection and cl

SpecificationsValue
No.977430
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.24
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type4TNV98
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)236/1350
Number of cylinders (PCS)4
Displacement (L)3.318
Working form4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)31
Rotation speed (rpm)9.1
Climbing ability (%)70% (35°)
Bucket digging force (kN)41.4
Rod digging force (kN)28.4
Maximum tractive force (kN)38.5
Travel speed (km/h)0-4.5/0-2.5 High/low
Turning torque (Nm)10
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Maximum flow of main pump (l/min)2 x 52.5
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)17.6
Main pump type3 variable axial piston pumps
Working Hydraulic Circuit (Mpa)24.5
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)9.5
Bucket cylinders - Number × diameter × stroke (mm)1 x 80 x 50
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 85 x 55
Boom cylinders - Number × diameter × stroke (mm)1 x 105 x 60
Fuel Tank (L)120
Hydraulic Tank (L)60
Engine Oil changes (L)12.3
Coolant (L)8
Hydraulic System (L)93
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2085
Full cab height (mm)2475
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Onboard width (mm)2060
Track gauge (mm)1600
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)5800
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)3440
Bulldozer lift or depth (mm)430 x 400
Dodging plate width × height (mm)2000 x 400
Maximum excavation radius of stop surface (mm)6130
see more

Overview

No.977430

Brand Name:

Hitachi

Model Number:

ZX60-5A

Year:

2019

Location:

Anhui China
