| Specifications | Value |
|---|---|
| No. | 964125 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
Description

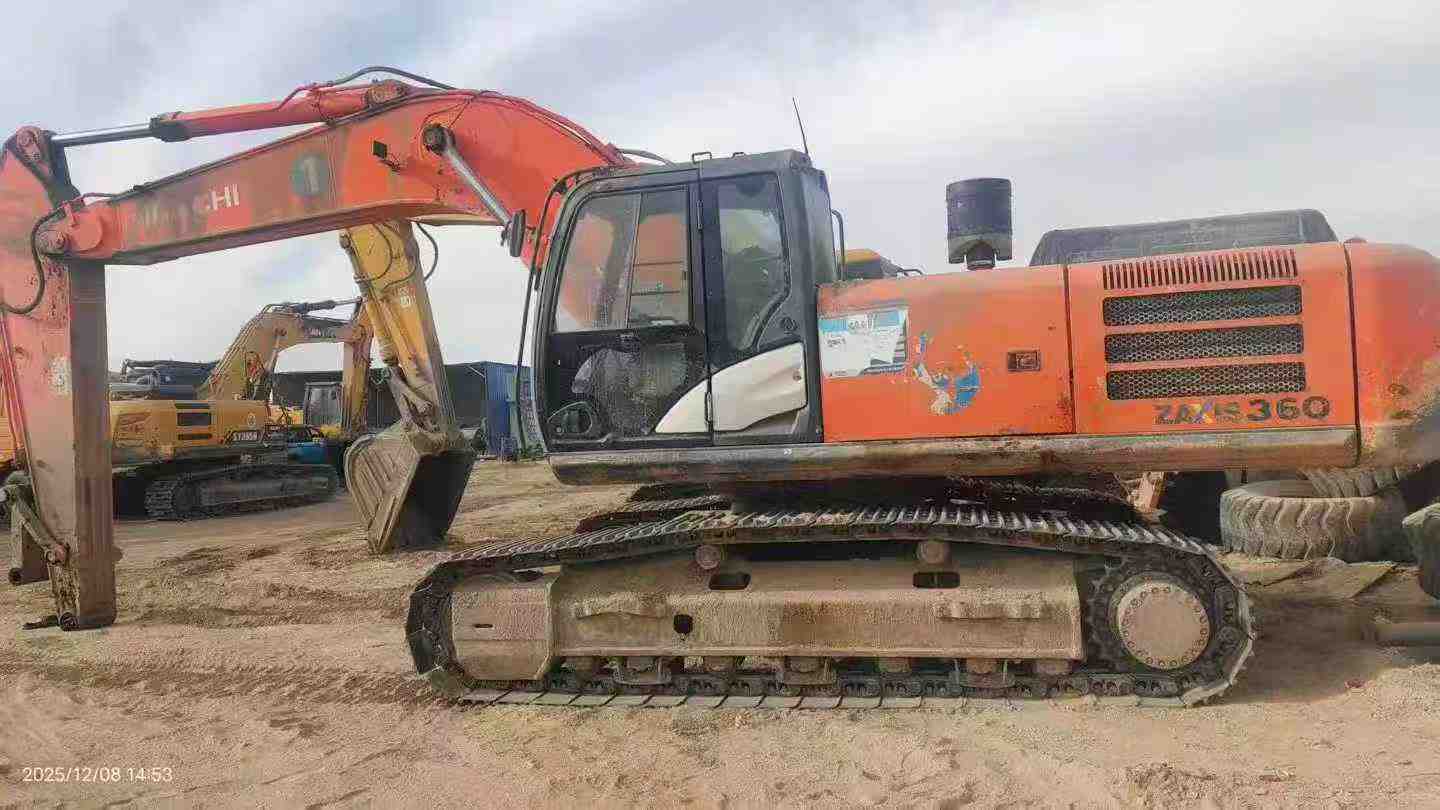

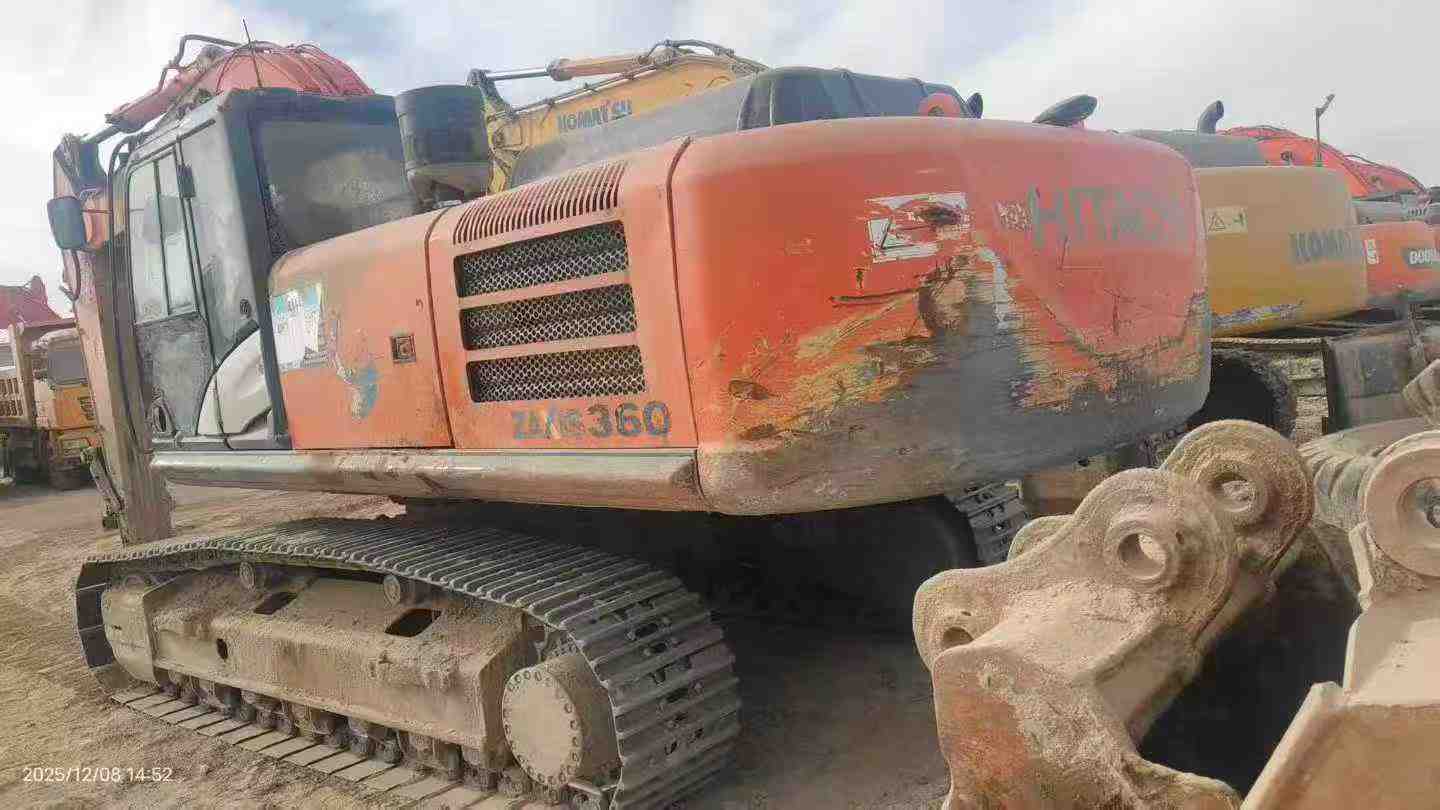

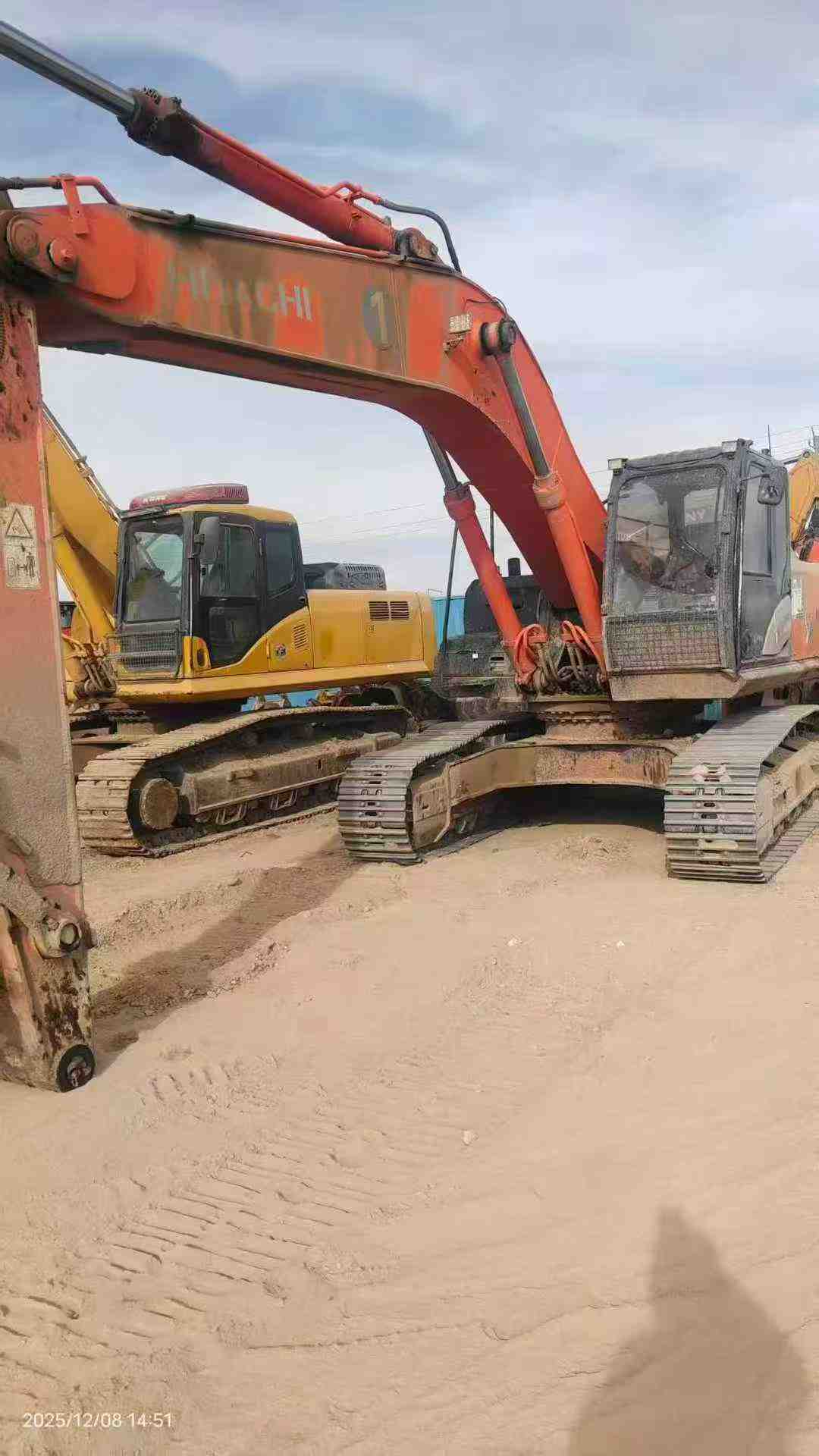

【 Premium Recommendation 】 Second-hand Hitachi 360-5G excavator from 2014, complete information, Outstanding performance! This 2014 Hitachi 360-5G excavator is one of the most popular models in the market. It not only has complete original data and maintenance records, but also has undergone strict testing and maintenance to ensure that what you purchase is a device in excellent condition and reliable performance. The working time of this machine is approximately 8,000 hours. For a medium-sized excavator, this usage period is in its prime, ensuring that the mechanical components have passed the running-in period without reaching a state of excessive wear. The power system is equipped with a high-performance engine imported from Hitachi, which features strong power output and smooth operation performance. It can maintain efficient operation even under harsh working conditions. In addition, its fuel economy is also quite excellent, which can effectively reduce operating costs. In terms of the hydraulic system, this machine is equipped with advanced negative flow control technology, which makes operation more flexible and precise, and significantly improves work efficiency. Whether it is tasks such as excavation, loading or crushing, t
