| Specifications | Value |
|---|---|
| No. | 967271 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

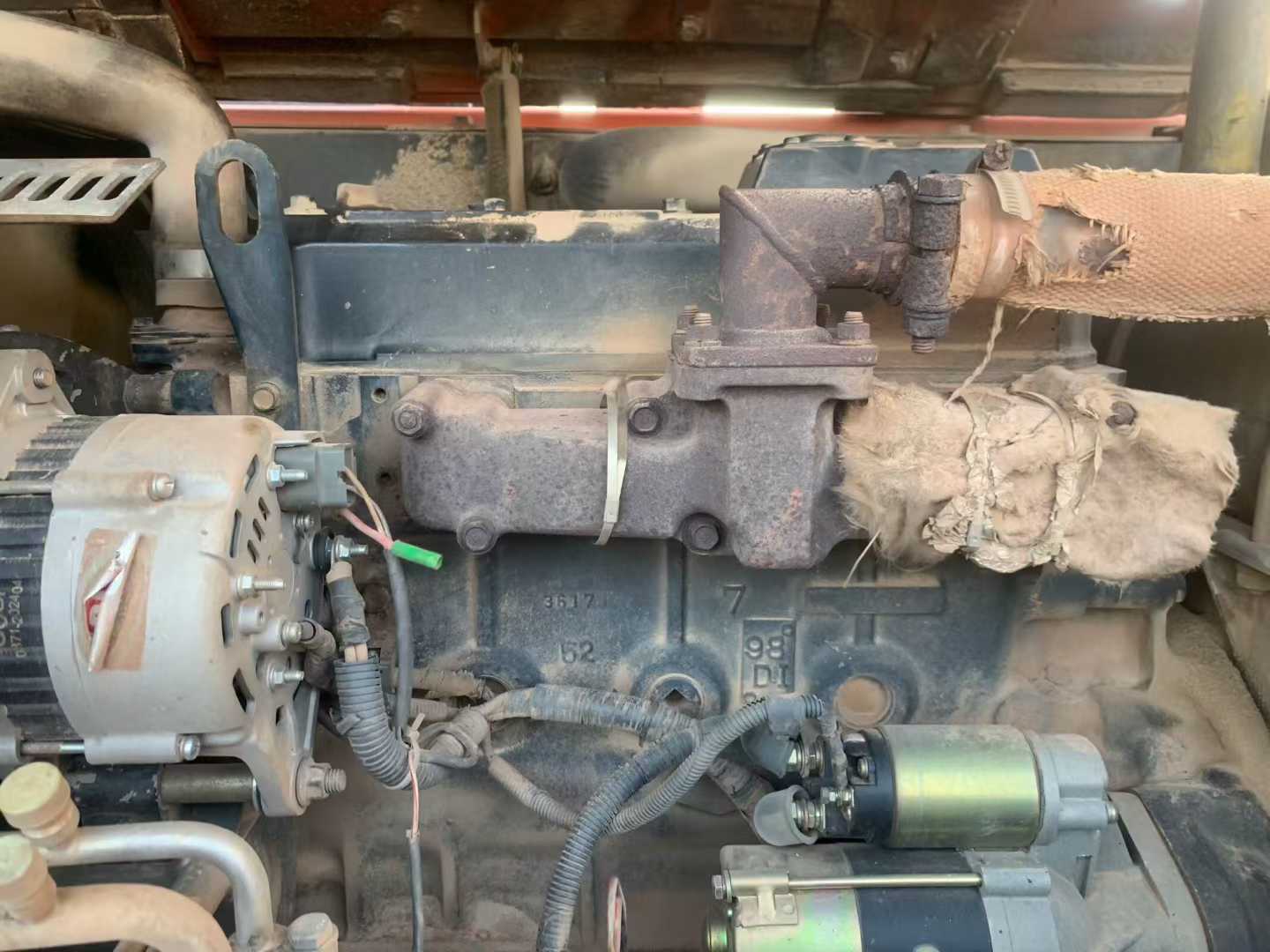

| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
Description

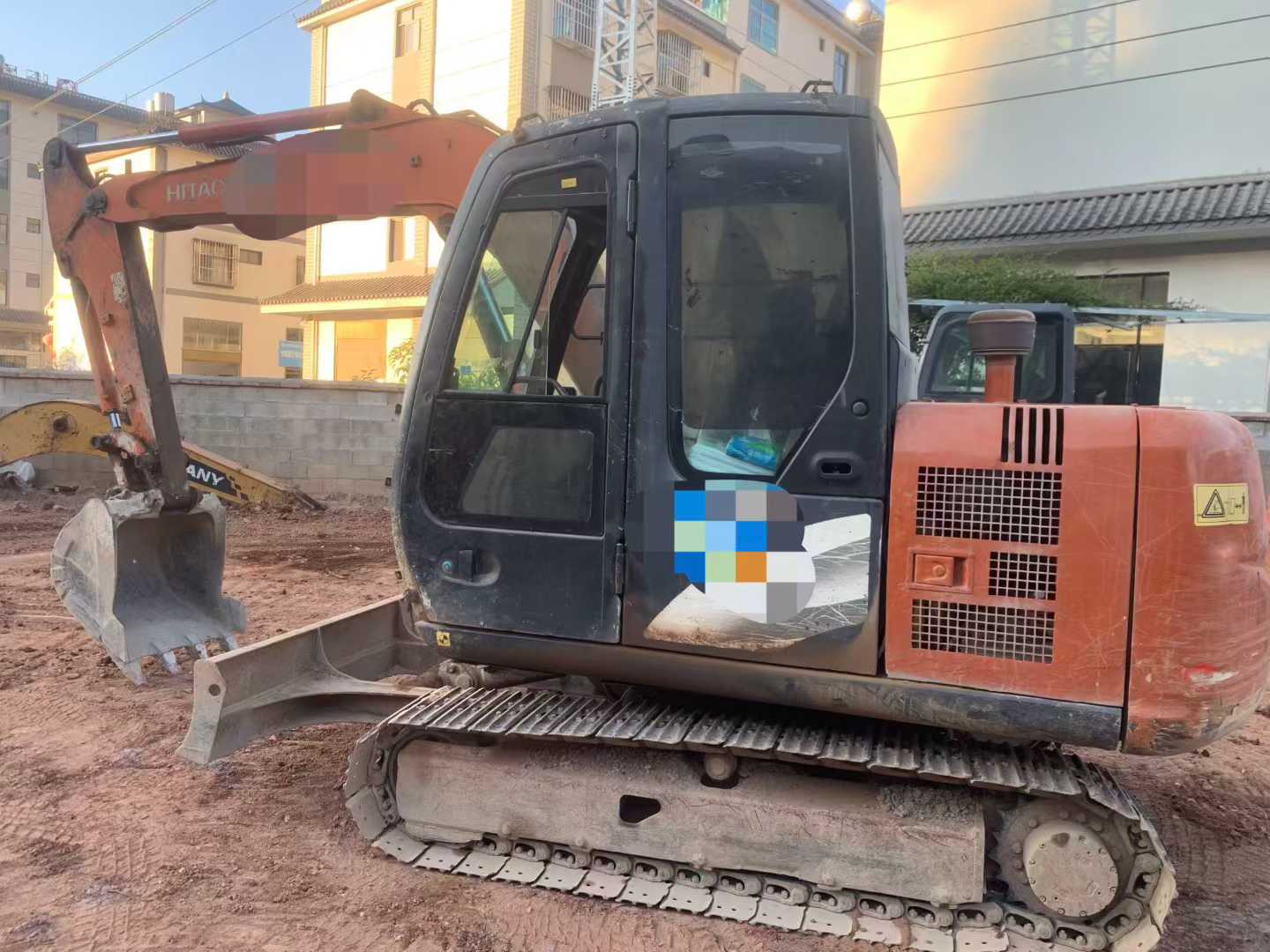

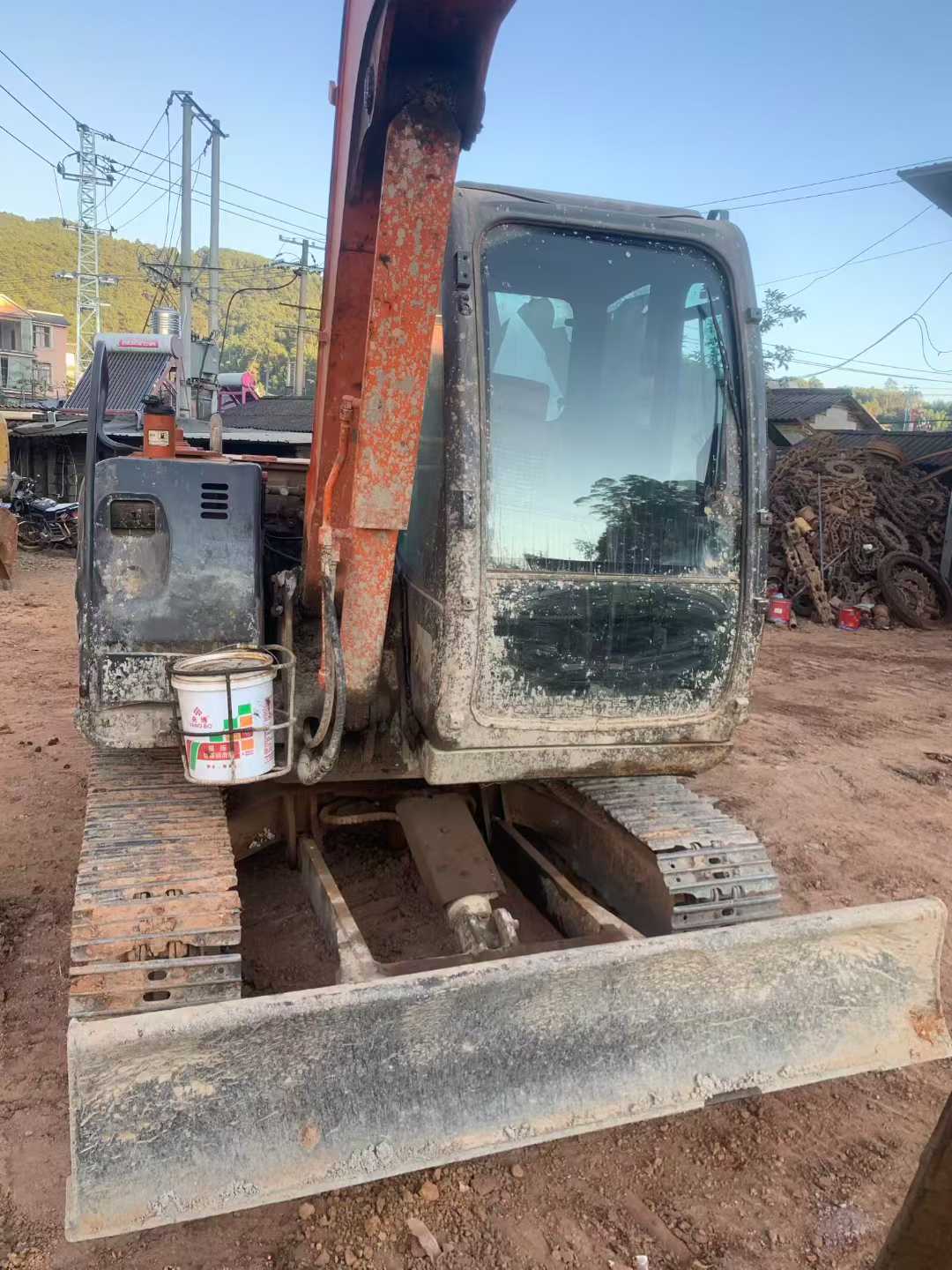

【 Product Name 】 Second-hand Hitachi ZX60-5G excavator from 2013 【 Basic Information This second-hand Hitachi ZX60-5G excavator from 2013 has only accumulated 3,800 hours of operation since its manufacture, which is far below the average service life of similar equipment. Its overall performance remains at a high level. Both its appearance and internal structure have been meticulously maintained, making it highly suitable for users who pursue cost-effectiveness and practicality. "Power System This machine is equipped with an original imported high-performance diesel engine from Hitachi, featuring strong power output and smooth operation characteristics. It can ensure efficient operation even in complex and harsh working environments, and at the same time, it has excellent fuel economy, significantly reducing daily operating costs. Regular maintenance records are complete to ensure that the engine is always in the best condition. "Hydraulic System Equipped with an advanced negative flow control hydraulic system, it responds quickly and operates flexibly, capable of achieving precise positioning and rapid excavation. This system also features excellent heat dissipation, effectively extending its service life and reducing the failure r
